Which Diamond Core Bit Will Maximize Your Mining and Geological Exploration Success?

Wondering how to choose the absolute best diamond core bit to ensure your mining or geological exploration project is a success?

Maximizing mining and geological exploration success requires selecting the optimal diamond core bit by carefully considering the main bit types (PDC¹, Impregnated), matching them to specific geological conditions (hardness, abrasiveness, structure), aligning with project goals (speed vs. core quality), ensuring compatibility with drill rig capabilities, evaluating true cost-effectiveness (cost per meter²), and applying correct operating parameters.

What Are the Main Diamond Bit Types Used in Exploration Drilling?

So, when you need to drill deep into the earth for exploration, what kinds of special diamond tools actually do the cutting?

Exploration drilling primarily relies on two main types of diamond core bits: Polycrystalline Diamond Compact (PDC) bits, known for speed in softer to medium-hard rock, and Impregnated/Sintered diamond bits, valued for durability in hard, abrasive formations. Niche applications might also utilize Electroplated or Surface-Set bits for specific conditions.

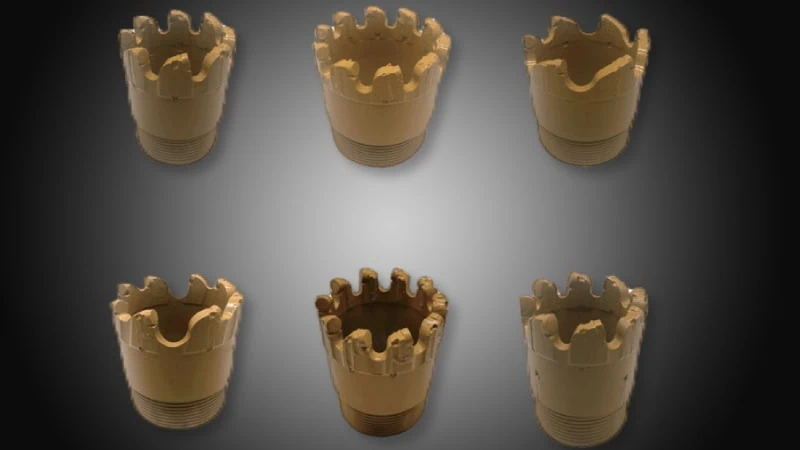

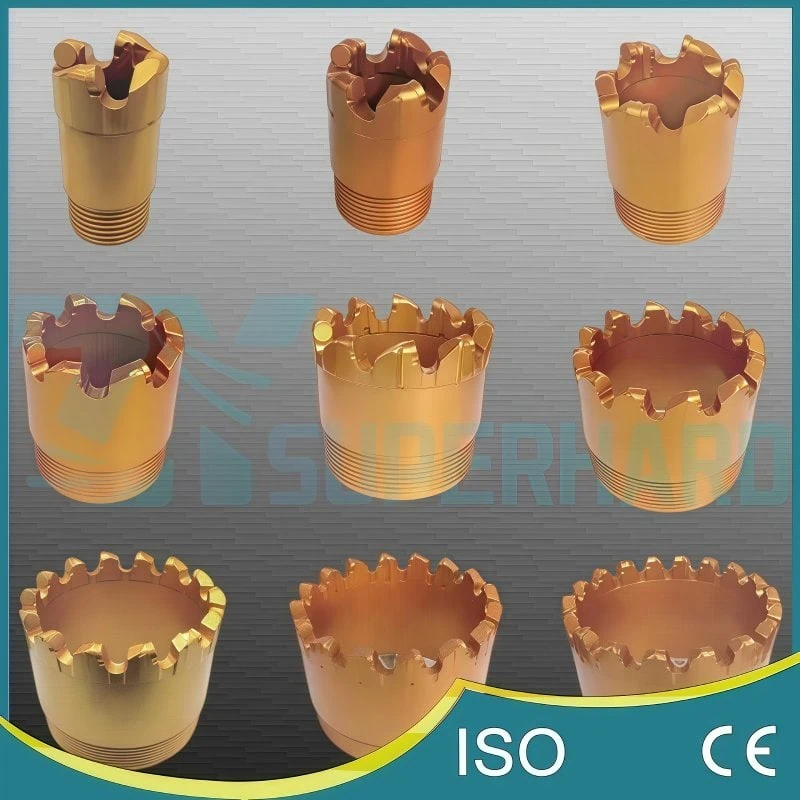

Understanding PDC (Polycrystalline Diamond Compact) Bits: Speed and Application

Imagine needing to cut through rock quickly. That’s where PDC (Polycrystalline Diamond Compact) bits often come in. But what makes them special?

PDC bits don’t look like typical drill bits. Instead of lots of tiny diamonds mixed into metal, they have larger, synthetic diamond cutters attached to the front. Think of these cutters like extremely sharp, durable chisels or scrapers specifically designed for rock.

How PDC Bits Work

These PDC cutters work mainly by shearing the rock. As the drill bit turns, the sharp edges of the PDC cutters dig in and shave or plow the rock away efficiently. This shearing action is very effective and allows for much faster drilling compared to grinding, but only in the right kinds of rock.

Common Applications

Because they cut by shearing, PDC bits excel in softer to medium-hard rock formations that are relatively uniform and non-abrasive. You’ll often find them used effectively in:

• Coal exploration
• Shale gas drilling
• Softer sedimentary rock layers
• Some geotechnical investigations

They are generally chosen when drilling speed (Rate of Penetration or ROP) is a major goal, and the rock type allows for efficient shearing without quickly damaging the cutters. Trying to use a PDC bit in extremely hard or very broken, abrasive rock (like some granites or quartzite) can lead to rapid wear or damage to the cutters.

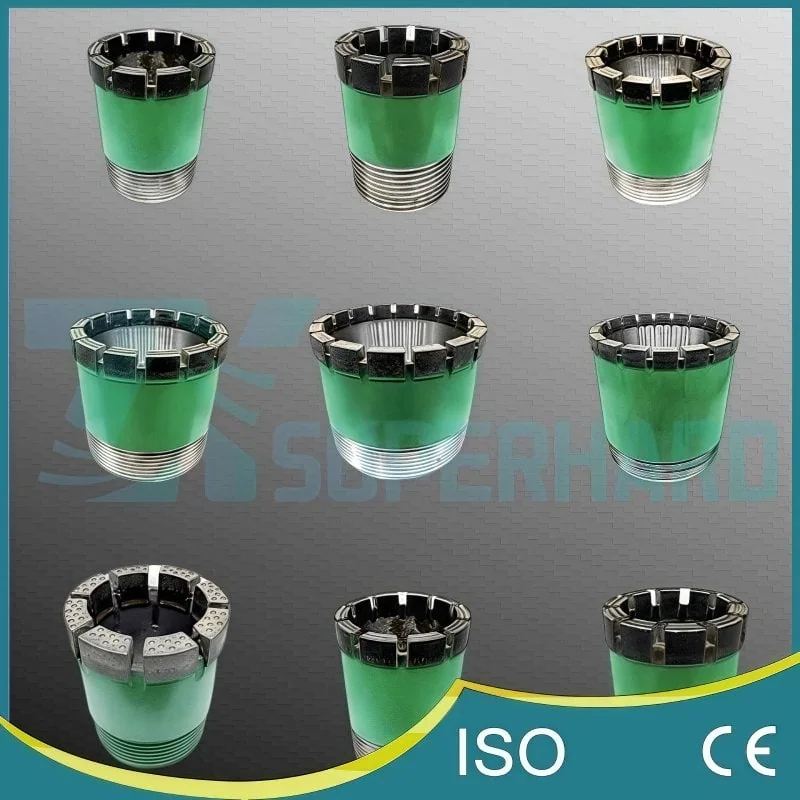

Exploring Impregnated/Sintered Diamond Bits: Durability in Hard Rock (Incl. Specialized Crowns)

Now, what if the rock is incredibly hard or abrasive, like granite? Shearing it won’t work well. This is where impregnated diamond bits shine.

These bits work on a completely different principle: grinding. Tiny, industrial-grade diamond particles are mixed throughout a metal powder (called a matrix). This mixture is then heated and pressed (sintered³) to form hard segments that are attached to the bit’s cutting face, like in a Hot Press Diamond Core Drill Bit⁴.

The Grinding Mechanism

Think of these segments like very tough, specialized sandpaper. As the bit rotates, the exposed diamond particles grind the hard rock into fine dust. As the diamonds on the surface become dull and the metal matrix slowly wears away, new, sharp diamond particles are continuously exposed underneath. This self-sharpening process allows the bit to keep cutting even in the most challenging formations.

Why They Excel in Hard Rock

This grinding action makes impregnated bits the go-to choice for:

• Hard and very hard rock (e.g., granite, quartzite, basalt)
• Abrasive formations that would quickly wear down PDC cutters
• Broken or variable ground where impact resistance is needed
• Situations where bit durability and long life are critical

The matrix hardness is a key factor here. Softer matrices wear faster, exposing new diamonds quicker (good for very hard, non-abrasive rock), while harder matrices resist wear better (good for softer, more abrasive rock). It’s crucial to note that the specific matrix hardness or grade needed can vary significantly depending on the exact rock type and drilling conditions; always consult supplier recommendations for the best match.

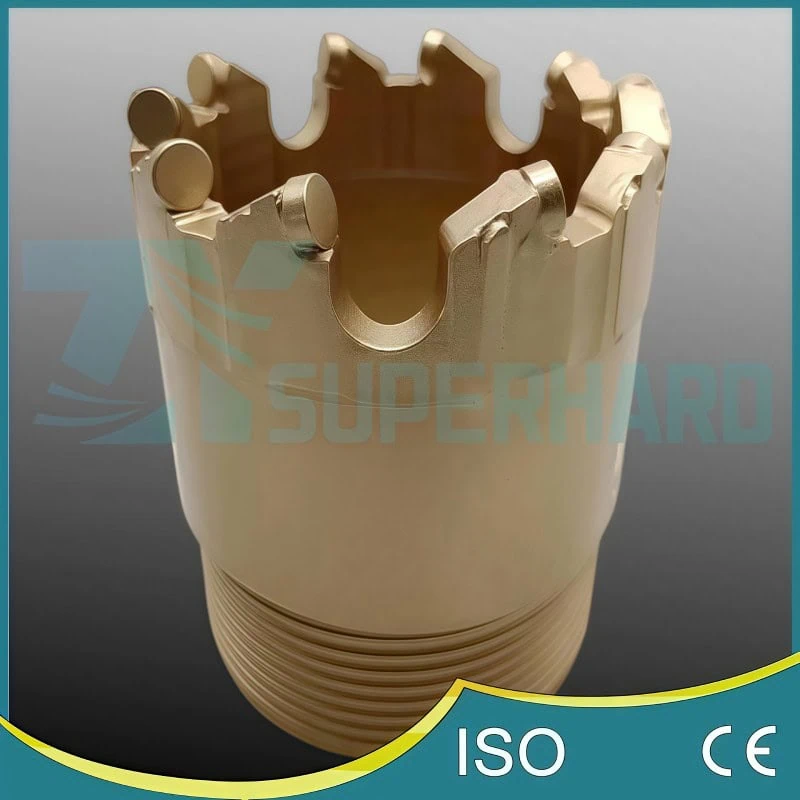

Specialized Designs (e.g., Crown Shape)

You might also see impregnated bits with unique segment shapes, like the Crown Shape⁵. These specialized geometries are designed to improve performance in specific situations, perhaps by enhancing flushing (clearing away the rock dust), increasing stability in fractured ground, or optimizing the cutting action for certain rock types. The core principle remains grinding via impregnated diamonds.

Niche Applications: When to Consider Electroplated or Surface-Set Bits

While PDC and Impregnated bits cover most exploration needs, two other types appear in specific situations:

• Electroplated Diamond Bits⁶: These have a single layer of diamonds held onto the bit body by a layer of metal (usually nickel plating). They cut quickly initially but have a much shorter lifespan because there are no underlying diamonds to expose once the top layer wears out.
  • Use Case: Sometimes used for very soft formations, or in specialized sampling where minimizing contamination from a wearing matrix is important. They are less common in deep mineral exploration compared to impregnated or PDC bits.
• Surface-Set Diamond Bits: These bits have larger, natural or synthetic diamonds individually set into the face of the bit crown. They work by ploughing or scraping, somewhat like PDC bits but with larger, fewer cutting points.
  • Use Case: Traditionally used in softer, broken, or non-abrasive formations where the larger diamonds can achieve reasonable penetration without the complexity of impregnated segments. Their use has become less common with the advancements in PDC and impregnated bit technology.

These types are generally reserved for specialized or less demanding conditions where the primary workhorses (PDC and Impregnated) might not be the most cost-effective or technically suitable choice.

Quick Comparison: Matching Bit Technology to Your Exploration Needs

Choosing the right bit technology boils down to understanding the trade-offs based primarily on the ground conditions you expect to encounter. Here’s a simplified comparison:

Remember: This table provides general guidelines. The “best” bit always depends on a detailed analysis of the specific geological formations, the drilling equipment available, and the overall project objectives, which we’ll explore in the next sections.

How Do Geological Conditions Dictate Your Bit Selection Strategy?

When choosing a diamond bit, how much does the actual rock you plan to drill through really matter?

Geological conditions are arguably the most critical factor in diamond core bit selection. Key properties like rock hardness, abrasiveness, and whether the formation is solid (consolidated) or broken (fractured) directly determine which bit type (PDC or Impregnated) and specific design features (like matrix hardness) will perform effectively and efficiently.

Assessing Key Ground Properties: Hardness, Abrasiveness, and Formation Type

Before you even think about drilling speed or cost, you must understand the ground itself. It’s like choosing the right tool for cutting wood – you wouldn’t use the same saw blade for soft pine and hard oak, right? Similarly, different rocks demand different bits.

Rock Hardness

Hardness refers to how resistant the rock is to scratching or indentation. Geologists sometimes use the Mohs scale⁷ (from 1 Talc to 10 Diamond) to compare minerals.

• Softer to Medium-Hard Rock (e.g., Shale, Limestone, Sandstone – roughly Mohs 3-6): These rocks can often be efficiently cut by the shearing action of PDC bits. The cutters can penetrate and shave the rock relatively easily.
• Hard to Very Hard Rock (e.g., Granite, Quartzite, Basalt – roughly Mohs 6+): These rocks resist shearing. Trying to force a PDC bit can damage it quickly. Here, the grinding action of Impregnated diamond bits is necessary. The tiny, hard diamonds wear away the rock slowly but surely.

Rock Abrasiveness

Abrasiveness⁸ relates to how quickly the rock wears down the bit material – think of it like sandpaper. A rock might not be extremely hard, but if it contains lots of abrasive minerals (like quartz grains), it can destroy a bit rapidly.

• High Abrasiveness (e.g., Sandstone, abrasive Quartzite): This wears down the matrix of impregnated bits quickly. It also rapidly dulls the cutters on PDC bits. For impregnated bits, a harder matrix might be needed to resist this wear and hold onto the diamonds longer. For PDC bits, high abrasiveness often makes them uneconomical.
• Low Abrasiveness (e.g., some Limestones, non-quartz bearing rocks): Less wear on the bit. For impregnated bits in hard, non-abrasive rock, a softer matrix might be chosen to ensure new diamonds are exposed efficiently.

Formation Type

This describes the overall structure of the rock mass.

• Consolidated/Solid: The rock is mostly uniform and stable. This generally allows for smoother drilling and more predictable bit performance.
• Fractured/Broken: The rock is full of cracks, joints, or layers. This can cause vibrations, lead to bit instability, and potentially damage PDC cutters or cause impregnated bits to wear unevenly. Specialized bit designs (like certain crown shapes or specific matrix types) might be needed.

Understanding these three properties – hardness, abrasiveness, and formation type – forms the foundation of your bit selection strategy.

Drilling Challenges: Tackling Fractured vs. Consolidated Ground

Drilling through solid, uniform rock is usually straightforward. The real challenge often lies in ground that isn’t perfect. How does the rock’s structure affect your bit choice?

• Consolidated Ground: In stable, solid rock, bit choice focuses primarily on matching the hardness and abrasiveness. Both PDC (if soft/medium) and Impregnated (if hard) bits can perform well with standard designs.
• Fractured or Variable Ground: This presents several problems:
  • Vibration: Broken ground can cause the drill string and bit to vibrate heavily, potentially damaging PDC cutters or leading to premature failure of impregnated bit segments.
  • Instability: The bit might wander or get deflected by cracks or different layers.
  • Uneven Wear: Bits might wear unevenly if parts of the cutting face encounter different conditions.
  • Flushing Issues: Clearing rock cuttings can be harder in fractured zones.
  In these conditions, impregnated bits are generally more robust due to their solid segments and grinding action. Specialized designs, sometimes called “fractured formation” bits or specific crown profiles on impregnated bits, might offer better stability and resistance to impact damage compared to standard designs. PDC bits are often less suitable for heavily fractured or blocky ground. Experienced drillers know that variable ground often requires slower, more controlled drilling parameters as well.

The Matrix/Grade Factor: Pairing the Bit Bond to the Rock

For impregnated diamond bits, one of the most crucial selection details is the matrix hardness (often referred to by a series or grade number). Remember, the matrix is the metal part holding the diamonds. It needs to wear away at just the right rate to expose new diamonds as the old ones get dull.

Think of it like this:

• Drilling Very Hard, Non-Abrasive Rock (e.g., fine-grained Granite): The rock doesn’t wear the matrix down easily. You need a softer matrix that wears away relatively quickly, ensuring fresh, sharp diamonds are always working. If the matrix is too hard, the diamonds will dull, and the bit will stop cutting effectively (this is called “glazing”).
• Drilling Softer, Highly Abrasive Rock (e.g., gritty Sandstone): The rock acts like sandpaper, rapidly wearing down the matrix. You need a harder matrix to resist this abrasion and hold onto the diamonds longer, preventing them from being stripped out too soon. If the matrix is too soft, the bit will wear out extremely quickly.

Selecting the correct matrix hardness is a balance. Crucially, matrix hardness grades and series designations are not standardized across all manufacturers. A “hard” matrix from one supplier might perform differently than a “hard” matrix from another. Therefore, it is essential to consult the manufacturer’s selection charts and recommendations based on the specific rock types you anticipate drilling. Discussing your ground conditions with the supplier is often the best way to ensure you get the optimal matrix.

Predicting Bit Wear Based on Ground Conditions

Understanding the geology doesn’t just help you choose the bit; it also helps you predict how it will perform and wear.

• Hardness Impact: Harder rock generally means slower drilling (lower ROP) and requires bits designed for durability (impregnated). Bit life is often measured in meters drilled, and harder rock typically yields fewer meters per bit compared to softer rock (all else being equal).
• Abrasiveness Impact: Highly abrasive rock dramatically increases the wear rate on both the matrix of impregnated bits and the cutters of PDC bits. This means shorter bit life and potentially higher costs per meter drilled. Selecting the right matrix hardness (for impregnated) or determining if PDC is even viable is critical.
• Formation Structure Impact: Drilling in fractured or inconsistent ground often leads to more unpredictable and potentially accelerated wear due to vibration, impact, and uneven loading. It might require more frequent bit changes or slower drilling to manage wear.

By carefully assessing the geological conditions before drilling starts, you can make a much more informed decision about the right bit type and design, leading to more efficient drilling, better sample recovery, and ultimately, a more successful exploration program.

Does Drilling Speed (ROP) or Core Quality Define Your Project Goal?

Okay, you understand the different bits and how the ground affects them. But does it matter more how fast you drill, or how good the rock sample is that you recover?

Yes, your primary project goal—whether it’s maximizing drilling speed (Rate of Penetration, ROP) or obtaining the highest quality, most intact core sample—significantly influences the type and design of the diamond core bit you should choose. Often, designs that favor speed may compromise core quality, and vice-versa.

Selecting Bits Designed for Maximum Rate of Penetration (ROP)

Sometimes, the main objective is simply to drill holes as quickly as possible. Maybe you’re doing initial reconnaissance drilling over a large area, or perhaps the geological information needed doesn’t require a perfect core sample. This focus on speed is known as maximizing the Rate of Penetration (ROP).

When is High ROP the Priority?

• Reconnaissance Drilling: Quickly assessing geology over wide areas.
• Bulk Sampling: Where the sheer volume of material matters more than its precise structure.
• Shallow Hole Programs: Drilling many relatively shallow holes where overall project time is critical.
• Softer Ground Conditions: Drilling through formations where high speeds are achievable without excessive bit wear.

Bit Characteristics for High ROP

Achieving high ROP typically involves bit designs that cut aggressively and clear the cuttings efficiently.

• PDC Bits (in suitable ground): As discussed earlier, the shearing action of PDC bits naturally leads to faster penetration in soft to medium-hard, non-abrasive rock. Their design is inherently focused on speed where applicable.
• Aggressive Impregnated Bits: In harder rock where PDC isn’t viable, certain impregnated bit designs prioritize speed. This might involve:
  • More aggressive segment shapes or profiles.
  • Optimized waterway designs for faster flushing of cuttings.
  • Potentially softer matrix specifications (if hardness allows) to ensure sharp diamonds are always exposed, though this can sometimes reduce bit life.

Choosing a bit purely for ROP might mean accepting a less perfect core sample. The aggressive cutting action can sometimes fracture or disturb the core.

Prioritizing Core Recovery: Bits for High-Quality, Intact Samples

In many exploration projects, especially mineral exploration and geotechnical investigations⁹, the quality of the core sample is paramount. Geologists need complete, clean, and structurally intact cores to accurately understand the rock’s composition, structure (like faults or veins), and engineering properties. Why is this so important? Because critical decisions, like estimating mineral resources worth millions or designing safe foundations, rely on this data.

When is Core Quality the Top Priority?

• Mineral Resource Definition: Accurately mapping ore bodies and grades requires representative samples.
• Structural Geology: Understanding faults, folds, and rock fabric needs intact core.
• Geotechnical Engineering: Testing rock strength and properties requires undisturbed samples.
• Difficult Ground Conditions: Drilling in very fractured or delicate formations where preserving whatever core is recovered is crucial.

Bit Characteristics for High Core Quality

Bits designed to maximize core quality focus on smooth cutting and minimizing disturbance to the rock sample being cut.

• Stable Impregnated Bits: Impregnated bits, with their grinding action, generally produce less vibration and disturbance than the aggressive shearing of PDC bits, making them inherently better suited for quality core recovery in many conditions, especially hard rock.
• Specific Bit Profiles: Some impregnated bits feature less aggressive profiles, wider kerfs (the width of the cut), or specific waterway designs intended to stabilize the core as it enters the barrel and reduce flushing pressure directly on the core.
• Thinner Kerf Designs (in some cases): While counter-intuitive, sometimes thinner kerf bits are used in stable ground to minimize the energy required and reduce potential core disturbance, though they can be less robust.
• Focus on Smooth Operation: Achieving high core quality often involves not just the bit, but also using drilling parameters (like lower weight on bit and controlled RPM, discussed later) that promote smooth cutting.

Prioritizing core quality usually means accepting a slower ROP compared to a purely speed-focused approach.

Finding the Sweet Spot: Balancing Drilling Speed and Sample Integrity

In the real world, few projects are purely about maximum speed or perfect core quality. Most exploration programs need to find a practical balance between the two. You need good enough core samples to make reliable decisions, but you also need to complete the drilling program efficiently and within budget. Is it possible to have both?

This involves careful consideration of all factors:

• Geological Conditions: Understanding the rock (as discussed in the previous section) is fundamental. You can’t achieve high ROP with a PDC bit in hard granite, nor can you expect perfect core with any bit in extremely broken ground.
• Project Phase: Early-stage exploration might tolerate lower core quality for faster coverage, while later-stage resource definition demands higher quality.
• Bit Selection Compromises: Sometimes, a bit design represents a compromise – perhaps an impregnated bit with a slightly more aggressive profile than a pure core-quality bit, aiming for acceptable core with better-than-average ROP in hard rock.
• Drilling Parameters: Experienced drillers can significantly influence the outcome by adjusting weight on bit (WOB), rotation speed (RPM), and fluid flow (flushing). Applying the right parameters (covered next) is crucial for balancing speed and quality with any given bit. For example, slightly reducing WOB might improve core quality with only a minor reduction in ROP in some cases.

Ultimately, finding the right balance requires clear communication between geologists (who define the required sample quality) and the drilling team (who understand the capabilities of the bits and equipment). It involves selecting a bit technology and design that is fundamentally suited to the ground conditions, and then fine-tuning the approach based on whether the immediate priority leans more towards getting the job done quickly or ensuring the recovered sample tells the most accurate geological story.

What Practical Factors Finalize Your Bit Choice?

Beyond the rock type and project goals, what real-world limits and considerations help you make the final decision on the best diamond bit?

Beyond geology and objectives, practical factors critically influence the final bit selection. These include ensuring the chosen bit is compatible with the drill rig’s capabilities (like rotation speed, torque, and fluid flow), evaluating the true drilling cost based on performance (cost per meter/foot) rather than just initial price, and considering the required bit lifespan relative to the project’s scale.

Aligning Bit Selection with Drill Rig Capabilities (RPM, Torque, Flow Rate)

You might identify the theoretically “perfect” bit for the ground conditions, but can your drill rig actually run it effectively? A drill rig is like a car engine – it has limits on speed and power. Trying to use a bit that requires more power or a different speed than the rig can provide leads to poor performance and potential damage.

Key Rig Specifications Matter

• Rotational Speed (RPM – Revolutions Per Minute): Different diamond bits are designed to operate most efficiently within specific RPM ranges. For example, PDC bits often require different speeds than impregnated bits. Using the wrong RPM can cause premature wear, bit damage (like burning impregnated bits), or slow penetration. Your rig must be capable of consistently delivering the RPM needed for the chosen bit type and size.
• Torque (Twisting Force): Torque is the rotational power needed to turn the bit against the resistance of the rock. Larger diameter bits, or bits drilling in tougher conditions, generally require more torque. If the rig doesn’t have enough torque, it might stall or be unable to maintain consistent rotation, hindering progress. Conversely, excessive torque can damage the drill string or the bit itself.
• Flow Rate & Pressure (Flushing): Diamond drilling relies on drilling fluid (water or mud) pumped down through the drill string and out the bit face. This fluid cools the bit and, crucially, flushes the rock cuttings away from the cutting face and up out of the hole. Each bit design has an optimal flow rate requirement for effective cooling and cleaning. The rig’s pump must be able to supply sufficient fluid volume and pressure, especially for larger diameter bits or deeper holes. Inadequate flushing can lead to overheating, premature bit wear, and stuck drill strings.

Before finalizing a bit selection, always compare the bit manufacturer’s recommended operating parameters (RPM, torque ranges, flow rates) with your drill rig’s specifications. Remember that recommended ranges can vary between suppliers and specific bit designs, so verification is essential. Choosing a bit your rig can’t properly support is inefficient and potentially costly.

Evaluating the True Cost: Initial Price vs. Meterage Performance

It’s tempting to choose the cheapest diamond bit available, but is that always the most economical decision? Experienced project managers know that the initial purchase price is only part of the story. The real measure of cost-effectiveness is the cost per unit drilled (e.g., cost per meter or cost per foot).

Calculating Cost per Meter/Foot

This simple calculation reveals the true drilling cost:
Cost per Meter (or Foot) = Total Bit Price / Total Meters (or Feet) Drilled by that Bit

Why Performance Matters More Than Price Tag

Consider this example:

• Bit A: Costs $500. Drills effectively for 100 meters in a specific rock type.
  • Cost per meter = $500 / 100m = $5.00/meter
• Bit B: Costs $800 (seems more expensive). Drills effectively for 200 meters in the same rock type.
  • Cost per meter = $800 / 200m = $4.00/meter

In this scenario, Bit B is actually more economical because its longer life and better performance result in a lower overall cost for each meter drilled. This calculation doesn’t even include the potential savings from reduced “trip time” – the time spent pulling the drill string out of the hole and putting it back in just to change a worn-out bit, which can be significant in deep holes.

Therefore, when evaluating bits, focus on the expected meterage (total distance drilled) or lifespan in your specific conditions relative to the price. A slightly more expensive bit that lasts significantly longer or drills much faster (reducing overall rig time costs) is often the better financial choice.

Lifespan Considerations for Different Project Scales

Finally, the scale and duration of your drilling project also play a role.

• Short-Term or Small-Scale Projects: For projects involving only a few shallow holes, maximizing the absolute lifespan of a single bit might be less critical than initial cost or achieving a specific short-term objective. You might choose a bit adequate for the task, even if it’s not the longest-lasting option overall.
• Long-Term or Large-Scale Projects: In extensive drilling campaigns involving deep holes or many locations, bit lifespan and consistent performance become crucial. Minimizing trip time for bit changes saves significant operational costs. Here, investing in higher quality, durable bits designed for longevity (like premium impregnated bits for hard rock) often provides substantial savings over the project’s duration. The focus shifts towards reliability and maximizing meters drilled per bit to maintain drilling momentum.

Considering the project scale helps you weigh the importance of initial cost versus long-term performance and durability when making that final bit selection. It ensures your choice aligns not just with the geology and immediate goals, but also with the overall operational context of the exploration program.

How Can You Optimize Bit Performance and Longevity On-Site?

You’ve chosen the right bit based on geology, project goals, and your rig. How do you make sure it performs its best and lasts as long as possible once drilling starts?

Optimizing diamond bit performance and lifespan hinges on using the correct drilling parameters (like weight, rotation speed, and flushing), implementing consistent bit handling and maintenance routines, and quickly recognizing and troubleshooting common drilling problems as they arise on-site.

The Critical Role of Correct Drilling Parameters (WOB, RPM, Flushing)

Think of operating a drill rig like driving a high-performance vehicle; you need to use the controls correctly to get the best results without causing damage. The main controls for diamond drilling are the drilling parameters. Getting them right is perhaps the single most important factor in day-to-day bit performance and life, while getting them wrong can destroy even the best bit very quickly.

Weight on Bit (WOB)

This is the downward force applied to the bit, often referred to as Weight on Bit (WOB).

• Too Little WOB: The bit may not engage the rock properly. Impregnated bits might polish the rock instead of cutting (called glazing), and PDC bits won’t penetrate effectively.
• Too Much WOB: Can overload the bit, leading to excessive heat, segment damage (impregnated), cutter breakage (PDC), or even stalling the drill rig. It can also cause the hole to deviate.

Rotation Speed (RPM)

This is how fast the bit spins.

• Too Slow RPM: Drilling progress will be slow (low ROP). For impregnated bits, it might contribute to glazing if WOB is also low.
• Too Fast RPM: Can generate excessive heat, leading to burning of impregnated bit matrices (often seen as blue discoloration) or premature wear/damage to PDC cutters. It can also cause vibrations and potentially damage the core sample.

Flushing (Fluid Flow Rate & Pressure)

This involves pumping drilling fluid (usually water or mud) through the bit.

• Insufficient Flushing: Rock cuttings aren’t removed efficiently from the bit face. This causes the bit to regrind cuttings (inefficient), generates excess heat (leading to burning), increases torque, and can cause the bit or drill string to get stuck (core blocking).
• Excessive Flushing: While less common to damage the bit itself, very high pressure could potentially erode the core sample in certain delicate formations. The main issue is usually ensuring enough flow.

Finding the optimal balance of WOB, RPM, and Flushing is crucial. These parameters are highly interdependent and depend heavily on the specific bit type, bit size, ground conditions, and drill rig used. Bit manufacturers provide recommended starting parameters, but these are only guidelines. Experienced drillers constantly monitor feedback from the drill (sound, penetration rate, fluid return) and adjust parameters as needed. Always consult manufacturer specifications for recommended ranges and be prepared to adapt based on real-time conditions.

Best Practices for Bit Handling and Maintenance

Diamond core bits are precision tools and investments. Treating them with care extends their life and ensures they perform as expected.

Careful Handling

• Avoid Impacts: Never throw or drop diamond bits. Impacts can crack the diamond segments or PDC cutters, or dent the bit body, leading to poor performance or failure during drilling.
• Protect Threads: Keep the connection threads clean and undamaged. Damaged threads can make it difficult to attach the bit securely or even damage the drill string. Use thread protectors during transport and storage.
• Proper Storage: Store bits in a dry place, ideally in their original packaging or a protective case, to prevent rust and accidental damage.

Regular Inspection and Cleaning

• Inspect Before Use: Check for any visible damage like cracked/missing segments or cutters, dents, or excessive wear. Ensure waterways are clear.
• Clean After Use: Immediately after drilling, thoroughly rinse the bit with water to remove all cuttings and drilling mud from the segments, waterways, and inside the barrel. Use a soft brush if necessary.
• Dry Thoroughly: Dry the bit completely before storage to prevent corrosion.

Dressing Impregnated Bits (If Needed)

If an impregnated bit becomes glazed (stops cutting and looks polished), it sometimes needs “dressing¹⁰” to expose fresh diamonds. This usually involves briefly drilling into a softer, abrasive material (like a special dressing stick or sometimes designated softer rock). However, only do this if recommended by the bit manufacturer and follow their specific procedure, as improper dressing can damage the bit.

Consistent care might seem simple, but it significantly contributes to getting the maximum meters out of each bit.

Troubleshooting Common Issues: Avoiding Premature Bit Failure

Even with careful selection and operation, problems can occur. Recognizing the signs early and knowing potential causes can help prevent catastrophic bit failure and save time.

Here are some common issues:

Key Takeaway: Many premature bit failures are linked to using incorrect drilling parameters or failing to match the bit properly to the geological conditions and rig capabilities. By understanding these relationships, implementing good practices, and troubleshooting effectively, you can significantly improve drilling efficiency and maximize the return on your diamond bit investment.

Conclusion

Selecting the right diamond core bit for mining and geological exploration isn’t about finding a single “magic bullet.” Instead, achieving success requires a holistic approach. It involves understanding the different bit technologies available, thoroughly analyzing the geological challenges you’ll face, clearly defining your project’s primary objectives (speed vs. quality), respecting the practical limitations of your equipment and budget, and finally, applying sound operational practices on-site. By carefully considering each of these facets, from initial selection through to daily operation and maintenance, you significantly increase your chances of efficient drilling, high-quality data recovery, and overall project success.

References

1. PDC¹ – ZYDiamondTools product page showing examples of PDC coring bits used in drilling.
2. cost per meter² – ZYDiamondTools article explaining Total Cost of Ownership in the context of tooling.
3. sintered³ – ScienceDirect topic page explaining the sintering process in materials science.
4. Hot Press Diamond Core Drill Bit⁴ – ZYDiamondTools product example utilizing the sintering/hot press manufacturing method.

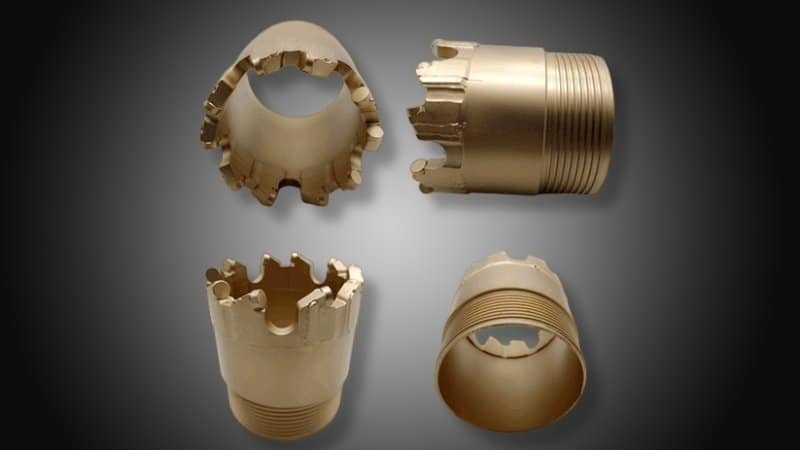

5. Crown Shape⁵ – ZYDiamondTools product page for a specialized crown shape core drilling bit.
6. Electroplated Diamond Bits⁶ – ZYDiamondTools product page for electroplated bits designed for mining/geological applications.
7. Mohs scale⁷ – National Park Service (US) article explaining the Mohs scale of mineral hardness.
8. Abrasiveness⁸ – Corrosionpedia definition of abrasion and abrasive wear.
9. geotechnical investigations⁹ – Wikipedia overview of geotechnical investigation processes and importance.
10. dressing¹⁰ – ZYDiamondTools guide on selecting and using dressing stones for diamond tools.
