PCD vs. CVD: Which Diamond Cutting Tool is Best for Your Machining Needs?

When it comes to high-performance cutting tools, how do you decide between PCD and CVD diamond for your specific machining needs?

Choosing between PCD (Polycrystalline Diamond) and CVD (Chemical Vapor Deposition) diamond tools depends heavily on your application. PCD generally offers superior toughness, making it ideal for machining non-ferrous metals and handling interrupted cuts, often with re-sharpening benefits for lower long-term costs. CVD provides exceptional hardness and sharpness, excelling in finishing operations and machining highly abrasive materials like composites and graphite, though it’s typically more brittle and usually cannot be reconditioned. Analyzing your material, operation, quality requirements, and budget is key to selecting the optimal tool.

What Are the Fundamental Differences Between PCD and CVD Tools?

So, what really sets PCD and CVD diamond tools apart at their core?

PCD (Polycrystalline Diamond) tools are made by sintering diamond grit with a metal binder (like cobalt) under high pressure and temperature, creating a tough composite material. In contrast, CVD (Chemical Vapor Deposition) diamond tools feature a layer of pure, binder-free diamond grown directly onto a substrate (usually carbide) through a chemical process. This fundamental difference in composition and manufacturing leads to distinct properties: PCD typically offers greater toughness, while CVD provides higher hardness and purity.

Let’s break down these key distinctions further.

Material Composition: Binder vs. Pure Diamond

Imagine building something strong. You could mix hard stones (like diamond grit) with a strong glue (like a metal binder) to hold them together. That’s similar to PCD. It’s a composite material, meaning it’s made of more than one thing. Typically, it contains about 90-95% tiny synthetic diamond crystals bonded together by 5-10% metallic binder, most commonly cobalt. This binder plays a crucial role, acting like a matrix that holds the super-hard diamond particles firmly in place.

Now, think about forming a solid sheet out of just one incredibly hard material. That’s closer to CVD diamond. Through a process called Chemical Vapor Deposition¹, a layer of diamond is literally grown onto a base material, often tungsten carbide. This CVD layer is essentially pure diamond (often over 99.9% pure) with virtually no binder material mixed in.

Why does this composition difference matter? Well, the metal binder in PCD adds significant toughness, making the tool more resistant to shocks and impacts. However, the binder also slightly reduces the overall hardness compared to pure diamond and can limit its use at extremely high temperatures or when cutting materials like steel (ferrous metals), as the binder can react chemically. Conversely, the purity of CVD diamond gives it exceptional hardness and makes it chemically very stable, but it also tends to be more brittle, like glass, because it lacks that cushioning binder.

Key Performance Properties: Hardness, Toughness, and Wear

When choosing a cutting tool, how it performs is obviously critical. The composition differences lead directly to different performance characteristics.

• Hardness: Think of hardness as how well a material resists scratching or getting dented. Because CVD diamond is almost pure, it is significantly harder than PCD. On the Vickers hardness scale² (a way to measure hardness), CVD diamond typically measures between 8000 to 10000 HV, which is close to natural diamond. PCD, with its binder, usually falls in the range of 5000 to 7000 HV. It’s important to note that these hardness values can vary slightly depending on the specific grade and manufacturer, so it’s always wise to confirm the exact specifications with your tool supplier. What does this higher hardness mean for cutting? Generally, a harder tool can maintain a sharper cutting edge for longer, which can be beneficial for achieving very smooth surface finishes, especially initially.
• Toughness: Toughness isn’t the same as hardness. It refers to a material’s ability to resist breaking or chipping when subjected to impact or stress (material toughness³). Here, PCD generally has the advantage. The metal binder mixed in with the diamond crystals acts like a shock absorber, preventing cracks from spreading easily. You could compare PCD to reinforced concrete – the hard aggregate (diamond) combined with the binding agent makes it strong and resilient. CVD diamond, being pure and binder-free, is more like solid glass – extremely hard, but more prone to shattering or chipping if it encounters a sudden impact, such as during interrupted cuts where the tool repeatedly enters and exits the material.
• Wear Resistance: This is how well the tool resists being worn down during cutting. Both PCD and CVD offer excellent wear resistance compared to other tool materials like carbide. However, they wear differently. CVD’s extreme hardness gives it outstanding resistance against abrasive wear, especially in continuous cutting of abrasive materials. PCD also resists wear very well, often wearing in a more gradual and predictable way as the binder phase might wear slightly faster than the diamond grains. The key difference lies in their failure modes: PCD tends to gradually dull, while CVD, due to its lower toughness, might maintain its sharpness exceptionally well until it suddenly fails by chipping or fracturing if the cutting forces become too high or unstable.

Thermal Conductivity and Stability Differences

Heat is a major enemy in machining, generated where the tool cuts the material. Managing this heat is vital for tool life and performance.

• Thermal Conductivity: This property describes how well a material can transfer heat away from its source. Both PCD and CVD diamond are excellent thermal conductors – much better than metals or carbide. This allows them to draw heat away from the cutting edge quickly, reducing the risk of thermal damage and allowing for potentially higher cutting speeds. Pure CVD diamond generally boasts slightly higher thermal conductivity than PCD because it doesn’t have the less conductive metal binder phase.
• Thermal Stability: This refers to how well the tool material withstands high temperatures without degrading or reacting chemically. Diamond itself is stable at high temperatures in the absence of oxygen. However, the cobalt binder in PCD typically limits its effective working temperature to around 600-700°C (approx. 1100-1300°F). Above this, the binder can soften or react, especially with ferrous materials (iron and steel), causing rapid tool wear. CVD diamond, being binder-free, is inherently more stable at higher temperatures. However, the practical temperature limit for a CVD tool might still be influenced by the heat tolerance of the underlying carbide substrate or the integrity of the bond between the CVD layer and the substrate.

Manufacturing Process and Geometric Flexibility

How these tools are made also creates fundamental differences, especially in the shapes they can take.

• PCD Manufacturing: PCD is typically produced using a high-pressure, high-temperature (HPHT) sintering⁴ process. This fuses the diamond powder and binder together. It’s often manufactured as small discs or segments (sometimes called tips or wafers) which are then cut to shape (using methods like laser cutting or EDM) and brazed (a type of high-temperature soldering) onto a tungsten carbide tool body. Some PCD is also made as “solid PCD” or “full-nib” blanks, offering more substance.

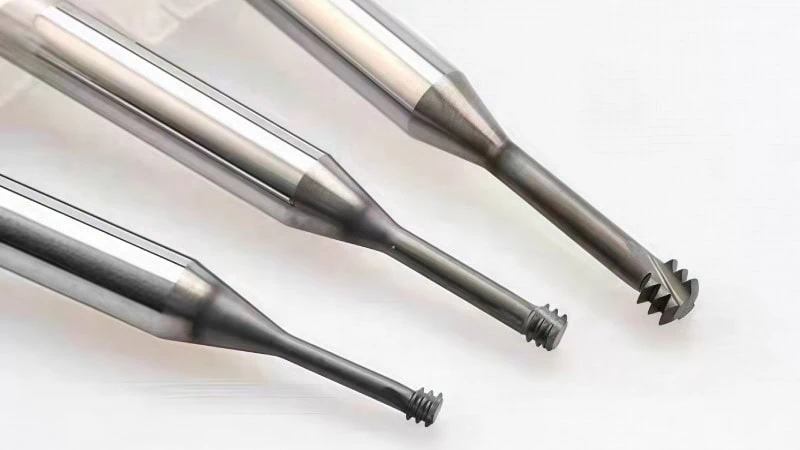

• CVD Manufacturing: CVD diamond is created using a chemical process at lower pressures but still high temperatures. Gases containing carbon react on the surface of a substrate (like a finished carbide tool), causing a thin or thick layer of pure diamond to deposit and grow. This can result in CVD-coated tools (where a standard carbide tool gets a diamond layer) or thick-film CVD diamond which can be cut (often by laser) and brazed similar to PCD, or even used as freestanding wafers.
• Geometric Flexibility: This is a significant difference. Because standard PCD often starts as flat segments that need to be brazed on, creating complex tool geometries like helical (spiral) flutes or intricate chipbreaker shapes on the cutting edge is very difficult or impossible. CVD coating, however, is applied after the base carbide tool has been shaped. This means it can easily coat complex forms, allowing for CVD diamond tools with advanced geometries like helical end mills, drills with sophisticated point designs, or inserts with molded chipbreakers, which can improve cutting performance and chip control. While “full-nib” PCD offers more design freedom than segmented PCD, CVD coating generally provides the greatest flexibility for complex tool shapes.

Which Materials Are Best Suited for PCD vs. CVD Tooling?

So, when you’re deciding between PCD and CVD tools, which one should you pick based on the material you need to cut?

Generally, PCD tools excel when machining non-ferrous metals like aluminum alloys, copper, and brass, as well as highly abrasive non-metals such as wood composites and certain plastics. Conversely, CVD diamond tools are often the preferred choice for machining extremely abrasive materials like carbon fiber reinforced polymers (CFRP), metal matrix composites (MMC), graphite, and some ceramics, particularly where edge sharpness and minimizing material damage like delamination are critical.

Let’s explore which tool type typically performs better for specific material groups.

Excelling with Non-Ferrous Metals (Aluminum, Copper, Brass)

When your job involves cutting metals that don’t contain iron, like aluminum, copper, or brass, PCD is very often the star player. Why is that?

These metals, especially common aluminum alloys used in automotive parts (like engine blocks, pistons, or wheels) or aerospace components, can still be quite abrasive – particularly high-silicon aluminum. PCD offers a great combination of high wear resistance to handle this abrasion and good toughness to withstand the cutting forces reliably. Furthermore, the cobalt binder in PCD doesn’t cause chemical problems with these non-ferrous metals, unlike the issues seen with steel. For high-volume production of aluminum parts, PCD tools are known for providing long tool life and consistent performance, making them a cost-effective choice (See: PCD Tooling for Aluminum Machining⁵).

Can CVD tools work here? Absolutely. For applications demanding the absolute highest precision finish, the superior hardness and potential sharpness of a CVD edge might be beneficial. However, for general machining and especially for roughing or high metal removal rates on aluminum and copper alloys, PCD’s robustness and proven track record often make it the go-to solution. It handles the sometimes “gummy” nature of softer alloys well, resisting the buildup of material on the cutting edge.

Tackling Abrasive Composites (CFRP, GFRP, MMC)

Composite materials, such as Carbon Fiber Reinforced Polymer (CFRP), Glass Fiber Reinforced Polymer (GFRP), and Metal Matrix Composites (MMC), present unique challenges. They are incredibly abrasive because of the hard carbon or glass fibers, which act like tiny files wearing down the cutting tool edge very quickly. Additionally, composites are prone to damage during machining, like delamination (layers splitting apart), fiber pull-out, or burring, especially critical in high-stakes industries like aerospace where part integrity is paramount.

This is where CVD diamond often demonstrates significant advantages.

• Its extreme hardness provides outstanding resistance to the severe abrasive wear caused by the fibers.
• Perhaps more importantly, a CVD tool can be manufactured with an exceptionally sharp and precise cutting edge. This allows it to shear the fibers cleanly rather than pushing or tearing them, which is key to minimizing delamination, especially at the exit side of drilled holes in CFRP.
• The pure diamond composition is also chemically inert, avoiding reactions with the matrix materials.

However, PCD is also widely used and effective for composites, particularly:

• In Metal Matrix Composites (MMCs), where the material includes abrasive particles within a metal base (like aluminum). PCD’s toughness combined with wear resistance is beneficial here.
• When drilling “stack” materials, for example, layers of CFRP combined with aluminum or titanium. The PCD tool needs enough toughness to handle the metal layer effectively.
• Specialized PCD grades with finer diamond grains and optimized binder content have been developed specifically for composite machining.

Often, the choice hinges on the primary failure mode. If preventing delamination is the absolute top priority (common in aerospace drilling), CVD tools with specialized geometries (like unique drill point designs) are frequently preferred. If maximizing overall tool life based on wear or maintaining tight hole diameter tolerances is more critical, PCD might offer a longer, more predictable lifespan, as CVD coatings can sometimes fail more abruptly if the coating chips or delaminates.

Machining Graphite, Ceramics, and Engineered Plastics

Beyond metals and composites, diamond tooling is essential for other hard or abrasive materials.

• Graphite: Used extensively for making EDM (Electrical Discharge Machining) electrodes, graphite is extremely abrasive. CVD diamond tools, with their superior hardness and ability to maintain a sharp edge, typically provide excellent tool life and produce smooth surface finishes required for high-quality electrodes. PCD can also machine graphite but generally experiences faster wear compared to CVD.
• Ceramics: When machining ceramics in their “green” or pre-sintered state (before final firing), they can be highly abrasive. Both PCD and CVD tools can be effective. The extreme hardness of CVD gives it an edge in wear resistance, but the specific choice often depends on the exact type of ceramic and the machining operation.
• Engineered Plastics: Many modern plastics, especially those reinforced with glass fibers or carbon fibers (common in automotive and industrial components), become very abrasive and challenging for conventional tools. PCD is a popular choice here due to its excellent wear resistance and sufficient toughness to handle potentially uneven loading from the fillers. CVD can also perform exceptionally well, particularly for achieving very fine finishes or machining unfilled but tough plastics. The best choice often depends on the specific plastic, the type and percentage of filler material, and the desired outcome.

Understanding Limitations with Ferrous Materials

Here’s a critical point: neither standard PCD nor CVD diamond tools are typically suitable for machining ferrous materials like steel, stainless steel, or cast iron.

Why not? It boils down to chemistry. Diamond is made of carbon atoms. Iron, the main component of ferrous metals, has a strong chemical attraction (affinity) for carbon, especially at the high temperatures (often exceeding 700°C or 1300°F) generated at the cutting edge during machining.

This chemical affinity causes a reaction where carbon atoms from the diamond tool actually dissolve or diffuse into the hot steel chip. This process, sometimes called graphitization⁶, rapidly breaks down the diamond’s structure, leading to catastrophic tool wear in a very short time. The cobalt binder in PCD can also react negatively with hot iron.

Therefore, attempting to machine steel or cast iron with standard diamond tools usually results in immediate tool failure. For these materials, machinists rely on other advanced cutting tool materials specifically designed to handle them, such as:

• Cubic Boron Nitride (CBN)⁷ – another superhard material, second only to diamond, but chemically stable with iron.
• Ceramics
• Coated Carbides

How Does Tool Performance Vary in Different Machining Operations?

Knowing the material is key, but how do PCD and CVD actually stack up against each other when performing common tasks like milling, drilling, or turning?

In milling, PCD’s toughness often makes it ideal for roughing and handling interrupted cuts, while CVD’s hardness allows for excellent finishes. For drilling, particularly in composites, CVD excels at minimizing delamination due to its sharpness, though PCD may offer longer life in other materials or stack drilling. In turning and boring, both can provide high-quality finishes, with CVD favored for ultimate precision and PCD for robustness in demanding non-ferrous applications.

Let’s examine how each tool type performs in these specific scenarios.

Milling: Handling Rough Cuts vs. Precision Finishing

Milling uses a rotating cutting tool with multiple teeth to remove material from a workpiece. A key aspect of many milling operations is the interrupted cut, where each cutting edge repeatedly enters and exits the material. Think of it like tiny, rapid hammer blows on the tool edge.

• Handling Impacts: This repeated impact requires toughness. Because PCD contains a metal binder that acts like a shock absorber, it generally handles these impacts much better than the inherently more brittle CVD diamond. Trying to use a less tough tool in heavy interrupted cuts is like trying to hammer a tough nail with a glass hammer – it might shatter. Therefore, PCD is often the preferred choice for rough milling operations, especially on materials like aluminum castings or forgings where removing a lot of material quickly and reliably is the goal, even if the surface isn’t perfectly smooth yet or if cutting conditions aren’t perfectly stable.
• Achieving Fine Finishes: When the goal is a super smooth, mirror-like surface (precision finishing), CVD diamond often takes the lead. Its superior hardness allows it to be honed to an extremely sharp edge that resists abrasive wear exceptionally well, especially in continuous or light finishing cuts. This sharp, durable edge can produce outstanding surface finishes (low Ra values) on materials like high-silicon aluminum (common in automotive wheels) or graphite (for EDM electrodes).
• Wear Differences: Under the stresses of milling, PCD tends to wear more gradually, while CVD, if pushed beyond its toughness limits by heavy impacts, might fail more suddenly through chipping or delamination of the coating.

Here’s a quick comparison for milling:

Drilling: Achieving Hole Quality and Minimizing Delamination

Drilling creates holes, a fundamental operation in manufacturing. When drilling advanced materials, especially composites, hole quality becomes critical.

• The Delamination Challenge: A major issue when drilling layered composites like CFRP is delamination, where the layers split apart near the hole entrance or, more commonly, the exit side. This damages the part and compromises its strength, a huge concern in industries like aerospace.
• CVD’s Sharp Advantage: CVD diamond tools are often the heroes here. Why? Their extreme hardness allows for the creation of exceptionally sharp and precise cutting edges. Combined with specialized drill point geometries (like unique point angles or spur designs), this sharp edge shears the composite fibers cleanly instead of pushing or tearing them. This clean cutting action significantly reduces the forces that cause delamination. Many specialized CVD diamond drills are designed specifically for aerospace CFRP applications.
• Tool Life Considerations: While CVD excels at preventing delamination, PCD might offer longer overall tool life in certain situations. If the primary measure of tool life is maintaining the hole diameter tolerance (rather than delamination), PCD’s toughness and gradual wear might allow it to drill more holes before going out of spec, especially in materials like abrasive aluminum alloys or Metal Matrix Composites (MMCs). CVD coating failure, if it occurs, can be more abrupt.
• Stack Material Drilling: When drilling through layers of different materials, like CFRP stacked on top of aluminum (CFRP/Al), PCD is often preferred. It possesses the necessary toughness to handle drilling the underlying metal layer effectively, where delamination might be less of a concern if the exit is in the aluminum.
• Geometry Matters: CVD coating allows for more intricate drill point designs compared to standard brazed PCD tips, potentially enabling better chip flow and cutting performance in specific drilling tasks.

Turning & Boring: Impact on Surface Finish and Accuracy

Turning (machining the outside diameter) and boring (machining the inside diameter) typically involve a single cutting point removing material from a rotating workpiece.

• Continuous Cutting Nature: Unlike milling, many turning and boring operations involve continuous cutting, where the tool stays engaged with the material. This reduces the repeated impact factor, making CVD’s lower toughness less of a disadvantage than in interrupted milling.
• Surface Finish Excellence: Both PCD and CVD can produce outstanding surface finishes on compatible materials (non-ferrous, composites, plastics). The choice often depends on the specific requirements. CVD’s ability to achieve and maintain an extremely sharp edge might give it an advantage for achieving the absolute lowest surface roughness (Ra) values, crucial for components like optical molds, high-precision hydraulic parts, or mirror-finish decorative aluminum trims.
• Accuracy and Edge Stability: In continuous cuts, CVD’s high hardness helps it resist wear and maintain its precise edge geometry for extended periods, contributing to excellent dimensional accuracy and consistency. PCD also provides very good accuracy and reliable edge life, making it a workhorse for high-volume turning of components like automotive pistons from aluminum alloys.
• Cutting Forces: A sharper CVD edge can sometimes generate lower cutting forces compared to a PCD edge. This can be beneficial when machining delicate or thin-walled parts, as it reduces the risk of distorting the workpiece.
• Application Drives Choice: Ultimately, the best choice for turning and boring still heavily depends on the workpiece material, the required tolerances and surface finish, and economic factors. Both tools excel in their respective niches within non-ferrous and non-metallic applications. Remember that optimal performance also relies on using appropriate cutting parameters⁸ (speed, feed, depth of cut), and it’s advisable to consult your tool supplier for specific recommendations based on your material and machine capabilities.

What Are the Main Advantages and Disadvantages of Each Tool Type?

Okay, we’ve seen how PCD and CVD differ and where they work best, but what’s the quick rundown of the main pros and cons for each?

PCD tooling’s main advantages are its excellent toughness, making it resistant to chipping and ideal for interrupted cuts or roughing non-ferrous metals, along with good wear resistance and often lower cost-per-part in high volumes due to re-sharpening potential. Its disadvantages include lower hardness than CVD, limitations in creating complex tool shapes, and unsuitability for ferrous materials. CVD tooling boasts superior hardness for exceptional wear resistance and sharp edges, great geometric flexibility for complex tools, and chemical inertness, making it excellent for finishing and machining composites or graphite. Its primary drawbacks are lower toughness (brittleness) making it prone to chipping under impact, and typically higher initial cost for coated tools or limitations if the coating fails.

Let’s look at the specific strengths and weaknesses of each type more closely.

PCD Tooling: Key Strengths and Weaknesses

PCD tools offer a robust and reliable option for many applications. Here are their main highlights and limitations:

Strengths:

• High Toughness: Thanks to the metal binder holding the diamond crystals, PCD is significantly tougher than CVD diamond. This makes it highly resistant to chipping or breaking, especially during interrupted cuts often found in milling or when machining conditions aren’t perfectly stable.
• Excellent Wear Resistance: PCD provides very long tool life when machining its preferred materials, particularly abrasive non-ferrous metals like high-silicon aluminum, and non-metallic materials like wood composites or fiberglass.
• Proven Reliability: It’s a well-established technology widely used in high-volume industries like automotive manufacturing for machining aluminum components, proving its dependability.
• Reconditioning Potential: Many PCD tools, especially those with larger diamond segments, can often be re-sharpened or re-lapped multiple times, which can significantly lower the overall cost per part over the tool’s lifetime (though the economics depend on the specific tool and application).

Weaknesses:

• Lower Hardness (Compared to CVD): While very hard, PCD isn’t quite as hard as pure CVD diamond. This means its cutting edge might not achieve or maintain the absolute finest sharpness that CVD can offer in certain finishing operations.
• Geometric Limitations: The standard way of making PCD tools (brazing small segments onto a body) makes it difficult to create tools with complex shapes, such as helical flutes found on many end mills or drills, or intricate chipbreaker designs.
• Not Suitable for Ferrous Metals: As discussed earlier, the carbon in diamond reacts chemically with hot iron, causing rapid tool breakdown. PCD cannot be effectively used to machine steel or cast iron.
• Binder Limitations: The metal binder (usually cobalt) limits the maximum temperature PCD can withstand before performance degrades (typically around 600-700°C).

CVD Tooling: Key Strengths and Weaknesses

CVD diamond tools bring unique capabilities to the table, particularly leveraging the properties of pure diamond:

Strengths:

• Exceptional Hardness: Being almost pure diamond, CVD boasts hardness levels approaching natural diamond. This translates to outstanding resistance against abrasive wear.
• Extremely Sharp Edges Possible: The high hardness allows CVD tools to be honed to incredibly sharp cutting edges, which contributes to producing superior surface finishes and reducing cutting forces.
• Ideal for Composites & Graphite: The combination of extreme hardness and sharp edges makes CVD highly effective for machining difficult materials like CFRP (minimizing delamination) and highly abrasive graphite.
• Geometric Flexibility: Because the diamond layer is deposited onto a pre-formed substrate, CVD tools can be made in complex shapes (like helical end mills or drills with specialized points), allowing for optimized tool designs.
• Chemical Inertness: Pure diamond is very stable and generally doesn’t react chemically with workpiece materials (with the notable exception of ferrous metals at high temperatures).

Weaknesses:

• Lower Toughness (Brittleness): The lack of a binder makes CVD diamond significantly more brittle than PCD. It’s more susceptible to chipping or fracturing if subjected to impacts, heavy vibration, or unstable cutting conditions. It requires careful handling and stable machining setups.
• Coating Dependence (for Coated Tools): The performance of CVD coated tools relies entirely on the diamond layer and its bond to the carbide base. If the coating chips, cracks, or delaminates, the tool’s cutting ability drops dramatically.
• Generally Not Re-sharpenable (Coated Tools): Once the diamond coating on a typical CVD tool is worn or damaged, it usually cannot be effectively re-sharpened or repaired; the tool must be replaced. (Thick-film CVD might be an exception in some cases).
• Potential for Higher Initial Cost: The complex CVD coating process can sometimes result in a higher upfront purchase price compared to equivalent PCD tools, although this needs to be weighed against performance and tool life in specific applications.

How Do PCD and CVD Compare from an Economic Perspective?

Performance is one thing, but how do PCD and CVD tools actually compare when it comes to the bottom line – the cost?

Economically, PCD tools often have a higher initial purchase price than comparable carbide tools, though this can vary compared to specific CVD tools depending on complexity. However, their long life and ability to be re-sharpened frequently lead to a lower overall cost-per-part in high-volume non-ferrous applications. CVD tools, particularly coated carbide, can have varying initial costs but offer excellent performance; their value often lies in enabling specific difficult applications (like composite drilling) or achieving finishes that reduce subsequent operations, though typically they cannot be reconditioned, impacting long-term cost.

Making the right economic choice requires looking beyond just the sticker price. Let’s delve into the cost factors.

Initial Investment vs. Long-Term Value

It’s true that diamond tooling often comes with a higher upfront cost compared to traditional tungsten carbide tools.

• PCD tools typically have a significant initial investment. While usually more expensive than carbide tools⁹, their price relative to CVD can vary. A standard PCD insert might be less expensive than a highly specialized CVD-coated tool with complex geometry, but perhaps more than a basic CVD coating application.
• CVD tool costs can also range widely. A simple CVD diamond coating on a standard carbide end mill might have one price point, while a tool involving thick-film CVD diamond or intricate coated features could be considerably more expensive.

It is crucial to remember that initial purchase prices for both PCD and CVD tools can differ significantly based on the manufacturer, tool size, complexity, diamond grade or coating thickness, and order quantity. Therefore, always get specific quotes from your suppliers for the tools you are considering.

However, experienced machinists know that the initial price tag is only one part of the economic puzzle. The true long-term value comes from considering the total cost of ownership (TCO)¹⁰. Think of it like buying a car – a cheaper car might save money upfront but cost more in fuel and repairs over time. Similarly, a more expensive diamond tool might seem like a big investment, but if it lasts dramatically longer, requires fewer changes, and produces better parts, it can actually save significant money in the long run.

Comparing Tool Life and Cost-Per-Part

This is where diamond tooling often justifies its initial cost.

• Exceptional Tool Life: In their suitable applications (non-ferrous metals, composites, graphite, etc.), both PCD and CVD tools typically last much, much longer than carbide tools – sometimes 10, 50, or even over 100 times longer, depending heavily on the specific material being cut, the operation, and the cutting parameters used. Comparing PCD to CVD life directly is complex: PCD often provides very long and predictable life in high-volume aluminum machining, while CVD might excel in extremely abrasive materials like graphite or offer more acceptable parts (due to less delamination) in composites, even if its absolute hours-in-cut are sometimes shorter before critical failure. Actual tool life comparisons require testing in your specific application.
• Lower Cost-Per-Part: The ultimate goal in production is often to minimize the cost to produce each finished part. Long tool life directly impacts this. Even if a PCD tool costs ten times more than a carbide tool, if it successfully machines fifty times more parts before needing replacement or re-sharpening (a possible scenario in some abrasive non-ferrous or non-metal applications), the tooling cost allocated to each individual part becomes much lower.
• Indirect Savings: Don’t forget the hidden cost benefits. Longer tool life means:
  • Reduced Downtime: Less time spent stopping machines to change worn tools.
  • Consistent Quality: More parts produced within tolerance before tool wear becomes an issue, leading to less scrap or rework.
  • Potential Process Elimination: Sometimes, the superior surface finish achieved with a diamond tool can eliminate the need for later grinding or polishing steps, saving time and money.

Reconditioning Potential: Sharpening PCD vs. Replacing CVD

What happens when the tool eventually does wear out? This presents a major economic difference between the two.

• PCD Reconditioning: A significant advantage for many PCD tools is that they can often be re-sharpened or re-lapped. Specialized grinding processes using diamond wheels can restore the cutting edge (PCD Tool Sharpening Techniques¹¹). This process can typically be done multiple times throughout the tool’s life (the exact number depends on the amount of PCD material available, the type of wear, and the tool’s construction). While re-sharpening has its own cost, it’s usually substantially less than buying a brand-new PCD tool. This reconditioning potential dramatically extends the useful life of the initial investment and is a key factor in achieving low cost-per-part in high-volume scenarios.
• CVD Replacement: Most standard CVD coated tools, on the other hand, cannot be effectively re-sharpened. The diamond layer is typically very thin (even “thick” coatings are relative). Once this layer is worn through or damaged (e.g., chipped or delaminated), the tool’s cutting performance diminishes rapidly, and the tool generally needs to be replaced (though the carbide body might be recyclable). This means the initial purchase price represents the cost for one usage cycle. (Note: Freestanding thick-film CVD might allow some re-lapping similar to PCD, but this applies less often to common coated inserts or round tools).

The Impact: This difference heavily influences economic calculations. If you have a high-volume application with predictable tool wear, the ability to re-sharpen PCD tools multiple times can lead to substantial long-term savings. If your application absolutely requires the unique performance characteristics of CVD (like ultra-precision finishing or minimal delamination in critical composites) and perhaps tool life is limited by factors other than gradual edge wear, then the replacement cost of the CVD tool is factored in as a necessary operational expense to achieve the required outcome.

How Can You Select the Optimal Diamond Tool for Your Specific Job?

With all this information, how do you actually put it together and choose the right PCD or CVD tool for your specific machining task?

Selecting the optimal diamond tool involves a systematic approach: first, analyze your workpiece material’s properties (abrasiveness, tendency to chip, etc.); second, define the machining operation’s demands (interrupted cuts, finishing); third, determine the required surface finish and tolerances; and finally, consider production volume and your budget. Balancing these factors will guide you to the most suitable PCD or CVD option.

Let’s walk through these steps to make a well-informed decision.

Step 1: Identify Your Workpiece Material Challenges

Before anything else, deeply understand the material you need to machine. Ask yourself:

• What type of material is it?
  • Is it a standard non-ferrous metal like an aluminum or copper alloy? (PCD is often a strong starting point).
  • Is it highly abrasive, like a composite (CFRP, GFRP), Metal Matrix Composite (MMC), graphite, or green ceramic? (Leans towards CVD for wear, but PCD is viable for some MMCs).
  • Is it prone to specific damage like delamination (common in CFRP)? (Strongly points towards CVD’s sharpness).
  • Is it a ferrous metal (steel, cast iron)? (Remember, neither standard PCD nor CVD is suitable here).
• What are its key machining challenges? Is it primarily abrasive? Does it tend to be “gummy”? Is it brittle? Does it generate excessive heat?

Understanding these material characteristics, based on what we discussed earlier, is the foundation for your tool choice.

Step 2: Define Your Machining Operation Requirements

Next, consider the specifics of the cutting process itself. What does the operation demand from the tool?

• Is it milling? Will there be heavy interrupted cuts (requiring toughness, favoring PCD) or mostly light, continuous finishing passes (where CVD’s hardness shines)?
• Is it drilling? Is delamination control the absolute priority in a composite (favoring CVD’s sharpness and specialized geometries), or is overall tool life in a less sensitive material more important (potentially favoring PCD)?
• Is it turning or boring? Is it a heavy roughing operation (PCD’s robustness might be better) or a high-precision finishing cut (CVD’s sharpness could be key)?
• What are the cutting conditions? Will the setup be extremely rigid and stable, or is there potential for vibration (favoring PCD’s toughness)?

Matching the tool’s strengths (toughness vs. hardness, geometric options) to the demands of the operation is crucial.

Step 3: Evaluate Surface Finish and Tolerance Needs

What are the quality requirements for the finished part?

• How smooth must the surface finish be? If you need an exceptionally fine, mirror-like finish (very low Ra value), the potential for an ultra-sharp edge with CVD might be necessary. For many applications requiring good to excellent finishes, PCD often delivers perfectly acceptable results.
• How tight are the dimensional tolerances? Maintaining accuracy over long production runs requires consistent tool performance and wear resistance. Evaluate which tool type (based on its wear characteristics in your specific material and operation) is likely to hold size most reliably.
• Is edge quality critical? For instance, in composites, a clean, burr-free, and delamination-free edge might be non-negotiable, pushing the choice towards CVD.

Your required part quality specifications will help prioritize certain tool characteristics over others.

Step 4: Consider Production Volume and Budget Constraints

Finally, factor in the practicalities of production and cost.

• What is the production volume? For high-volume runs, minimizing the cost-per-part is often paramount. Here, the long tool life and, especially, the reconditioning potential of PCD can offer significant long-term economic advantages, even if the initial tool price is higher.
• Is performance the absolute priority? For lower-volume jobs, prototypes, or applications where achieving a specific technical result (like zero delamination in a critical aerospace part) is essential, the best-performing tool (often CVD for these niche tasks) might be chosen despite a higher initial or replacement cost.
• What is the tooling budget? Carefully weigh the upfront tool cost against the expected tool life, the number of parts produced per edge, potential downtime savings, and the costs associated with re-sharpening (for PCD) versus replacement (for CVD).

Balancing performance needs with economic realities is key to making a sustainable choice.

Quick Selection Guide: PCD vs. CVD Checklist

To help summarize the decision process, here’s a quick reference guide:

Disclaimer: This guide offers general pointers. The optimal choice always hinges on the unique combination of your material, machine, operational parameters, and quality goals. Consulting experienced tooling application engineers and conducting tests remain the best ways to verify the ideal solution.

Conclusion

Ultimately, there’s no single “best” diamond cutting tool between PCD and CVD – the optimal choice is entirely dependent on your specific machining application. PCD shines where toughness, reliability, and long-term cost-effectiveness through reconditioning are paramount, particularly in high-volume non-ferrous metal machining. CVD excels where extreme hardness, ultimate sharpness, and geometric flexibility are needed to tackle highly abrasive materials, achieve superior finishes, or overcome specific challenges like composite delamination. By carefully evaluating your material, operation, quality needs, and budget using the steps outlined, you can confidently select the diamond tool technology that will deliver the best performance and value for your unique requirements. Don’t hesitate to leverage the expertise of tooling suppliers and application specialists to help finalize your decision.

References

1. Chemical Vapor Deposition¹ – Wikipedia page providing a comprehensive overview of the CVD process.
2. Vickers hardness scale² – Wikipedia entry explaining the Vickers hardness test method and scale.
3. Material toughness³ – Wikipedia article defining toughness in the context of materials science and fracture mechanics.
4. Sintering⁴ – ScienceDirect topic page explaining the sintering process in materials science.
5. PCD Tooling for Aluminum Machining⁵ – ZYDiamondTools blog post discussing the benefits of using PCD tools for aluminum.
6. Graphitization⁶ – ScienceDirect topic page explaining graphitization, relevant to diamond tool wear in ferrous machining.
7. Cubic Boron Nitride (CBN)⁷ – ZYDiamondTools comprehensive guide covering CBN cutting tools, their properties, and applications.
8. Cutting parameters⁸ – Wikipedia page explaining the concepts of speeds, feeds, and depth of cut in machining.
9. Carbide tools⁹ – ZYDiamondTools blog post comparing PCD and Carbide cutting tools.
10. Total Cost of Ownership (TCO)¹⁰ – ZYDiamondTools guide explaining the TCO concept and application for superhard tooling & abrasives.
11. PCD Tool Sharpening Techniques¹¹ – ZYDiamondTools blog post covering techniques and best practices for sharpening PCD and PCBN tools.
