PCD Solutions For Composite Machining: Solve Challenges, Boost Performance

When facing the tough challenges of machining composite materials, how can Polycrystalline Diamond (PCD) solutions truly unlock superior performance and overcome critical obstacles?

Polycrystalline Diamond (PCD) solutions offer a transformative approach to composite machining by leveraging the extreme hardness and wear resistance of diamond to overcome common challenges such as rapid tool wear, delamination, and poor surface finish. This leads to significantly enhanced productivity, higher quality components, and improved cost-effectiveness across various composite applications.

This comprehensive guide explores why PCD tooling is superior for composites, how it solves specific machining problems, which PCD tools are best suited for operations like drilling, milling, and turning, and provides key strategies for selecting and implementing these advanced solutions to achieve peak operational performance and optimal results in your composite manufacturing processes.

What Makes PCD Tooling a Superior Choice for Composite Machining?

So, when you’re working with tough composite materials, what really sets PCD tooling apart from other options?

PCD (Polycrystalline Diamond) tooling offers unmatched advantages for machining composites due to its exceptional hardness, wear resistance, and ability to maintain a sharp cutting edge, leading to significantly longer tool life, higher cutting speeds, and superior surface finishes compared to traditional cutting tools. This ultimately translates to increased productivity and cost-effectiveness when processing abrasive and challenging composite materials.

The unique structure of PCD, a composite material itself made of diamond particles sintered onto a carbide substrate, provides the toughness needed to withstand the highly abrasive nature of fillers like carbon, glass, or aramid fibers found in composites. This ensures consistent performance and precision over extended machining runs, making it an ideal solution for industries demanding high quality and efficiency, such as aerospace, automotive, and wind energy.

Understanding Polycrystalline Diamond (PCD): The Core Material Advantage

Polycrystalline Diamond, or PCD, isn’t a naturally occurring diamond like the ones you might see in jewelry. Instead, it’s a cutting-edge, man-made material. Imagine taking tiny diamond particles, smaller than grains of sand, and fusing them together under extremely high pressure and temperature via a process known as sintering¹. These particles are typically bonded to a tungsten carbide substrate, which is a very tough material that supports the super-hard diamond layer. Think of it like having an incredibly sharp and durable shield (the diamond layer) backed by a strong, shock-absorbing support (the carbide substrate).

This combination gives PCD several core advantages, detailed further in explanations of PCD key properties²:

• Extreme Hardness: Diamond is one of the hardest known substances on Earth. PCD harnesses this, making it incredibly resistant to wear and tear. This is crucial when cutting through composites, which often contain very abrasive fibers that can quickly dull other tools.
• High Wear Resistance: Because it’s so hard, PCD doesn’t wear down easily. This means a PCD tool can keep cutting precisely for much longer than tools made from materials like high-speed steel or even solid carbide, especially when machining abrasive composites. We’re talking about a tool that can last many times longer, reducing the need for frequent tool changes.
• Good Thermal Conductivity: PCD is also good at conducting heat. During machining, a lot of heat is generated at the cutting edge. PCD helps to draw this heat away from the cutting zone. This is important because too much heat can damage the composite material or the tool itself. For instance, in machining Carbon Fiber Reinforced Polymers (CFRP), excessive heat can lead to resin degradation and a poor-quality cut. PCD’s ability to manage heat helps maintain the integrity of the composite material. It’s important to note that specific thermal conductivity³ can vary slightly between PCD grades and manufacturers, so it’s always a good idea to check supplier specifications for your particular application.

Essentially, the material science behind PCD creates a cutting tool that is inherently designed to tackle the toughest, most abrasive materials without quickly surrendering to wear.

Key Performance Benefits: Why PCD Outperforms Traditional Tools on Composites

The inherent material advantages of PCD directly translate into significant performance benefits when you’re machining composite materials. Why does this matter? Because composites are notoriously challenging, often being very abrasive and prone to issues like delamination or fiber pull-out if not machined correctly.

Here’s how PCD stands out, particularly when compared to conventional tooling like tungsten carbide⁴. You can explore more about the differences between PCD and Carbide tools⁵:

1. Vastly Extended Tool Life: This is perhaps the most celebrated benefit. Composite materials, with their hard reinforcing fibers (like carbon or glass), act like sandpaper on a cutting tool.
   • PCD: Its extreme wear resistance means it can machine these abrasive materials for significantly longer periods. It’s not uncommon for PCD tools to last 10 to 50 times longer, or even more, than carbide tools in high-volume composite machining applications. For example, in the automated drilling of thousands of holes in aerospace-grade CFRP components, a PCD drill can maintain its cutting effectiveness for an entire shift or longer, whereas carbide drills might need multiple replacements.
   • Traditional Tools (e.g., Carbide): Wear rapidly, leading to frequent tool changes, machine downtime, and increased tooling costs.
2. Higher Cutting Speeds and Feeds: PCD’s strength and thermal conductivity allow for more aggressive machining parameters.
   • PCD: You can often run machines faster, both in terms of rotational speed and how quickly the tool moves through the material (feed rate). This directly reduces cycle times and increases throughput. For instance, when milling long sections of glass fiber reinforced polymer (GFRP) for wind turbine blades, higher feed rates with PCD can substantially shorten the overall production time per blade.
   • Traditional Tools: Often limited to lower speeds and feeds to prevent premature wear or excessive heat buildup, which can damage the composite.
3. Superior Surface Finish and Part Quality: A tool that stays sharper longer produces cleaner cuts.
   • PCD: Maintains a keen cutting edge, which is crucial for shearing composite fibers cleanly rather than pushing or tearing them. This results in smoother surface finishes (lower Ra values), reduced burring, and minimized delamination (separation of composite layers), which are critical quality aspects in precision industries like medical device manufacturing or high-performance automotive components.
   • Traditional Tools: As they dull, the cutting action degrades, increasing the likelihood of rough surfaces, fiber pull-out, and delamination.
4. Improved Dimensional Accuracy and Consistency: When a tool wears consistently and slowly, the parts it produces are more uniform.
   • PCD: Its slow wear rate ensures that the dimensions of machined parts remain consistent over long production runs. This is vital for components that need to fit together perfectly, such as in complex aerospace assemblies.
   • Traditional Tools: Rapid wear can lead to dimensional inaccuracies, requiring more frequent inspection and adjustments.

To put it simply, while traditional tools can cut composites, PCD does it with far greater efficiency, longevity, and quality, leading to overall cost savings despite a potentially higher initial tool investment.

Note: The exact performance uplift (e.g., tool life multiples) can vary significantly based on the specific composite material, machining operation, machine conditions, and the grade of PCD and carbide being compared. Always consult with tooling suppliers for application-specific expectations.

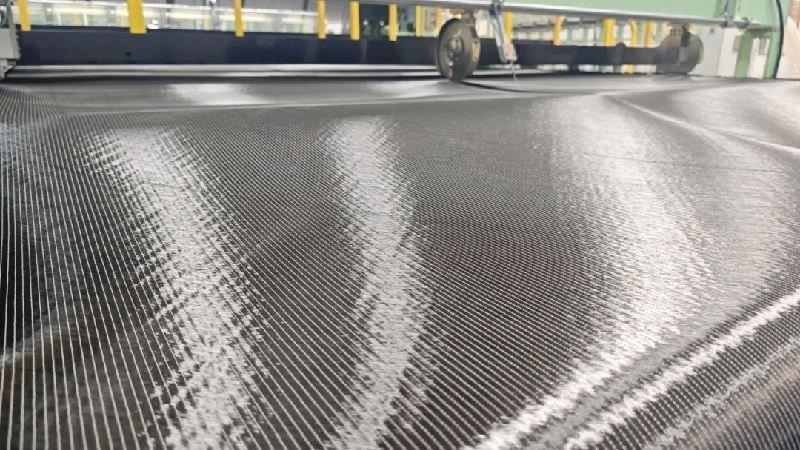

Common Composite Materials Successfully Machined with PCD

PCD tooling isn’t just for one or two types of composites; its robust nature makes it highly effective across a wide spectrum of these advanced materials. These materials are popular in many industries because they are strong and lightweight, but their abrasive nature often makes them difficult to machine with conventional tools.

Here are some common composite materials where PCD tooling truly shines:

1. Carbon Fiber Reinforced Polymers (CFRP):
   • Why PCD excels: Carbon fibers are extremely abrasive. PCD’s hardness directly counters this abrasiveness, leading to longer tool life and better surface finish. CFRP is common in aerospace (aircraft structures, wings, fuselage components), high-performance automotive (chassis, body panels), and sporting goods (bicycle frames, tennis rackets). PCD helps maintain tight tolerances and avoid delamination, which is critical in these high-stress applications.
2. Glass Fiber Reinforced Polymers (GFRP):
   • Why PCD excels: Glass fibers are also highly abrasive, similar to carbon. PCD tools resist this wear, allowing for efficient machining. GFRP is used in boat hulls, wind turbine blades, automotive parts, and construction elements. For example, trimming the complex edges of large GFRP sections for nacelles in wind turbines can be done more economically with PCD.
3. Metal Matrix Composites (MMCs) – primarily with non-ferrous matrices like Aluminum (Al-MMC):
   • Why PCD excels: These materials combine a metal (often aluminum) with reinforcing particles like silicon carbide (SiC) or alumina (Al₂O₃). These reinforcing particles are extremely hard and abrasive. PCD is one of the few cutting tool materials that can effectively machine MMCs with high SiC content, providing good tool life and surface quality. These are found in automotive components like brake rotors and engine pistons where wear resistance and light weight are key.
4. Aramid Fiber Reinforced Polymers (AFRP) (e.g., Kevlar®, Twaron®):
   • Why PCD excels: Aramid fibers are tough and difficult to cut cleanly; they tend to fray rather than shear. The extremely sharp and durable edge achievable with specific PCD grades can lead to cleaner cuts and reduced fuzzing compared to other tool types. Used in ballistic protection, marine applications, and some aerospace components.

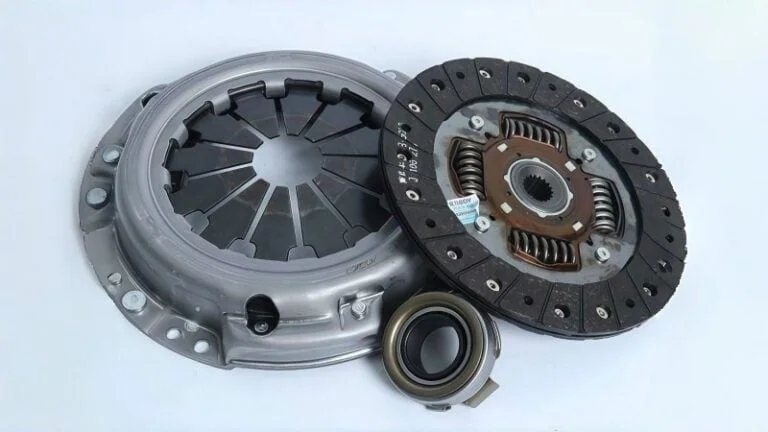

5. Phenolic Composites (e.g., Phenolic Resins with paper, cotton, or glass reinforcement):
   • Why PCD excels: These can be quite abrasive, especially when glass-reinforced. PCD provides the necessary wear resistance for machining electrical insulation components, jigs, and fixtures made from these materials.

The common thread here is abrasion resistance. The reinforcing elements in these composites are what give them their desirable properties, but they are also what make them so destructive to cutting tools. PCD’s diamond nature directly addresses this challenge, making it the go-to solution for high-volume or high-precision machining of these advanced materials. Its ability to maintain a sharp edge also helps in producing cleaner cuts, which is often a significant challenge with fibrous composite structures.

How Can PCD Solutions Solve Your Specific Composite Machining Problems?

When you’re battling common headaches like material tearing or tools wearing out too fast while machining composites, how exactly can PCD tooling come to the rescue?

PCD (Polycrystalline Diamond) solutions directly address critical composite machining problems by leveraging the material’s extreme sharpness and wear resistance. Optimized PCD tool designs minimize delamination and fiber pull-out, achieve superior surface finishes and dimensional accuracy, drastically extend tool life even in highly abrasive materials, and help manage detrimental heat generation, leading to higher quality parts and more efficient production.

These problem-solving capabilities stem from PCD’s ability to maintain a razor-sharp cutting edge, which cleanly shears composite fibers instead of pushing or tearing them. Furthermore, specialized tool geometries, combined with PCD’s inherent durability, reduce cutting forces and friction. This not only preserves the integrity of the composite material but also ensures consistent, precise machining results over much longer periods than conventional tooling, directly tackling issues that can cause part rejection and costly downtime.

Overcoming Delamination and Fiber Pull-Out with Optimized PCD Tools

One of the biggest nightmares when machining composites, especially layered ones like Carbon Fiber Reinforced Polymer (CFRP), is delamination. This is when the layers of the material separate or peel apart, often at the entry or exit of a drilled hole or along a trimmed edge. Another related issue is fiber pull-out, where individual fibers are torn out from the matrix material instead of being cut cleanly. Both of these defects can severely weaken the composite part and may lead to it being scrapped. Imagine trying to cut a stack of very thin, sticky paper with dull scissors – the layers might get pushed apart, and the edges would look ragged. That’s similar to what happens in composites with the wrong tools.

PCD tooling, when designed correctly for composites, tackles these issues head-on:

• Ultra-Sharp Cutting Edges: PCD can be honed to an incredibly sharp and durable cutting edge. This sharpness is key. A very sharp edge slices through the composite fibers and resin matrix cleanly, minimizing the cutting forces that tend to push layers apart or pull fibers out.
  • Industry Example: In the aerospace industry, drilling thousands of fastener holes in CFRP aircraft structures requires each hole to be free of delamination to ensure structural integrity. PCD drills with specialized point geometries and extremely sharp cutting edges are crucial for achieving this quality consistently.
• Optimized Tool Geometries: It’s not just about sharpness; the shape of the cutting tool matters immensely. PCD tool manufacturers have developed specific geometries for composite applications: Specialized Drill Point Designs For drilling, PCD tools can feature unique point angles (e.g., 120-140 degrees, though this can vary based on the specific composite and supplier recommendations) and lip designs that reduce axial thrust forces (the pushing force). Some designs, often called “brad point” or “dagger” drills, create a shearing action from the center outwards, further preventing delamination at hole entry and exit. Compression Routers For trimming and routing, PCD compression routers are invaluable. These tools have opposing helix angles (some flutes push down, some pull up). This creates a “compressing” action on the top and bottom edges of the composite panel simultaneously, effectively preventing delamination on both surfaces.
• Reduced Friction: The smooth surface of PCD and its sharp edge can lead to lower friction during cutting. Lower friction means less force is applied to the material in unwanted directions, reducing the stress that can cause delamination.

By combining an exceptionally hard and sharp material (PCD) with intelligent tool design, engineers can significantly reduce, and often eliminate, delamination and fiber pull-out, leading to higher quality, structurally sound composite parts.

Achieving Superior Surface Finish and Dimensional Accuracy

When you machine a part, you want the surfaces to be smooth to the touch and the dimensions to be exactly what the design calls for. Achieving this with abrasive and often brittle composites can be tough. If a cutting tool dulls quickly, the surface finish deteriorates, and it becomes harder to hold tight tolerances.

PCD tooling helps you hit these quality targets consistently:

• Sustained Sharpness for Smooth Surfaces: As we’ve discussed, PCD’s incredible wear resistance means it stays sharp much longer. A sharp tool makes a clean cut, shearing the material rather than tearing or smearing it. This results in a noticeably smoother surface finish (lower Ra values).
  • Analogy: Think of shaving. A new, sharp razor gives a smooth finish. A dull razor is more likely to irritate and leave a rough result. It’s a similar principle in machining.
  • Industry Example: In the manufacturing of high-performance automotive components, such as carbon fiber spoilers or interior trim pieces, a high-quality surface finish is often required directly from the machining process, minimizing the need for secondary hand-finishing operations. PCD tools are instrumental in achieving these “Class A” finishes.
• Minimal Tool Wear for Consistent Dimensions: When a cutting tool wears, its effective cutting diameter or profile changes. This directly impacts the dimensions of the part being machined. Because PCD tools wear so slowly and predictably:
  • They maintain their original geometry for a much longer time.
  • This ensures that part after part is machined to the same dimensions, holding tight tolerances reliably. This is critical for components that need to assemble precisely, for example, in complex medical devices or optical equipment housings made from composites.
• Lower Cutting Forces: Sharp PCD tools with optimized geometries often require lower cutting forces. Lower forces mean less deflection of the tool and the workpiece, further contributing to better dimensional accuracy and preventing the material from being “pushed around” during cutting.

The ability of PCD to resist wear and maintain a sharp edge is the fundamental reason it can deliver superior surface finishes and hold tight dimensional tolerances over extended production runs, leading to fewer rejected parts and more reliable manufacturing processes.

Extending Tool Life and Reducing Downtime in Abrasive Composite Applications

We touched upon tool life as a general benefit of PCD earlier, but it’s crucial to see it as a direct solution to a major problem: the rapid destruction of conventional tools by abrasive composites. When tools wear out quickly, it doesn’t just mean you’re buying more tools; it means your machines are stopped more often for tool changes, your operators are spending more time on setup, and your overall production efficiency plummets.

Here’s how PCD tackles the tool life and downtime challenge:

• Combating Extreme Abrasion: Materials like CFRP, GFRP, and particularly MMCs with ceramic reinforcements (like Silicon Carbide particles) are exceptionally abrasive.
  • PCD’s Diamond Hardness: PCD is nearly as hard as natural diamond, making it uniquely capable of withstanding this intense abrasion. While a carbide tool might drill a few dozen or a hundred holes in a highly abrasive composite before needing replacement, a PCD tool can often drill thousands, or even tens of thousands, under similar conditions.
  • Industry Example: In the high-volume production of printed circuit boards (PCBs), which are often made from abrasive FR-4 (a glass-reinforced epoxy laminate), PCD drills and routers offer dramatically longer life than carbide, significantly reducing the cost per hole or per board machined.
• Massive Reduction in Tool Changes: Fewer tool changes directly translate to:
  • Increased Machine Uptime: The machine spends more time cutting and less time idle.
  • Reduced Operator Intervention: Operators can focus on other tasks rather than constantly monitoring and changing tools.
  • Consistent Process: Fewer interruptions mean a more stable and predictable manufacturing process.
• Lower Cost Per Part: While the initial purchase price of a PCD tool is higher than a carbide tool, the cost per part machined is often substantially lower. This is because the PCD tool’s price is amortized over a much larger number of parts.
  • Consider this: A $500 PCD tool that machines 10,000 parts has a tool cost of $0.05 per part. A $50 carbide tool that machines only 200 parts has a tool cost of $0.25 per part. This doesn’t even factor in the cost of downtime and labor for the extra 49 tool changes the carbide tool would require.

This dramatic extension of tool life provided by PCD is not just an incremental improvement; it’s a game-changer for the economics of machining abrasive composites, transforming operations from being tool-change intensive to continuously productive.

Managing Heat Generation in PCD for Composite Machining

Excessive heat is a major enemy when machining composites. The resin or polymer matrix in most composites has a relatively low softening or degradation temperature. If the cutting zone gets too hot:

• The resin can melt or char.
• The material can lose its structural integrity.
• The tool itself can suffer from accelerated wear or even thermal damage.
• Dimensional accuracy can be affected due to thermal expansion of the workpiece or tool.

PCD tooling offers several advantages in managing this detrimental heat:

1. High Thermal Conductivity of Diamond: Diamond is an excellent conductor of heat (even better than copper). This property allows PCD tools to draw heat away from the cutting edge and the workpiece more efficiently than many other tool materials.
   • This helps to keep the actual cutting point cooler, reducing the risk of overheating the composite material. The specific thermal conductivity will vary between PCD grades, a detail worth confirming with your tooling supplier.
2. Sharp Cutting Edges Reduce Friction: A primary source of heat in machining is friction. Because PCD tools can maintain extremely sharp cutting edges:
   • They cut more efficiently with less “rubbing.”
   • This generates less friction and, consequently, less heat in the first place. A dull tool, in contrast, plows through the material, generating significantly more friction and heat.
3. Enabling Higher Speeds with Less Heat Risk (Relatively): While higher speeds generally mean more potential for heat, PCD’s ability to cut cleanly and conduct heat away means it can often operate at higher speeds without causing thermal damage to the composite, compared to tools that generate more friction or don’t dissipate heat as well.
4. Potential for Dry or Minimal Quantity Lubrication (MQL) Machining:
   • Due to better heat management and lower friction, some composite machining applications with PCD can be performed dry (without coolant) or with MQL. This reduces costs associated with coolant purchase, maintenance, and disposal, and can also simplify chip handling and create a cleaner working environment.
   • Industry Example: Many aerospace CFRP drilling and trimming operations⁶ are performed dry with PCD tooling, relying on efficient dust extraction and the tool’s inherent properties to manage heat.

However, it’s crucial to remember that while PCD helps manage heat, the overall machining strategy is still key. Appropriate cutting parameters (feeds, speeds), tool geometry, and, where necessary, targeted cooling or dust extraction are all part of effective thermal management when machining composites, even with advanced PCD tooling.

Which PCD Tooling Solutions Are Best Suited for Various Composite Applications?

Knowing that PCD is great for composites is one thing, but how do you know which specific PCD tool to use for drilling a hole versus, say, milling an edge or turning a cylinder?

The best PCD tooling solution for a specific composite application depends primarily on the machining operation being performed; specialized PCD drills are used for holemaking, PCD end mills and routers are optimal for milling and trimming, and PCD inserts are selected for turning and grooving operations. Each tool type features unique designs and geometries tailored to maximize performance and quality in its intended composite application.

For instance, drilling Carbon Fiber Reinforced Polymer (CFRP) might call for a PCD drill with a specific point angle and flute design to prevent delamination, while edge-trimming the same material would benefit from a PCD compression router to ensure clean top and bottom surfaces. Similarly, turning abrasive Metal Matrix Composites (MMCs) requires robust PCD inserts with appropriate edge preparation. Matching the PCD tool design to the composite material and the specific task, as detailed in guides on PCD cutting tool types⁷, is therefore crucial for achieving optimal results.

Selecting the Right PCD Drills for Composite Holemaking

Creating clean, precise holes in composite materials is a very common but challenging task. Whether it’s for fasteners in an aircraft wing or assembly points in an automotive chassis, the quality of the hole is critical. Using the wrong drill can easily lead to delamination, fiber pull-out, inaccurate hole size, or rapid tool wear.

When selecting PCD drills for composite holemaking, consider these key features:

Specialized Point Geometries (The Drill’s “Nose”)

The shape of the drill’s tip is incredibly important for composites. You can’t just use a standard metal-cutting drill bit.

• Brad Point (or Dagger/Spear Point): These drills often have a central point that engages the material first, followed by sharp cutting spurs on the periphery. This design helps to shear the fibers cleanly from the outside in at the start of the hole, significantly reducing entry delamination.
• Double-Angle Point: Some PCD drills feature two different angles on the point. This can help reduce the axial thrust (pushing force), which is a major cause of exit delamination. The specific angles can vary depending on the composite material and the supplier’s recommendation, so it’s a good detail to discuss with your tooling provider.
• Spade-Style Drills: For larger diameter holes, PCD spade drills offer a robust solution, often with geometries designed to minimize chipping and delamination.
• “Veined” or Solid PCD Tip Drills: Many high-performance PCD drills for composites utilize a “vein” of PCD running along the cutting edge or have a solid PCD tip. This provides a continuous, extremely hard cutting edge right where it’s needed, offering maximum wear resistance and the ability to maintain sharpness. This is often superior to drills that only have small brazed PCD inserts at the tip for demanding applications.

Flute Design

The flutes are the spiral grooves on the drill that help evacuate chips. While composites produce dust rather than long chips, flute design can still influence heat removal and hole quality. Some PCD drills for composites might have polished flutes to aid in dust evacuation.

Through-Coolant Holes (Less Common for Composites)

While common in metal drilling, through-coolant (delivering coolant through the drill body to the tip) is less frequently used with PCD drills in composites. Many composite drilling operations are done dry to avoid material contamination or swelling, relying on dust extraction systems and the PCD’s ability to manage heat. However, for certain MMCs or very thick composites, minimal quantity lubrication (MQL) or air blast through the tool might be considered. Some suppliers offer PCD drill tools with internal cooling options if the application demands it.

Industry Example: The aerospace industry relies heavily on PCD drills for creating countless fastener holes in CFRP and GLARE® (Glass Laminate Aluminum Reinforced Epoxy) fuselage and wing structures. The demand for defect-free holes (no delamination, correct diameter, good surface finish) is paramount for safety and structural integrity, making PCD drills with optimized geometries indispensable. For instance, drilling stacked materials like CFRP/titanium or CFRP/aluminum often requires highly specialized PCD drills that can handle both materials effectively.

Choosing the right PCD drill involves matching its geometry and PCD grade to the specific composite material, hole diameter, depth, and quality requirements.

Effective Composite Milling with Specialized PCD End Mills and Routers

Milling operations on composites can range from trimming the edges of large panels and routing complex shapes to creating pockets and slots. Just like with drilling, using the right tool is critical for achieving clean edges, good surface finish, and avoiding material damage.

PCD end mills and routers designed for composites often feature:

Specific Helix Angles and Flute Geometries

• Compression Routers (Up-Cut/Down-Cut Combination): These are extremely popular for edge trimming laminates like CFRP or GFRP. They have flutes with opposing helix angles – some flutes push the material down on the top surface, while others pull it up on the bottom surface. This simultaneous “compressing” action shears the fibers cleanly on both sides of the panel, effectively preventing delamination and fraying on the top and bottom edges.
  • Industry Example: Automotive manufacturers use PCD compression routers for trimming carbon fiber body panels to ensure perfect fit and a high-quality edge finish that doesn’t require extensive handwork.
• Down-Cut Routers: These push chips and cutting forces downwards, which can be beneficial for holding thin or flexible sheets flat against the machining table and achieving a clean top edge.
• Up-Cut Routers: These pull chips and forces upwards, good for chip evacuation from slots but can sometimes cause lifting or fraying on the top surface of less rigid materials if not managed.
• Diamond-Cut or “Burr-Style” Routers: These tools often have many fine cutting edges arranged in a pattern similar to a diamond file or a pineapple. They are excellent for producing very smooth finishes and for machining highly abrasive or heterogeneous composites, like those with high filler content. They tend to take lighter cuts but can achieve excellent edge quality. The specific pattern and density of these cutting edges can vary; consulting with your supplier for your material is recommended.

Number of Flutes

The number of flutes (cutting edges) on a PCD milling tool for composites typically ranges from one to many (as in diamond-cut routers).

• Fewer flutes (e.g., 1 or 2) can allow for better chip/dust evacuation in certain materials.
• More flutes can provide a smoother finish at higher feed rates but require careful control of chip load.

End Styles

PCD end mills for composites are available with square ends for general milling or with corner radii/chamfers to reduce stress concentrations and improve the strength of corners in pockets or slots.

Effective composite milling often involves not just the tool but also the right cutting strategy (e.g., climb vs. conventional milling) and secure work holding. PCD tools provide the wear resistance needed to maintain performance through long cutting paths.

Utilizing PCD Inserts for Turning and Grooving Composites

While drilling and milling are more common, some composite components, especially those with cylindrical shapes or requiring specific profiles, are machined using turning or grooving operations. This is frequent with Metal Matrix Composites (MMCs) or filament-wound composite tubes.

PCD inserts bring significant advantages here:

• Exceptional Edge Retention: Turning and grooving involve continuous or near-continuous cutting contact. The extreme abrasiveness of many composites (especially MMCs with ceramic reinforcement like Silicon Carbide, or glass-filled polymers) would decimate a carbide insert very quickly. PCD inserts maintain their sharp edge for much longer, ensuring consistent size and finish. General information on what PCD inserts are used for⁸ can provide broader context.

PCD Grades for Different Needs

PCD material is available in different grades, characterized by diamond grain size.

• Fine Grain PCD: Typically used for applications requiring the best possible surface finish. The smaller diamond particles create a very keen, smooth cutting edge.
• Coarse Grain PCD: Offers higher toughness and wear resistance, making it suitable for heavier cuts or more abrasive materials where edge chipping might be a concern with finer grades.
  The choice of PCD grade can significantly impact performance and tool life, and suppliers can provide guidance based on the specific composite and machining conditions.

Insert Geometries and Edge Preparations

PCD inserts come in standard ISO shapes (e.g., CNMG, DNMG, VBGW) but can have edge preparations optimized for composites.

• Sharp Edge: Often preferred for cutting fibers cleanly in polymer matrix composites.
• Chamfered or Honed Edge: May be used for MMCs or very abrasive composites to provide a stronger cutting edge and prevent micro-chipping of the PCD. The specific edge prep is a critical parameter that can be tailored by the tool supplier.
• Chipbreakers: While traditional chipbreakers are less common on PCD inserts for composites (as composites produce dust/short chips), some specialized designs might incorporate features to aid in dust control or deflect abrasive swarf away from the finished surface.

Industry Example: The machining of MMC brake discs, which contain hard silicon carbide particles for wear resistance, heavily relies on PCD inserts. Carbide tools would wear out almost instantly, but PCD inserts can achieve the required surface finish and dimensional tolerances over many parts. Similarly, finishing operations on filament-wound composite tubes used in hydraulic or pneumatic cylinders benefit from PCD’s ability to produce a smooth, consistent surface.

Considering PCD for Specialized Composite Machining Tasks (e.g., Trimming, Countersinking)

Beyond the primary operations of drilling, milling, and turning, PCD tooling is also the preferred choice for several other specialized tasks critical in composite component manufacturing:

Precision Trimming Operations

While routers cover much of this, specialized PCD saws (circular or band saws) can also be used for straight-line cutting and trimming of composite panels, especially thicker sections or stacked materials. These PCD-tipped saws offer long life and clean cuts in abrasive environments.

Countersinking and Counterboring

For flush-fitting fasteners, particularly in aerospace applications, precise countersinks are essential.

• PCD Countersinks: These tools are designed to create the conical seat for the fastener head. Like PCD drills, they must have very sharp cutting edges and specific geometries (e.g., multiple flutes, precise angles) to produce a clean, delamination-free countersink in materials like CFRP. Poor countersink quality can compromise joint strength and fatigue life. Specialized countersink drills for CFRP/GFRP are available.
• PCD Counterbores: Used to create a flat-bottomed recess, often for the head of a bolt or a washer. Again, PCD offers the wear resistance and sharpness needed for clean machining.
• One-Shot Drill-Countersinks: Some specialized PCD tools combine drilling and countersinking into a single operation (“one-shot”), saving time and ensuring concentricity between the hole and the countersink. These are complex tools but can offer significant productivity gains in high-volume scenarios. The design of such tools is highly dependent on the specific application and materials.

PCD Reaming

For applications requiring extremely precise hole diameters and excellent surface finish after drilling, PCD reamers⁹ can be used. They remove a small amount of material to bring the hole to its final size with high accuracy.

In all these specialized applications, the core benefits of PCD – its wear resistance, ability to maintain a sharp edge, and good thermal conductivity – are what make it the superior choice for achieving the required quality and tool life when working with challenging composite materials. The specific design of the PCD tool will always be tailored to the unique demands of the operation and the composite being machined.

How Do You Choose and Implement the Right PCD Solutions for Optimal Results?

So, you’re convinced PCD tooling is the way to go for your composite machining. But how do you actually pick the perfect tool and use it correctly to get those top-notch results everyone talks about?

Choosing and implementing the right PCD solutions for optimal results involves a careful selection process based on your specific composite material and application, followed by the precise application of recommended machining parameters. Furthermore, incorporating a tool reconditioning strategy can significantly enhance the cost-effectiveness and lifespan of your PCD tooling investment.

Essentially, achieving success means first matching the PCD tool’s grade, geometry, and design to the unique demands of your composite workpiece and the machining operation. Then, it’s about running that tool at the correct speeds, feeds, and depths of cut, often based on supplier guidance and testing. Finally, by resharpening or reconditioning worn PCD tools, you can maximize their value and reduce overall tooling expenditure, making the entire operation more efficient and economical.

Key Factors in Selecting PCD Tooling for Your Composite Application

Choosing the right PCD tool isn’t just about picking one off a shelf; it’s a thoughtful process that matches the tool’s capabilities to the specific job at hand. Getting this right is the first step to achieving excellent results. Think of it like choosing the right tires for a car – you wouldn’t use racing slicks for off-roading.

Here are the key factors to consider:

1. The Specific Composite Material:
   • Fiber Type: Is it carbon fiber (CFRP), glass fiber (GFRP), aramid fiber (AFRP), or something else? Each fiber type has different levels of abrasiveness and cutting characteristics. For example, carbon fibers are extremely abrasive, while aramid fibers tend to be tough and can fray.
   • Resin System: The type of polymer matrix (e.g., epoxy, phenolic, PEEK) can also influence tool selection, particularly concerning heat sensitivity and chip formation.
   • Fiber Architecture: Is it unidirectional, woven, or a quasi-isotropic layup? This can affect the likelihood of delamination and the best cutting geometry.
   • Stacked Materials: Are you machining a composite stacked with another material, like CFRP/aluminum or CFRP/titanium? This requires highly specialized PCD tools designed to handle both materials without compromising quality or tool life. Such tools often have complex geometries.
2. The Machining Operation:
   • What are you trying to do? Drilling, milling (edge trimming, pocketing, surfacing), turning, grooving, or a specialized task like countersinking? As we discussed in the previous section, each operation benefits from different PCD tool designs (e.g., specific drill point geometries, compression routers for milling edges, or appropriate insert shapes for turning).
3. PCD Grade and Diamond Properties:
   • PCD is available in various grades, often categorized by diamond grain size (e.g., fine, medium, coarse).
     • Fine-grain PCD: Typically offers the sharpest edge and produces the best surface finish, making it suitable for less abrasive composites or when finish is paramount.
     • Coarse-grain PCD: Generally more wear-resistant and tougher, better for highly abrasive composites or roughing operations where ultimate finish isn’t the primary concern.
   • The specific PCD grade choice can significantly impact both tool life and the quality of the machined part. Tool suppliers often have proprietary grades optimized for certain composite families.
4. Tool Geometry and Design Features:
   • Beyond the basic tool type, specific design features are critical:
     • For drills: Point angle, lip geometry, helix angle, number of flutes.
     • For end mills/routers: Helix angles (up-cut, down-cut, compression), number of flutes, end cut style (e.g., fish tail, pineapple cut for routers).
     • For inserts: Edge preparation (sharp, honed, chamfered), chipbreaker geometry (if applicable).
   • The goal is always to select a geometry that cleanly shears the fibers, minimizes cutting forces, controls heat, and effectively evacuates dust/chips.
5. Machine Tool Capabilities and Setup Rigidity:
   • PCD tools perform best on rigid, stable machine tools with accurate spindles and minimal runout. Vibrations can prematurely chip or damage the PCD cutting edge.
   • Ensure your machine has the necessary spindle speed (RPM) and feed rate capabilities to run the PCD tool optimally.
6. Supplier Expertise and Support:
   • Partnering with a knowledgeable tooling supplier is invaluable. They can provide expert advice on the best PCD grade, tool geometry, and starting parameters for your specific composite application. Look for suppliers with demonstrated experience in composite machining.

Always remember that the “best” PCD tool is the one that provides the optimal balance of performance, tool life, and cost-effectiveness for your unique situation. Consultation with experienced tooling engineers is highly recommended.

Critical Machining Parameters for PCD Success in Composites

Once you’ve selected the right PCD tool, using it with the correct machining parameters (speeds, feeds, etc.) is absolutely essential for achieving optimal results, maximizing tool life, and ensuring part quality. Running a high-performance PCD tool with incorrect parameters is like driving a sports car in the wrong gear – you won’t get the performance you expect, and you might even cause damage.

While exact parameters are highly dependent on the specific PCD tool, composite material, machine tool, and application, here are the critical parameters to consider:

• Cutting Speed (Vc):
  • This is the speed at which the cutting edge moves through the material, typically measured in surface feet per minute (SFM) or meters per minute (m/min).
  • PCD tools generally allow for significantly higher cutting speeds in composites compared to carbide tools, often ranging from 500 to 5000 SFM (approx. 150 to 1500 m/min) or even higher for certain applications.
  • Too low a speed: Can lead to rubbing, increased cutting forces, and potentially accelerated wear or delamination.
  • Too high a speed: Can generate excessive heat (despite PCD’s good thermal conductivity), potentially damaging the resin matrix or leading to premature tool failure if other parameters aren’t balanced.
  • Crucial Reminder: Always start with the cutting speed recommended by your tooling supplier for the specific PCD tool and composite material. These recommendations are based on extensive testing and experience.
• Feed Rate (f):
  • This is how fast the tool advances into or along the workpiece. It can be expressed as feed per revolution (e.g., inches per revolution – IPR, or mm/revolution), feed per tooth (for milling cutters), or feed per minute (e.g., inches per minute – IPM, or mm/minute).
  • The feed rate determines the “chip load” – how much material each cutting edge removes.
  • Too low a feed rate: Can cause the tool to rub rather than cut, generating heat and accelerating wear.
  • Too high a feed rate: Can lead to excessive cutting forces, tool chipping or breakage, poor surface finish, and delamination.
  • Crucial Reminder: Feed rates are critical and must be carefully matched with the cutting speed and the tool’s geometry. Supplier recommendations are the best starting point.
• Depth of Cut (DOC) and Width of Cut (WOC):
  • These parameters define how much material the tool removes in each pass (axially for DOC, radially for WOC).
  • These are influenced by the tool’s diameter and strength, the PCD grade, the machine’s power and rigidity, and the material being cut.
  • For composites, especially when trying to avoid delamination, multiple shallower passes might be preferred over a single heavy pass, particularly with less rigid setups.
• Dust Extraction / Coolant Strategy:
  • Most composite machining with PCD is done dry, with an efficient dust extraction system to remove the abrasive composite dust. This dust is not only a health hazard but can also accelerate tool wear if not effectively removed from the cutting zone.
  • In some cases, Minimal Quantity Lubrication (MQL) or a directed air blast can be used to aid in cooling and chip/dust evacuation, especially in MMCs or very thick composites. Flood coolant is generally avoided due to potential material contamination and workpiece swelling.
• Tool Holding and Machine Condition:
  • Use high-quality, balanced tool holders with minimal runout (eccentricity). Excessive runout can lead to uneven tool wear, poor hole quality, and reduced tool life.
  • Ensure your machine tool is rigid and well-maintained. Vibrations or play in the machine spindle or axes can be detrimental to PCD tool performance and life.

The Golden Rule for Parameters: Start with the tooling manufacturer’s recommendations for your specific tool and composite material. Then, if necessary, make small, incremental adjustments based on the results you are achieving (surface finish, tool wear, part quality), always prioritizing safety and part integrity. Careful testing and process optimization are often required to find the “sweet spot” for any given application.

The Role of Tool Reconditioning in Cost-Effective PCD Solutions

PCD tools, while offering exceptional performance and life, represent a significant initial investment compared to conventional tooling. However, one of the key advantages that can make PCD highly cost-effective in the long run is the ability to recondition or resharpen them. This means you don’t necessarily have to discard a PCD tool once its cutting edges become worn. Guidance on PCD and PCBN tool sharpening¹⁰ can provide further insight.

• What is PCD Tool Reconditioning?
  Reconditioning involves carefully grinding or lapping the worn PCD cutting edges to restore their original sharpness and geometry. For tools with brazed PCD tips, it might involve removing the worn tip and brazing a new one, though more commonly for solid PCD or veined tools, it’s a precision re-sharpening of the existing diamond. Advanced methods like laser sharpening are also used by some specialized services to achieve highly precise edge conditions.
• Why is Reconditioning Important?
  • Significant Cost Savings: The cost of reconditioning a PCD tool is typically a fraction of the cost of a new tool – often in the range of 20% to 60% of the new tool price, depending on the tool’s complexity and the extent of wear. This can lead to substantial savings, especially for high-volume users.
  • Extended Tool Asset Life: Reconditioning allows you to get multiple operational cycles from a single tool body, maximizing your return on the initial investment.
  • Sustainability: Reusing tool bodies and re-sharpening cutting edges is a more environmentally friendly practice than continually discarding and replacing tools.
  • Maintained Performance: A properly reconditioned PCD tool can often perform very close to, if not identically to, a new tool, provided the reconditioning is done by a qualified service with the right equipment and expertise.
• Key Considerations for Reconditioning:
  • Number of Reconditions: How many times can a PCD tool be reconditioned? This is a critical question.
    • It varies significantly based on the original PCD segment thickness or height, the amount of material removed during each re-sharpening, the tool design, and the application’s wear patterns. Some tools might only be reconditioned once or twice, while others, with substantial PCD segments, might be reconditioned multiple times.
    • Crucial Reminder: Always consult with your PCD tool supplier or a reputable reconditioning service to understand the reconditioning potential and limits for your specific tools. They can often assess a worn tool and advise on its suitability for reconditioning.
  • Quality of Reconditioning Service: The quality of the reconditioning is paramount. Improper re-sharpening can damage the tool or result in suboptimal performance. Choose a service provider with proven expertise and experience in working with PCD and the specific types of tools you use. They should have precision grinding equipment and robust quality control processes.
  • Cost-Benefit Analysis: While generally cost-effective, always compare the cost of reconditioning (including shipping and turnaround time) with the cost of a new tool to ensure it makes economic sense for your specific situation. Understanding the Total Cost of Ownership (TCO) can be beneficial here.

Industry Practice: Many companies in aerospace, automotive, and electronics manufacturing, where PCD tooling is heavily used for machining composites, have established robust tool management and reconditioning programs. They work closely with PCD suppliers and specialized reconditioning services to optimize their tooling costs and maintain production efficiency. For example, a facility drilling hundreds of thousands of holes per month in CFRP might have a weekly or bi-weekly cycle of sending worn PCD drills for reconditioning.

By integrating tool reconditioning into your PCD tooling strategy, you can significantly reduce your long-term operational costs while continuing to benefit from the high performance of PCD in your composite machining applications.

Conclusion

Successfully machining composite materials requires overcoming unique challenges related to their abrasive nature and structural characteristics. Polycrystalline Diamond (PCD) tooling has emerged as a premier solution, offering significant advantages in tool life, cutting performance, and final part quality. By understanding the core benefits of PCD, how its specific properties solve common machining problems like delamination and rapid wear, which tool types are best suited for various applications, and how to effectively select, implement, and maintain these tools, manufacturers can unlock superior efficiency and achieve peak performance in their composite machining operations. Embracing PCD solutions, including a thoughtful approach to tool reconditioning, represents a strategic investment towards higher productivity and cost-effectiveness in the demanding field of composite manufacturing.

If you are looking for high-performance PCD tools tailored for your composite machining applications, welcome to contact ZYsuperhard. Our experts are ready to provide consultation and help you select the optimal tooling solutions to enhance your productivity and part quality.

References

1. sintering¹ – ScienceDirect topic page explaining the sintering process in materials science.
2. PCD key properties² – ZYDiamondTools blog post analyzing PCD’s hardness, toughness, thermal conductivity, and wear resistance.
3. thermal conductivity³ – Britannica explanation of thermal conduction.
4. tungsten carbide⁴ – Wikipedia article on tungsten carbide.
5. differences between PCD and Carbide tools⁵ – ZYDiamondTools blog post detailing the comparison between PCD and Carbide cutting tools.
6. aerospace CFRP drilling and trimming operations⁶ – ZYDiamondTools blog post on PCD tools for aerospace composites.
7. PCD cutting tool types⁷ – ZYDiamondTools guide on types of PCD cutting tools and their selection.
8. what PCD inserts are used for⁸ – ZYDiamondTools blog post on the uses of PCD inserts.
9. PCD reamers⁹ – ZYDiamondTools guide on PCD reamers.
10. PCD and PCBN tool sharpening¹⁰ – ZYDiamondTools guide on tool sharpening techniques.
