What Is Edge Radiusing for PCBN Inserts and Why Does It Matter for Machining?

What exactly is edge radiusing for PCBN inserts, and why is it so important for machining hard materials?

Edge radiusing (or honing) for PCBN inserts is the process of applying a tiny, rounded contour to the otherwise sharp cutting edge. This preparation is crucial because PCBN is extremely hard but brittle; the radius strengthens the edge, preventing chipping and breakage, which significantly extends tool life, improves surface finish, ensures process stability, and ultimately reduces machining costs when working with hardened steels, cast irons, and other difficult materials.

Why is Proper Edge Preparation Essential for PCBN Tool Performance?

So, why is preparing the edge of a PCBN insert so incredibly important for machining?

Proper edge preparation, like radiusing (honing), is essential for PCBN inserts because it significantly strengthens the naturally brittle cutting edge, preventing early failure like chipping. This leads directly to longer tool life, better surface finishes on hard materials, reduced machining costs, and a more stable, predictable cutting process with lower forces and heat.

Enhancing Tool Strength to Prevent Premature Chipping and Fracture

Imagine PCBN (Polycrystalline Cubic Boron Nitride) like glass – extremely hard, but it can break easily if stressed in the wrong way due to its inherent brittleness. A perfectly sharp cutting edge on a PCBN insert is actually quite weak at the very tip. Think about trying to cut glass; you use a sharp point to create a tiny crack that spreads easily. Similarly, a sharp PCBN edge concentrates all the cutting force onto a tiny area, making it prone to micro-chipping (tiny breaks) or even catastrophic fracture (breaking completely).

Edge preparation, especially creating a small, rounded radius (also called a hone), works like blunting that sharp point. Instead of concentrating force, it spreads the pressure over a slightly larger area along the rounded edge. This makes the edge much tougher and more resistant to breaking.

This added strength is particularly vital when:

• Machining very hard materials (like hardened steels above 45 HRC).
• Performing interrupted cuts, where the tool repeatedly enters and exits the material (e.g., cutting a gear with slots or a shaft with a keyway). Each entry is like a small impact, and a prepared edge handles these impacts much better.

Without proper edge preparation, the risk of the tool failing unexpectedly is much higher, especially in these demanding situations.

Significantly Extending Tool Life and Reducing Overall Costs

Because edge preparation makes the cutting edge stronger and less likely to chip, the tool simply lasts longer. When an edge doesn’t chip away, it maintains its cutting ability for more parts or for a longer time. This direct link between edge integrity and tool life is a major reason why preparation is crucial.

How much longer? While exact numbers depend heavily on the specific application (material, speed, feed), studies and real-world use often show significant improvements. It’s common for manufacturers and users to report tool life increases ranging from 30% to over 100% when using a properly prepared edge compared to a sharp or poorly prepared one, especially when machining tough materials.

Longer tool life translates directly into cost savings:

• Fewer Tool Purchases: You buy fewer inserts over time.
• Less Machine Downtime: The machine stops less often for tool changes.
• Increased Productivity: More time is spent cutting, less time is spent setting up.
• Lower Cost Per Part: The tooling cost associated with each finished workpiece decreases.

Therefore, investing a little in proper edge preparation pays off significantly by reducing overall manufacturing expenses.

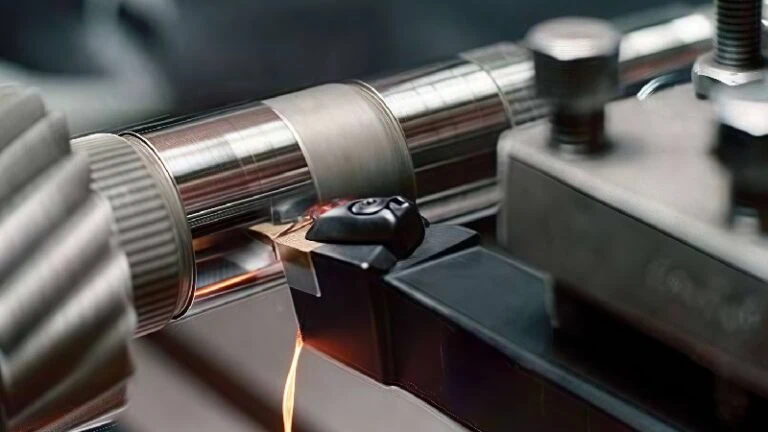

Achieving Superior Surface Finish on Hard Materials

Have you ever seen a surface that looks rough or has tiny marks after cutting? Often, this can be caused by a damaged or inconsistent cutting edge. When the very tip of a PCBN insert micro-chips, those tiny broken pieces or the resulting uneven edge can drag across the workpiece, leaving scratches or a poor surface finish.

A well-prepared edge, being stronger and more stable, is less likely to chip. As a result, it cuts more cleanly and consistently throughout its life. This leads to a smoother, more uniform surface on the machined part.

This is especially important in applications demanding high precision and excellent finishes, such as:

• Finishing hardened bearing surfaces.
• Machining hydraulic components requiring tight seals.
• Aerospace parts with strict surface integrity requirements.

In these cases, achieving a low surface roughness value (often measured as Ra) is critical, and a reliable, prepared cutting edge is essential to meet those specifications consistently. A stable edge prevents the microscopic tearing and smearing that ruins a fine finish.

Stabilizing the Cutting Process by Managing Forces and Heat

While a perfectly sharp edge might seem ideal, it can actually lead to an unstable cutting process with PCBN, especially if it starts to chip. Edge preparation helps create a more predictable and stable machining operation.

Here’s how:

• Consistent Cutting Forces: Although a rounded edge might require slightly more force to initiate the cut compared to a theoretical infinitely sharp edge (due to a slight “ploughing” effect), its main benefit is preventing the sudden spikes in force that occur when a sharp edge chips. This leads to smoother, more predictable forces throughout the cut.
• Controlled Heat Generation: Chipping and edge breakdown can cause localized hot spots on the tool, accelerating wear. A stable, prepared edge tends to generate heat more evenly and predictably, helping to manage the high temperatures common in hard machining.
• Reduced Vibration (Chatter): An unstable or rapidly wearing cutting edge is a major cause of vibration, often called chatter. Chatter is bad for both tool life and surface finish. By maintaining its integrity, a prepared edge promotes a smoother cut with less tendency to vibrate.

In essence, edge preparation acts like a shock absorber for the cutting edge, smoothing out the harsh conditions of hard machining and leading to a more reliable, stable, and ultimately successful process.

How Does the Edge Radius Size Influence Machining Outcomes?

Okay, we know edge radiusing is important, but how does the actual size of that tiny radius affect the way a PCBN insert cuts?

The size of the edge radius on a PCBN insert significantly influences machining outcomes by creating a trade-off: larger radii offer greater edge strength and tool life, especially in roughing or interrupted cuts, but can increase cutting forces and potentially worsen surface finish. Conversely, smaller radii provide sharper cutting action for better surface finish and lower forces in stable conditions, but sacrifice edge strength and wear resistance.

The Effects of Using a Larger Edge Radius

Think of using a shovel with a rounded edge versus one with a sharp, pointed edge. The large radius on a PCBN insert is like that rounded shovel.

• Benefit: Increased Edge Strength: Just like the rounded shovel is less likely to chip if it hits a rock, a larger radius spreads the cutting stress over more area. This makes the edge much stronger and far less likely to chip or break, especially when cutting very hard materials, taking deep cuts (roughing), or dealing with interrupted cuts (like machining parts with holes or slots).
• Benefit: Potentially Longer Tool Life: Because it’s tougher, an insert with a larger radius often lasts longer, particularly under stressful cutting conditions.
• Drawback: Higher Cutting Forces: Pushing that rounded shovel into the ground takes more effort than using a sharp spade. Similarly, a larger radius tends to “plough” through the material more than cleanly shearing it. This requires more force from the machine tool.
• Drawback: Potentially Poorer Surface Finish: The blunter cutting action might not leave as smooth a surface compared to a smaller radius, especially when trying to achieve a very fine finish.
• Drawback: Increased Heat: More ploughing and friction can sometimes lead to higher temperatures right at the cutting edge.

It’s important to remember that what counts as “large” can vary. It might be around 0.020 millimeters (about 0.0008 inches) or more, but always check the specific recommendations and definitions provided by your tooling supplier, as they can differ.

The Effects of Using a Smaller Edge Radius

Now, picture that sharp spade. A small radius on a PCBN insert acts more like this sharper tool.

• Benefit: Lower Cutting Forces: The sharper edge slices into the material more easily, requiring less force. This is helpful for machines with less power or when machining delicate parts.
• Benefit: Improved Surface Finish: Because it cuts more cleanly with less ploughing, a smaller radius generally produces a smoother, finer surface finish. This makes it ideal for finishing operations where appearance and precision are critical.
• Benefit: Reduced Heat Generation: Less ploughing action often means less friction, which can result in lower cutting temperatures under stable conditions.
• Drawback: Reduced Edge Strength: Like the sharp spade hitting a rock, a smaller radius concentrates the cutting stress onto a very small area. This makes it much more vulnerable to chipping or breaking, especially with very hard materials, interruptions in the cut, or machine vibrations.
• Drawback: Shorter Tool Life: The less robust edge simply doesn’t hold up as long under pressure and wears out faster.

Again, the definition of “small” varies. It could be under 0.010 millimeters (about 0.0004 inches), sometimes even smaller for specialized finishing, but be sure to confirm the exact radius values and their intended use with the insert manufacturer.

Impact on Cutting Forces and Thermal Load

So, we see a clear relationship:

• Larger Radius: Generally leads to higher cutting forces because of the increased ploughing effect. While it might generate more heat right at the edge due to friction, its greater strength might allow it to handle higher overall stress or temperatures in roughing scenarios.
• Smaller Radius: Generally leads to lower cutting forces due to a sharper cutting action. It might generate less heat per cut, but the edge itself is less tolerant to high temperatures or sudden changes in heat (thermal shock).

The reason force often increases with radius size, especially at light feed rates, is that a larger portion of the edge contact involves pushing material aside rather than cleanly shearing it. Understanding this helps in choosing the right radius to avoid overloading the machine or causing unwanted vibration.

Influence on Chip Formation and Evacuation

The shape of the cutting edge, including the radius size, also affects how the metal shaving, or chip, is formed and how well it gets out of the way. (Chip formation is a complex process influenced by many factors).

• Larger Radius: The way material deforms over a larger radius can sometimes create thicker chips that might not curl as tightly. This could potentially make it harder for chips to break and be evacuated cleanly from the cutting area.
• Smaller Radius: The sharper action tends to encourage cleaner shearing, often resulting in thinner chips that curl more readily. These well-formed chips are usually easier to break and clear away.

Why does this matter? Poor chip control is a common problem in machining. If chips don’t break or evacuate properly, they can get tangled around the tool or workpiece, potentially damaging the surface finish or even causing the tool to break. While factors like feed rate and depth of cut are primary drivers of chip formation, the edge radius plays a supporting role in ensuring chips form and leave the cutting zone effectively.

What Are the Common Edge Preparation Options for PCBN Inserts?

Besides just rounding the edge, what other ways can the cutting edge of a PCBN insert be prepared?

Common edge preparations for PCBN inserts include the radiused (or honed) edge, which involves rounding the sharp tip; the chamfered edge, which creates a small flat angle leading to the cutting edge; combined preparations like a chamfer plus a hone for maximum strength; and the basic sharp edge, which is typically avoided for PCBN due to its brittleness.

The Radiused (Honed) Edge Explained

This is perhaps the most common type of edge preparation for PCBN, and the one we’ve focused on most. It involves creating a tiny, smooth, rounded edge where the top surface (rake face) and side surface (flank face) of the insert meet. You’ll often hear this called a radius or a hone – in many cases, these terms are used interchangeably for this rounded preparation.

Think of it like the edge of a butter knife. It’s not razor-sharp, but it has a rounded contour that makes it stronger and less likely to chip compared to a very fine point. The main goal of the radiused edge is to distribute cutting stress over a slightly larger area, preventing the fragile edge from easily breaking. As we discussed earlier, the specific size of this radius significantly impacts performance, offering a good balance between strength and cutting ability for many general-purpose and finishing tasks.

Understanding the Chamfered Edge

Another common way to strengthen a PCBN edge is by creating a chamfer. Instead of a smooth radius, a chamfer is a small, flat surface ground at an angle along the cutting edge. (Definition of Chamfer¹). Imagine taking a perfectly sharp corner and grinding a tiny bevel onto it – that’s similar to a chamfer.

This angled flat removes the weakest part of the sharp edge, providing a more robust geometry to handle cutting forces. Chamfers are often described by their angle (e.g., 20 degrees) and their width (e.g., 0.1 millimeters).

Why use a chamfer? It typically provides even greater bluntness and strength than a radius, making it suitable for:

• Heavy roughing operations (removing large amounts of material quickly).
• Applications with severe interruptions or impacts.
• Situations where maximum edge security is prioritized over the finest surface finish.

The specific chamfer angle and width are critical design parameters. Using the wrong size can actually increase cutting forces too much or negatively impact performance. Therefore, it’s wise to consult your tooling manufacturer’s recommendations for suitable chamfer dimensions based on your specific machining task and material.

Comparing Prepared Edges vs. a Sharp Edge

So, how do these prepared edges stack up against leaving the edge “sharp”? A theoretical sharp edge is simply where the two main faces of the insert meet, forming the finest possible point.

For most cutting tool materials like carbide, a sharp edge (or a very small preparation) is often desirable for reducing cutting forces and achieving a good finish. However, for PCBN, which is much more brittle, a sharp edge is generally not practical. It’s simply too fragile and prone to immediate micro-chipping or fracture under typical cutting loads. This leads to:

• Very short and unpredictable tool life.
• Poor surface finish due to the damaged edge.
• Unstable cutting performance.

Both the radiused edge and the chamfered edge are designed specifically to overcome this inherent brittleness by adding strength, sacrificing some theoretical sharpness for essential real-world durability.

Here’s a quick comparison:

Exploring Combined Preparations (Chamfer + Hone)

For the absolute toughest jobs, manufacturers sometimes use a combined preparation, often called a chamfer plus hone (or chamfer plus radius).

This involves first grinding a chamfer onto the edge, and then applying a small radius (hone) to the sharp corners created by the chamfer (usually where the chamfer meets the flank face).

The idea is to get the benefits of both:

• The chamfer provides the primary bluntness and impact resistance.
• The hone smooths the transitions onto and off the chamfer, further distributing stress and preventing tiny chips from starting at those secondary edges.

This results in the strongest possible edge geometry, designed for maximum security in applications like:

• Heavy interrupted cuts in very hard steels or cast irons.
• Machining under unstable conditions (e.g., machine vibration).
• When preventing edge failure is the absolute top priority.

Creating these complex combined preparations requires very precise manufacturing control and they are typically used only when simpler preparations are insufficient for the task.

How Do You Select the Optimal Edge Radius for Your Application?

With different edge options available, how do you figure out the best edge radius or preparation for your specific machining job?

Selecting the optimal PCBN edge preparation involves matching the geometry to the application’s demands: consider the material’s hardness and type (harder materials often need stronger edges), differentiate between roughing (prioritizing strength/larger radius/chamfer) and finishing (prioritizing sharpness/smaller radius), and assess whether the cut is continuous (allowing potentially sharper edges) or interrupted (requiring stronger, more robust edges).

Key Factors for Hard Turning Operations

Hard turning² means machining materials like steel after they have been hardened, usually above 45 HRC (Rockwell C scale hardness) and often up to 65 HRC. This process frequently replaces slower grinding operations³. Because you’re cutting extremely hard material, the demands on the PCBN insert’s edge are very high – dealing with intense heat and pressure.

Choosing the right edge prep here is critical:

• For Finishing: If the main goal is excellent surface quality and tight tolerances in a stable cut, a smaller to moderate radius (hone) is often preferred. This provides a sharper cutting action for a cleaner finish. However, the cut must be smooth and stable.
• For Roughing or Semi-Finishing: When removing more material or if the conditions aren’t perfectly stable, edge strength is key. This usually means selecting a moderate to larger radius, or potentially a chamfer, or even a combined chamfer plus hone for maximum security against chipping.

For instance, finish turning a hardened gear shaft (perhaps 60 HRC) might work well with a radius around 0.005 mm to 0.010 mm for the best surface. However, taking a heavier roughing pass on that same shaft would likely require a stronger edge, maybe a 0.020 mm radius or a light chamfer, to prevent failure. Since recommendations can vary based on the exact steel grade and hardness, always consult your tooling supplier’s guidelines for specific hard turning applications and HRC ranges.

Matching Edge Prep to Workpiece Material Hardness and Type

The material you are cutting plays a huge role in selecting the edge preparation. As a general rule: the harder and more abrasive the workpiece material, the stronger the edge preparation needs to be.

• Hardened Steels (e.g., Tool Steels, Bearing Steels): These demand robust edge preparations (radius, chamfer, or combo) because of the high forces and heat generated during cutting.
• Cast Irons (Gray, Ductile): PCBN works very well on cast iron. While sometimes softer than hardened steel, cast iron can be quite abrasive and may contain hard spots (inclusions). A moderate radius usually helps extend tool life by resisting this abrasive wear.
• Powder Metallurgy (Sintered) Parts: These materials can be abrasive and sometimes have microscopic pores or inconsistencies, making a stronger, prepared edge (like a radius or light chamfer) generally safer.
• Superalloys (Less Common for PCBN): If PCBN is used for nickel-based superalloys, these materials generate extreme heat and work-harden rapidly, requiring very tough edge preparations.

Remember, it’s not just about the hardness number (like HRC). The material’s internal structure, abrasiveness, and tendency to have hard spots all influence the best edge prep choice.

Balancing Requirements for Roughing vs. Finishing Cuts

Your goal for the specific machining step – are you removing a lot of material quickly, or are you creating the final precise surface? – heavily influences the best edge prep.

• Roughing: The main goal is Maximum Material Removal Rate (MRR). Getting the bulk of the unwanted material off quickly is key. Surface finish isn’t the top priority yet.
  • Prep Choice: Focus on edge strength and security. This usually means choosing larger radii, chamfers, or chamfer + hone combinations that can withstand higher forces, deeper cuts, and faster feed rates without breaking. Think of using a sturdy axe for rough work.
• Finishing: The main goal is achieving the final size, shape, tolerance, and surface finish. Material removal is usually light.
  • Prep Choice: Focus on sharpness and cutting quality. This usually means choosing smaller radii that provide a cleaner cut with lower forces (assuming the cut is stable). Think of using a sharp hand plane for a smooth final surface.

You need to select the edge preparation that best matches the priority of each specific operation.

Considerations for Continuous vs. Interrupted Machining

Finally, think about how the tool engages with the workpiece. Is it cutting smoothly all the way, or is it bumping in and out of the material?

• Continuous Cutting: The tool edge remains constantly in contact with the material during the pass. Examples include turning a solid bar or boring a smooth hole.
  • Conditions: Cutting forces and temperatures are relatively stable.
  • Prep Choice: Since there are no impacts, you have more flexibility. You might be able to use smaller radii to optimize for surface finish or lower cutting forces, as edge strength against impact isn’t the primary concern.
• Interrupted Cutting: The tool edge repeatedly hits the workpiece as it enters and exits the cut during a single pass. Examples include facing a part with bolt holes, turning a shaft with a keyway, or milling operations.
  • Conditions: Each entry creates an impact load on the cutting edge. These repeated impacts are very stressful for a brittle material like PCBN.
  • Prep Choice: Requires maximum edge strength and toughness. Larger radii, chamfers, or chamfer + hone preparations are almost always necessary to prevent the edge from chipping or fracturing due to the repeated impacts. Using a small radius in an interrupted PCBN cut is asking for rapid tool failure.

Therefore, always assess the nature of the cut – continuous or interrupted – as it’s one of the most critical factors in choosing a suitably strong edge preparation for PCBN inserts.

Conclusion

In summary, understanding and utilizing proper edge preparation is not just beneficial, but truly essential for maximizing the performance of PCBN cutting tools. Because PCBN is inherently brittle despite its extreme hardness, applying a preparation like a radius (hone) or chamfer is critical to prevent edge chipping and failure. This directly translates to significant improvements in tool life, better surface finishes on hard-to-machine materials, and a more stable, reliable cutting process.

Choosing the right preparation involves carefully considering the specific application. Whether you need the strength of a larger radius or chamfer for roughing and interrupted cuts, or the sharpness of a smaller radius for fine finishing in continuous cuts, matching the edge geometry to the workpiece material and operational demands is key. Always refer to manufacturer recommendations and don’t hesitate to consult with tooling specialists to select the optimal edge preparation for achieving the best results and lowest costs in your hard machining operations.
