How Can You Maximize Hard Turning Success with CBN Inserts: From Selection to Troubleshooting?

cbn inserts

When it comes to machining very hard materials with CBN inserts, what does it really take to go from just getting by to achieving outstanding results and truly maximizing your success?

Maximizing success in hard turning with CBN inserts is a multi-faceted process that begins with a solid understanding of why CBN is the superior choice for these demanding tasks, followed by a meticulous approach to selecting the perfect insert grade and geometry tailored to your specific application.

Building on that foundation, consistent success is achieved by rigorously applying best practices in cutting parameters, machine setup, and coolant strategies, and crucially, by being prepared to effectively troubleshoot any common issues that may arise, from tool wear to surface integrity concerns, ensuring both quality and efficiency.

Why Are CBN Inserts a Superior Choice for Hard Turning Applications?

So, what exactly makes CBN inserts such a powerhouse when it comes to machining really tough, hard materials?

CBN (Cubic Boron Nitride) inserts are a top choice for hard turning because they are incredibly strong and can handle a lot of heat. Think of them like specialized tools that stay sharp even when cutting through materials that are too hard for many standard cutting tools. Consequently, this means they can machine hardened steel smoothly and accurately.

This special ability comes from CBN’s unique makeup. It’s the second hardest material known, right after diamond. Furthermore, this extreme hardness, along with its power to resist wear and stay strong at high temperatures (known as hot hardness), allows CBN inserts to machine very hard parts efficiently, produce excellent surface finishes, and last longer. As a result, this often saves time and money in manufacturing processes where precision is key.

Understanding the Unique Properties of CBN (Cubic Boron Nitride)

Cubic Boron Nitride, or CBN1, is a remarkable material. It’s not found in nature like some minerals; instead, it’s a synthetic, or man-made, material. Scientists create it under conditions of very high pressure and high temperature, similar to how synthetic diamonds are made. Imagine squeezing and heating a special boron and nitrogen powder until its atoms rearrange into an incredibly strong, crystal structure. This structure is cubic, much like that of a diamond, which contributes significantly to its impressive hardness.

Because it’s manufactured, its properties can be tailored to some extent by controlling the grain size of the CBN crystals and the type of binder material used to hold these grains together in an insert. This allows for different “grades” of CBN, though we’ll talk more about selecting specific grades later. The fundamental nature of CBN, however, is its extreme hardness and resilience.

Key Advantages: High Hardness, Thermal Stability, and Wear Resistance

The reason CBN performs so well in tough jobs like hard turning boils down to a few core advantages. These are not just minor improvements; they represent a significant leap in capability compared to many older cutting tool materials when machining hardened ferrous (iron-based) metals.

Exceptional Hardness

CBN is exceptionally hard. On the Knoop hardness scale2 (a way to measure how resistant a material is to indentation), CBN typically measures between 3500 to 4500 HK, while diamond is around 7000 to 10000 HK. For comparison:

  • Tungsten Carbide (a common tool material): Around 1300 to 2200 HK
  • Ceramics (another hard turning option): Around 1800 to 2500 HK

This superior hardness means CBN can easily penetrate and cut materials that are themselves very hard. A CBN cutting edge can maintain its sharpness when machining hardened steels where other tools might dull or break quickly.

Outstanding Thermal Stability (Hot Hardness)

When you’re cutting metal, especially hard metal at productive speeds, a lot of heat is generated right at the cutting edge. Many materials get softer when they get hot, losing their cutting ability. CBN, however, shines here. It has excellent thermal stability, meaning it stays very hard even at high temperatures – often up to 1000°C (1832°F) or even higher for certain compositions. This is known as hot hardness.

Why is this so important?

  • It allows for higher cutting speeds, which means parts can be made faster.
  • The tool maintains its shape and sharpness even when the cutting zone is glowing red hot.
  • It’s particularly more stable than diamond when machining ferrous materials (like steel) because diamond can react chemically with iron at high temperatures, causing rapid wear. CBN does not have this issue with steel, making it the preferred choice for hard turning ferrous metals.

Superior Wear Resistance

Wear resistance is the ability of the cutting tool to resist being worn away by the material it’s cutting. Because CBN is so hard and chemically stable (especially against iron-based materials), it wears down very slowly.

  • Longer Tool Life: This means a single CBN insert can machine many more parts than a conventional tool before it needs to be replaced. This reduces downtime for tool changes and lowers the overall cost per part.
  • Consistent Quality: As the tool wears less, the dimensions and surface finish of the machined parts remain consistent for a longer period.

For example, in automotive manufacturing, when finishing hardened transmission gears (often 58-62 HRC), CBN inserts can provide significantly longer tool life compared to ceramic inserts in certain continuous cutting applications, leading to more predictable production and reduced tooling costs.

Typical Workpiece Materials and Hardness Ranges (e.g., Hardened Steels 45-70 HRC)

CBN inserts truly excel when machining very hard ferrous materials. If you try to machine soft steel with CBN, it might not be cost-effective, and other tool types could be better. But for the tough stuff, CBN is often the champion.

Here are some common examples of materials and components where CBN inserts are effectively used:

  • Hardened Steels: This is the primary application. This includes:
    • Bearing Steels: (e.g., 52100 steel) hardened to 58-64 HRC.
    • Tool Steels & Die Steels: (e.g., D2, H13) used for making tools, molds, and dies, often hardened to 50-65 HRC.
    • Case-Hardened Components: Parts that have a very hard outer layer (the “case”) and a softer core, such as gears, shafts, and cams. The hardened case can be 55-65 HRC.
    • Induction Hardened Parts: Where specific areas of a component are rapidly heated and quenched to achieve high surface hardness.
  • Powder Metallurgy (PM) Parts: These are components made by compressing metal powders and then sintering (heating) them. Some PM parts can be quite hard and abrasive.
  • Chilled Cast Iron and High-Chrome Alloys: These are very abrasive materials where CBN can offer good performance.
  • Surface Hardened Welds or Coatings: Machining hard-faced overlays or weld repairs.

Generally, CBN is most effective for materials with a hardness of approximately 45 HRC (Rockwell C Hardness) and above, extending up to 65 HRC or even 70 HRC in some cases. It’s important to note that the optimal CBN grade and cutting conditions can vary based on the specific material, its exact hardness, and the type of machining operation (e.g., continuous vs. interrupted cutting). Therefore, it’s always a good practice to consult with the CBN insert supplier for their specific recommendations for your material and hardness range.

Using CBN for these hard materials often allows manufacturers to replace slow and expensive grinding operations with faster and more flexible turning operations, a topic further explored in hard turning explained: what is it and how does it compare to grinding3. This can lead to significant time savings, better surface finishes in some cases (rivaling ground finishes), and the ability to create complex shapes more easily than with grinding.

Hard Turning

How Do You Select the Ideal CBN Insert for Your Specific Hard Turning Task?

With so many options out there, how do you actually pick the right CBN insert to get the best results for your specific hard turning job?

Selecting the ideal CBN insert involves matching the insert’s characteristics—such as its CBN content, binder type, and edge preparation—to the workpiece material, its hardness, and whether the cut will be continuous or interrupted. Additionally, you also need to consider the insert’s shape and size based on the operation and required strength.

Essentially, for tougher, interrupted cuts, you’ll typically look for CBN grades with higher toughness (often achieved with specific CBN grain sizes and binder materials) and stronger edge preparations like chamfers. Conversely, for continuous finishing cuts where high wear resistance is key, grades with a higher concentration of CBN and perhaps a lighter edge preparation might be preferred. Always consider the specific application details and consult tooling supplier recommendations, as their grade systems and application data are invaluable.

Decoding CBN Grades and Their Characteristics (e.g., High CBN Content, Low CBN Content, Binder Types)

Not all CBN inserts are created equal. They come in different “grades,” much like different recipes for a cake, where the ingredients and their amounts change the final result. These grades are designed for different types of hard turning jobs. The main things that make CBN grades different are the amount of CBN, the size of the CBN grains, and the type of “glue” or binder that holds the CBN particles together.

  • CBN Content & Grain Size:
    • High CBN Content (often with finer grains): These grades typically have a lot of CBN in them, say from 85% up to nearly 100%. This makes them very hard and excellent at resisting wear, especially when you need a super smooth finish on a part that’s being cut continuously. Think of it like having more of the super-strong cutting ingredient. They excel in finishing operations on hardened steels.
    • Low CBN Content (often with coarser or mixed grains and more binder): These grades have less CBN, maybe around 40% to 60%, with the rest being a tough binder material, often a ceramic like Titanium Carbide (TiC) or a metallic binder. While slightly less wear-resistant than high CBN content grades, they are much tougher. This toughness is crucial for handling “bumpy” or interrupted cuts where the tool might get jolted.
  • Binder Types: The binder material plays a critical role.
    • Ceramic Binders: Materials like Titanium Nitride (TiN), Titanium Carbide (TiC), or other ceramics are common. These can help increase the toughness of the CBN composite or its resistance to chemical wear at high temperatures.
    • Metallic Binders: Cobalt (Co) was traditionally used, but modern CBN grades often feature advanced ceramic binder systems for better performance in hard turning.

Key Takeaway for CBN Grades:

FeatureHigh CBN Content GradesLow CBN Content / High Binder Grades
Primary StrengthHighest wear resistance, good for fine finishingHigher toughness, better for interrupted cuts
Best ForContinuous cuts, achieving very smooth surfacesInterrupted cuts, roughing, variable depth of cut
Example UseFinishing a hardened bearing race (smooth, continuous)Turning a hardened gear with teeth (interrupted)

Important Note: CBN grade designations (like KBN05M, CB7015, or BNC200) are specific to each tooling manufacturer. One company’s “tough grade” might have different properties than another’s. Therefore, it’s absolutely essential to consult the supplier’s catalogs and technical guides to understand the characteristics and intended applications of their specific CBN grades. They often provide detailed charts matching grades to materials and cutting conditions.

Choosing the Right Insert Geometry: Shape, Size, and Edge Preparation (Chamfer, Hone)

Once you have an idea of the CBN grade, you need to pick the insert’s physical form – its geometry. This includes its shape, how big it is, and how the cutting edge itself is prepared.

Insert Shape

CBN inserts come in various standard shapes, often identified by letters like S, C, D, V, R, T:

  • Round (R): These inserts (e.g., RNGA) have the strongest cutting edge because they have no weak points like sharp corners. They are excellent for roughing operations and can handle heavier cutting forces.
  • Square (S): Inserts like SNGA offer strong edges and multiple cutting corners, making them good for general-purpose turning and facing.
  • Diamond (C, D, V):
    • 80° Diamond (C): CNGA inserts are versatile for both roughing and finishing.
    • 55° Diamond (D): DNGA inserts offer good accessibility for profiling.
    • 35° Diamond (V): VNGA inserts are used for fine finishing and profiling where you need to get into tight contours. However, their sharp point angle makes them the weakest shape, so they need to be applied carefully.
  • Triangle (T): TNGA inserts offer three cutting edges and are often used for general turning.

The general rule is: the larger the point angle (like in round or square inserts), the stronger the edge. Smaller point angles (like in V-shape inserts) are less strong but allow for more complex machining paths.

Insert Size

The size of the insert is usually indicated by the Inscribed Circle (IC) diameter, edge length, or thickness. Larger inserts are generally stronger and can handle greater depths of cut and higher feed rates. Smaller inserts are used for finer work or when machining smaller components. Choosing the right size depends on the power of your machine, the stability of your setup, and the amount of material you need to remove.

Edge Preparation

This is a very critical detail for CBN inserts because the material is so hard, it can also be brittle (like glass). The edge preparation4 strengthens the cutting edge to prevent it from chipping or breaking too easily, especially when it first hits the hard material.

  • Hone: A very slight rounding of the cutting edge. A light hone might be used for finishing cuts in stable conditions. A heavier hone provides more strength.
  • Chamfer (or T-land): A small, angled flat surface ground onto the cutting edge. This creates a much stronger edge and is commonly used for interrupted cuts or when roughing. The chamfer angle and width can vary. For instance, a common preparation might be a 20-degree chamfer that is 0.1 mm wide.
  • Combined Preparation: Some inserts have both a chamfer and a hone.

Think of edge preparation like this: a razor blade is very sharp but also very delicate (no preparation). A wood-splitting axe has a less sharp but much more robust edge (like a heavy chamfer) to withstand impact. The specific edge preparation will significantly influence the insert’s performance and tool life. Again, suppliers provide various edge preparations, and their recommendations are key to matching the prep to your application (material, interruptions, desired finish).

Solid CBN vs. Tipped CBN Inserts: When to Use Which?

CBN material is expensive. So, manufacturers have come up with different ways to make CBN inserts:

  • Tipped CBN Inserts5: These are the most common type. A small piece (or tip) of CBN is brazed (like a very strong solder) onto a larger base made of tungsten carbide. This is more economical because you only use CBN where it’s needed – at the cutting edge. Most tipped inserts have one to several CBN corners depending on the design.
    • Best for: Most general hard turning applications, offering a good balance of performance and cost.
  • Solid CBN Inserts6: These inserts are made almost entirely of CBN material, or have a very thick layer of CBN across the top surface. They are more expensive upfront.
    • Advantages:
      • Can sometimes offer more cutting edges per insert (e.g., if the CBN is on both sides or covers the full face of a round insert).
      • Can be more robust in very heavy or demanding cuts due to the solid CBN structure.
      • May offer better heat dissipation throughout the insert.
    • Best for: High-volume production where maximum tool life and number of edges per insert are critical, or for very severe cutting conditions where the integrity of a brazed tip might be a concern.

For many users, tipped CBN inserts provide excellent performance and value. Solid CBN might be considered for specialized, high-demand scenarios.

Matching the Insert to Interrupted vs. Continuous Cuts

One of the biggest factors in choosing the right CBN insert (grade and edge preparation) is whether your cut will be smooth and continuous, or if it will be interrupted.

  • Continuous Cuts:
    • What it is: The cutting tool stays in constant contact with the workpiece. Imagine peeling an apple in one long strip. This is typical when turning a smooth, round shaft.
    • Insert Choice: For these conditions, you can often prioritize wear resistance. This means you might select:
      • A CBN grade with higher CBN content.
      • A sharper edge preparation (e.g., a light hone).
    • Example: Finish turning a hardened steel axle shaft. The goal is a smooth surface and long tool life.
  • Interrupted Cuts:
    • What it is: The cutting tool repeatedly enters and exits the material during each revolution. Think of turning a shaft that has a keyway (a slot) cut into it, or machining a hardened gear where the tool hits each tooth. Each impact is like a tiny hammer blow to the cutting edge.
    • Insert Choice: For these tougher conditions, you must prioritize toughness and edge strength. This means you will likely select:
      • A CBN grade with lower CBN content and a tougher binder system.
      • A stronger edge preparation, such as a chamfer (T-land) or a heavy hone.
    • Example: Machining the face of a hardened steel component with bolt holes, or turning a hardened splined shaft. The cutting edge experiences repeated impacts.

Choosing an insert designed for continuous cuts and using it in a heavy interrupted cut is a common way to cause premature tool failure, like chipping or breaking. Conversely, using an extra-tough interrupted cutting grade for fine finishing might not give the best surface finish or longest life if a more wear-resistant grade could have been used. This is why understanding the nature of your cut is so vital for selection.

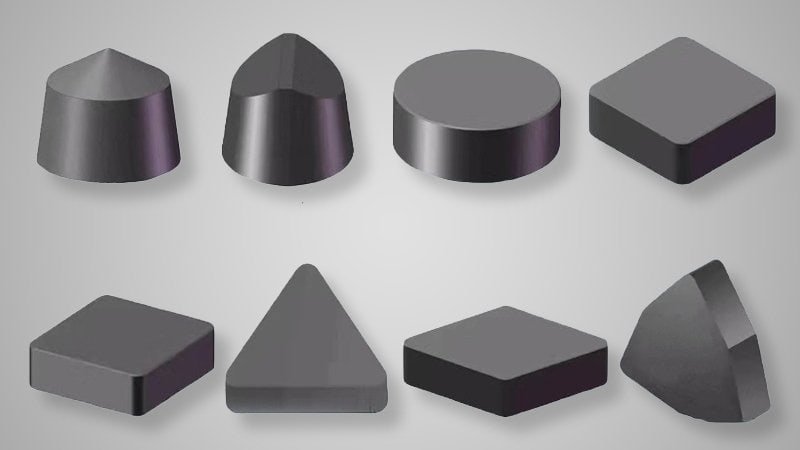

solid cbn inserts
solid cbn inserts

What Are the Best Practices for Optimizing Performance and Tool Life with CBN Inserts?

Now that you’ve chosen a CBN insert, how can you make sure you’re using it in the best possible way to get great results and make it last longer?

Optimizing performance and tool life with CBN inserts hinges on using appropriate cutting parameters (speed, feed, depth of cut), ensuring a rigid and stable machining setup, applying coolant effectively (or running dry correctly), and focusing on consistent operational practices. Subsequently, these elements work together to maximize efficiency and part quality.

Specifically, starting with recommended cutting parameters from the supplier and then adjusting based on actual results is a key initial step. Furthermore, a robust machine tool and secure workholding are crucial to minimize vibrations, which are particularly detrimental to the performance of CBN inserts. Proper coolant use helps control temperature and aids in chip evacuation, while careful attention to the entire process helps achieve the desired surface finish and dimensional accuracy reliably over time.

Recommended Cutting Parameters: Speed, Feed, and Depth of Cut Guidelines

Think of cutting parameters as the specific settings or instructions you provide for how your CBN insert will machine the part. The three main ingredients are cutting speed, feed rate, and depth of cut. Getting these right is crucial for success.

  • Cutting Speed (Vc): This is how fast the surface of the workpiece moves past the cutting edge of the insert.
    • General Range: For hard turning with CBN, speeds typically range from 80 to 200 meters per minute (m/min), which is about 260 to 650 surface feet per minute (sfm).
    • Influence: Higher speeds often lead to better surface finishes but can increase wear if too high. Lower speeds might be used for tougher materials or interrupted cuts to reduce impact.
    • Analogy: Imagine peeling a potato. If you go too fast, you might lose control or the peeler might skip; if you go too slow, it takes forever. There’s an optimal speed.
  • Feed Rate (fn): This is how far the insert moves along the workpiece for each revolution of the part.
    • General Range: Typical feed rates are between 0.05 to 0.25 millimeters per revolution (mm/rev), or about 0.002 to 0.010 inches per revolution (ipr).
    • Influence: Lower feed rates generally produce smoother surface finishes. Higher feed rates remove material faster but can result in a rougher surface and increased tool wear.
  • Depth of Cut (ap): This is how deep the insert cuts into the material in one pass.
    • General Range: For finishing passes, the depth of cut is usually small, often 0.05 to 0.5 millimeters (mm), or 0.002 to 0.020 inches. For some roughing-capable CBN grades, this can be slightly higher.
    • Influence: A consistent depth of cut is important. Too small a depth might cause rubbing instead of cutting, while too large a depth can overload the insert, especially if it’s not designed for it.

Crucial Considerations for Parameters:
The ranges above are very general starting points. The ideal parameters depend heavily on:

  • The specific CBN grade you selected (as discussed in the previous section).
  • The exact hardness and type of workpiece material.
  • The condition and rigidity of your machine tool.
  • Whether the cut is continuous or interrupted.
  • The edge preparation on the insert.

Therefore, always, always start with the cutting parameter recommendations provided by your CBN insert supplier. They have tested their products extensively and can give you the best starting values for your specific application. You can then fine-tune these based on your results, looking at tool wear, surface finish, and part dimensions. For example, when machining a hardened tool steel (approx. 62 HRC) for a mold component, a supplier might recommend a starting speed of 120 m/min, a feed of 0.1 mm/rev, and a depth of cut of 0.15 mm for a finishing pass with a specific CBN grade.

The Critical Role of Machine Tool Rigidity and Stability

Imagine trying to write very neatly with a pen that has a wobbly, flexible tip – it would be almost impossible! The same idea applies to hard turning with CBN. Because CBN inserts are cutting very hard materials, even small vibrations can cause big problems, like a chipped insert or a poor surface finish.

Machine Tool Rigidity is Key:

  • Robust Machine: The CNC lathe or turning center itself must be strong, well-maintained, and designed for precision work. The spindle (the part that spins the workpiece or tool) should have high-quality bearings with no play. Guideways (the tracks the machine parts move on) must be in good condition.
  • Secure Workholding: How the workpiece is held is just as important.
    • Chucks, collets, or fixtures must clamp the part very securely to prevent any movement or vibration during cutting. For instance, using a hydraulic chuck with appropriate clamping pressure for a hardened shaft ensures it doesn’t slip or vibrate.
    • If the workpiece is long and slender, a tailstock or steady rest might be needed for extra support.
  • Rigid Toolholding:
    • Use high-quality tool holders specifically designed for CBN inserts if available.
    • Keep the overhang (how far the tool sticks out from the holder) as short as absolutely possible. A longer overhang acts like a lever, amplifying any vibrations.

Why is this so important for CBN?
CBN is very hard, but it can also be somewhat brittle compared to tougher tool materials like high-speed steel. Vibrations create rapidly changing forces on the cutting edge, which can lead to micro-chipping or even fracturing of the CBN tip. A rigid and stable setup ensures that the cutting action is smooth and controlled, protecting the insert and leading to better part quality and longer tool life.

Coolant Application: Effective Strategies for Wet or Dry Hard Turning

Coolant (the cutting fluid used in machining) can play a role in hard turning, but it needs to be applied correctly. Sometimes, no coolant (dry machining) is even better!

  • Dry Hard Turning: This is often preferred with modern CBN grades.
    • Advantages:
      • No Thermal Shock7: CBN inserts can handle high heat, but they don’t like rapid temperature changes (thermal shock), which can cause tiny cracks. Dry cutting avoids this risk from inconsistent coolant.
      • Environmental/Cost: No coolant to buy, maintain, or dispose of.
      • Visibility: Easier to see the cutting process.
    • Requirements: You need a CBN grade designed for high temperatures and good thermal shock resistance. Effective chip evacuation is also important, sometimes assisted by an air blast.
  • Wet Hard Turning (Using Coolant): If coolant is used, it must be done right.
    • Purpose: Primarily to cool the cutting zone and, importantly, to flush away chips that could damage the surface finish or interfere with cutting. Lubrication is a secondary benefit in hard turning with CBN.
    • Application is Key:
      • Use an abundant and continuous supply of coolant aimed directly at the cutting edge.
      • High-pressure coolant can be very effective for penetrating the hot zone and blasting chips away.
      • Never use intermittent or insufficient coolant! This is worse than dry machining because it causes repeated heating and cooling (thermal shock), which will likely damage the CBN insert. Think of pouring cold water onto a hot glass – it can crack.
    • Types of Coolant: Emulsions or semi-synthetic coolants are commonly used.

The Choice: Wet or Dry?
Many modern CBN applications, especially finishing, are successfully done dry. However, for certain operations, such as deep grooving or where chip packing is a major concern, a consistent and high-volume coolant supply can be beneficial. Always check the recommendations from your CBN insert supplier, as some grades are optimized for dry cutting, while others may perform well with proper coolant application.

Achieving Desired Surface Finish and Dimensional Accuracy

Ultimately, the goal of hard turning is to produce parts with the right size and a good surface finish, often replacing grinding operations. Here’s how best practices contribute:

  • Achieving Excellent Surface Finish (e.g., Ra 0.1 – 0.4 µm):
    • Low Feed Rate: As mentioned, a lower feed rate (e.g., 0.05 – 0.12 mm/rev) generally results in a smoother finish.
    • Insert Nose Radius: A larger nose radius on the insert can produce a better finish at a given feed rate. However, a very large nose radius can sometimes increase cutting forces and the risk of vibration if the setup isn’t perfectly rigid. Common nose radii for finishing are 0.4 mm or 0.8 mm.
    • Wiper Inserts: Some CBN inserts have a special “wiper” geometry on their cutting edge. This flat portion on the edge “wipes” the surface smooth, allowing for good finishes even at slightly higher feed rates, thus improving productivity.
    • Cutting Speed: An appropriate, often higher, cutting speed (within the recommended range) can contribute to a better finish.
    • Minimal Vibration: A rigid setup is absolutely essential for a good finish.
    • Tool Wear: A worn tool will not produce a good finish. Monitor and change inserts before tool wear becomes excessive.
  • Maintaining Tight Dimensional Accuracy:
    • Machine Precision: The accuracy of your machine tool is fundamental.
    • Consistent Cutting: Using optimal and consistent cutting parameters ensures that material is removed predictably.
    • Tool Wear Management: As the CBN insert wears, the dimensions of the part can change. Implement a strategy for monitoring wear and compensating or changing the tool. For example, in high-volume production of automotive components like transmission shafts, automated tool wear detection or programmed tool changes after a set number of parts are common.
    • Thermal Stability: Ensure both the machine and workpiece are thermally stable to avoid dimensional changes due to temperature variations.

By carefully controlling all these factors – from selecting the right CBN grade and geometry, to using correct parameters, ensuring a rigid setup, and applying coolant properly – you can consistently achieve the high-quality results that hard turning with CBN is known for. This often means meeting tolerances and surface finish requirements that previously demanded slower and more costly grinding processes.

How Can You Troubleshoot Common Issues Encountered During CBN Hard Turning?

Even with the best plans and careful setup, what common problems might pop up when hard turning with CBN inserts, and how can you fix them effectively?

Troubleshooting common issues in CBN hard turning, such as premature tool wear, poor surface integrity, or inconsistent results, involves systematically examining factors like insert selection, cutting parameters, machine setup, and coolant application. Consequently, identifying the specific type of wear or defect is the crucial first step to finding an effective solution and getting your process back on track.

Corrective actions often include adjusting cutting speeds or feeds, selecting a more appropriate CBN grade or edge preparation for the application (especially if interruptions or material hardness were underestimated, as discussed earlier), improving machine or workholding rigidity, or optimizing coolant use. However, sometimes the problem might indicate that hard turning with CBN, or the current approach, needs reconsideration for that specific task, prompting a look at alternative strategies.

Identifying and Preventing Premature CBN Insert Wear (e.g., Chipping, Flaking, Notch Wear)

When your CBN insert wears out too quickly, it costs time and money. Understanding the type of wear can tell you a lot about what’s going wrong.

Chipping or Micro-Fracturing

  • What it looks like: Small pieces breaking off the cutting edge.
  • Common Causes:
    • Vibration: The machine, workpiece, or tool holder isn’t rigid enough (see H2.3 on rigidity).
    • Wrong CBN Grade/Edge Prep: The insert isn’t tough enough for the job, or the edge preparation (like a hone or chamfer) is too light for the cutting conditions, especially in interrupted cuts (see H2.2 on selection).
    • Impact: Hard inclusions in the material, or the tool hitting an unexpected feature.
    • Parameters Too Aggressive: Cutting speed, feed, or depth of cut might be too high for the specific insert and material.
  • Prevention & Solutions:
    • Enhance Rigidity: Ensure machine, workholding, and toolholding are as stiff as possible. Use the shortest tool overhang.
    • Select a Tougher Grade: Consider a CBN grade with higher toughness (often lower CBN content with specific binders) or a stronger edge preparation (e.g., a wider or larger angle chamfer).
    • Reduce Parameters: Try slightly reducing cutting speed, feed, or depth of cut.
    • Smooth Entry: If possible, program the toolpath for a smoother entry into the cut.

Flaking or Gross Fracturing

  • What it looks like: Larger pieces of the CBN tip breaking away. This is more severe than chipping.
  • Common Causes:
    • Severe Impact: Often due to heavy interruptions, an unstable setup, or a machine crash.
    • Thermal Shock: Rapid temperature changes, usually from inconsistent coolant application (see H2.3 on coolant). If you’re using coolant, make sure it’s constant and plentiful; otherwise, consider dry machining.
    • Incorrect Application: Using an insert grade meant for light finishing in a heavy roughing or heavily interrupted cut.
  • Prevention & Solutions:
    • Address Rigidity and Stability: This is paramount.
    • Optimize Coolant: Ensure consistent coolant flow or switch to dry machining if appropriate for the grade.
    • Verify Insert Choice: Double-check that the CBN grade and edge preparation are suitable for the toughness demands of the application.
    • Check Toolpath: Ensure the tool isn’t experiencing undue stress from the programmed path.

Flank Wear

  • What it looks like: A gradual wearing away of the relief face (flank) of the insert, just below the cutting edge. Some flank wear is normal and expected.
  • Common Causes (for excessive flank wear):
    • Cutting Speed Too High: Generates more heat and abrasion.
    • Abrasive Material: Some workpiece materials or their scale/oxide layers are very abrasive.
    • Insufficient Wear Resistance: The CBN grade may not have enough wear resistance for the material or speed.
  • Prevention & Solutions:
    • Optimize Cutting Speed: Try reducing the speed. Even a small reduction can sometimes significantly improve tool life.
    • Consider a More Wear-Resistant Grade: If flank wear is consistently rapid despite good parameters, a CBN grade with higher CBN content or a different binder might be better (consult supplier).
    • Ensure Proper Depth of Cut: Make sure you’re cutting beyond any hard surface scale if present.

Crater Wear

  • What it looks like: A bowl-shaped depression forming on the top face (rake face) of the insert, a little way back from the cutting edge.
  • Common Causes:
    • High Cutting Temperatures: Leading to diffusion wear, where material from the tool gets dissolved into the hot chip.
    • Cutting Speed Too High: The primary driver of high temperatures.
  • Prevention & Solutions:
    • Reduce Cutting Speed: This is the most effective way to lower temperature and reduce crater wear.
    • Improve Cooling (if wet): Ensure coolant is effectively reaching the cut zone.
    • Consider a Grade with Higher Hot Hardness/Chemical Stability: Some CBN grades are better at resisting this type of wear.

Notch Wear

  • What it looks like: Localized, excessive wear at the point on the cutting edge corresponding to the depth of cut line, or where the edge exits the material.
  • Common Causes:
    • Hard Surface Layer/Scale: The workpiece might have a very hard or abrasive outer “skin” from previous heat treatment or forging.
    • Work Hardening: The material at the surface is becoming harder as it’s being cut.
    • Abrasion from Chips: Chips from a previous pass not being cleared effectively.
  • Prevention & Solutions:
    • Vary Depth of Cut (if possible): If using multiple passes, slightly vary the depth of cut for the finishing pass so the wear isn’t concentrated in one spot.
    • Ensure Depth of Cut is Below Scale: If a hard scale is present, make sure your first pass is deep enough to get underneath it.
    • Use a Tougher Edge Preparation: A chamfer can help protect against notch wear.
    • Improve Chip Evacuation: Ensure chips are not being recut or abrading the tool at the depth-of-cut line.

Addressing Problems with Surface Integrity (e.g., White Layer, Residual Stresses)

What happens on and just below the surface of your part is called surface integrity8. Hard turning can affect this.

  • White Layer Formation:
    • What it is: An extremely hard, brittle, and often undesirable micro-thin layer that can form on the machined surface due to intense heat and rapid quenching by the workpiece material itself or coolant.
    • Potential Issues: Can lead to premature part failure or cracking.
    • Causes: Usually excessive cutting temperatures (speed too high), a very dull or worn tool, or an inappropriate cutting geometry that generates too much heat.
    • Solutions:
      • Reduce Cutting Speed: Lowering speed reduces heat generation.
      • Use a Sharp, Appropriate Insert: Ensure the CBN insert has the correct edge preparation (often a light hone is better than a very sharp or heavily chamfered edge if white layer is a concern and the application allows). Replace worn inserts promptly.
      • Optimize Feed Rate: Avoid excessively low feed rates that might cause rubbing and heat.
      • Ensure Effective Cooling (if machining wet): Proper coolant application can help manage temperatures.
  • Residual Stresses:
    • What it is: Stresses locked into the surface of the part after machining. They can be:
      • Compressive (Often Good): These stresses squeeze the material together and can actually increase the fatigue life of a part, making it last longer under cyclic loads. CBN turning, especially with honed or chamfered edges, often produces beneficial compressive stresses.
      • Tensile (Often Bad): These stresses try to pull the material apart and can make the part more prone to cracking or fatigue failure.
    • Controlling Stresses:
      • Edge Preparation: Well-prepared CBN inserts (honed, chamfered) tend to induce compressive stresses.
      • Cutting Parameters: Very high speeds or extremely negative tool geometries can sometimes lead to tensile stresses. Worn tools are also more likely to create undesirable stresses.
      • Goal: Aim for machining conditions that promote compressive residual stresses, especially for critical components like bearings or gears. This often involves using a well-prepared CBN insert within its optimal parameter range. Tooling suppliers can often provide guidance on achieving favorable residual stresses with their products.

Solutions for Inconsistent Tool Life or Poor Part Quality

If you find that one insert lasts a long time and the next one fails quickly, or your part dimensions are all over the place, it’s time for some systematic detective work.

  • For Inconsistent Tool Life:
    • Check Workpiece Material Consistency: Are there variations in hardness or composition from one batch of material to another, or even within the same bar?
    • Verify Setup Consistency: Is every workpiece being clamped with the same pressure and in the same position? Is the tool holder always mounted correctly?
    • Machine Condition: Are there intermittent problems with the machine tool itself (e.g., a spindle bearing that’s starting to fail, inconsistent axis movement)?
    • Parameter Adherence: Ensure operators are consistently using the programmed cutting parameters.
    • Examine “Failed” Inserts: Look closely at how the tools are wearing. Is the wear pattern consistent, or does it change from tool to tool? This can provide clues.
  • For Poor or Inconsistent Part Quality (Dimensions, Finish):
    • Tool Wear: This is a primary suspect. As the tool wears, dimensions will change, and surface finish will degrade. Implement a tool life management strategy.
    • Machine Stability and Accuracy: Any play or inaccuracy in the machine will directly translate to the part.
    • Thermal Effects: Is the machine, workpiece, or measuring equipment changing temperature significantly during production, affecting measurements?
    • Process Monitoring: Regularly measure critical part features. Track any changes and correlate them with tool changes, material batches, or other process variables. For example, if part diameter starts to increase, it’s a sign the insert is wearing.

A good approach is to change only one thing at a time when troubleshooting. If you change the speed, feed, and the insert grade all at once, you won’t know which change made the difference!

When to Consider Alternative Solutions or Adjustments

Sometimes, despite your best efforts, hard turning with CBN might still present persistent challenges for a particular application.

  • If Problems Persist:
    • After thoroughly checking your setup, parameters, and insert selection, and consulting with your tooling supplier, if issues like extremely short tool life or unacceptable part quality continue, it might be that:
      • The specific CBN grade/geometry is still not optimal for the unique demands of your material or operation.
      • The material itself is exceptionally difficult to machine or has problematic inconsistencies.
      • The machine tool, while generally good, may lack the specific rigidity or precision required for that particular tolerance or finish with CBN.
  • Considering Alternatives:
    • Different CBN Product: Could a different supplier’s CBN, or a different type of CBN (e.g., a solid CBN insert instead of tipped, or one with a specialized coating) offer an advantage? This is where strong collaboration with tooling experts is invaluable.
    • Alternative Machining Processes: For some features or tolerances, other processes might be more suitable or economical. Could that final critical dimension be more easily achieved by a light grinding pass after hard turning? Is hard milling an option? For very complex internal shapes, could EDM (Electrical Discharge Machining) be considered?
    • Process Re-evaluation: Can the machining strategy be changed? For example, using multiple, lighter passes instead of a single heavy one, or re-ordering operations.
    • Material Review: In rare cases, if a material is proving nearly unmachinable to the required quality or cost, discussion with designers about slight material specification changes might be a (long-term) option.

The key is to be open to re-evaluating your approach. Hard turning with CBN is a powerful technology, but it’s one tool in a larger manufacturing toolbox. Don’t hesitate to seek expert advice from tooling suppliers, application engineers, or machine tool specialists. They often have experience with a wide range of challenging applications and can provide fresh insights or suggest solutions you haven’t considered.

Conclusion

Mastering hard turning with CBN inserts is a journey that combines knowledge with practical application. By understanding the unique advantages of CBN, carefully selecting the right tools, optimizing your machining practices, and developing strong troubleshooting skills, you can consistently achieve high-quality results, improve productivity, and tackle even the most challenging hardened materials. Remember that your tooling suppliers are valuable partners in this process, offering expertise and support to help you navigate specific challenges and achieve optimal performance.


References

  1. Cubic Boron Nitride, or CBN1 – A comprehensive guide to CBN cutting tools from ZYDiamondTools.
  2. Knoop hardness scale2 – Wikipedia article explaining the Knoop hardness test.
  3. hard turning explained: what is it and how does it compare to grinding3 – ZYDiamondTools blog post explaining hard turning and comparing it to grinding.
  4. edge preparation4 – ZYDiamondTools article explaining edge radiusing for PCBN inserts, a key aspect of edge preparation.
  5. Tipped CBN Inserts5 – ZYDiamondTools product page showcasing CBN/PCBN inserts, which are commonly tipped.
  6. Solid CBN Inserts6 – ZYDiamondTools product page for solid CBN inserts.
  7. Thermal Shock7 – ScienceDirect topic page explaining thermal shock in materials science.
  8. surface integrity8 – Wikipedia article explaining the concept of surface integrity in manufacturing processes.
Share:
Previous Post
Picture of ZY Superhard Tools Co., Ltd.

ZY Superhard Tools Co., Ltd.

Do you have any needs for PCD tools or diamond grinding wheels? We can customize products to meet your specific requirements. If you have any ideas or requests, feel free to reach out—we’ll respond within 24 hours!

Contact Us Now!

Do you have any needs for PCD & CBN tools or diamond grinding wheels? We can customize products to meet your specific requirements. If you have any ideas or requests, feel free to reach out—we’ll respond within 24 hours!

Do you have any needs for PCD & CBN tools or diamond grinding wheels? We can customize products to meet your specific requirements. If you have any ideas or requests, feel free to reach out—we’ll respond within 24 hours!

Post Categories

Product Categories

About Company

We are a leading provider of superhard tools, specializing in high-precision PCD, PCBN, and diamond solutions for industries worldwide. With a focus on quality and innovation, we deliver customized tools that meet the demanding needs of sectors like automotive, aerospace, and electronics. We focus on improving our technology and services to provide reliable solutions that help our clients succeed.

Related Posts

Subscribe

Simply enter your email below and click “Subscribe” to stay connected with everything new and exciting.
