CBN Hard Turning vs. Grinding for Bearing Steel: Which Delivers Superior Results and How Can You Optimize Each Process?

When it comes to machining hardened bearing steel with CBN tools, how do you determine whether hard turning or grinding will give you better results, and what’s the best way to get the most out of each process?

Choosing between CBN hard turning and grinding for bearing steel depends on specific quality requirements, production volumes, and cost targets; hard turning often excels in speed and flexibility, while grinding typically delivers superior finishes and tolerances. Effective optimization for either process involves careful selection of CBN tooling, precise control of machining parameters, and strategic management of operational factors like coolant and tool wear to achieve desired outcomes efficiently.

What Are the Fundamental Process Distinctions for Machining Bearing Steel with CBN?

So, when we talk about working with tough bearing steel using super-hard CBN (Cubic Boron Nitride) tools, what really sets hard turning and grinding apart at their core?

Fundamentally, CBN hard turning¹ for bearing steel employs a single, defined cutting edge to shear material away in a continuous chip, offering flexibility for complex shapes often in a single setup. In contrast, CBN grinding uses thousands of tiny, abrasive CBN particles bonded into a wheel to remove material through a multitude of microscopic cutting actions, excelling at achieving very fine finishes and tight dimensional tolerances through gradual material removal.

Let’s dive deeper into these distinctions.

Core Principles: Single-Point Cutting (Hard Turning) vs. Abrasive Machining (Grinding)

Understanding how each process removes material is key. Imagine it like sculpting, but on exceptionally hard steel!

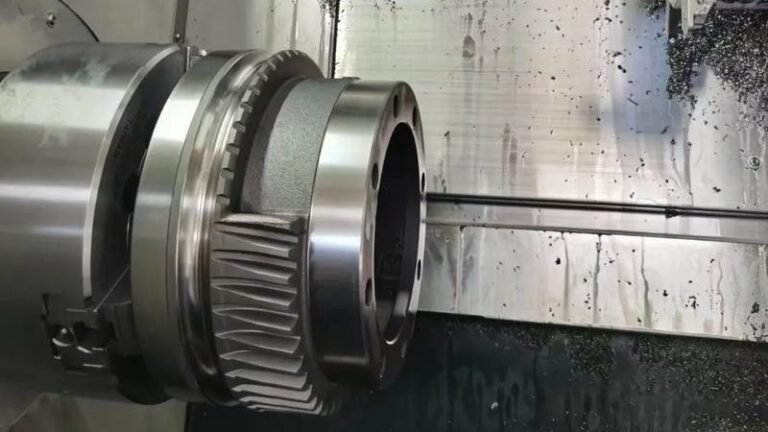

CBN Hard Turning: The Precision Chisel

In CBN hard turning, a very hard and sharp CBN insert, which is a small cutting tool, functions much like a precision chisel.

• Single-Point Action: This single cutting edge is precisely shaped and positioned to peel away material from the rotating bearing steel component.
• Shearing and Chip Formation: As the workpiece spins and the tool advances, it shears the material, creating a continuous ribbon or small segments called chips. This is a direct cutting action. For instance, when shaping the face of a bearing ring, the CBN tool smoothly shaves off the excess hardened steel. You can learn more about chip formation in metal cutting² to understand these mechanics.
• Defined Geometry: The cutting tool has carefully designed angles and edges (its geometry) that control how it interacts with the steel. This allows for more direct control over the shape being produced.

CBN Grinding: The Power of Many Tiny Cutters

CBN grinding, on the other hand, uses a grinding wheel that has countless tiny, super-hard CBN particles embedded in it. You can picture these particles as microscopic teeth on a very fast-spinning file.

• Multi-Point Abrasive Action: Each CBN abrasive particle acts as a tiny cutting edge. As the grinding wheel rotates at high speed and contacts the bearing steel, these many particles remove material through cutting, plowing (pushing material aside), and rubbing actions.
• Microscopic Removal: Material removal is much more gradual and involves removing very small amounts of material with each particle pass. This is why grinding can achieve very smooth surfaces. For example, the critical raceway of a ball bearing, where the balls roll, is often finished by grinding to get an extremely smooth and precise path.
• Randomly Oriented Edges: Unlike the defined edge in hard turning, the cutting edges of the abrasive grains in a grinding wheel are randomly oriented. The collective action of these grains produces the final surface.

Essentially, hard turning resembles a planned, direct shaping process with one main tool, while grinding is an averaging process using thousands of tiny tools to achieve a refined outcome.

Machine Tool Requirements, Rigidity, and Setup Complexities

The machines that perform hard turning and grinding are also quite different, built for the specific forces and precision each process demands.

Machine Tools for CBN Hard Turning:

Hard turning, especially with robust CBN tools on hardened bearing steel (often above 58 HRC³, though you should always verify specific hardness capabilities with your machine and tool supplier), needs a very strong and stable machine.

• High Rigidity is Crucial: Because a single tool is doing all the work and cutting forces can be significant, the lathe (the machine used for turning) must be extremely rigid. This means it doesn’t flex or vibrate much under load. Any vibration can lead to poor surface finish or inaccurate parts. Modern CNC (Computer Numerical Control) lathes designed for hard turning often have enhanced stiffness in their beds, spindles, and turrets.
• Precision and Control: These lathes need precise movement control for the tool, often measured in micrometers.
• Tooling Systems: They use specialized tool holders that securely clamp the CBN inserts and can withstand high cutting temperatures.
• Setup Simplicity (Potentially): For some bearing components, setting up a hard turning operation on a CNC lathe can be relatively straightforward, especially if the machine has quick-change tooling. Programming the tool path for complex geometries is also common.

Machine Tools for CBN Grinding:

Grinding machines are specialized pieces of equipment designed for high precision and fine finishes.

• Dedicated Designs: You’ll find cylindrical grinders (for outside and inside diameters), surface grinders, and specialized raceway grinders in the bearing industry.
• Exceptional Precision and Vibration Damping: These machines are built to minimize any vibration, as even tiny movements can affect the ultra-fine finishes required for bearing components.
• Wheel Management Systems: They incorporate systems for precisely mounting and balancing the CBN grinding wheel. Crucially, they also have mechanisms for “dressing” the wheel – a process that sharpens it by removing worn CBN grains and material buildup, and “truing” which ensures the wheel is perfectly round and concentric. These dressing parameters can vary based on the CBN wheel type and supplier, so it’s important to consult their recommendations.
• Coolant Delivery: Grinding generates a lot of heat. Therefore, these machines usually have sophisticated coolant systems to flood the grinding zone, preventing thermal damage to the bearing steel and helping to flush away tiny chips (called swarf).
• Setup Complexity: Setting up a grinding machine, especially preparing and dressing a new CBN wheel, can be more time-consuming and require skilled operators. Ensuring the workpiece is perfectly aligned is also critical.

A Quick Comparison of Machine and Setup Aspects:

Feature	CBN Hard Turning Machine (Lathe)	CBN Grinding Machine
Primary Focus	Rigidity, versatile shaping	Extreme precision, fine finish, stability
Tool	Single CBN insert in a holder	CBN abrasive grains bonded into a wheel
Key Machine Feature	High static/dynamic stiffness, robust spindle	Vibration damping, precise wheel head
Setup Element	Tool offsetting, program loading	Wheel balancing, truing, dressing, alignment
Coolant Use	Can be dry, MQL, or flood	Typically requires significant flood coolant

While a CNC lathe might be more versatile for different types of parts, a grinding machine is often a dedicated specialist for achieving the highest levels of precision and surface quality in specific areas of a bearing.

Typical Application Scenarios for Bearing Steel Components

So, where would you typically see CBN hard turning or CBN grinding being used when making parts for bearings like those in car wheels or industrial machinery?

CBN Hard Turning: Versatility and Pre-Finishing

Thanks to the toughness of CBN, hard turning is no longer just for rough work. It’s often used for:

• Semi-Finishing and Finishing Operations: For many surfaces on a bearing component, hard turning can achieve the final required size and an acceptable surface finish, sometimes eliminating the need for a subsequent grinding step. This is particularly true for faces, shoulders, and some non-critical diameters of bearing rings.
  • Industry Example: Hard turning the outer diameter and side faces of a large tapered roller bearing cup after heat treatment. The process can quickly bring these features to near-net shape with good accuracy.
• Machining Complex Geometries: If a bearing component has intricate grooves, chamfers, or contours, hard turning on a CNC lathe can often produce these features more easily or economically than trying to create a specially shaped grinding wheel.
• Pre-Grinding Operations: In many cases, hard turning is used to efficiently remove the bulk of the hardened material and create a precise, consistent surface before a final grinding operation. This reduces the amount of material the grinder needs to remove, speeding up the overall process and potentially improving the quality of the final ground surface.
  • Industry Example: For a high-precision ball bearing inner ring, the bore and faces might be hard turned to tight allowances, leaving only a small amount of stock for the critical raceway and bore to be finish ground.
• When Flexibility is Key: If a manufacturer produces many different types or sizes of bearing components in smaller batches, the quicker setup and programming flexibility of a CNC hard turning center can be advantageous.

CBN Grinding: The Ultimate Precision and Finish

CBN grinding remains the champion for areas that demand the highest levels of precision and the smoothest surfaces:

• Raceway Finishing: This is the most critical application. The paths where the balls or rollers move (the raceways) inside a bearing must be extremely smooth and have a very precise shape (profile) to ensure long life and quiet operation. CBN grinding is almost universally used for this final finishing step.
  • Industry Example: Finish grinding the ball groove (raceway) on an automotive wheel hub bearing. The surface finish (Ra) here might need to be 0.1 micrometers or even better, with very tight control over the groove’s roundness and profile. Specific surface texture or lay patterns can also be generated by grinding to optimize lubrication.
• Achieving Tightest Tolerances: When dimensional and geometric tolerances are in the single-micrometer range, grinding is usually the go-to process. This applies to critical diameters, bores, and roundness requirements.
• Applications Requiring Specific Surface Integrity: Grinding, when optimized, can impart beneficial compressive residual stresses into the surface, which can enhance fatigue life. The parameters for achieving specific surface integrity characteristics should be carefully developed.

In essence, you might see hard turning as a highly capable workhorse for many shaping and finishing tasks, while grinding is the specialist relied upon for the most demanding final touches on critical surfaces like raceways.

How Do Key Performance Metrics Like Surface Integrity and Dimensional Accuracy Stack Up?

When it comes to making precise bearing steel parts with CBN tools, how do hard turning and grinding actually compare in terms of the final quality and precision we can achieve?

Generally, CBN grinding excels at delivering superior surface finishes (smoother surfaces) and tighter dimensional and geometric tolerances on bearing steel compared to CBN hard turning. However, modern CBN hard turning can achieve excellent results that are often sufficient for many applications and can offer distinct advantages in managing sub-surface effects, such as inducing beneficial compressive stresses when parameters are carefully optimized.

Let’s explore these performance aspects in more detail.

Comparing Achievable Surface Finish (Ra, Rz) and Resultant Surface Topography

The smoothness of a machined surface is vital for bearing performance, affecting friction, wear, and noise. We often measure this using terms like Ra and Rz⁴.

• Ra (Roughness Average): Think of Ra as the average height of the microscopic peaks and valleys on the surface. A lower Ra means a smoother surface.
• Rz (Average Maximum Height of the Profile): Rz considers the average distance between the highest peak and lowest valley over several samples, giving an idea of the more extreme variations.

Surface Finish Capabilities:

• CBN Grinding: This process is the long-standing champion for achieving ultra-smooth surfaces on hardened bearing steels.
  • Because grinding uses many tiny abrasive grains, it shaves off material in very small increments, leading to exceptionally fine finishes.
  • For critical bearing raceways, it’s common to see Ra values in the range of 0.05 to 0.4 micrometers (µm). Some specialized superfinishing grinding processes can achieve even better. However, the exact surface finish achievable depends heavily on the CBN wheel specifications, machine condition, coolant application, and grinding parameters. Always verify specific capabilities based on the chosen setup.
• CBN Hard Turning: While traditionally not matching grinding’s finest finishes, modern CBN hard turning has made significant strides.
  • It can produce very good surface finishes, often Ra values between 0.2 to 0.8 µm, which is perfectly suitable for many bearing surfaces like faces, shoulders, or non-critical diameters.
  • The use of “wiper” CBN inserts, which have a special edge geometry, can further improve the surface finish by smoothing out the microscopic tool marks.
  • Achieving the best finish in hard turning is influenced by the CBN tool’s condition, cutting speed, feed rate, and machine stability.

Resultant Surface Topography (The “Lay” or Pattern):

Beyond just smoothness, the pattern of the marks left on the surface matters.

• CBN Grinding: The pattern, or “lay,” from grinding is typically multi-directional or can have a desirable “cross-hatch” pattern, especially on cylindrical surfaces. This can be beneficial for retaining lubricant. The specific lay is influenced by the wheel dressing process and the relative motions of the wheel and workpiece.
• CBN Hard Turning: This process characteristically leaves a more defined, uni-directional helical pattern corresponding to the tool’s feed marks. While wiper inserts can reduce the depth of these marks, the underlying pattern often remains. For some applications, this directional lay might be less ideal than the more random or cross-hatched lay from grinding.

So, while grinding generally produces a smoother, more refined surface texture, hard turning can often provide a finish that’s more than adequate, depending on the specific functional requirements of the bearing surface.

Analyzing Control Over Dimensional Tolerances and Geometric Form Accuracy

For bearings to work correctly and last long, their parts must be made to very precise sizes and shapes.

Dimensional Tolerances (How close to the target size?):

This refers to how accurately the process can achieve a specific dimension, like the diameter of a bearing ring.

• CBN Grinding: Grinding is renowned for its ability to hold very tight dimensional tolerances.
  • The gradual material removal and the stability of grinding machines allow for fine adjustments and consistent sizing.
  • It’s common for grinding to achieve IT (International Tolerance) grades of IT3 to IT5 on critical bearing dimensions. For reference, a smaller IT grade number means a tighter (more precise) tolerance.
• CBN Hard Turning: With modern CNC lathes and precise CBN tooling, hard turning can also achieve impressive dimensional accuracy.
  • Tolerances in the range of IT5 to IT7 are often achievable.
  • This level of precision is sufficient for many, if not most, dimensions on bearing components, especially when combined with in-process measurement and feedback on CNC machines.

Geometric Form Accuracy (How perfect is the shape?):

This looks at how well the actual shape of the part matches the ideal geometric form – for example, how truly round a bore is, or how flat a face is. Common geometric characteristics important for bearings include roundness, cylindricity, flatness, and concentricity.

• CBN Grinding: This process generally offers superior control over geometric form.
  • The averaging effect of the grinding wheel (contacting many points around a circumference, for instance) helps to correct initial form errors and produce highly accurate shapes.
  • For bearing raceways, achieving roundness deviations of less than 1 micrometer (µm) is often a target achieved through grinding, which is critical for smooth and quiet bearing operation.
• CBN Hard Turning: Good geometric accuracy is certainly possible with hard turning.
  • However, because a single-point tool applies force at one location, the process can be more sensitive to factors like tool wear, workpiece rigidity (especially for long, slender parts), and machine deflections, which might lead to slightly larger deviations in roundness or cylindricity compared to grinding.
  • Careful selection of cutting strategy and robust machine tools are vital.

Ultimately, while both processes can deliver high precision, grinding typically has the edge when the absolute tightest dimensional and geometric tolerances are paramount, particularly for the most critical features like bearing raceways.

Investigating Sub-surface Effects: Residual Stresses, Microhardness Changes, and White Layer Formation

What happens just beneath the machined surface is just as important as the surface finish itself, especially for a high-stress component like a bearing.

Residual Stresses (Hidden forces within the surface):

After machining, residual stresses⁵ can remain “locked” into the surface layer of the steel.

• Tensile Stresses: These are like tiny forces trying to pull the material apart. They are generally undesirable as they can promote crack formation and reduce fatigue life.
• Compressive Stresses: These are like tiny forces squeezing the material together. They are highly beneficial for bearings because they can help prevent cracks from starting or growing, significantly improving the fatigue life of the component.
  • CBN Hard Turning: One of the significant advantages of optimized hard turning is its ability to generate beneficial compressive residual stresses in the surface layer. By carefully selecting CBN tool edge preparation, cutting parameters, and tool wear state, significant compressive stresses can be induced. For instance, studies have shown compressive stresses of -200 to -800 MPa or even deeper after hard turning bearing steel, which can enhance rolling contact fatigue resistance.
  • CBN Grinding: Grinding can also produce compressive stresses, especially with appropriate CBN wheel specifications and gentle grinding parameters. However, if the grinding process generates too much heat (often called “grinding burn”), it can lead to detrimental tensile residual stresses. Careful control over coolant, wheel sharpness (dressing), and material removal rates is crucial.

Microhardness Changes (Surface hardness variations):

The hardness of the material very close to the machined surface can sometimes change.

• CBN Hard Turning: Depending on the parameters, hard turning can sometimes cause a slight increase in surface hardness due to plastic deformation (work hardening) or, if excessive heat is generated, a slight decrease (tempering or softening). Typically, well-controlled hard turning aims to preserve the material’s bulk hardness.
• CBN Grinding: Similarly, gentle grinding usually maintains or slightly increases surface hardness. However, abusive grinding (grinding burn) can significantly reduce surface hardness due to over-tempering, which is detrimental to wear resistance and fatigue life.

White Layer Formation (A problematic surface alteration):

A “white layer” is an extremely hard, brittle, and often micro-cracked layer that can form on the surface of hardened steels due to very rapid heating followed by rapid cooling during machining. It’s generally considered undesirable for bearing applications because it can be a starting point for cracks and spalling.

• CBN Hard Turning: When parameters are well-controlled and tools are sharp, hard turning is generally less prone to forming thick, detrimental white layers compared to abusive grinding. However, worn tools or overly aggressive cutting conditions can still lead to thin white layer formation.
• CBN Grinding: The risk of forming a thermally induced white layer is a known concern in grinding, especially if there’s insufficient cooling, the wheel is dull, or parameters are too aggressive (leading to grinding burn).

In summary:

Sub-surface Effect	CBN Hard Turning	CBN Grinding
Residual Stress	Can induce high beneficial compressive stress	Can be compressive; risk of tensile if not well-controlled
Microhardness	Generally maintained; slight increase or decrease possible	Generally maintained; risk of significant softening with burn
White Layer	Lower risk with good control; possible with worn tools	Higher risk with abusive conditions (grinding burn)

Both CBN hard turning and grinding can produce surfaces with excellent integrity if the processes are properly understood and optimized. The specific sub-surface characteristics achieved are highly sensitive to the chosen parameters, the specific grade of bearing steel, its prior heat treatment, and the condition of the CBN tooling. For critical bearing applications, detailed metallurgical analysis is often necessary.

What Are the Economic and Productivity Implications When Choosing Between These Processes?

Beyond the quality of the finish, how do CBN hard turning and grinding compare when it comes to manufacturing speed and overall cost for bearing steel components?

CBN hard turning often offers higher material removal rates and shorter cycle times for certain operations on bearing steel, potentially leading to greater productivity and lower per-part costs, especially when machining complex geometries or reducing setups. However, CBN grinding, while sometimes appearing slower for individual operations, can be more cost-effective overall for achieving the absolute finest finishes and tightest tolerances where its specialized capability and long tool life (for wheels) outweigh longer cycle times or higher initial tooling investment in high-volume scenarios.

Let’s break down these economic and productivity factors.

Evaluating Material Removal Rates (MRR) and Overall Machining Cycle Times

How quickly can we shape the bearing steel part? This is where Material Removal Rate (MRR) and cycle time come into play.

Material Removal Rate (MRR): The Speed of Shaping

MRR simply means how much material is cut away from the workpiece in a given amount of time.

• CBN Hard Turning: Generally, hard turning can achieve higher MRRs compared to finish grinding. This is because the single, robust CBN cutting edge can take deeper cuts and move at faster feed rates.
  • For instance, when removing a few millimeters of hardened steel from the diameter of a bearing ring before final finishing, hard turning can often do this much faster than a grinding process designed for precision. In some applications, hard turning MRRs can be 2 to 5 times higher than those of precision grinding for the same part feature, though these figures vary widely.
• CBN Grinding: Grinding, especially finish grinding, typically has lower MRRs. The process is designed to remove material very gradually.

Overall Machining Cycle Times: From Start to Finish

Cycle time is the total time it takes to complete all machining operations on one part.

• CBN Hard Turning: This process can lead to shorter overall cycle times for several reasons:
  • Higher MRR: Faster material removal means less time spent cutting.
  • Single Setup Machining: Modern CNC lathes can often perform multiple operations in a single clamping, reducing time spent moving the part or re-fixturing it.
  • Reduced Non-Cutting Time: Less time for tool changes and part handling contributes to shorter cycles.
  • Industry Example: For a bearing sleeve requiring turning of the outer diameter, inner diameter, and facing both ends, a CNC hard turning center might complete all these in one setup, significantly faster than if each operation required a separate grinding machine and setup.
• CBN Grinding: Grinding operations can result in longer cycle times due to:
  • Lower MRR: More time is needed to remove the same amount of material.
  • Multiple Passes: Grinding often involves several passes – roughing, semi-finishing, finishing, and “spark-out.”
  • Wheel Dressing Time: Periodically, the grinding wheel needs to be dressed. While modern machines can do this automatically, it still adds non-cutting time.
  • Multiple Setups: If different surfaces require different types of grinding, each might need a separate machine and setup.

However, for parts requiring the utmost precision that only grinding can provide, the “longer” cycle time is simply the necessary time.

Assessing Tool Life, Wear Mechanisms, and Consumable Costs (CBN Inserts vs. Grinding Wheels)

The tools themselves – CBN inserts for turning and CBN wheels for grinding – are key consumables.

CBN Inserts for Hard Turning:

• Tool Life: Measured by the number of parts per cutting edge or total cutting time. It depends heavily on CBN grade, coating, edge preparation, work material hardness, cutting parameters, and machine stability.
  • It’s advisable to consult your CBN tool supplier for recommended starting parameters and expected tool life for your specific application, as these can vary significantly.
• Wear Mechanisms: Common types are flank wear, crater wear, and chipping. Understanding these helps in optimizing tool use.
• Consumable Cost: CBN inserts are priced individually, often with multiple cutting edges. The “cost per cutting edge” is a key metric. Replacement is relatively quick.

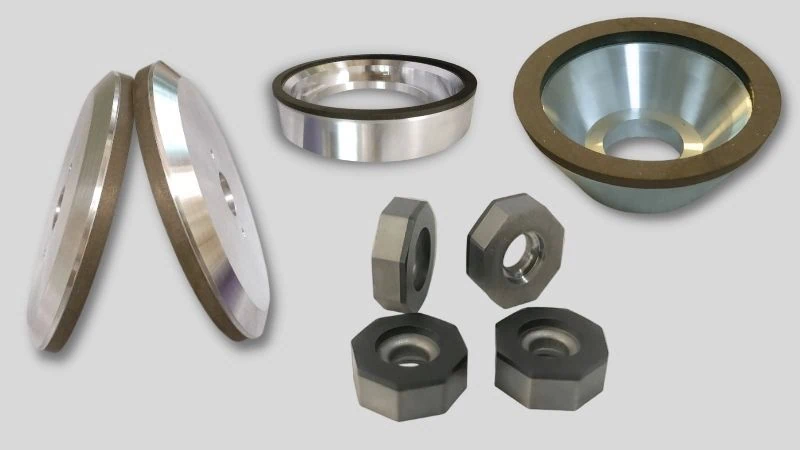

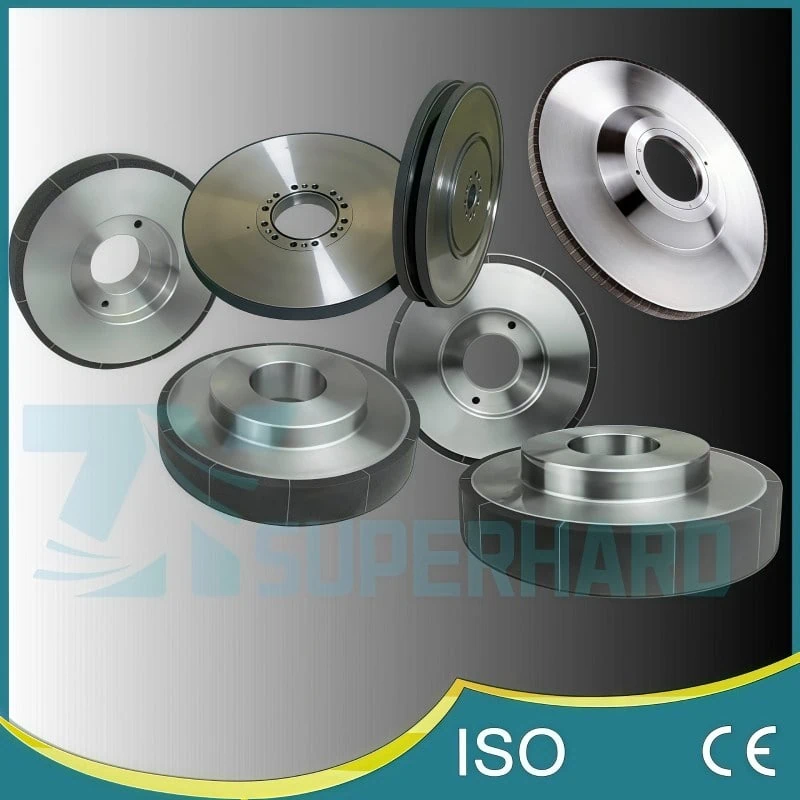

CBN Grinding Wheels:

• Tool Life: A CBN grinding wheel has a much longer overall operational life than a single CBN insert edge but wears gradually and requires periodic dressing.
• Wear Mechanisms: Grain fracture, grain pull-out, bond wear, and wheel loading. Dressing addresses these.
• Consumable Cost: CBN grinding wheels are significantly more expensive upfront. However, their long life and the ability to dress them multiple times can spread this cost. Dressing tools are also a consumable cost.
  • CBN wheel costs and dressing frequency are highly dependent on the wheel’s construction, size, application, and precision required.

Quick Comparison of Tooling Aspects:

Aspect	CBN Hard Turning Inserts	CBN Grinding Wheels
Initial Cost/Unit	Lower	Significantly Higher
Typical Life/Unit	Shorter (per edge)	Much Longer (entire wheel)
Maintenance	Indexing/Replacement	Dressing/Truing
Downtime for Change	Short	Longer for wheel change, shorter for dress
Cost Focus	Cost per cutting edge	Overall wheel life & dressing costs

Calculating Overall Cost-Effectiveness: Beyond Tooling to Energy, Coolant, and Labor

To get the full picture, we need to look beyond just the cutting tools. This is where understanding the Total Cost of Ownership (TCO) Explained⁶ becomes crucial.

Machine Investment and Hourly Rates:
High-precision grinding machines can have a higher initial purchase price than CNC lathes suitable for hard turning, influencing the machine’s hourly rate.

Energy Consumption:

• CBN Hard Turning: Can sometimes be more energy-efficient, especially if dry or MQL (Minimum Quantity Lubrication) is used.
• CBN Grinding: Often involves high-power spindles and extensive coolant systems, potentially leading to higher energy use.

Coolant Costs (Purchase, Maintenance, Disposal):

• CBN Hard Turning: Dry or MQL operations significantly reduce or eliminate coolant costs.
• CBN Grinding: Typically requires large volumes of coolant, leading to higher associated costs.

Labor Costs:

• CBN Hard Turning: CNC automation can reduce direct labor per part. Setup times can be quicker for diverse parts.
• CBN Grinding: May require more specialized operator skill for setup and dressing, though modern automated grinding cells also exist.

The True Metric: Overall Cost Per Part

Ultimately, the most important factor is the total cost to produce each finished bearing component. This involves summing up machining time cost, tooling cost per part, energy cost per part, coolant cost per part, and labor cost per part, plus any overheads.

Weighing Flexibility Against Specialization:

• For high mix, lower-volume scenarios, hard turning’s flexibility can offer cost benefits.
• For very high-volume, dedicated lines, grinding can be more cost-effective where its specific capabilities are essential.

Determining the most economic route requires a careful analysis of all these factors.

How Can CBN Hard Turning Parameters Be Effectively Optimized for Bearing Steel?

If we’ve chosen CBN hard turning for our bearing steel parts, what are the key levers we can pull to really dial in the process for the best results in terms of quality, tool life, and productivity?

Optimizing CBN hard turning for bearing steel involves a multi-faceted approach, starting with selecting the ideal CBN grade, coating, and insert geometry for the specific application. This is followed by meticulously fine-tuning cutting conditions (speed, feed, depth of cut), implementing effective chip control and coolant strategies, and proactively managing tool wear to ensure consistent quality and process stability.

Let’s explore how to tune each of these aspects for peak performance.

Selecting Appropriate CBN Grades, Coatings, and Insert Geometries

The cutting tool itself is the heart of the hard turning process. A valuable resource is Your Complete Guide to CBN (Cubic Boron Nitride) Cutting Tools⁷.

Choosing the Right CBN Grade:
CBN comes in various “grades” which differ in CBN content, binder material, and CBN grain size.

• Low CBN Content Grades (e.g., 50-70% CBN with a ceramic binder): Generally better for continuous or light interrupted cutting. They offer excellent wear resistance at high temperatures and can produce very fine surface finishes. Often a first choice for finish hard turning.
• High CBN Content Grades (e.g., 85-95%+ CBN): Offer increased toughness, suitable for interrupted cuts or heavier stock removal.
• CBN Grain Size: Finer grains generally contribute to better surface finishes, while coarser grains can enhance toughness.

CBN grade designations vary among tool manufacturers. Always consult supplier documentation for the particular grade of bearing steel (e.g., 100Cr6 / AISI 52100) and its hardness.

The Role of Coatings:
Many CBN inserts have coatings (e.g., TiN, TiAlN).

• Enhanced Performance: Coatings can increase surface hardness, improve wear resistance, reduce friction, and provide a thermal barrier, prolonging tool life and potentially allowing higher cutting speeds.

Insert Geometries: Shape and Edge are Key:
The physical shape and edge preparation are critical.

• Insert Shape: Common shapes (Round, Square, Triangle, Rhombic) influence strength, number of edges, and accessibility.
• Edge Preparation: Because hardened steel is brittle, edges are often “prepared.” Understanding Edge Radiusing for PCBN Inserts⁸ provides relevant insights, as PCBN is a type of CBN tool.
  • Hone: A small radius strengthens the edge, common for finishing.
  • Chamfer (or T-land): A small flat angle provides even greater edge strength, often used for heavier or interrupted cuts.
  • Chamfer + Hone: A combination.
• Nose Radius: A larger nose radius generally improves surface finish but can increase vibration tendency.
• Wiper Inserts: Special inserts with a modified nose radius to “wipe” the surface, significantly improving finish at higher feed rates.

Starting with supplier recommendations for your specific bearing steel is always the best first step.

Fine-Tuning Cutting Conditions: Speed, Feed Rate, and Depth of Cut

Using the right tool with the correct “speeds and feeds” is crucial.

• Cutting Speed (Vc): How fast the workpiece surface moves past the tool.
  • Too Slow: Can lead to built-up edge, poor surface finish.
  • Too Fast: Accelerates tool wear, can cause excessive heat.
  • Optimal Range: For common bearing steels (60-64 HRC), speeds often fall in the 80 to 180 m/min range, but this is a general guideline.
• Feed Rate (fn): How far the tool advances per workpiece revolution.
  • Too Slow: Can cause rubbing, accelerated flank wear.
  • Too Fast: Increases cutting forces, can degrade surface finish (unless using wiper inserts).
  • Optimal Range: For finishing, 0.05 to 0.25 mm/rev. Lower for standard inserts, potentially higher with wipers.
• Depth of Cut (ap): Thickness of material removed in one pass.
  • Too Shallow: Can lead to rubbing, especially if less than the tool’s edge hone.
  • Too Deep: Increases cutting forces, can cause tool breakage or chatter.
  • Optimal Range: For finishing, 0.05 mm to 0.3 mm.

Finding the “sweet spot” often involves starting with supplier recommendations and then making small adjustments.

Strategies for Chip Management and Coolant/Lubrication (Dry vs. Minimal Quantity Lubrication vs. Wet)

Dealing with chips and managing heat are next.

Effective Chip Management:
Chips from hard turning bearing steel are typically hot and can be hard.

• Importance: Uncontrolled chips can damage the surface, tool, or machine.
• Methods: CBN Chipbreaker Inserts⁹ and proper selection of feed rate and depth of cut influence chip formation.

Coolant and Lubrication Choices:

• Dry Hard Turning: Often preferred for CBN due to its excellent hot hardness. Eliminates coolant costs and potential thermal shock to the tool.
• Minimal Quantity Lubrication (MQL): Uses a very small amount of lubricant with compressed air. Can improve tool life and surface finish compared to dry cutting, with minimal environmental impact. This MQL technique¹⁰ is a growing trend.
• Wet Hard Turning (Flood Coolant): Can help control overall workpiece temperature and flush chips. However, the CBN grade must be suitable to avoid thermal shock, and it adds cost.

For many applications, dry cutting or MQL are favored.

Addressing Tool Wear Progression and Ensuring Consistent Process Stability

Keeping the process running smoothly requires managing tool wear and ensuring stability.

Monitoring and Managing Tool Wear:
Predictable tool wear is key.

• Monitoring Methods: Visual inspection, in-machine probing, cutting force monitoring, acoustic emission sensors.
• Establish Wear Criteria: Decide on maximum acceptable wear (e.g., flank wear of 0.2-0.3 mm for finishing) before changing or indexing the insert.

Ensuring Process Stability (Avoiding Chatter and Vibration):
Chatter is harmful vibration.

• Key Factors for Stability: Machine tool rigidity, secure workpiece clamping, short tool overhang, appropriate cutting parameters, and tool geometry.

Maintaining Overall Process Consistency:

• Use consistent, high-quality CBN inserts.
• Control incoming workpiece material consistency.
• Perform regular machine maintenance.
• Consider Statistical Process Control (SPC) for critical components.

Systematically addressing these areas enhances the effectiveness of CBN hard turning.

What Are the Best Strategies for Optimizing the CBN Grinding Process for Bearing Steel?

For applications where CBN grinding is the chosen method for finishing bearing steel, what steps can we take to ensure we’re getting the absolute best performance and quality?

Optimizing the CBN grinding process for bearing steel hinges on several critical strategies: meticulously selecting the right CBN wheel specifications (grit size, concentration, bond type), precisely adjusting grinding parameters (wheel speed, work speed, infeed rates, spark-out), implementing effective wheel truing and dressing techniques, and carefully managing coolant application to prevent thermal damage and ensure surface quality.

Let’s delve into each of these optimization strategies.

Choosing Optimal CBN Grinding Wheel Specifications (Grit Size, Concentration, Bond Type)

The grinding wheel is pivotal. Choosing the right one is critical.

CBN Grit Size: Fine or Coarse?
This refers to the size of individual CBN abrasive particles.

• Finer Grit Sizes (e.g., B20, B46): Produce a smoother surface finish. Ideal for final finishing passes on bearing raceways.
• Coarser Grit Sizes (e.g., B76, B126): Remove material more quickly. Suitable for rough or semi-finish grinding.

CBN Concentration: How Much Abrasive?
This is the amount of CBN abrasive in the wheel’s abrasive layer.

• Lower Concentration (e.g., 50-75): Can be good for form holding, may generate less heat.
• Medium Concentration (e.g., 100-125): A common choice, balancing cutting ability and wheel life.
• Higher Concentration (e.g., 150+): Can lead to longer wheel life and higher MRR, but may also generate more heat.

Bond Type: Holding It All Together
The bond material significantly affects performance.

• Vitrified (Ceramic) Bonds (V): Most common for precision grinding of bearing steels. Offer high rigidity, excellent form holding, and are relatively easy to dress. These vitrified bonds are often porous, aiding coolant delivery.
• Resin Bonds (B): Softer, tend to produce excellent surface finishes and generate less heat.
• Metal Bonds (M): Very tough, excellent grit retention, long wheel life. Can be harder to true and dress.
• Electroplated Bonds (E or G): Single layer of CBN, aggressive cutting, good for complex profiles. Cannot be dressed.

Important Note on Wheel Selection: CBN grinding wheel specifications are highly specialized. It is always best practice to work very closely with your grinding wheel supplier. They can provide expert recommendations based on your specific bearing steel, its hardness, the grinding operation, machine capabilities, and desired outcomes.

Adjusting Grinding Parameters: Wheel Speed, Workpiece Speed, Infeed Rates, and Spark-out Time

Running the wheel with the right settings is crucial.

• Wheel Speed (Vs): Peripheral speed of the grinding wheel.
  • Higher Wheel Speeds (e.g., 30-60 m/s, up to 80-120+ m/s for High-Speed Grinding if permitted) generally lead to better surface finish and longer wheel life but can increase thermal load.
  • Critical Safety Note: Never operate a grinding wheel above its maximum safe speed.
• Workpiece Speed (Vw): Peripheral speed of the workpiece. Affects MRR and surface finish. The ratio Vs/Vw is important.
• Infeed Rates / Depth of Cut (ae): How quickly the wheel is fed or material removed per pass.
  • Roughing Passes: Larger infeed/depth for higher MRR.
  • Finishing Passes: Much smaller infeed/depth (e.g., 0.001-0.005 mm) for precision.
• Spark-out Time: Allowing the wheel to grind at the final dimension without further infeed.
  • Benefits: Improves roundness, surface finish, ensures final size, and can relieve internal stresses. Standard practice for precision.

Optimizing these often involves iterative adjustments.

Implementing Effective Wheel Truing and Dressing Techniques for Sustained Performance

A CBN wheel needs maintenance to stay sharp and perfectly shaped. Master Diamond Wheel Dressing: Your Practical How-To Guide¹¹ can provide valuable insights into these processes.

• Truing: This process ensures the grinding wheel is perfectly round, concentric with the machine spindle, and has the correct profile (shape). Truing is typically done when a new wheel is mounted, or if the wheel has lost its shape due to wear or an accident. It’s about restoring the wheel’s geometry.
• Dressing: This process “sharpens” the wheel by removing dull CBN abrasive grains and any workpiece material (chips or swarf) that has become embedded in and clogged the wheel’s surface (a condition called “loading”). Dressing exposes fresh, sharp cutting edges and ensures the wheel cuts efficiently. It’s about restoring the wheel’s cutting ability.

Why are Truing and Dressing So Important for CBN Wheels?
CBN is extremely hard, so these processes require specialized diamond-based tools and precise techniques.

• Common Truing/Dressing Tools: Rotary diamond dressers (often preferred for vitrified CBN), stationary diamond tools.
• Dressing Parameters are Key: Dresser speed, depth, traverse rate, and overlap affect the wheel’s surface condition and thus its grinding performance.
• Frequency of Dressing: Depends on many factors. Too infrequent leads to dullness and thermal damage; too frequent consumes the wheel faster.

Improper truing or dressing is a major cause of poor grinding results. Follow recommendations from your CBN wheel supplier and grinding machine manufacturer.

Managing Coolant Application for Thermal Damage Prevention and Surface Quality Enhancement

Managing grinding heat with coolant is absolutely critical.

Why Coolant is Essential:

• Heat Removal: Prevents “grinding burn” (thermal damage: softening, tensile stresses, white layers).
• Lubrication: Reduces friction.
• Chip Flushing: Removes grinding swarf.

Optimizing Coolant Application:

• Coolant Type: Synthetics, semi-synthetics, or oils. Choice depends on bearing steel, CBN wheel, and desired properties.
• Nozzle Design and Placement: Critical for effective delivery to the grinding zone. Precisely aimed, often multiple nozzles are used. High pressure can be beneficial.
• Flow Rate and Pressure: Must be sufficient for cooling and flushing.
• Coolant Maintenance is Key:
  • Filtration: Essential to remove swarf.
  • Concentration Control: Vital for water-miscible coolants.
  • Temperature Control: Chillers can aid thermal stability.

Effective coolant management is non-negotiable for successful CBN grinding of bearing steel.

How Do You Decide Which Process is the Right Fit for Your Specific Bearing Steel Application?

After learning all about CBN hard turning and grinding for bearing steel, how do you actually make the call on which method is best for a particular job, ensuring you get the quality you need without breaking the bank?

Deciding between CBN hard turning and grinding for your bearing steel application involves a careful evaluation of several key factors, primarily the required surface finish, dimensional and geometric tolerances, part complexity, production volume, and overall cost-effectiveness. Often, the tightest quality specifications will necessitate grinding, while hard turning may offer advantages for flexibility and speed in other scenarios, with hybrid approaches also being a viable and increasingly popular option.

Let’s break down how to navigate this decision.

Key Decision Factors: A Checklist for Process Selection

When you’re weighing CBN hard turning against CBN grinding for a specific bearing steel component, consider these critical factors. Think of this as your decision-making toolkit:

• 1. Surface Finish (Ra, Rz) Requirements:
  • Is an ultra-fine surface finish (e.g., Ra below 0.2 µm or even 0.1 µm) absolutely mandatory? If yes, particularly for critical raceways where friction, noise, and fatigue life are paramount, CBN grinding is generally the superior choice.
  • Is a good surface finish (e.g., Ra between 0.2 µm and 0.8 µm) sufficient for the application? If so, CBN hard turning, especially with wiper inserts and optimized parameters, can often meet these needs effectively and more economically.
• 2. Dimensional and Geometric Tolerances:
  • Are you working with extremely tight dimensional tolerances (e.g., IT grades IT3-IT5)? Grinding typically offers better capability for holding the very tightest size tolerances.
  • Are very high geometric form accuracies essential (e.g., roundness or cylindricity better than 1-2 µm)? CBN grinding generally excels in producing superior form accuracy due to its process mechanics.
  • If tolerances are slightly more relaxed (e.g., IT5-IT7), modern CBN hard turning can often achieve these with good consistency.
• 3. Part Complexity and Geometry:
  • Does the bearing component have complex profiles, deep grooves, multiple steps, or intricate contours? CBN hard turning on a CNC lathe offers greater flexibility to machine such features, often in a single setup, compared to the need for specially formed grinding wheels.

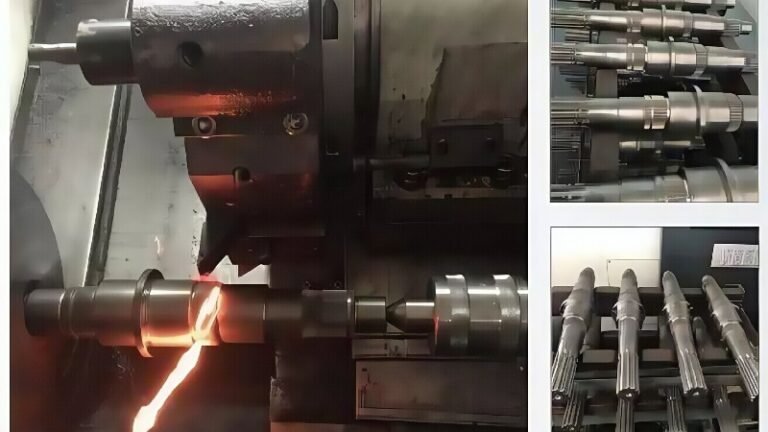

  • Are there interrupted cuts (e.g., oil holes, keyways) on the surface to be machined? Specially selected high-toughness CBN grades for hard turning can handle these well. While grinding can also manage interruptions, hard turning might offer a simpler tooling solution.
• 4. Production Volume and Batch Sizes:
  • Are you producing very high volumes of identical bearing parts (low mix, high volume)? Dedicated, automated grinding lines can be highly optimized and cost-effective in this scenario, even if individual cycle times are longer.
  • Are you dealing with smaller to medium batch sizes with a greater variety of part numbers (high mix, low/medium volume)? The quicker setup times and flexibility of CNC hard turning often make it more economical in these situations.
• 5. Overall Economic Considerations (Cost Per Part):
  • What is the target cycle time? Hard turning generally offers higher material removal rates and can complete operations faster than grinding, especially for roughing or semi-finishing.
  • What are the tooling costs? Compare the cost per cutting edge and replacement frequency for CBN inserts (turning) versus the initial cost, lifespan, and dressing costs of CBN grinding wheels.
  • Consider energy, coolant, and labor: Dry or MQL hard turning can save on coolant and associated energy costs. Automation levels in both processes will affect labor input.
  • A thorough cost-per-part analysis, factoring in all these elements, is crucial.
• 6. Desired Surface Integrity (Sub-surface Effects):
  • Is inducing beneficial compressive residual stress a primary goal for enhancing fatigue life? Optimized CBN hard turning (with appropriate tool edge preparation and parameters) can be very effective at this.
  • Grinding can also achieve compressive stresses, but requires very careful control to avoid detrimental tensile stresses or thermal damage (grinding burn).
• 7. Existing Equipment, Expertise, and Investment Strategy:
  • What machine tools (lathes, grinders) and skilled personnel are currently available?
  • What is the budget for new equipment if needed?
  • Sometimes, the decision is influenced by leveraging existing capital investments or specialized in-house knowledge.

By systematically going through these points, you can build a strong case for choosing one process over the other, or even a combination of both.

Common Scenarios Where CBN Hard Turning Offers a Distinct Advantage

In many situations, CBN hard turning has emerged as a highly competitive and often preferred method for machining hardened bearing steels:

• Replacing Rough Grinding Operations: Due to its significantly higher material removal rates, hard turning can efficiently remove bulk material after heat treatment, leaving just a small, consistent allowance for a final finish grinding pass. This can dramatically reduce overall cycle times.
• “Done-in-One” Machining: For bearing components like sleeves, simpler rings, or shafts that require multiple operations (e.g., turning different diameters, facing, chamfering, profiling), a CNC hard turning center can often complete all these tasks in a single workpiece clamping. This reduces setup time, handling time, and improves concentricity and alignment between features.
• Flexible Manufacturing of Diverse Parts: When a manufacturer produces a wide range of bearing components in relatively small to medium batch sizes, the quick setup and programming capabilities of CNC hard turning make it more agile and cost-effective than dedicated grinding setups for each part.
• Machining Complex Geometries or Non-Standard Features: If a bearing part includes intricate contours, special grooves, or non-standard radii, generating these with hard turning is often much simpler and cheaper than producing and maintaining custom-profiled (form) grinding wheels.
• When Controlled Induction of Compressive Residual Stresses is Key: As mentioned, properly engineered hard turning processes can reliably impart beneficial compressive stresses into the workpiece surface, enhancing fatigue performance.
• Significant Cost Reduction Opportunities: For many applications where hard turning can meet all the quality and surface finish specifications, it often results in a lower cost per part compared to traditional grinding routes. This is due to faster cycle times, potential for dry or MQL machining (reducing coolant costs), and sometimes lower tooling costs per part.
  • Industry Example: Many automotive bearing components, such as wheel bearing rings or transmission gear mating surfaces that don’t require the absolute pinnacle of grinding finishes, are now routinely hard turned to final or near-final specifications.

Situations Where CBN Grinding Remains the Indispensable Solution

Despite the advancements in hard turning, there are critical applications where CBN grinding’s unique capabilities are simply essential:

• Achieving the Absolute Finest Surface Finishes: For critical bearing raceways in high-performance applications (e.g., high-speed machine tool spindles, aerospace bearings, precision instruments), where Ra values need to be exceptionally low (often well below 0.1-0.2 µm) to minimize friction, wear, and operational noise, CBN grinding is unparalleled.
• Meeting the Tightest Possible Dimensional and Geometric Tolerances: When dimensional tolerances are in the very low single-digit micrometer range (e.g., IT grades below IT5) or when geometric accuracies like roundness, cylindricity, or flatness must be controlled to sub-micron levels (e.g., roundness better than 1 µm), CBN grinding is typically the only process that can reliably deliver.
  • Industry Example: The internal raceway of a super-precision angular contact ball bearing for a machine tool spindle will almost invariably be finished using CBN grinding to achieve the necessary micro-geometric accuracy and surface finish.
• Generating Specific Surface Lay Patterns: In some bearing applications, a particular surface texture or lay (e.g., a cross-hatch pattern) is desired for optimal lubricant retention and performance. Grinding offers more control over creating such specific surface topographies.
• Finishing Extremely Hard or Difficult-to-Machine Bearing Steel Variants: While CBN is effective on most hardened bearing steels, for some ultra-hard or particularly abrasive specialty bearing steel grades, the wear rate on hard turning tools might still be too high for economical production, making grinding a more viable finishing option.
• Correcting Form Errors from Upstream Processes: Grinding has an inherent ability to “average out” and correct minor form errors (like slight out-of-roundness) from previous manufacturing steps, ensuring high final form accuracy.
• When Capital Investment is Already Heavily Optimized for Grinding: In established, high-volume production lines that are already achieving target quality and costs with highly optimized grinding processes, the impetus to change might be low unless significant further benefits are demonstrable.

Exploring the Potential and Viability of Hybrid Machining Approaches

Often, the optimal solution isn’t an “either/or” choice but rather a “both/and” strategy, combining the strengths of hard turning and grinding. This is known as a hybrid approach.

• The Most Common Hybrid: Hard Turn then Grind
  • Process: Use CBN hard turning for the initial machining stages after heat treatment. This includes roughing operations to remove the bulk of the material and semi-finishing operations to bring the part close to its final dimensions and create accurate locating surfaces.
  • Then, use CBN grinding for the final finishing pass, but only on the most critical surfaces that demand the highest precision and surface finish (typically the bearing raceways).
  • Benefits:
    • Reduced Overall Cycle Time: The high MRR of hard turning significantly speeds up the initial material removal compared to using grinding for all stages.
    • Lower Grinding Costs: Since only a small amount of material is left for the grinding pass, the grinding cycle is shorter, and the expensive CBN finishing grinding wheel experiences less wear, extending its life.
    • Improved Quality: Hard turning can provide a more consistent and accurately prepared surface for the final grinding operation, which can lead to better final quality from the grinder.
  • Industry Example: A common approach for manufacturing high-quality ball bearing inner rings is to hard turn the bore, faces, and outer diameter to near-net shape, and then precision CBN grind only the ball raceway to achieve the critical surface finish and profile accuracy.
• Other Hybrid Considerations:
  • It might involve using different machines for each step, or if a multi-tasking machine is available, performing both hard turning and grinding operations in fewer setups.
  • Careful planning of datums (locating surfaces) is essential to ensure accuracy is maintained when transferring parts between hard turning and grinding operations if done on separate machines.

The trend in modern bearing manufacturing is increasingly towards such intelligent hybrid solutions. By leveraging CBN hard turning for its speed and flexibility in initial stages, and reserving CBN grinding for its ultimate precision on critical features, manufacturers can often achieve an optimal balance of quality, productivity, and cost-effectiveness.

Conclusion

Navigating the choice between CBN hard turning and grinding for bearing steel isn’t about finding a universally “better” process, but rather identifying the most suitable one for a specific set of circumstances. As we’ve explored, both methods offer significant capabilities when machining these challenging materials, yet they shine in different areas.

The decision hinges on a thorough understanding of your application’s unique demands – the non-negotiable quality benchmarks like surface finish and dimensional accuracy, the complexity of the part, the volume of production, and the overarching economic targets. CBN hard turning often presents compelling advantages in terms of production speed, flexibility for complex shapes, and potential cost savings, particularly with modern tooling and dry or MQL strategies. Conversely, CBN grinding remains the gold standard for achieving the utmost precision, the finest surface finishes critical for high-performance bearings, and meeting the tightest geometric tolerances.

Crucially, effective optimization is the key to unlocking the full potential of either chosen method. This involves meticulous selection of CBN tooling, precise control over machining parameters, and diligent management of operational factors. Furthermore, the increasing viability of hybrid approaches—strategically combining the strengths of hard turning for initial shaping and grinding for ultimate finishing—offers a powerful pathway to achieving an optimal balance of quality, productivity, and cost. By carefully considering all these facets, manufacturers can confidently select and refine the best machining strategy for their bearing steel components.

---

References

1. hard turning¹ – ZYDiamondTools article providing a comprehensive guide to the principles, advantages, and applications of hard turning.
2. Chip formation in metal cutting² – ScienceDirect overview of chip formation mechanics in machining processes.
3. HRC (Rockwell Hardness Scale C)³ – ScienceDirect topic page explaining Rockwell Hardness.
4. Ra and Rz (Surface Roughness Parameters)⁴ – Hubs knowledge base article comparing Ra and Rz surface roughness parameters.
5. Residual stresses⁵ – Proto Manufacturing resource center explaining residual stress.
6. Total Cost of Ownership (TCO) Explained⁶ – ZYDiamondTools blog post explaining TCO for superhard tooling and abrasives.
7. Your Complete Guide to CBN (Cubic Boron Nitride) Cutting Tools⁷ – ZYDiamondTools comprehensive guide to CBN cutting tools.
8. Edge Radiusing for PCBN Inserts⁸ – ZYDiamondTools blog post explaining edge radiusing for PCBN inserts, a concept applicable to CBN tooling.
9. CBN Chipbreaker Inserts⁹ – ZYDiamondTools guide on selecting and applying CBN chipbreaker inserts for hard material machining.
10. MQL technique (Minimum Quantity Lubrication)¹⁰ – ScienceDirect topic page explaining Minimum Quantity Lubrication.
11. Master Diamond Wheel Dressing: Your Practical How-To Guide¹¹ – ZYDiamondTools practical guide to diamond wheel dressing techniques and best practices.
