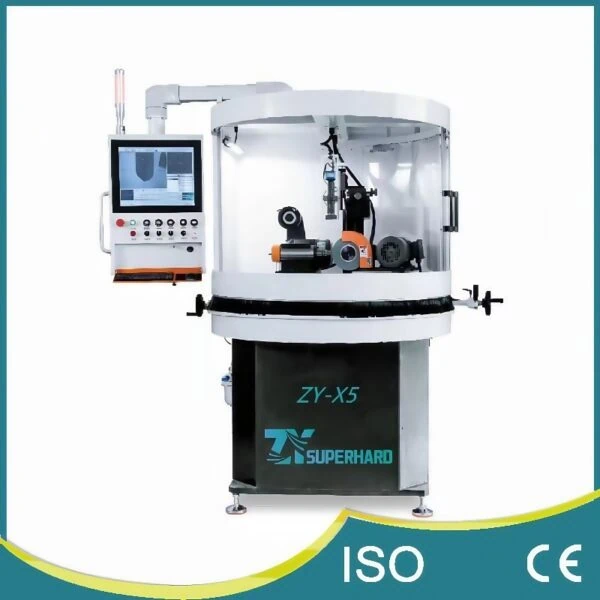

Sealed Grinding Wheel Dressing Machine ZY-X5

Sealed Grinding Wheel Dressing Machine ZY-X5

Additional information

Total Power

2.0KW

Size

L1100mm*W1100mm*H1950mm

Weight

1.7~1.9 tons

Share:

Description

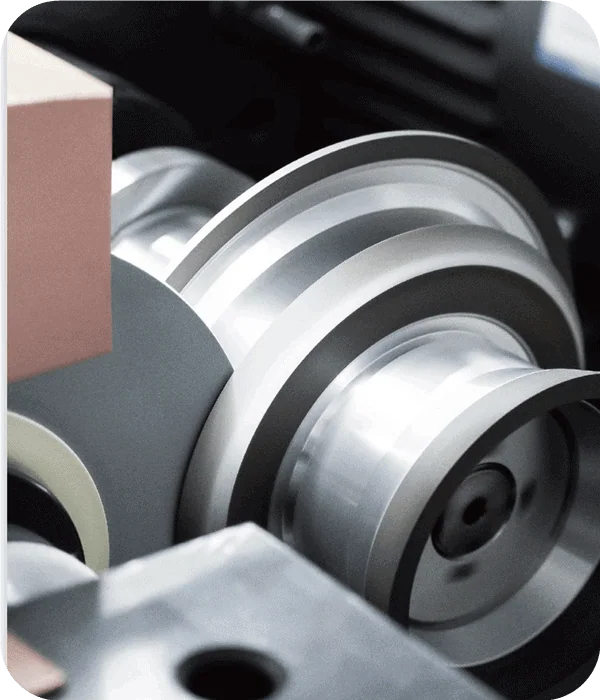

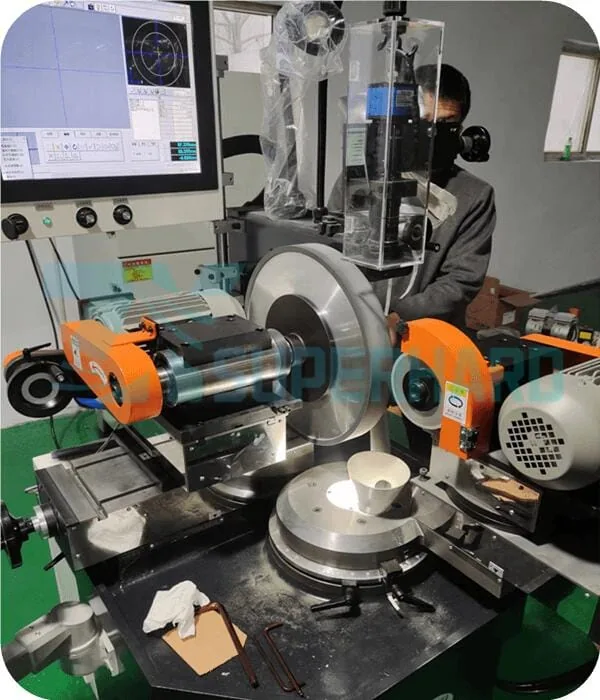

The ZY-X5 wheel dressing machine is a newly developed machine based on the ZY-X3, designed to meet the workshop environment requirements and respond to environmental protection policies with a fully sealed design. This machine provides simple and efficient dressing for diamond wheels, CBN wheels, and wheel sets composed of multiple wheels. It can dress flat surfaces, angles, arcs, and profiled wheels. The operation of the machine is simple, and it offers high precision. The machine can achieve both water mist cooling and natural cooling, without causing environmental pollution.

FEATURES

  • Adopt Taiwan-made precision linear slide rail and ball screw, and add a digital display scale (optional), so that when the corrected grinding wheel is corrected, the positioning accuracy, width and arc size can be adjusted and measured at any time .
  • The rotating A-axis adopts high-precision tapered roller bearings produced in Japan to achieve the rotation accuracy and stability.
  • CCD photography device, with 15 to 120 times magnification and 17 “LCD display, can measure and check the arc, angle and size of the grinding wheel in the work.
  • CCD and optical size device provides easy-to-use settings and measurement of the width and position of the grinding wheel and inspection during or after dressing. The measurement accuracy can reach 0.005-0.01 mm.
  • For more details, please click here!
