Metal Bond Diamond/CBN Grinding Wheels: Why They Excel and How to Select the Perfect One for Your Application

When facing tough grinding jobs on hard materials, are metal bond diamond or CBN wheels the best choice, and how can you make sure you pick the right one for optimal results?

Metal bond diamond and CBN grinding wheels excel in demanding applications due to their exceptional durability, precision, and ability to grind very hard materials effectively. Selecting the perfect wheel involves understanding their core advantages, carefully matching wheel specifications and abrasive type to your workpiece material and operational parameters, and knowing when to leverage customization and expert technical support for unique challenges.

What Are the Core Advantages of Using Metal Bond Diamond/CBN Grinding Wheels?

So, why should you consider metal bond diamond or CBN grinding wheels over other types for your demanding tasks?

Metal bond diamond and CBN grinding wheels offer significant advantages, primarily due to their exceptional durability, ability to hold their shape for precision work, and effectiveness in grinding extremely hard materials. These qualities often translate to longer wheel life, consistent part quality, and improved overall grinding efficiency, especially in demanding industrial applications.

Unmatched Durability and Extended Lifespan Compared to Other Bonds

When we talk about grinding wheels, how long they last is a big deal, right? Well, metal bond wheels truly shine in this area. Imagine the abrasive particles, like tiny diamond or CBN cutters, being held in place by a super strong metal casing, much like a precious gem set securely in a tough metal ring. This robust metal matrix, often made from bronze, steel, or other specialized alloys, grips the abrasive particles with exceptional strength.

This secure hold means the wheel doesn’t wear down quickly, even when grinding very hard or tough stuff. Let’s compare this to other common bond types:

• Resin bonds¹: These are softer and generate less heat, which is good for some jobs. However, they tend to wear out much faster than metal bonds, meaning more frequent wheel changes and higher tooling consumption over time.
• Vitrified bonds: These are like glass and offer good cutting ability and form holding. But, they can be more brittle and may chip or break more easily under high stress compared to the toughness of a metal bond.
• Electroplated bonds: These have a single layer of abrasive stuck to the wheel’s surface. Once that layer wears away, the wheel is done. Metal bond wheels, on the other hand, have abrasives distributed throughout the bond matrix, providing a much longer usable life.

Because of this incredible durability, metal bond wheels are a fantastic choice for high-volume production runs where consistency and minimal downtime are critical. For example, in the manufacturing of tungsten carbide cutting tool inserts, a metal bond CBN wheel might effectively grind thousands of parts before needing replacement. In contrast, a different bond type might only last for a few hundred, significantly increasing the cost per part and machine idle time. Industry observations often suggest that metal bond wheels can last anywhere from 3 to over 10 times longer than resin bond wheels in specific hard material grinding applications, though actual lifespan will always depend on the precise application, material, and grinding parameters used. This extended lifespan not only reduces the frequency of wheel changes but also contributes to lower overall tooling costs and, very importantly, increased machine uptime.

Superior Form Holding for High-Precision Grinding Tasks

What exactly is “form holding”? It simply means the grinding wheel’s ability to keep its precise shape or profile during the entire grinding process. Why is this so important? For many modern manufacturing tasks, especially in industries like aerospace, medical device manufacturing, or automotive component production, parts need to be made with incredible accuracy – often down to a few thousandths of a millimeter!

Metal bond wheels excel at holding their form. The strong, rigid metal matrix doesn’t easily deform or wear unevenly, even under the significant pressures and temperatures generated during grinding. This ensures that the profile you dress onto the wheel stays true for a long time.

Consider the complex task of grinding the flutes (the spiral grooves) on a solid carbide end mill or drill bit. The geometry of these flutes is critical for the tool’s cutting performance and chip evacuation. A metal bond diamond wheel, once dressed to the required profile, can grind many tools while maintaining that exact flute shape. If the wheel were to lose its form quickly, each tool produced would be slightly different, leading to inconsistent performance or even tool failure. Similarly, in producing precision gear components, maintaining the intricate tooth profile is paramount, a task where metal bond wheels demonstrate their superior capability.

Think of it like trying to draw a series of perfect circles. If your compass point (the wheel profile) keeps getting dull or changing shape, your circles (the ground parts) won’t be consistent. A metal bond wheel is like a compass with an exceptionally durable point that maintains its sharpness and shape, ensuring every circle is just right. This means fewer wheel dressing operations are needed, which saves time and extends the useful life of the wheel even further.

Effective Grinding of Extremely Hard, Brittle, and Abrasive Materials

Some materials used in modern industry are incredibly tough to work with. We’re talking about materials like:

• Tungsten Carbide²: Used for cutting tools, wear parts, and mining tools.
• Hardened Tool Steels: Such as D2, M2, or HSS with hardness typically above 60 HRC.
• Industrial Ceramics³: Including alumina, zirconia, silicon carbide, and silicon nitride, found in everything from engine components to electronic substrates.
• Glass and Quartz: Used in optics, electronics, and scientific equipment.
• Certain Superalloys: Though some nickel-based superalloys are better suited to CBN, some cobalt-based ones or highly abrasive composites can be tackled with metal bond diamond wheels.

Grinding these materials with conventional abrasive wheels (like aluminum oxide or silicon carbide in softer bonds) can be very inefficient. The wheels wear down incredibly fast, generate excessive heat, or simply can’t cut the material effectively. It would be like trying to cut through a thick steel plate with a pair of office scissors – you wouldn’t get very far!

This is where metal bond diamond and CBN wheels become essential.

1. Superabrasives: Diamond and CBN are known as superabrasives precisely because they are so much harder than conventional abrasives. They can effectively cut and remove these ultra-hard materials.
2. Secure Bond: The metal bond provides the necessary robust support to hold these superabrasive grains firmly in place, allowing them to do their work without being prematurely pulled out or fractured under the high grinding forces involved.

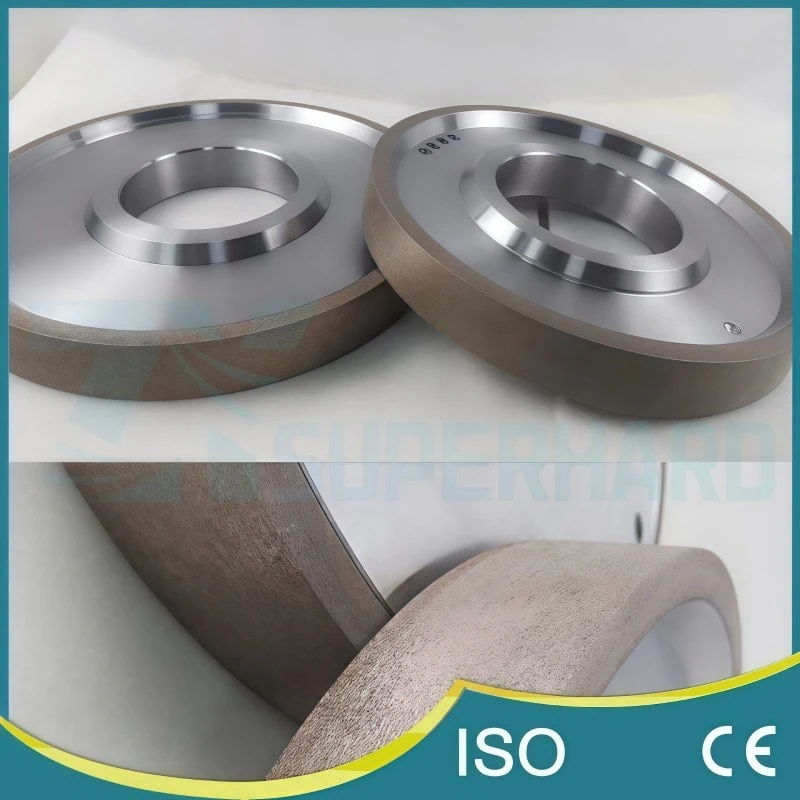

For instance, in the machining of advanced ceramic components like silicon nitride bearings or pump parts, metal bond diamond grinding wheels are often the standard. These ceramics are so hard and wear-resistant that other wheel types would be impractical for achieving the required material removal rates, surface finishes, and dimensional accuracy. The metal bond ensures that the diamond particles are utilized effectively, leading to a productive and cost-efficient grinding process even on such challenging materials.

Understanding When to Choose Diamond vs. CBN Abrasives within a Metal Bond

Okay, so we know metal bonds are strong. But inside that metal bond, you can have either diamond or CBN (Cubic Boron Nitride) as the cutting abrasive. Which one should you choose? This is a very important decision, as picking the right abrasive for your material is key to successful grinding. Think of it like having two specialized tools in your kit – each is an expert for certain types of jobs.

Diamond Abrasives: The Go-To for Non-Ferrous Superstars

Diamond is the hardest known natural material on Earth. This makes it exceptionally good at grinding very hard materials that do not contain iron (non-ferrous).

• Best suited for:
  • Tungsten Carbide (often just called “carbide”)
  • Industrial Ceramics (like alumina, zirconia, silicon carbide)
  • Glass and Quartz
  • Graphite
  • Non-ferrous metals like aluminum-silicon alloys (though often other bonds are used for softer aluminum)
  • Fiber-reinforced plastics and composites
• Why not for steels (ferrous materials)? Here’s a crucial point: at the high temperatures generated during grinding, diamond (which is made of carbon) can have a chemical reaction with iron. This reaction causes the diamond to break down and wear out very quickly, a process sometimes referred to as graphitization⁴ or diffusion wear. So, using diamond on steel is generally inefficient.

CBN Abrasives: The Champion for Hardened Ferrous Metals

CBN is the second hardest material known, right after diamond. Its special talent is grinding hard materials that do contain iron (ferrous materials), and it does this job brilliantly.

• Best suited for:
  • Hardened Steels (typically above 45 HRC, including tool steels like D2, M2, A2, high-speed steel (HSS), and case-hardened steels)
  • Hardened Cast Irons
  • Nickel-based and Cobalt-based Superalloys (like Inconel®, Hastelloy®, Stellite®) – these are common in aerospace and high-temperature applications.
• Why it works so well on steels: Unlike diamond, CBN is chemically stable when grinding iron-containing materials, even at high temperatures. It doesn’t react and break down, so it maintains its cutting ability and lasts much longer.

To make this clearer, here’s a simple comparison:

So, choosing between diamond and CBN⁵ isn’t just about hardness; it’s about chemical compatibility with the material you’re grinding. Using the wrong abrasive can lead to very rapid wheel wear and poor results. For example, trying to grind hardened D2 tool steel with a diamond wheel would result in the diamond wearing down much faster than if a CBN wheel were used. Conversely, using a CBN wheel on tungsten carbide might work, but it wouldn’t be as efficient or cost-effective as using a diamond wheel designed for that material.

It’s always a good practice, especially when dealing with new or specialized alloys, to consult with your grinding wheel supplier. They can provide specific recommendations based on the exact material composition, hardness, and your desired grinding outcome, as the optimal choice can sometimes vary even within broader material categories.

How Do I Select the Optimal Metal Bond Wheel for My Specific Application?

Now that you know the fantastic benefits of metal bond diamond and CBN grinding wheels, you might be wondering: how do you actually choose the right one for your specific job to get the best results?

Selecting the optimal metal bond wheel involves carefully matching the abrasive type (diamond or CBN) to your workpiece material, thoroughly understanding key wheel specifications like grit size, concentration, and shape, considering your specific grinding operation parameters such as coolant use and machine type, and importantly, being aware of common selection pitfalls. Getting these factors right is crucial for achieving desired grinding performance, excellent surface finish, and maximizing the wheel’s long life.

Matching the Wheel to Your Workpiece Material (e.g., Tungsten Carbide, Hardened Steels, Ceramics, Glass, Composites)

The very first step in choosing your wheel is to look closely at the material you need to grind. As we touched on earlier, diamond and CBN abrasives have their own specialties. Using the wrong one is like trying to unlock a door with a key for a completely different lock!

• Tungsten Carbide: If you’re working with tungsten carbide – commonly used for cutting tools, drill bits, wear parts, and mining tools – a diamond metal bond wheel is your go-to. For example, when manufacturing precision carbide end mills, a diamond wheel is essential to accurately shape the hard carbide and create the sharp cutting edges needed. The diamond’s hardness, coupled with the metal bond’s form-holding capability, ensures these tools meet exacting specifications.
• Hardened Steels: For hardened ferrous materials like tool steels (e.g., D2, M2, A2 grades), high-speed steel (HSS), or case-hardened steels (often above 45 HRC), CBN (Cubic Boron Nitride) metal bond wheels are the champion. A common application is grinding hardened steel gears for automotive transmissions or industrial machinery. Here, a CBN wheel can achieve the precise tooth profiles and fine surface finishes required for quiet operation and long gear life, without the rapid wear that diamond would experience on steel.
• Industrial Ceramics: Materials like alumina, zirconia, or silicon carbide are extremely hard and often brittle. For these, diamond metal bond wheels are the standard. Consider the shaping of advanced ceramic components like pump seals, ballistic plates, or wear-resistant tiles. A diamond wheel can effectively grind these challenging materials, though the specific bond characteristics might be adjusted to minimize edge chipping on more brittle ceramics.
• Glass and Quartz: Whether it’s optical lenses, scientific glassware, or architectural glass panels, diamond metal bond wheels are used for grinding edges, beveling, or shaping. For instance, in preparing optical lens blanks, fine grit diamond wheels are used to achieve smooth surfaces and precise curvatures before polishing.
• Composites: Materials like Carbon Fiber Reinforced Plastics (CFRP) are becoming increasingly common, especially in aerospace and automotive industries. These are highly abrasive due to the carbon fibers. Diamond metal bond wheels, sometimes with specialized bond formulations, are typically used for trimming, drilling, or shaping CFRP components, such as aircraft wing sections or high-performance automotive body panels.

Remember, while these are general guidelines, the specific alloy, hardness, or composition of your material can influence the ideal abrasive choice. It’s always wise to confirm with your wheel supplier, providing them with as much detail about your workpiece material as possible.

Key Specifications Demystified: Grit Size, Concentration, Bond Grade/Hardness, and Wheel Shape (e.g., 1A1, 1V1, 6A2C)

Once you’ve matched the abrasive type (diamond or CBN) to your material, the next step is to understand a few key specifications of the wheel itself. These might seem like just codes and numbers, but they tell you a lot about how the wheel will perform.

Grit Size

This refers to the size of the individual abrasive particles (diamond or CBN) in the wheel. It’s a bit like sandpaper – a smaller number usually means coarser, larger particles, while a larger number means finer, smaller particles.

• Coarse Grits (e.g., 40/50 to 80/100 U.S. mesh, or D427 to D181 in FEPA micron sizes) are used for rapid material removal (high stock removal) when surface finish isn’t the top priority.
• Medium Grits (e.g., 100/120 to 170/200 U.S. mesh, or D151 to D91) offer a balance between stock removal and surface finish.
• Fine Grits (e.g., 200/230 U.S. mesh and finer, or D76 and smaller) are used for achieving smooth surface finishes and holding tight dimensional tolerances.

For example, rough grinding a hardened steel component might start with a coarser CBN grit like B126 (120/140 mesh), while the final finishing pass to achieve a very smooth surface might use a B46 (325/400 mesh) or even finer. The exact grit designation systems (U.S. Mesh, FEPA, or micron grading) can vary, so it’s helpful to clarify with your supplier which system they use and what it means for particle size.

Concentration

This tells you how much abrasive (diamond or CBN) is packed into a given volume of the bond material. Common concentrations are C25, C50, C75, C100, and C125 (or N25, N50, etc., depending on the supplier’s nomenclature).

• Higher Concentration (e.g., C100, C125) means more cutting points. This can lead to longer wheel life and better form holding, which is great for precision profile grinding. However, it can also increase grinding forces and heat.
• Lower Concentration (e.g., C50, C75) means fewer cutting points, which can result in a “freer” cutting action with lower grinding forces. This might be preferred for operations where heat sensitivity is a concern or on less rigid machines.

The choice often involves a trade-off, and the best concentration can depend heavily on the material, the specific operation, and the machine’s capabilities.

Bond Grade/Hardness

This refers to how strongly the metal bond holds onto the abrasive particles. Metal bonds are known for being very hard and durable overall, but there are still variations within this category.

• A “harder acting” metal bond will retain the abrasive particles very securely, which is excellent for maintaining the wheel’s profile when grinding softer materials or when form holding is absolutely critical.
• A “softer acting” metal bond (though still very robust compared to other bond types like resin) will allow dulled abrasive particles to be released more readily, exposing fresh, sharp particles. This can be beneficial when grinding very hard or difficult-to-grind materials, as it helps prevent the wheel from “glazing” (becoming dull and losing its cutting ability).

The terminology for bond grade or hardness can vary significantly between suppliers. Therefore, discussing your specific application needs, such as the material’s hardness and the importance of form retention versus cutting speed, with your wheel supplier is crucial to select an appropriate bond characteristic.

Wheel Shape (and Size)

Grinding wheels come in many standard shapes and sizes, often designated by codes like those from FEPA (Federation of European Producers of Abrasives)⁶. The shape you need depends entirely on your grinding machine and the type of grinding operation. Some common shapes include:

Of course, you also need to specify dimensions like diameter, thickness, and arbor hole size to fit your machine.

Understanding these specifications will help you have a more informed discussion with your wheel supplier to get exactly what you need.

Considering Your Grinding Operation Parameters: Wet vs. Dry Grinding, Machine Type, Stock Removal Rate, and Desired Surface Finish

Beyond the wheel itself, how you plan to use it – your operating conditions – plays a massive role in selection.

• Wet vs. Dry Grinding: This is a big one for metal bond wheels. Metal bond diamond and CBN wheels almost always perform best and last longest when used with a generous supply of coolant (wet grinding). Why?
  • Heat Dissipation: Grinding generates a lot of heat. Coolant carries this heat away, protecting both the wheel and your workpiece from thermal damage. This is especially important with metal bonds, which conduct heat well.
  • Swarf Removal: Coolant flushes away the tiny chips (swarf) produced during grinding, preventing them from clogging the wheel’s surface (a problem called “loading”) or scratching the workpiece.
  • Improved Finish & Life: Proper coolant use generally leads to better surface finishes and significantly extends the life of the metal bond wheel.
    Attempting to use most metal bond wheels dry can lead to rapid loading, excessive heat buildup, premature wheel wear, and poor part quality. For example, in CNC tool grinding operations, a continuous flood of filtered coolant is standard practice when using metal bond wheels.
• Machine Type and Stability: Metal bond wheels are hard and designed for demanding work. Therefore, they perform best on rigid, stable grinding machines that can handle the grinding forces without vibration. Using a metal bond wheel on a less rigid or poorly maintained machine can lead to problems like chatter marks on the workpiece, uneven wheel wear, or even damage to the wheel or machine spindle. CNC grinding machines are often preferred for their precision and rigidity.
• Stock Removal Rate: How much material do you need to remove, and how quickly?
  • For high stock removal (removing a lot of material fast), you’d typically lean towards coarser grit sizes and possibly a more open or “freer cutting” bond characteristic.
  • For low stock removal or fine finishing passes, finer grits are essential.
    Your target stock removal rate influences the choice of grit, concentration, and sometimes even the bond type within the metal bond family.
• Desired Surface Finish (Ra): The surface finish, often measured as an “Ra” value (Roughness average)⁷, is a critical outcome for many parts.
  • To achieve a very smooth, mirror-like finish (low Ra value), you’ll need to use finer grit sizes. You may also need to optimize other parameters like wheel speed, feed rates, and coolant application. For example, achieving a surface finish of Ra <0.2 µm on a hardened steel shaft would likely require a fine grit CBN wheel (e.g., B46 or finer), precise machine control, and excellent coolant filtration.
  • If the surface finish requirement is less stringent, you might be able to use a coarser grit that allows for faster material removal.

Thinking through these operational factors beforehand will help you narrow down the ideal wheel specifications.

Common Pitfalls to Avoid When Selecting a Metal Bond Wheel

Choosing the wrong wheel can be frustrating and costly. Here are a few common mistakes to watch out for:

• Using Diamond on Steel (or CBN on a Material Better Suited for Diamond): This is a fundamental error we’ve discussed. Always match the abrasive to the material family (ferrous vs. non-ferrous/ceramic) to avoid rapid wear or inefficient grinding.
• Choosing Too Fine a Grit for Roughing: If you need to remove a lot of material, starting with a very fine grit wheel will be painfully slow. The wheel may load up quickly (gets clogged with material) and generate excessive heat because it’s not aggressive enough.
• Choosing Too Coarse a Grit for Finishing: Conversely, if you need a very smooth surface finish, a coarse grit wheel simply won’t deliver. You’ll end up with a rough surface, no matter how carefully you grind.
• Ignoring or Underestimating Coolant Requirements: As mentioned, metal bond wheels thrive with good coolant. Attempting to run them dry when they are designed for wet grinding, or using an insufficient amount or dirty coolant, is a recipe for trouble. This can lead to wheel glazing, workpiece burn, and drastically reduced wheel life.
• Using an Inappropriately “Hard” Bond on Extremely Hard-to-Grind Materials: While metal bonds are inherently hard, if the bond is too tenacious for a very difficult material, the abrasive grains may dull down but not be released. This causes the wheel to “glaze over” and stop cutting effectively. Sometimes a slightly “freer cutting” or “softer acting” metal bond (though still robust) is needed to ensure fresh abrasive is exposed. This is where detailed discussion with a knowledgeable supplier is invaluable.
• Not Providing Sufficient Information to Your Supplier: Grinding wheel suppliers are experts, but they can only give you the best recommendation if they have all the necessary details about your application. This includes workpiece material and its hardness, the machine you’re using, the amount of stock to be removed, the required surface finish, and your current grinding parameters if you’re trying to improve an existing process. Withholding or guessing information can lead to a suboptimal wheel choice.

By avoiding these common pitfalls and carefully considering all the factors discussed, you’ll be well on your way to selecting the perfect metal bond diamond or CBN grinding wheel⁸ for your application, paving the path for efficient and high-quality results.

What If Standard Wheels Aren’t the Perfect Fit? Leveraging Customization and Technical Expertise

So, you’ve learned about the advantages of metal bond wheels and how to select standard ones. But what happens when you’ve reviewed all the options, and your unique grinding challenge seems to need something more specialized, something not found on the shelf?

When standard metal bond wheels don’t fully meet your specific grinding goals – perhaps due to unique part geometries, exceptionally demanding tolerances, or challenging new materials – leveraging customization options and the technical expertise of your wheel supplier becomes essential. This involves recognizing when a custom solution is truly needed, engaging in a collaborative development process to create it, and utilizing ongoing expert support to optimize both new and existing grinding operations for peak performance and efficiency.

Recognizing When a Custom-Engineered Wheel is Necessary for Your Goals

While standard metal bond wheels cover a vast range of applications, there are times when “good enough” simply isn’t. How do you know if you’ve reached a point where a custom-engineered wheel is the best path forward? Here are some common signposts:

• Unique Part Geometry or Intricate Profiles: Are you trying to grind a complex shape, a deep slot, or an intricate profile that standard wheel shapes (like a simple 1A1 straight wheel or a 6A2C cup wheel) just can’t access correctly or produce efficiently? For instance, manufacturing a specialized medical implant with highly specific, non-standard contours often requires a wheel designed to match that exact geometry.
• Extremely Tight Tolerances or Surface Finish Requirements: Perhaps you’re consistently struggling to meet an exceptionally tight dimensional tolerance (e.g., holding a dimension within +/- 0.002 mm) or an ultra-fine surface finish (e.g., consistently achieving a Ra below 0.1 micrometers). If standard wheels get you close but can’t reliably hit these demanding targets, a custom wheel optimized for precision might be the answer.
• Working with New, Exotic, or Difficult-to-Grind Materials: Are you tackling a novel engineering ceramic, a newly developed superalloy, or a unique composite material for which standard grinding recommendations are scarce or ineffective? A custom wheel can be designed with specific abrasive types, grit sizes, concentrations, and bond characteristics tailored to the unique properties of these advanced materials. For example, a newly developed aerospace composite might exhibit unusual abrasive wear on standard diamond wheels, necessitating a custom bond formulation.
• Persistent, Unresolved Grinding Problems: Despite trying different standard wheels and carefully optimizing your grinding parameters (speeds, feeds, coolant), do you still face persistent issues like workpiece burning, chatter, excessive wheel loading, or very rapid wheel wear? These could indicate a fundamental mismatch between standard offerings and your specific application, pointing towards the need for a custom-designed solution.
• Significant Productivity or Efficiency Gains Required: In high-volume production scenarios, even a small improvement per part can lead to substantial savings. If a standard wheel performs adequately but a custom-designed wheel could offer a significant reduction in cycle time (e.g., 10-20% faster), dramatically longer wheel life between changes, or a major reduction in dressing frequency, the investment in a custom solution can be quickly justified. Imagine a company grinding thousands of identical carbide cutting tool inserts daily; a custom wheel that grinds 15% faster could equate to hundreds of extra parts per shift.

If any of these situations sound familiar, it’s likely time to explore the world of custom-engineered metal bond grinding wheels.

The Collaborative Process of Developing a Custom Metal Bond Wheel Solution

Creating a custom metal bond wheel isn’t just about ordering a special size; it’s a collaborative engineering process between you (the user) and your wheel supplier. Think of it as a partnership to solve a specific grinding puzzle. Here’s a typical journey:

1. Initial Consultation and Detailed Problem Definition: It starts with a thorough discussion. You’ll explain your specific grinding challenge, your goals (e.g., desired surface finish, cycle time, wheel life), the material being ground, your machine setup, and any problems you’re currently facing. Your supplier will ask detailed questions to fully understand the nuances of your application.
2. In-Depth Application Review: The supplier’s engineers will then dive deeper. This might involve analyzing workpiece drawings, material safety data sheets (MSDS) or material certifications, your grinding machine’s capabilities (power, speed ranges, rigidity), your coolant delivery system, and the specific outcomes you need to achieve.
3. Feasibility Study and Conceptual Design: Based on the gathered information, the supplier’s technical team will assess the feasibility of a custom solution. They’ll then develop one or more conceptual designs. This could involve a unique wheel shape, a special blend of abrasive grit sizes, a modified bond formulation for specific material interactions, or even a different core material for improved damping or rigidity.
4. Proposal, Quotation, and Agreement: Once a promising concept is developed, you’ll receive a detailed proposal. This will outline the custom wheel’s specifications, the anticipated performance benefits, the price, the manufacturing lead time, and often a plan for testing and validation.
5. Precision Manufacturing and Rigorous Quality Control: After you approve the design, the custom wheel is manufactured. Reputable suppliers will have stringent quality control processes at each stage to ensure the wheel meets the agreed-upon specifications.
6. Testing, Feedback, and Iteration (If Necessary): The new custom wheel is then delivered for testing in your actual production environment. This is a critical step. You’ll provide feedback on its performance. Sometimes, the first custom wheel hits the mark perfectly! Other times, minor adjustments might be needed. For example, if a first custom prototype for grinding a new, brittle ceramic composite reduces chipping but doesn’t eliminate it, the supplier might analyze the wear pattern on the prototype and slightly adjust the bond’s friability or the diamond concentration for a second iteration. This iterative process continues until the optimal performance is achieved.

This collaborative approach ensures that the final custom wheel is truly tailored to your needs and delivers the expected results.

How Expert Technical Support Can Optimize Your Existing Grinding Processes and Troubleshoot Issues

The value of a good wheel supplier extends far beyond just providing the wheel itself, whether it’s standard or custom. Their expert technical support team can be an invaluable resource for optimizing your grinding operations and solving challenging problems. Here’s how they can help:

• Grinding Parameter Optimization: Are you getting good, but not great, performance from your current metal bond wheels? Technical support can often help you fine-tune your grinding parameters – such as wheel speed (RPM), feed rates, depth of cut, and traverse speeds – to improve cycle times, enhance surface finish, or extend wheel life. For instance, if a customer is experiencing premature glazing (the wheel surface becoming dull and losing its cut) with a standard CBN wheel on hardened tool steel, technical support might analyze their parameters and suggest a slight increase in the infeed rate or an adjustment to their dressing procedure to help “open up” the wheel face.
• Troubleshooting Common (and Uncommon) Grinding Problems: Facing issues like workpiece burn marks, chatter patterns on the surface, inconsistent dimensional accuracy, rapid or uneven wheel wear, or excessive wheel loading? An experienced technical support team can help diagnose the root cause. This often involves a holistic look at your entire grinding system: the machine’s condition, the wheel itself, the coolant application, the dressing technique, and the part fixturing.
• Coolant Management Advice: Effective coolant use is critical with metal bond wheels. Technical experts can advise on the most suitable coolant types (e.g., synthetic, semi-synthetic, oil-based), optimal concentrations, recommended flow rates and pressures, and the importance of good filtration to maintain coolant cleanliness and maximize performance.
• Dressing and Truing Guidance⁹: Metal bond wheels require specific techniques for dressing (resharpening the wheel face and removing loaded material) and truing (ensuring the wheel runs perfectly round and concentric). Technical support can provide best-practice recommendations on the type of dressing tools to use (e.g., vitrified dressing sticks, rotary diamond dressers), appropriate dressing parameters, and the correct frequency for your application to maintain peak wheel performance.
• Application-Specific Advice and Operator Education: Sometimes, a quick call or an on-site visit from a technical specialist can provide insights that dramatically improve your grinding results. They might identify subtle issues in your setup or offer tips and tricks that your operators can implement to get the most out of your investment in high-performance metal bond wheels.

Think of your wheel supplier’s technical support team as experienced grinding application engineers. They have often seen a wide array of challenges across many industries and can bring that wealth of knowledge to help you solve your specific problems.

Essential Information to Provide for Effective Customization and Support Requests

To get the fastest and most effective help, whether you’re requesting a custom wheel design or seeking technical support for an existing issue, providing comprehensive and accurate information to your supplier is key. The more details you can share, the better they can understand your needs and formulate the right solution. Consider this a checklist:

• About Your Workpiece:
  • Material Type & Exact Specification: Don’t just say “steel” or “ceramic.” Be precise, e.g., “AISI D2 tool steel, hardened to 60-62 HRC,” or “99.8% Alumina Ceramic, as-fired.”
  • Material Hardness: If known (e.g., HRC, HV, Shore).
  • Drawings or Sketches: Detailed part drawings showing dimensions, all relevant tolerances, and clearly indicating the specific surface(s) to be ground.
  • Stock Removal: How much material needs to be removed in the grinding operation?
  • Surface Finish Requirement: Specify the target Ra (roughness average) or Rz value.
  • Photographs or Samples: If you’re experiencing a problem, photos of the issue (e.g., burn marks, chatter) or even sending a sample workpiece and the problematic wheel can be very helpful.
• About Your Grinding Machine:
  • Make, Model, and Approximate Age/Condition: This helps assess rigidity and capability.
  • Spindle Power: (kW or HP).
  • Available Wheel Speeds (RPM) and Feed Rate Ranges.
  • Type of Coolant System and Coolant Used: (Type, concentration, flow rate, filtration).
• About Your Current Grinding Process (if applicable):
  • Current Wheel Specifications: (If you’re using one now – type, size, grit, bond, supplier).
  • Current Grinding Parameters: (Wheel speed, workpiece speed, infeed, depth of cut, traverse speed, dressing method/frequency).
  • Current Wheel Life and Reason for Removal/Change.
  • Specific Problem or Goal: Clearly state what issue you want to solve (e.g., “reduce burning on the part’s trailing edge”) or what improvement you’re aiming for (e.g., “increase wheel life by 25%,” “achieve a consistent surface finish of Ra 0.2 µm”).
• For Custom Wheel Design Requests:
  • Any known limitations: E.g., maximum wheel diameter or thickness due to machine clearances.
  • Target cycle time, wheel life, or cost-per-part goals if these are primary drivers.

Preparing this information thoroughly before contacting your supplier will streamline the communication process and enable them to provide you with the most accurate and effective support or custom wheel design. It’s like going to a doctor with a well-documented history of your symptoms – it leads to a much faster and more precise diagnosis and treatment plan.

Conclusion

Choosing and using metal bond diamond or CBN grinding wheels effectively can significantly enhance your grinding operations, especially when dealing with hard and challenging materials. By understanding their core advantages, such as unmatched durability and superior form holding, you can appreciate their value in high-precision and high-volume applications.

The key to success lies in diligent selection: carefully matching the abrasive to your workpiece, demystifying crucial specifications like grit and concentration, considering all operational parameters, and avoiding common pitfalls. Furthermore, when standard solutions don’t quite meet the unique demands of your application, remember that the path to optimal performance often involves leveraging the customization capabilities and in-depth technical expertise offered by knowledgeable wheel suppliers. A collaborative approach, armed with detailed information about your specific needs, can unlock tailored solutions that push the boundaries of efficiency and quality in your grinding processes.
