Mastering PCD and PCBN Tool Sharpening: Essential Techniques and Best Practices

How can one truly master the complex process of sharpening PCD and PCBN cutting tools?

Mastering PCD and PCBN tool sharpening requires understanding their unique material challenges (extreme hardness, brittleness), applying specialized techniques like precision grinding, EDM, or laser ablation, implementing best practices for consistent results and quality control, and utilizing the right high-precision equipment, consumables, and skilled personnel.

Why is Sharpening PCD & PCBN Tools a Unique Challenge?

So, what makes sharpening these advanced PCD and PCBN cutting tools so different and tricky compared to regular tools?

Sharpening Polycrystalline Diamond (PCD) and Polycrystalline Cubic Boron Nitride (PCBN) tools presents unique challenges primarily because of their extreme hardness, which approaches that of natural diamond, and their brittle nature. This combination demands specialized grinding or processing techniques, ultra-hard abrasives (like diamond wheels), precise process control to avoid edge damage like chipping, and careful management of heat generated during sharpening.

Understanding PCD Material Characteristics

Imagine trying to sharpen something that’s almost as hard as a natural diamond! That’s the main story with PCD (Polycrystalline Diamond).

• Extreme Hardness: PCD is made by sintering¹ tiny, man-made diamond grains together, often with a metal binder like cobalt, under intense heat and pressure. The result is a material that is incredibly hard – rating close to 10 on the Mohs hardness scale², just like natural diamond. This sheer hardness makes it fantastic for cutting abrasive materials like aluminum alloys with high silicon content, composites, or wood materials, because it resists wear exceptionally well.
• High Wear Resistance: Because it’s so hard, PCD doesn’t wear down quickly, even when cutting tough or abrasive materials. This means PCD tools can last much longer than traditional carbide or high-speed steel tools, often by a factor of 50 to 100 times or more in suitable applications. Explore the differences between PCD and Carbide tools³ for more context.
• Good Thermal Conductivity: PCD is also quite good at conducting heat away from the cutting edge. Think of how a metal spoon gets hot quickly in soup – PCD does something similar with the heat generated during cutting, helping to keep the edge cooler.
• Brittleness: However, like a ceramic plate or glass, extreme hardness often comes with brittleness. PCD isn’t tough in the sense of bending; it can chip or fracture if subjected to sharp impacts or excessive force, especially during the sharpening process. The metallic binder adds some toughness compared to pure diamond, but it remains a brittle material overall.

Understanding these points is key: you’re dealing with a material that strongly resists being cut or ground (high hardness and wear resistance) but can also be easily damaged by the wrong approach (brittleness).

Understanding PCBN Material Characteristics

PCBN (Polycrystalline Cubic Boron Nitride) is another superhard material, often considered the second hardest material after diamond. It shares some similarities with PCD but has unique features.

• Very High Hardness: While slightly less hard than PCD, PCBN is still exceptionally hard. Its hardness comes from cubic boron nitride particles bonded together, sometimes with ceramic or metallic binders.
• Excellent Hot Hardness: This is a key advantage of PCBN. What does “hot hardness” mean? It means PCBN stays very hard even when it gets extremely hot. This makes it ideal for cutting hardened steels (typically above 45 HRC), cast irons, and superalloys, materials where cutting temperatures can soar. Diamond, in contrast, can start to break down chemically (react with iron) at such high temperatures (generally above 700°C or 1300°F).
• Chemical Stability: PCBN doesn’t readily react chemically with ferrous materials (iron-based metals like steel and cast iron) at high temperatures. This chemical inertness, combined with its hot hardness, is why it excels in machining these tough metals where PCD might fail. See a detailed comparison highlighting the difference between PCD and CBN cutting tools⁴.
• Brittleness: Similar to PCD, PCBN is also quite brittle. It requires careful handling and precise sharpening techniques to avoid chipping or catastrophic failure of the cutting edge. The specific toughness can vary depending on the CBN grain size and the type/amount of binder used. It’s often helpful to consult the PCBN tool supplier for specific toughness ratings or handling recommendations for a particular grade.

So, PCBN offers a solution for high-temperature cutting of hard ferrous metals where PCD isn’t suitable, but it brings similar challenges in terms of hardness and brittleness during sharpening.

Key Difficulties in Processing Superhard Materials

Based on the properties of PCD and PCBN, sharpening them effectively runs into several core difficulties:

1. Abrading Extreme Hardness: You need an abrasive material that is at least as hard as, or preferably harder than, the material you are trying to shape. For both PCD and PCBN, this essentially limits the practical abrasive choice to diamond itself, usually in the form of precisely engineered diamond grinding wheels. Using conventional abrasives like aluminum oxide or silicon carbide would be like trying to cut steel with a plastic knife – they simply wear away instantly without effectively shaping the PCD or PCBN.
2. Managing Brittleness & Preventing Edge Damage: Because both materials are brittle, applying too much force or using the wrong grinding parameters during sharpening can easily cause microscopic (or larger) chips and fractures along the cutting edge. This damage ruins the tool’s precision and drastically shortens its life. Achieving a sharp, durable edge requires very fine control over the sharpening process.
3. Controlling Heat Generation: The friction involved in grinding such hard materials generates significant heat right at the cutting edge. Excessive heat can damage the PCD/PCBN structure itself or the binder material, weakening the edge. While PCBN has excellent hot hardness, thermal damage is still a concern for both materials during the grinding process itself.
4. Achieving Precise Geometry and Surface Finish: Modern manufacturing demands cutting tools with highly precise edge geometries (angles, radii) and very smooth surface finishes to ensure accurate parts and long tool life. Grinding or processing brittle, ultra-hard materials to these exacting specifications is inherently difficult and requires specialized, high-precision machinery and techniques.
5. Binder Phase Interaction (Especially PCD): In PCD, the metallic binder (like cobalt) is much softer than the diamond grains. During grinding, there’s a risk of preferentially eroding the binder or causing it to “smear,” which can negatively affect edge quality and performance. The sharpening process must effectively cut the diamond grains while managing the binder interaction.

These challenges mean that standard tool grinding machines and techniques are often inadequate. Mastering PCD and PCBN sharpening requires specialized knowledge, dedicated equipment, and meticulous attention to detail – topics we will explore in the following sections.

What Are the Primary Sharpening Techniques Available?

Given the unique challenges, how exactly do manufacturers effectively sharpen these ultra-hard PCD and PCBN tools?

The primary techniques used for sharpening PCD and PCBN tools are Precision Grinding, Electrical Discharge Machining (EDM), and Laser Ablation. Precision Grinding is the most common method, using specialized diamond wheels. EDM uses electrical sparks for complex shapes without direct force, while Laser Ablation employs focused light beams for high precision and potentially superior edge quality.

Precision Grinding: The Workhorse Method

Think of precision grinding as the most common and well-established way to sharpen PCD and PCBN tools. It works much like grinding other tools, but with some very important differences due to the extreme hardness we discussed earlier. Essentially, a spinning grinding wheel, coated with tiny diamond particles, carefully removes material from the tool edge to make it sharp again.

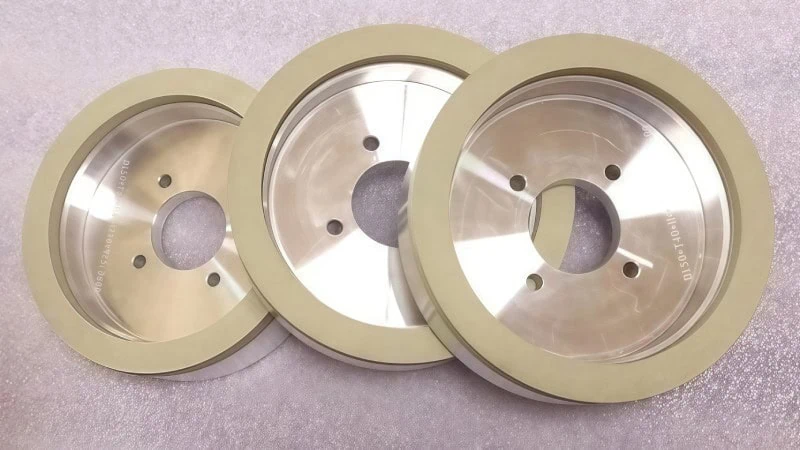

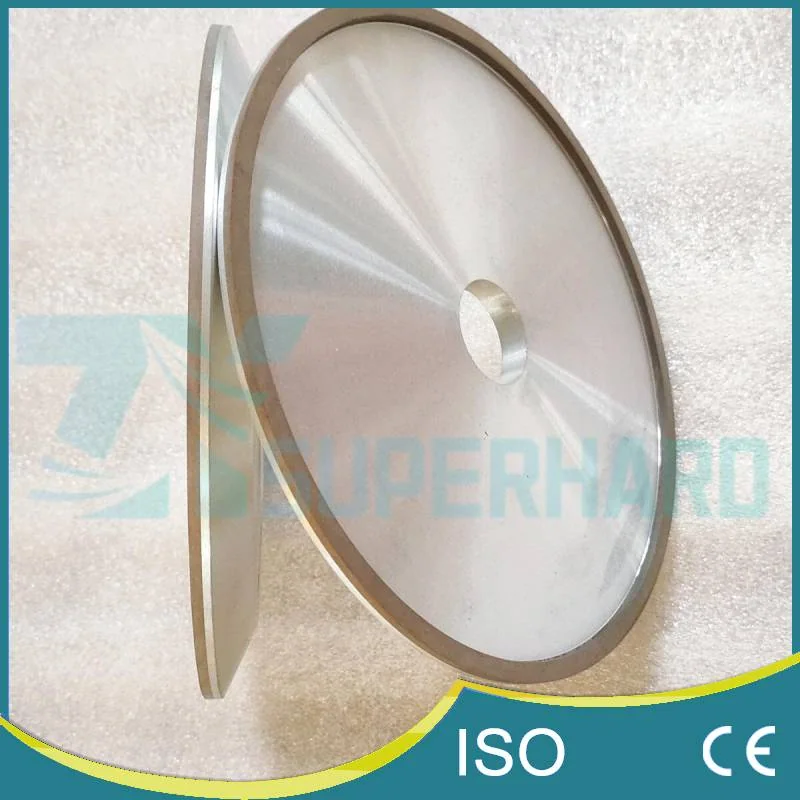

Selecting the Correct Diamond Grinding Wheel (Type, Grit, Bond)

Choosing the right grinding wheel is absolutely critical for success. It’s not just any wheel; it must be a diamond wheel because only diamond is hard enough to effectively cut PCD and PCBN. Key factors include:

• Diamond Type: Usually, synthetic (man-made) diamonds are used. Sometimes they have special coatings to help them stick better in the bond and resist heat.
• Grit Size: This refers to the size of the diamond particles. Imagine sandpaper – coarse grit removes material faster but leaves a rougher finish (used for initial shaping or heavy stock removal, maybe 100-200 micron range). Fine grit removes material slower but gives a smoother, sharper edge (used for finishing, perhaps 10-40 micron range). Often, sharpening involves multiple steps, starting coarser and finishing finer.
• Bond Type: This is the “glue” holding the diamond particles together. Common types are:
  • Vitrified: Like glass. Very hard and holds its shape well, good for precision. Can be brittle.
  • Resin: Plastic-based. Generally allows for cooler grinding and can produce a better finish, but may wear faster.
  • Metal: Very durable and long-lasting, but can generate more heat.
  • (Hybrid bonds also exist, trying to combine benefits).

The best combination depends heavily on the specific PCD/PCBN grade, the machine being used, and whether you are roughing or finishing. Always consult the wheel manufacturer or tool supplier for recommendations tailored to your specific application, as grit sizes and bond formulations can vary significantly.

Optimizing Grinding Parameters (Speeds, Feeds, Depth)

Simply having the right wheel isn’t enough; you need to use it correctly.

• Wheel Speed: How fast the surface of the wheel spins (often measured in Surface Feet per Minute (SFM) or meters per second (m/s)). Too slow might not grind effectively; too fast can cause excessive heat or wheel wear. Typical ranges might be 20-35 m/s, but this varies widely.
• Feed Rate: How quickly the tool is moved across or into the grinding wheel. This needs to be carefully controlled – too fast can chip the brittle tool edge.
• Depth of Cut (Infeed): How much material the wheel removes in each pass. For PCD/PCBN, this is usually very small, perhaps only a few micrometers (µm) per pass, especially during finishing. It’s like peeling an onion one thin layer at a time to avoid damage.

Getting these parameters right is crucial for preventing damage (like chipping or burning) and achieving the desired edge quality. These parameters are highly dependent on the specific tool, machine rigidity, wheel specification, and coolant used, so starting values should be obtained from equipment or tool suppliers and optimized through careful trials.

Effective Coolant Application Strategies

Grinding PCD and PCBN generates a lot of heat due to friction. Coolant (the lubricating/cooling fluid used in machining) is not just helpful; it’s essential. Why?

• Heat Removal: It prevents the tool edge from overheating, which could cause thermal damage.
• Lubrication: Reduces friction between the wheel and the tool.
• Chip Flushing: Washes away the tiny particles of material (swarf) that have been ground off, keeping the wheel clean and preventing them from scratching the tool surface.

Common coolants include synthetic oils or water-based emulsions. Just pouring it on isn’t enough; it needs to be applied effectively, often using high-pressure jets directed precisely at the grinding zone to ensure it gets right where the heat is being generated.

Electrical Discharge Machining (EDM) for Intricate Shapes

Electrical Discharge Machining (EDM) is a fascinating process that uses electrical sparks to erode material, rather than physical force like grinding. Imagine tiny lightning bolts repeatedly striking the tool material, vaporizing microscopic bits away. Because there’s no direct mechanical contact between the “cutting tool” (an electrode) and the workpiece (the PCD/PCBN tool), EDM can create complex shapes that are difficult or impossible to achieve with a grinding wheel, such as sharp internal corners or intricate chipbreaker geometries. It also avoids the mechanical stress that can sometimes lead to chipping in grinding.

Wire EDM vs. Sinker EDM for Sharpening

There are two main types of EDM relevant here:

• Wire EDM: Uses a continuously moving thin wire (usually brass or coated) as the electrode. The wire moves along a programmed path, cutting through the material like a high-tech cheese wire. This is excellent for creating precise profiles, cutting edges, and segmenting PCD blanks.
• Sinker (Die-Sinking) EDM: Uses a custom-shaped electrode (often graphite or copper) that is “sunk” into the workpiece. The shape of the electrode is essentially imprinted onto the tool. While used extensively for mold making, its application in pure sharpening is less common than wire EDM, but it can be used for forming specific features like complex chipbreakers directly onto the tool face.

Critical Parameters and Electrode Management

Effective EDM requires controlling several electrical parameters:

• Voltage & Current: Determine the energy of each spark. Higher energy removes material faster but generally leaves a rougher surface finish and can create a larger heat-affected zone (HAZ) beneath the surface.
• Pulse On/Off Time: Controls the duration of each spark and the time between sparks. This influences cutting speed, surface finish, and heat input.
• Flushing: Just like coolant in grinding, a dielectric fluid (a non-conductive liquid) is crucial in EDM. It acts as an insulator until the voltage is high enough to spark, then cools the area and flushes away the eroded particles. Poor flushing is a major cause of instability and poor results.

Managing the electrode (the wire in Wire EDM or the shaped tool in Sinker EDM) is also important. The wire is constantly consumed, and shaped electrodes also wear down and may need redressing or replacement. Optimal EDM parameters depend greatly on the machine, the specific PCD/PCBN material grade, the desired finish, and the electrode material. Manufacturer recommendations provide a starting point for optimization.

Laser Ablation for Ultimate Precision and Edge Finish

Laser sharpening is a more advanced technique that uses a highly focused beam of light energy to remove material from the tool edge, typically through laser ablation (turning it directly into a gas). Think of it as using a microscopic, incredibly precise light beam to sculpt the cutting edge.

The Laser Sharpening Process Explained

The laser beam is directed at the tool edge, and its intense energy is absorbed by a tiny volume of the PCD or PCBN material. This rapidly heats the material past its vaporization point, removing it layer by microscopic layer. The process is controlled by computers, allowing for very precise shaping of the cutting edge, including complex geometries and extremely fine edge radii (sharpness). Different types of lasers can be used, with ultra-short pulse lasers (like picosecond or femtosecond lasers) becoming increasingly popular as they minimize heat input into the surrounding material, leading to very high quality edges with minimal thermal damage (heat-affected zone).

Benefits and Limitations Compared to Grinding/EDM

Laser sharpening offers some compelling advantages but also has trade-offs:

In essence, lasers excel where ultimate precision and edge quality are paramount, especially for complex or delicate tools. However, grinding often remains more economical for simpler geometries or where higher material removal rates are needed. EDM occupies a middle ground, particularly useful for complex shapes where grinding access is limited.

How Do You Implement Best Practices for Optimal Results?

Knowing the sharpening techniques is one thing, but how do you actually use them effectively to get consistently great results and make your tools last longer?

Implementing best practices for PCD and PCBN tool sharpening involves meticulous control over edge preparation and geometry, rigorous post-sharpening inspection, proactive measures to prevent common defects like chipping or burning, and establishing a systematic approach to tool life management and regrinding schedules. These practices ensure consistent tool performance, maximize tool longevity, and ultimately reduce overall manufacturing costs.

Achieving Consistent Edge Preparation and Geometry Control

Getting the cutting edge just right is perhaps the most critical part of sharpening. It’s not just about making it sharp; it’s about making it the correct kind of sharp, consistently, every single time.

• Importance of Edge Preparation: Often, especially for demanding applications or interrupted cuts (where the tool repeatedly enters and exits the material), a perfectly sharp, pointed edge might be too fragile on brittle PCD/PCBN. Best practices frequently involve creating specific edge preparations:
  • Chamfer (or K-land): A small, flat angled surface ground onto the cutting edge to strengthen it.
  • Hone (or Edge Radius): A slight rounding of the cutting edge, also to increase strength and prevent micro-chipping.
    The size and angle of these preparations are critical; too small might not offer enough protection, while too large can increase cutting forces and heat. Specific edge preparation details often depend on the application and the tool manufacturer’s recommendations.
• Controlling Geometry: Beyond the edge prep, the overall tool geometry – things like rake angles, clearance angles, and the radius of the cutting edge itself – must be controlled very tightly. Why? Because even small variations can affect how the tool cuts, the forces generated, the surface finish on the part, and how the tool wears. Achieving consistency requires high-precision machinery and careful process control during sharpening. Think of it like tuning a musical instrument – everything needs to be just right for optimal performance. Consistent geometry leads to predictable cutting behavior.

Crucial Post-Sharpening Inspection and Quality Control Steps

How do you know if the sharpening process was successful? You can’t just assume; you absolutely must inspect the tool afterwards. This quality control step is essential to catch problems before the tool goes back into production.

• Visual Inspection: A basic first check, often with the naked eye or low magnification, looking for obvious large chips, cracks, or damage.
• Microscopic Inspection: This is vital for PCD/PCBN. Using magnifications often in the range of 50x to 200x (or even higher) allows inspectors to see the fine details of the cutting edge. They look for:
  • Micro-chipping (tiny flakes broken off the edge).
  • Edge uniformity (is the sharpness consistent along the length?).
  • Surface finish of the ground/processed area.
  • Any signs of thermal damage (discoloration, micro-cracks).
• Dimensional Measurement: Verifying that the tool’s geometry matches the required specifications. This might involve:
  • Optical Comparators:Projecting a magnified shadow of the tool onto a screen to measure angles and radii.
  • Tool Presetters:Sophisticated machines that use cameras or lasers to measure various tool dimensions quickly and accurately.
  • Non-Contact Measurement Systems: Advanced 3D scanners or vision systems for highly detailed geometry checks.
    Accuracy targets can be very tight, often measured in micrometers (µm). Exact dimensional tolerances are specific to the tool and application, and should be clearly defined in quality standards, often based on supplier or engineering specifications.

Implementing a rigorous inspection process ensures that only tools meeting the required quality standards are used, preventing costly part failures or machine downtime.

Preventing Common Sharpening Defects (Chipping, Burning, Cracks)

Knowing the potential problems is the first step to avoiding them. Best practices focus on controlling the sharpening process to minimize the risk of common defects:

• Preventing Chipping: As discussed, PCD/PCBN are brittle. Chipping is often caused by:
  • Excessive grinding force (feed rate or depth of cut too high).
  • Vibration in the machine or tool holding.
  • Using the wrong grit size or type of grinding wheel.
  • Inadequate edge preparation (no chamfer/hone where needed).
  • Prevention Strategy: Use rigid, high-precision machines; optimize grinding parameters carefully (start conservative); select the appropriate wheel; ensure secure tool clamping; apply proper edge preparation.
• Preventing Burning / Thermal Damage: Too much heat is the enemy. Causes include:
  • Insufficient or poorly applied coolant/flushing fluid.
  • Grinding wheel speed too high.
  • Depth of cut too large.
  • Dull or loaded grinding wheel (needs dressing).
  • Incorrect EDM or laser parameters (too much energy).
  • Prevention Strategy: Ensure copious and well-directed coolant/flushing; use recommended wheel speeds and parameters; take shallow passes; maintain the grinding wheel condition (dressing); optimize EDM/laser energy settings.
• Preventing Cracks: Often caused by thermal stress (rapid heating and cooling) or excessive mechanical stress.
  • Prevention Strategy: This combines strategies for preventing both chipping and burning. Gradual material removal, effective cooling, avoiding excessive force, and ensuring machine stability are key.

Careful process control, based on understanding the material and the sharpening technique, is the foundation for preventing these defects.

Establishing Tool Life Management and Regrind Schedules

Using PCD and PCBN tools effectively isn’t just about sharpening them well once; it’s about managing their entire life cycle. A best practice approach involves:

• Tracking Tool Performance: Monitoring how many parts a tool produces, how long it cuts, or measuring its wear systematically. This provides data on how long a sharp edge actually lasts in a specific application.
• Defining Wear Criteria: Determining the acceptable amount of wear before a tool needs to be resharpened. This isn’t usually running the tool until it completely fails. Instead, it involves identifying specific wear indicators (like a certain size of flank wear, observed during inspection) that signal the optimal time for resharpening – sharp enough to still work well, but dull enough that resharpening is efficient. Wear criteria can vary significantly and should be developed based on application data and potentially supplier guidance.
• Developing Regrind Schedules: Using the performance tracking data and wear criteria to establish a planned schedule for when tools should be removed from service for sharpening. This moves away from guesswork (“run it ’til it breaks”) towards a predictable, data-driven process.
• Benefits: Why bother with all this tracking?
  • Predictability: Reduces unexpected tool failures and machine downtime.
  • Cost Savings: Maximizes the number of parts produced per tool edge and allows for multiple resharpenings, lowering the cost per part. Resharpening is almost always cheaper than buying a new tool.
  • Quality: Prevents tools from being used when excessively dull, which can lead to poor part quality or scrapped components.
  • Process Stability: Ensures tools perform consistently throughout their planned usage cycle.

Implementing a tool life management system transforms tool sharpening from a reactive fix into a proactive strategy for optimizing performance and cost.

Essential Equipment and Resources for Success

Beyond the techniques and best practices, achieving success in sharpening PCD and PCBN tools also requires the right foundation of machinery, materials, strategic planning, and human expertise.

Essential resources for successful PCD and PCBN tool sharpening include high-precision, highly rigid machinery specific to the chosen technique (grinding, EDM, or laser), appropriate high-performance consumables beyond just the primary cutting elements (like specialized coolants or dielectric fluids), a strategic decision on performing work in-house versus outsourcing, and, critically, well-trained operators who understand the nuances of the process.

Key Features of High-Precision Sharpening Machinery

You can’t effectively sharpen these advanced materials using standard tool grinders. The machinery itself must have specific characteristics tailored to the task:

• Exceptional Rigidity and Vibration Damping: This is perhaps the most crucial feature. Because PCD and PCBN are brittle, any vibration during sharpening can cause the edge to chip. The machine base, structure, and spindles must be incredibly stiff and designed to absorb or dampen vibrations. Think of trying to write neatly on a wobbly table versus a heavy, solid desk – stability is key for precision.
• High-Accuracy Movement and Control: Sharpening requires creating precise angles and radii, often measured in micrometers. Therefore, the machine axes (both linear and rotational) must move with extreme accuracy and repeatability. Modern machines rely on sophisticated CNC (Computer Numerical Control) systems for this level of precision.
• Effective Coolant or Flushing Delivery Systems: As we’ve seen, managing heat and removing swarf is critical. The machine needs a robust system capable of delivering large volumes of coolant (for grinding) or dielectric fluid (for EDM) precisely to the working zone, sometimes under high pressure.
• Specialized Spindles/Generators: Grinding machines need high-precision spindles capable of running diamond wheels smoothly at optimal speeds. EDM machines require sophisticated generators to precisely control the energy and timing of electrical sparks. Laser systems need stable, reliable laser sources and accurate beam delivery optics.
• Integrated Measurement (Optional but Recommended): Some advanced machines incorporate in-process measurement systems (like touch probes or vision systems) that can check the tool’s geometry during or immediately after the sharpening cycle, improving quality control and process consistency.

Investing in machinery with these features is fundamental to achieving the required quality and consistency.

Choosing Appropriate Consumables Beyond Grinding Wheels

While the diamond grinding wheel, EDM electrode, or laser source does the primary cutting, other consumable materials are also vital for the process:

• Coolants (Grinding): Not just any cutting fluid will do. Specialized coolants, often synthetic oils, are formulated for grinding PCD/PCBN, offering superior cooling, lubrication, and chip flushing properties tailored to diamond wheels and the materials being ground.
• Dielectric Fluid (EDM): The type and cleanliness of the dielectric fluid significantly impact EDM speed, surface finish, and stability. High-performance synthetic fluids are common. Maintaining the fluid through effective filtration is also essential, requiring periodic filter changes.
• EDM Wire & Electrodes: For Wire EDM, various wire types (brass, coated) and diameters are available, influencing cutting speed and precision. For Sinker EDM, the electrode material (like specific grades of graphite or copper) impacts wear rate and achievable surface finish.
• Dressing Tools (Grinding): Diamond grinding wheels need periodic “dressing” to clean away built-up material (loading) and restore their cutting geometry. Specific dressing sticks or rotary dressers are used for this purpose.
• Assist Gases (Laser): Depending on the laser process, specific gases (like oxygen or nitrogen) might be used to help eject molten material or shield the edge from oxidation.
• Cleaning Agents: After sharpening, tools often need thorough cleaning to remove any residual coolant, dielectric fluid, or swarf before inspection or use.

Using the correct, high-quality consumables is just as important as having the right machine. Consult with machine or consumable suppliers for recommendations suitable for your specific equipment and application.

Evaluating In-House vs. Outsourced Sharpening Services

A major strategic decision is whether to develop PCD/PCBN sharpening capabilities internally (in-house) or send tools out to a specialized service provider (outsourcing). There are pros and cons to each:

Key questions to ask when deciding:

• What volume of tools do we need sharpened regularly? (High volume might justify in-house costs).
• How complex are our tools? (Very complex tools might benefit from specialized outsource expertise).
• How critical is turnaround time? (Urgent needs might favor in-house control).
• Do we have the budget for capital investment and skilled personnel?
• Are our tool designs highly sensitive or proprietary?

Many businesses use a hybrid approach, keeping some common or critical sharpening in-house while outsourcing more complex or lower-volume work.

The Importance of Operator Training and Skill Development

Having the best machine and materials is useless without skilled people to run them. Sharpening PCD and PCBN tools is not a simple “push-button” operation; it requires significant skill and understanding. Why is training so vital?

• Understanding the Nuances: Operators need to understand the unique properties of PCD/PCBN, how the different sharpening techniques work, and how changing parameters affects the outcome.
• Process Optimization: Skilled operators can fine-tune parameters to achieve optimal edge quality, maximize tool life, and troubleshoot problems effectively.
• Machine Operation & Maintenance: Correctly operating complex machinery and performing routine maintenance are crucial for consistent results and machine longevity.
• Inspection & Quality Judgement: Operators are often the first line of quality control, needing the ability to inspect tools correctly and identify potential issues.
• Safety: Working with high-speed machinery, high voltages (EDM), or high-power lasers requires proper safety training and procedures.

Investing in comprehensive training – whether from the machine supplier, specialized training institutions, or through in-house mentorship programs – is essential. Well-trained operators are key to preventing costly mistakes (like damaging expensive tools or machines), ensuring consistent quality, and truly mastering the art and science of PCD and PCBN tool sharpening. Think of them not just as machine operators, but as highly skilled technicians crucial to the entire manufacturing process.

Conclusion

Mastering the sharpening of PCD and PCBN tools is undoubtedly a complex undertaking, demanding more than just basic grinding knowledge. It begins with acknowledging the inherent challenges posed by these ultra-hard yet brittle materials. Successfully navigating these challenges requires selecting and adeptly applying the appropriate advanced techniques – whether it’s the common precision grinding, the intricate shaping capabilities of EDM, or the ultra-fine precision of laser ablation.

However, technique alone isn’t sufficient. True mastery lies in the rigorous implementation of best practices: ensuring consistent edge preparation, performing meticulous quality control through inspection, actively preventing common defects, and managing tool life systematically. Furthermore, success hinges on investing in the right resources – high-precision machinery, specialized consumables, and perhaps most importantly, highly trained and skilled operators. By integrating understanding, technique, best practices, and the right resources, manufacturers can unlock the full potential of PCD and PCBN tooling, achieving superior performance, extended tool life, and optimized manufacturing costs.
