4A2 Diamond Grinding Wheels

Reliable 4A2 Resin Bond Diamond Wheels for Carbide Tool Grinding & Resharpening

Restore peak cutting performance to your essential Tungsten Carbide cutting tools with ZYsuperhard’s 4A2 Resin Bond Diamond Grinding Wheels. Specifically designed for precision grinding and resharpening operations typically performed on universal tool grinding machines, these wheels offer an effective and economical combination of sharp cutting action, good surface finish capability, and reliable durability. They are a staple choice for tool rooms, regrinding services, and manufacturing facilities focused on maintaining carbide tooling.

The Resin Bond Advantage for Carbide Tool Grinding:

Our carefully formulated resin bond system is optimized for grinding hard and brittle Tungsten Carbide, providing key advantages:

• Free-Cutting Action & Reduced Heat: The bond characteristics promote a cooler grinding process by reducing forces and minimizing heat generation. This is crucial for protecting the sensitive carbide cutting edge from thermal damage, micro-cracking, or loss of hardness during sharpening.
• Good Surface Finish: Resin bonds naturally help achieve smooth, clean finishes on the ground flanks and faces of carbide tools, contributing to improved cutting performance and extending the life of the resharpened tool.
• Adaptability & Ease of Use: Offers a degree of conformability, ensuring good contact between the wheel and the tool’s geometry, which is beneficial during manual or semi-automatic grinding operations often performed on universal machines.
• Cost-Effectiveness: Provides excellent value by balancing effective grinding performance with reasonable wheel life, making it a practical choice for general-purpose carbide tool maintenance and sharpening tasks.

Key Features:

• Versatile 4A2 Shape: This standard recessed one side straight wheel shape (ISO Type 4A2) allows for flexibility in various grinding operations on universal tool grinders, including peripheral grinding of diameters and face grinding of tool ends or features.
• High-Quality Diamond Abrasive: Utilizes appropriately selected diamond grits (available in standard sizes like D64, D76, D126 and others) optimized for efficient material removal and achieving desired edge quality on hard Tungsten Carbide.
• Precision Manufacturing: Manufactured to ensure good wheel balance and dimensional accuracy, promoting stable and consistent performance on your grinder.

Core Applications:

Ideal for grinding and resharpening a wide variety of Tungsten Carbide cutting tools using universal tool and cutter grinders. Common applications include:

• Carbide Milling Cutters: Resharpening cutting edges on end mill flutes (face/periphery), side-and-face cutters, and slot drills.
• Carbide Reamers: Regrinding lead chamfers and flute faces.
• Carbide Turning Tools & Inserts: Sharpening cutting edges, faces, and radii.
• Carbide Drills: Regrinding point angles and facets (within the geometric capabilities of the 4A2 wheel shape and machine setup).
• General tool maintenance, modification, and reconditioning tasks performed in tool rooms, machine shops, and specialized regrinding facilities.

Specification Example:

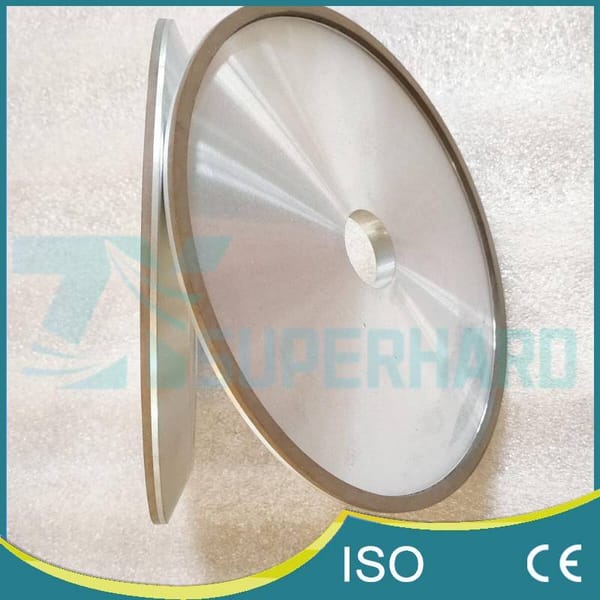

D200-T13-H32-W5-X3 D76 (as potentially shown in the picture below)

Drawing:

Grit Size:

FEPA GRITD	USA STANDARD ASTME
D356	45/50
D301	50/60
D252	60/80
D213	70/80
D181	80/100
D151	100/120
D126	120/140
D107	140/170
D91	170/200
D76	200/230
D64	230/270
D54	270/325
D46	325/400

We supply various tool grinding wheels which are widely used for grinding a variety of tools, drills, gears, blades and so on. Welcome to inquire!

Customization:

Beyond the example specification, these 4A2 resin bond diamond wheels can be supplied in diverse, customized dimensions (Diameter, Thickness, Hole, Rim Width W, Abrasive Depth X), specific grit sizes, and diamond concentrations to perfectly match your particular universal grinder setup and specific carbide tool grinding requirements.

Choose ZYsuperhard 4A2 diamond wheels for reliable performance and cost-effective sharpening of your valuable Tungsten Carbide tools. Contact us for more details or to discuss your specific needs.
