Diamond & CBN Wheel For Flat Surface Grinding 3A1/14A1 Model

Precision Diamond & CBN Wheels for Superior Flat Surface Grinding

Achieve exceptional precision and efficiency in your flat surface grinding operations with our advanced Diamond and Cubic Boron Nitride (CBN) grinding wheels. Engineered for demanding applications, these wheels deliver superior performance, extended life, and optimal surface finishes on a wide range of hard and challenging materials. This range features popular shapes like the 3A1 straight wheel and the 14A1 dish wheel, among others.

Featured Wheel Shapes:

• 3A1 (Straight Wheel): A versatile and widely used wheel shape, perfect for general-purpose flat surface grinding on the wheel’s periphery. It provides consistent performance for creating flat, smooth surfaces.

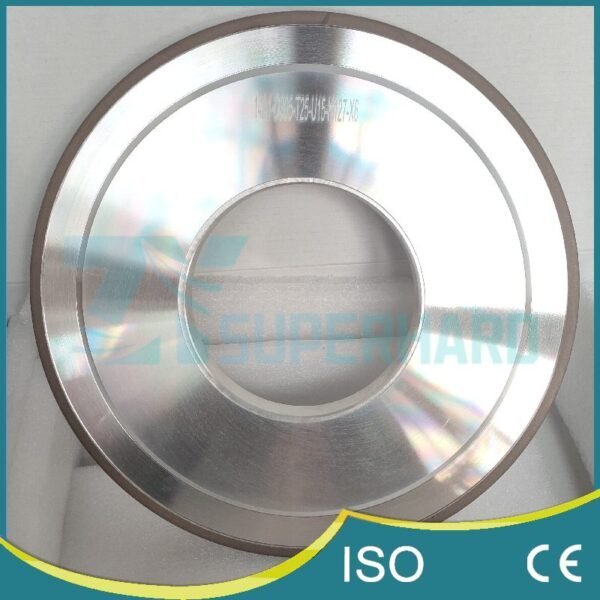

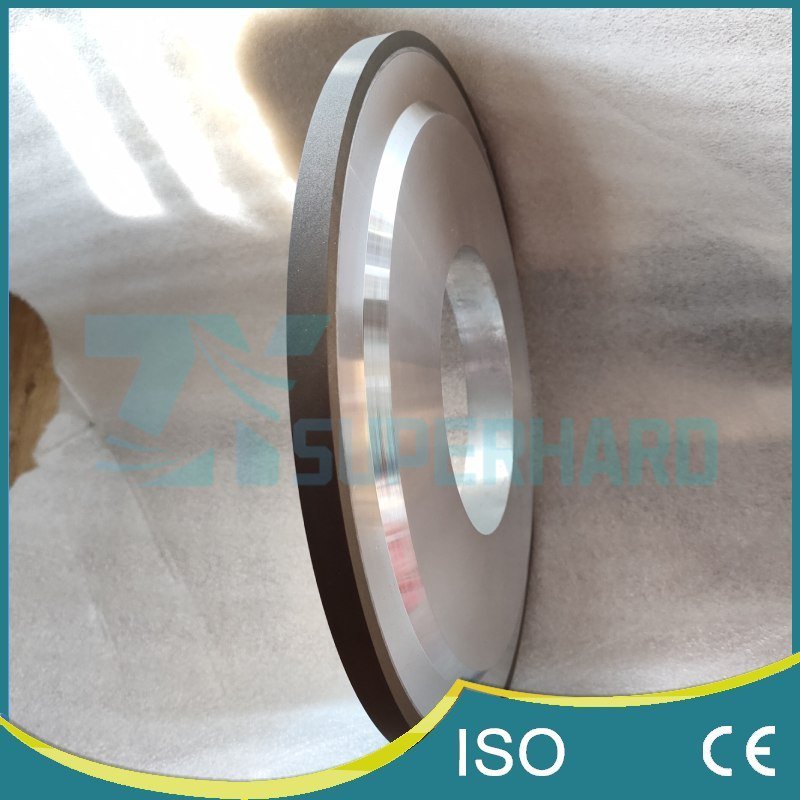

• 14A1 (Dish Wheel): This saucer-shaped wheel is excellent for specific flat surface grinding tasks, including tool and cutter resharpening, grinding faces in confined areas, or applications requiring intricate profile work.

We also offer a variety of other shapes, including Cup Wheels (e.g., 6A2 Straight Cup, 11A2 Flaring Cup), to cater to diverse flat surface grinding machinery and application needs.

Why Choose Our Diamond & CBN Wheels?

• Superior Abrasives for Optimal Performance:

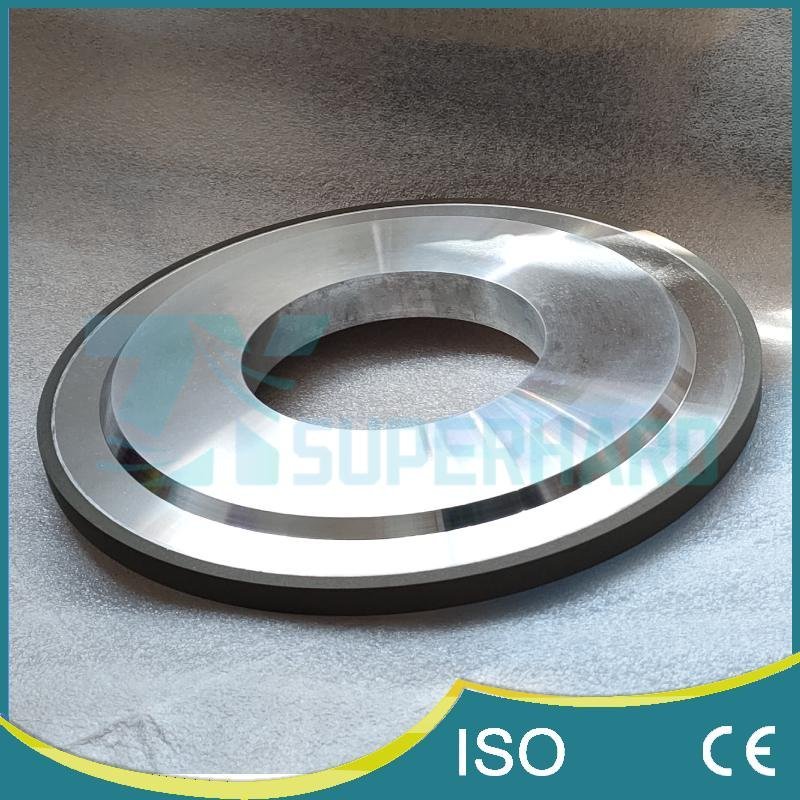

  • Diamond Wheels: Ideal for grinding extremely hard and abrasive non-metallic materials such as tungsten carbide, technical ceramics, optical glass, composites, and non-ferrous metals.

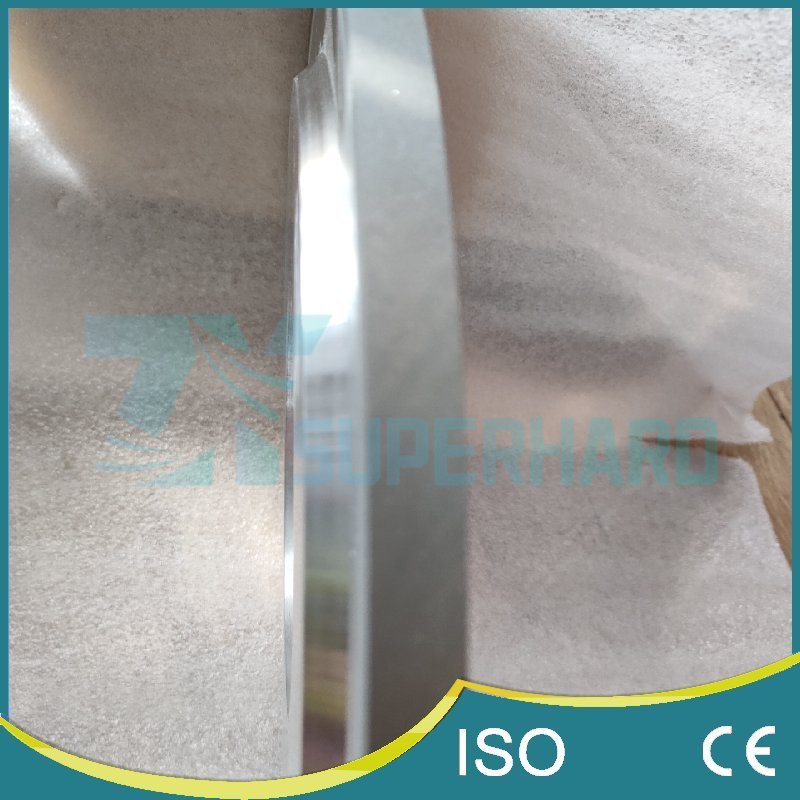

  • CBN (Cubic Boron Nitride) Wheels: The preferred choice for grinding hard ferrous materials (HRC 50 and above), including tool steels (HSS, D2, M2), die steels, hardened alloy steels, superalloys, and cast iron. CBN offers excellent thermal stability and wear resistance when grinding these metals.
• High Grinding Efficiency: Our wheels are designed for fast material removal rates, reducing cycle times and increasing throughput.
• Extended Wheel Life: Manufactured with high-quality abrasives and advanced bond systems, our wheels offer exceptional durability and wear resistance, leading to fewer wheel changes and lower overall costs.
• Excellent Surface Finish: Achieve precise tolerances and superior surface quality on your workpieces, meeting the strictest industry standards.

Common Applications:

Our flat surface grinding wheels are trusted across various industries, including:

• Tool & Die Manufacturing and Resharpening
• Automotive (engine components, transmission parts)
• Aerospace (turbine blades, precision components)
• Ceramics and Glass Processing
• Bearing Manufacturing
• General Engineering and Metal Fabrication

Advanced Bond Systems Available:

To optimize performance for your specific material and application, we offer a range of bond systems:

• Resin Bond: Offers excellent self-sharpening properties and low grinding heat generation, making it ideal for fine finishing, tool sharpening, and heat-sensitive materials.
• Metal Bond: Provides a strong, durable bond for superior wear resistance and long life. Best suited for heavy-duty grinding, high stock removal, and maintaining form in demanding applications.
• Vitrified Bond: Features a porous structure for good chip clearance and coolant delivery. Offers excellent form-holding capabilities, high material removal rates, and is relatively easy to dress. Ideal for high-precision grinding.

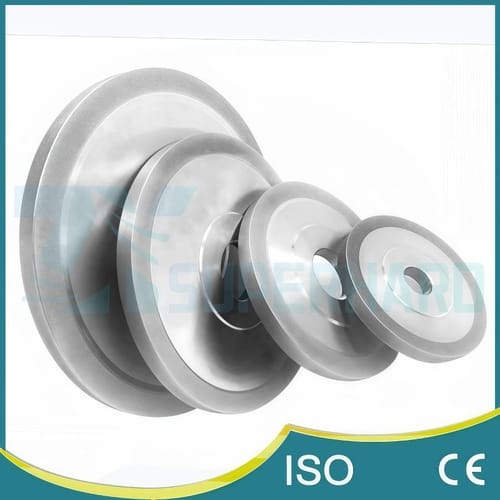

• Electroplated Bond: Consists of a single, aggressive layer of abrasive particles. Excellent for rapid stock removal, intricate profile grinding, and applications where form holding is critical.

Fully Customizable Solutions

We understand that standard wheels may not always meet unique requirements. We offer comprehensive customization services. You can specify:

• Dimensions: Diameter, thickness, hole size, abrasive layer width and depth.
• Abrasive Type: Diamond or CBN.
• Grit Size: A wide range from coarse for rapid stock removal to ultra-fine for mirror finishes.
• Concentration: The amount of abrasive in the grinding layer, tailored for optimal performance.
• Bond Type: Resin, Metal, Vitrified, or Electroplated, selected to match your application.

Our experienced team is ready to assist you in developing the perfect grinding wheel solution tailored to your specific needs.

Contact Us

Elevate your flat surface grinding capabilities. Contact us today to discuss your requirements, request a quote, or learn more about our custom Diamond and CBN grinding wheel solutions.
