Why Is My Solid CBN Insert Chipping or Wearing Out Fast on Cast Iron Rolls?

Are you struggling to understand why your premium solid CBN inserts¹ are failing long before you expect them to when machining hard cast iron rolls?

Your solid CBN insert is likely chipping or wearing out fast due to one of three core issues: 1) mechanical failures caused by physical impact, incorrect edge geometry, or vibration; 2) thermal and abrasive failures caused by excessive speed, abrasive roll materials, or improper coolant use; or 3) foundational setup errors, such as using the wrong CBN grade or having an unstable toolholder setup.

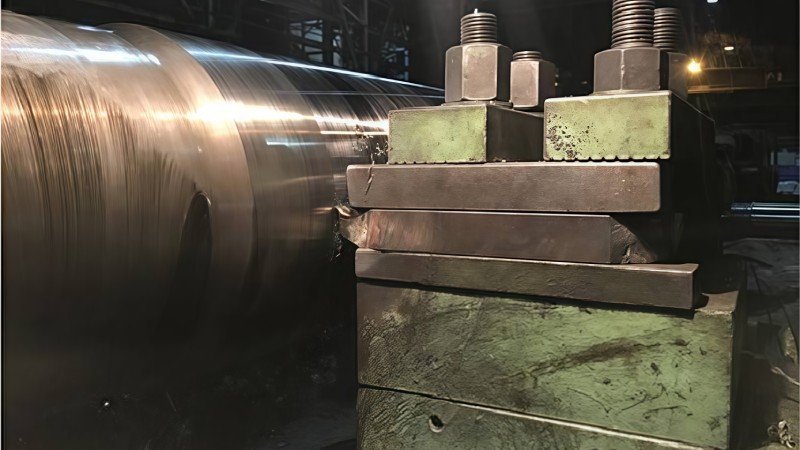

Is Your Insert Chipping or Fracturing? Let’s Investigate the Mechanical Causes.

Are you wondering why your tough, premium solid CBN insert is breaking apart on a cast iron roll?

CBN insert chipping and fracturing are primarily mechanical failures caused by four factors: 1) sudden impacts from interrupted cuts like grooves or spalled surfaces, 2) an incorrect cutting edge preparation that cannot withstand the machining forces, 3) poor toolpath strategies that shock the insert on entry or exit, and 4) machine vibration or a lack of rigidity that creates microscopic hammering forces.

Let’s explore each of these mechanical causes in detail.

The Impact of Interrupted Cuts: How Roll Grooves, Keyways, and Spalled Surfaces Lead to Fracture

Imagine you are driving a car with very stiff suspension on a perfectly smooth highway. Now, imagine suddenly hitting a deep pothole. The immense shock would jolt the entire vehicle. A solid CBN insert machining a cast iron roll is very similar.

The insert glides along the smooth surface of the roll, and then it encounters a gap—a groove, a keyway, or a damaged, spalled section. For a moment, the cutting pressure drops to zero. Then, an instant later, the insert slams back into the full-hardness material on the other side of the gap. This repeated, high-frequency impact is known as an interrupted cut².

Solid CBN is exceptionally hard, but it is also a brittle material³. It handles immense, stable pressure very well, but it cannot handle the violent mechanical shock of re-engaging the cut. Each impact sends a shockwave through the insert, creating micro-cracks that quickly grow into a full-fledged chip or fracture. This is one of the most common reasons for catastrophic insert failure in roll shops, especially when repairing rolls that have surface damage or machining rolls with deep profiles for products like rebar.

Incorrect Edge Preparation: Why a Sharp Edge or the Wrong Chamfer is Your Enemy

Would you use a razor blade to chop down a tree? Of course not. The ultra-sharp but delicate edge would chip instantly. You would use an axe, which has a thicker, stronger edge designed to withstand impact. This same principle applies directly to CBN inserts.

The “edge preparation“⁴ refers to the microscopic geometry of the insert’s cutting edge. A brand-new insert that is perfectly sharp is like the razor blade—it has very little material supporting the edge, making it extremely vulnerable to chipping in a demanding application like cast iron roll turning.

To combat this, tool manufacturers apply specific edge preparations. The two most common are:

• Hone: A slight rounding of the cutting edge. This removes the fragile, sharp point and gives it more strength for general-purpose machining.
• Chamfer (or T-Land): A small, angled flat ground onto the cutting edge. This creates a much stronger, more robust geometry, acting like the axe’s edge. It is specifically designed to absorb the heavy impacts of interrupted cuts and high-hardness materials.

Choosing the wrong preparation can doom the operation from the start.

The exact size and angle of the chamfer are critical and designed for specific conditions. A T-land of 0.2mm x 25° offers significantly more protection than one of 0.1mm x 15°. For this reason, it is essential to consult your tool supplier, as their recommended edge preparation is engineered to match the specific CBN grade and the demands of your application. Using an insert with only a light hone in a heavy interrupted cut is a primary cause of chipping.

Poor Toolpath Strategy: Solving Chipping on Cut Entry and Exit

How the tool enters and exits the workpiece is just as important as the cutting itself. A common mistake in CNC programming is to command a direct, straight-line entry into the side of the roll. This causes the cutting force to spike from zero to maximum in a split second, shocking the insert’s delicate corner.

A much better approach is to program a “rolling” or “arcing” entry.

• Instead of: Moving straight into the material (a 90-degree impact).
• Do this: Program the tool to move in a small arc as it engages the workpiece. This allows the cutting edge to engage the material gradually, smoothly increasing the chip thickness and the cutting pressure. It eases the tool into the cut, much like merging onto a highway instead of driving straight onto it from a side road.

The same logic applies to exiting the cut. An abrupt exit can cause the chip to break off in a way that pulls a small piece of the CBN insert with it. Arcing out of the cut can prevent this type of exit-chipping.

The Hidden Cause: How Vibration and a Lack of Machine Rigidity Cause Micro-Fractures

Sometimes, the insert is correct, the edge preparation is perfect, and the toolpath is smooth, but the inserts still chip. What could be the cause? Often, the culprit is the machine itself.

Imagine trying to write with a pen while someone is constantly tapping your hand. Your handwriting would be a shaky, broken mess. This is exactly what machine vibration does to a CBN insert. It creates a high-frequency hammering effect, where the tool is slamming into the workpiece thousands of times per minute on a microscopic level.

This “micro-interruption” is caused by a lack of rigidity in the system. Common sources include:

• Tool Overhang: The tool is sticking out too far from the turret, allowing it to bend and vibrate.
• Worn Machine Components: Worn turret bushings, bearings, or guideways that introduce “slop” or play into the system.
• Poor Workpiece Clamping: The cast iron roll is not held securely enough in the chuck or by the tailstock, allowing it to vibrate during rotation.

In our experience, operators often blame a “bad batch” of inserts when the underlying issue is a lack of system rigidity that went unnoticed. Before starting a critical job, perform a simple test: with the machine stopped, push firmly on the end of the toolholder. If you can feel any movement, flex, or looseness, you have a rigidity problem that will inevitably lead to chipped inserts.

Is Your Insert Wearing Out Too Fast? Uncovering the Abrasive and Thermal Causes.

Does it feel like your solid CBN insert is turning to dust long before it should?

Rapid wear on solid CBN inserts is typically a thermal or abrasive problem. The four main causes are: 1) excessive cutting speeds that generate more heat than the insert can handle, 2) abrasive particles like hard carbides within the cast iron roll grinding away the cutting edge, 3) feed rates or cutting depths that are too low, causing the insert to rub instead of cut, and 4) improper coolant use that creates damaging thermal shock.

Let’s break down how these factors can dramatically shorten your insert’s life.

The #1 Reason for Rapid Wear: Your Cutting Speed is Too High for the Roll’s Hardness

Think of your CBN insert like a high-performance engine. It’s designed to run hot, but there’s a limit. If you run the engine in the red zone for too long, it will overheat, lose performance, and eventually fail. Exceeding the recommended cutting speed for your CBN insert does the exact same thing.

Cutting creates friction, and friction creates heat. Solid CBN is designed to maintain its incredible hardness at very high temperatures, which is why it can cut hardened materials so well. However, every CBN grade has a specific thermal limit.

When your cutting speed (measured in Surface Feet per Minute or SFM) is too high, you generate excessive heat at the cutting edge. This superheated environment pushes the CBN material beyond its stable temperature range. As a result, a chemical reaction can occur that causes the CBN to lose its hardness, soften, and wear away rapidly, a process known as flank wear.

For instance, a solid CBN grade might perform perfectly on a 65 HSc (Hardness Shore C) roll at 350 SFM. But if you use that same speed on a harder, 75 HSc indefinite chill roll, the increased resistance will generate much more heat, potentially causing the insert to fail in minutes.

Professional Tip: A clear sign of excessive speed is a smooth, uniform wear land on the flank of the insert that grows very quickly. The cutting edge essentially erodes away from the intense heat and pressure. It is crucial to start with the speeds recommended by your tooling supplier for the specific roll material and hardness you are machining, as these parameters can vary significantly.

Battling Abrasive Wear from Hard Carbides and Inclusions within the Cast Iron

Imagine trying to sand a block of wood with a piece of soft plastic. The sandpaper-like wood would quickly wear the plastic away. In the world of roll machining, your CBN insert is the plastic, and the cast iron roll can be the sandpaper.

While we think of the roll as a single material, on a microscopic level it contains extremely hard particles, especially in wear-resistant alloys like high-chromium or indefinite chill cast iron. These particles, such as chromium carbides, are incredibly hard—sometimes even harder than the binder material holding the CBN crystals together in the insert.

As the insert cuts, these tiny, abrasive particles act like microscopic grit, relentlessly grinding against the cutting edge. This process, called abrasive wear, physically scrapes material from the insert.

You will see this effect more prominently in certain types of rolls:

• High-Chromium Iron Rolls: These are packed with hard chromium carbides for wear resistance, making them highly abrasive to machine.
• Indefinite Chill Rolls: The complex microstructure contains a mix of hard carbides and graphite, creating a challenging abrasive environment.

This isn’t a defect in the roll; it’s a designed-in feature for the roll’s own longevity. Your job is to select a CBN grade with high wear resistance and the right parameters to overcome this challenge without sacrificing the insert.

The Rubbing Effect: Why Too Low a Feed Rate or Depth of Cut Accelerates Flank Wear

It seems counterintuitive, doesn’t it? How can being less aggressive cause more wear?

Think about trying to slice a firm carrot with a kitchen knife. If you press down with enough force, you create a clean slice. But if you only press lightly and slide the knife back and forth, you aren’t really cutting—you are just rubbing the blade against the carrot, which dulls the knife quickly without accomplishing much.

This is precisely what happens when your feed rate (the distance the tool travels per revolution) or your depth of cut is too low.

To cut efficiently, the insert’s cutting edge needs to get “under” the material to form a proper chip. If the feed rate is too low, the edge doesn’t dig in sufficiently. Instead, it slides or “rubs” against the surface of the abrasive cast iron roll. This rubbing action generates a tremendous amount of friction and heat right on the cutting edge without the benefit of removing that heat with a thick chip. The result is accelerated flank wear—the very problem you might have been trying to avoid by being cautious.

A Case in Point: An operator might reduce the feed rate from 0.012 inches per revolution (IPR) to 0.004 IPR to try and improve tool life. Instead, they find the insert wears out even faster because it’s now spending more time rubbing for the same amount of material removed. Finding the “sweet spot” where you are aggressively forming a chip without causing chipping is key to balancing tool life and performance.

Incorrect Coolant Use: How Thermal Shock from Intermittent Coolant Leads to Cracking and Wear

Have you ever taken a hot glass dish straight from the oven and run it under cold water? The glass shatters from the sudden temperature change, a phenomenon called thermal shock⁵. Your solid CBN insert is just like that hot glass dish.

CBN performs best in a stable thermal environment—either consistently very hot (running dry) or consistently kept cool (running with high-volume, high-pressure flood coolant). The worst possible scenario is an unstable temperature that cycles rapidly between hot and cold.

This happens when coolant is applied incorrectly:

• Low Pressure or Poor Aim: The coolant doesn’t consistently reach the cutting zone. It hits the superheated insert (which can be over 1500°F) for a moment, then the rotation of the roll blocks the stream, and the insert heats back up. This cycle of quenching and reheating creates microscopic cracks along the cutting edge.
• Intermittent Application: Turning coolant on and off during the cut.

These tiny cracks become weak points. As machining continues, the cracks grow larger, eventually linking up and causing the cutting edge to crumble and wear away at an alarming rate.

For machining hard cast iron rolls, you generally have two superior choices:

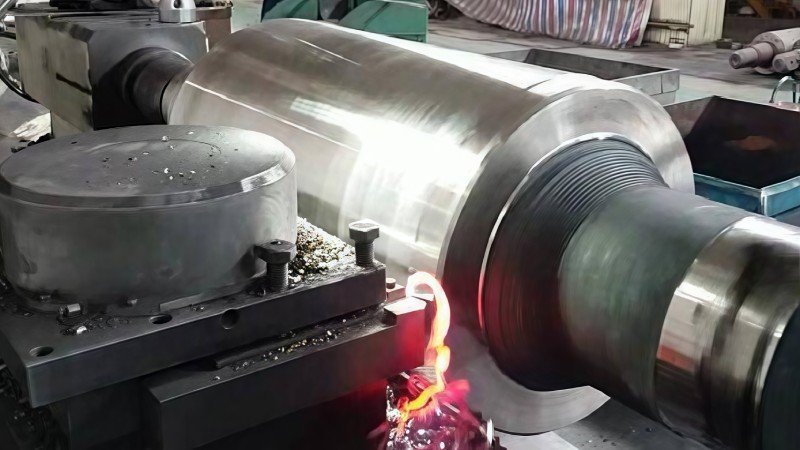

1. Run Completely Dry: This is often the preferred method. It allows the insert to reach a stable high temperature and stay there. The heat is carried away in the glowing red chips, and the insert is not subjected to thermal shock.
2. Use High-Pressure Flood Coolant: If you must use coolant, use it properly. A high-volume, high-pressure stream (often over 300 psi) aimed directly at the cut zone ensures the insert never gets a chance to heat up in the first place. It remains consistently cool, avoiding thermal shock entirely.

Could It Be Your Setup? Foundational Checks That Solve Both Chipping and Wear.

Have you tried adjusting speeds and feeds, yet your solid CBN inserts still fail unexpectedly?

Often, persistent insert failure is not caused by the cutting parameters but by foundational setup issues that are overlooked. The four key areas to investigate are: 1) ensuring you are using the correct CBN grade for the specific type of cast iron roll, 2) verifying the toolholder and insert seat are perfectly clean and undamaged, 3) confirming proper clamping pressure while minimizing tool overhang, and 4) learning to diagnose the failure by examining the appearance of the worn insert.

Before you blame the insert, taking a few moments to verify these fundamentals can save significant time and money.

Are You Using the Right CBN Grade for Your Specific Cast Iron Roll (Chilled vs. Indefinite Chill)?

Using the wrong CBN grade for the job is like putting high-performance racing tires on a vehicle meant for a gravel road. The tires are excellent, but they are completely wrong for the application and will be destroyed quickly. Not all solid CBN inserts are created equal. They are engineered with different properties to handle different challenges.

Cast iron rolls, in particular, present diverse challenges:

• Chilled Cast Iron & High-Speed Steel (HSS) Rolls: These materials are extremely hard but can be more uniform. The primary challenge is resisting the high heat and pressure. An insert with a higher percentage of CBN and a ceramic binder might be ideal, as it offers incredible heat resistance.
• Indefinite Chill & High-Chromium Rolls: These rolls are not only hard but also extremely abrasive due to a high concentration of hard carbide particles. The main challenge here is toughness and wear resistance. This application often requires a different grade with a tougher metallic binder and a higher CBN content to withstand both the abrasion and the potential for interruptions from the material’s structure.

Industry Example: A roll shop successfully using a low-content (60% CBN) grade for finishing smooth chilled iron rolls might see immediate failures when they try to use the same inserts to repair a spalled high-chromium roll. For the high-chromium roll, a tougher, high-content (90%+ CBN) grade would be necessary. It is vital to communicate the exact roll material and hardness (e.g., “80 HSc Indefinite Chill”) to your supplier to ensure you receive the grade engineered for that specific challenge.

A Critical Check: Verifying the Condition and Cleanliness of Your Toolholder and Insert Seat

Imagine building a precision clock on a foundation of sand and pebbles. No matter how perfect the clock’s gears are, the unstable base will prevent it from ever working correctly. The seat in your toolholder is the foundation for your precision CBN insert.

Even a tiny metal chip, a piece of grit, or a layer of grime in the insert pocket can be disastrous.

• It causes the insert to sit at a slight, imperceptible angle.
• This prevents the back of the insert from being fully supported by the steel toolholder.
• When the immense cutting pressure is applied, the unsupported section of the insert can easily crack or shift, leading to immediate fracture.

Before you install a new insert, make it a habit to perform this critical check:

1. Wipe: Use compressed air and a clean rag to thoroughly clean the insert pocket.
2. Feel: Carefully run your finger or a piece of cotton over the seat surface. Do you feel any dents, burrs, or damage from a previous failure?
3. Verify: If the seat is damaged, do not use the toolholder. A damaged seat will guarantee another failure.

This simple, two-minute process is one of the most effective and inexpensive forms of insurance against insert failure.

The Importance of Consistent Clamping Pressure and Proper Overhang

Once the foundation is clean, you must secure the insert properly. Think of it like changing a tire on your car: if the lug nuts are too loose, the wheel wobbles; if they are too tight, you can damage the studs.

• Clamping Pressure: Always use a torque wrench to tighten the insert’s clamping screw to the manufacturer’s specified torque. Guessing by feel is inconsistent. Under-tightening allows the insert to shift or vibrate in the pocket. Over-tightening can actually induce stress and create micro-cracks in the brittle CBN insert before the cut even begins.
• Tool Overhang: This refers to how far the tool sticks out from the machine’s turret. Imagine holding a baseball bat—if you hold it at the very end, it’s easy to wobble. If you choke up on the bat, it becomes very stiff and stable. Your toolholder is the same. The longer the overhang, the more it will vibrate. As a fundamental rule, always keep tool overhang as short as the job will allow. This is a primary method for increasing rigidity and reducing the vibration that kills inserts.

Diagnosing the Worn Insert: What Its Appearance Tells You About the Root Cause

Your used insert tells a story. By learning to read its wear patterns, you can quickly diagnose the root cause of the failure and know exactly what to fix. This turns you from an operator into a process detective.

Use this table as a quick diagnostic guide:

Conclusion

Ultimately, solving premature chipping and wear on solid CBN inserts is not a matter of guesswork; it is a process of systematic investigation. By understanding the distinct causes of failure—from the violent mechanical shock of an interrupted cut to the subtle thermal erosion of excessive speed—you can move from being frustrated by the problem to being in control of the solution. Treat every failed insert as a piece of evidence. By examining its appearance and checking the fundamentals of your setup, you can pinpoint the root cause and make targeted adjustments. This methodical approach will transform your machining process from unpredictable and costly to stable, efficient, and reliable.
