Learn the key differences between PCD and CBN cutting tools, including their composition, performance, and best uses. Discover which tool is right for your machining needs.

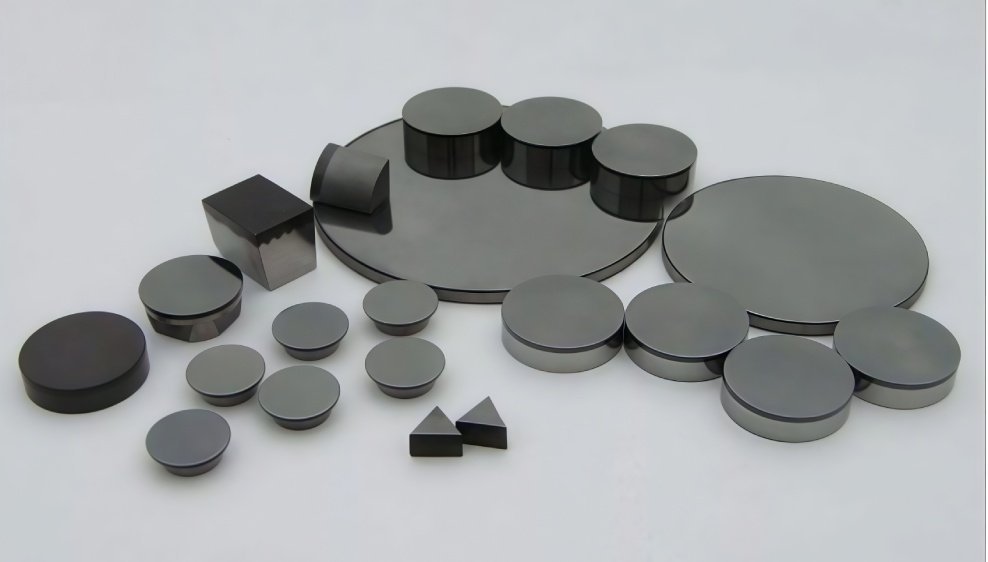

the difference between pcd and cbn

Table of Contents

PCD (Polycrystalline Diamond) cutting tools are made from diamond particles fused with cobalt, making them extremely hard and ideal for cutting soft materials like aluminum. CBN (Cubic Boron Nitride) cutting tools, on the other hand, are made from cubic boron nitride particles fused with ceramics, offering high heat resistance and durability for cutting hard materials like steel. These differences in composition lead to distinct performance characteristics, making each tool suitable for specific machining tasks.


What Are PCD and CBN Cutting Tools Made Of?

Have you ever wondered what makes PCD and CBN cutting tools so strong and useful?

PCD (Polycrystalline Diamond) cutting tools are made by combining tiny diamond particles with a cobalt binder, fused together under extreme heat and pressure. Meanwhile, CBN (Cubic Boron Nitride) cutting tools are created by mixing cubic boron nitride particles with ceramic materials, also fused under high heat and pressure. These processes make PCD perfect for cutting softer materials like aluminum, while CBN excels at cutting tough metals like steel.

Composition of PCD (Polycrystalline Diamond)

PCD, or Polycrystalline Diamond, is built from synthetic diamond particles—the hardest material known to humans. So, how do they make it? First, tiny diamond bits, about the size of a grain of sand, are mixed with a metal called cobalt. Then, this mixture is put under super high pressure (around 5.5 GPa) and intense heat (about 1400°C). This process, called sintering, fuses everything together into a solid, super-tough cutting tool.

Think of it like this: imagine pressing a bunch of sharp diamond crumbs into a strong cake with cobalt as the “glue.” The result? A cutting edge that stays sharp for a long time. Because of this, PCD tools are great for jobs like cutting aluminum or copper in industries such as aerospace. For example, when making airplane parts, PCD tools can last 10 times longer than regular tools, saving time and money.

Here’s a quick breakdown of PCD’s makeup:

  • Diamond Particles: Tiny, super-hard pieces that do the cutting.
  • Cobalt Binder: A metal that holds the diamond bits together but is a bit softer.
  • Process: High heat and pressure mash it all into one strong piece.

Why does this matter? Well, the diamond makes PCD incredibly hard, but the cobalt helps it form a usable shape. However, cobalt can wear down faster than diamond, so PCD works best on softer, non-iron materials.

Composition of CBN (Cubic Boron Nitride)

CBN stands for Cubic Boron Nitride, and it’s the second hardest material after diamond. How do they turn it into a cutting tool? Simple! They take cubic boron nitride particles and mix them with ceramic materials like titanium nitride or aluminum oxide. Then, just like with PCD, they use high pressure and heat to sinter—or fuse—it all together into a solid tool.

Picture this: if PCD is like a diamond cake, CBN is like a heat-proof brick made of super-strong crystals and ceramic glue. This combo makes CBN perfect for cutting hard metals like steel or cast iron. Why? Because it can handle super high temperatures—up to 1800°F—without breaking down. For instance, in car factories, CBN tools are used to shape engine blocks made of cast iron, where heat and toughness are big challenges.

Here’s what CBN is made of:

  • CBN Particles: Tiny, ultra-hard crystals that cut through tough stuff.
  • Ceramic Binder: Materials like titanium nitride that hold it together and resist heat.
  • Process: High heat and pressure bond it into a solid tool.

What’s the big deal? Unlike PCD, CBN doesn’t use cobalt, so it stays strong even when things get hot. This makes it a top choice for machining hard, iron-based metals.


How Do PCD and CBN Compare in Performance?

PCD (Polycrystalline Diamond) tools are harder and excel at cutting soft materials like aluminum, but they weaken in high heat. Meanwhile, CBN (Cubic Boron Nitride) tools are nearly as hard, thrive in hot conditions, and last longer when cutting tough metals like steel.

Hardness and Durability

Hardness measures how well a tool resists scratches or dents. For cutting tools, this means a harder tool can slice materials without dulling fast. So, how do PCD and CBN compare here?

PCD is made from diamond particles, the hardest material known. This makes it excellent for cutting soft, non-iron metals like aluminum or copper. For example, in a factory shaping aluminum car parts, PCD stays sharp because it resists deformation so well. However, its durability—how long it stays effective—can drop if it chips or reacts with the wrong material.

CBN, the second hardest material, is tough enough to cut hard metals like steel. Imagine a machine grinding steel gears; CBN handles it without losing its edge quickly. Although slightly less hard than PCD, it’s still far stronger than regular tools like carbide.

But durability isn’t just hardness. It’s also about staying strong under stress. PCD might chip if misused, while CBN holds up better in tough, high-impact jobs. Both are durable, but their strengths depend on what you’re cutting.

Thermal Stability

Thermal stability is how well a tool handles heat without breaking down. When you cut fast or work with hard materials, heat builds up. Why does this matter? Because heat can ruin a tool’s performance.

PCD tools struggle with heat. Diamond reacts with iron at high temperatures, forming a compound that wears the tool down. Plus, the cobalt holding PCD together can soften above 1200°F. So, PCD works best in cooler tasks, like machining aluminum engine blocks at lower speeds.

CBN tools, however, shine in heat. They stay stable up to 1800°F and don’t react with iron. This makes them ideal for hot, high-speed jobs, like cutting hardened steel for tools or car parts. For instance, in a steel mill, CBN keeps cutting while others fail.

Here’s an analogy: PCD is like a plastic ruler—great for drawing straight lines, but it warps near a flame. CBN is like a metal ruler—it stays straight even in a furnace.

Wear Resistance and Tool Life

Wear resistance shows how well a tool fights wearing down during use. Better resistance means longer tool life—how long it lasts before you replace it. So, which tool wins here? It depends on the job.

PCD tools resist wear amazingly when cutting non-iron materials. When machining aluminum, they can last 10 times longer than carbide tools. Why? The diamond edge fights abrasion from soft metals. In a real case, a PCD tool cutting aluminum sheets might run for weeks without dulling.

CBN tools dominate when cutting iron-based metals. For hardened steel, they stay sharp 5 to 10 times longer than carbide. The secret? CBN resists grinding wear from tough materials. Picture a factory shaping steel axles—CBN keeps going while others wear out fast.

Here’s a clear breakdown in a table:

FeaturePCDCBN
Best MaterialsAluminum, copperSteel, cast iron
Wear ResistanceHigh in non-ferrous jobsHigh in ferrous jobs
Tool LifeLong in soft metalsLong in hard metals

In short, PCD rules for soft metals, while CBN conquers tough ones. Choose based on your material, and you’ll get the best life from your tool.

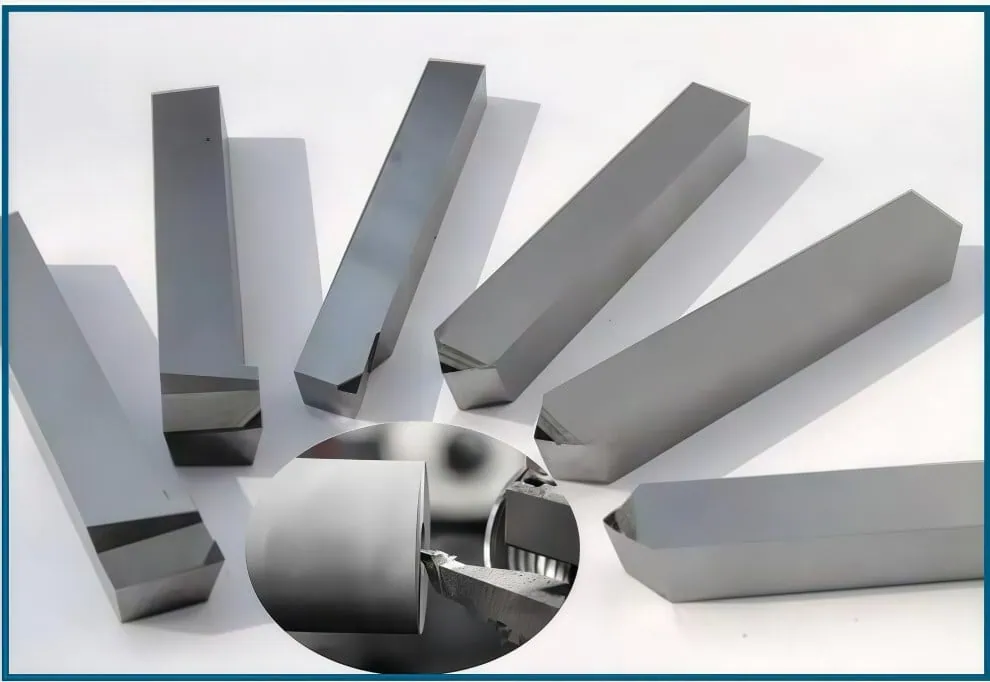

Graphite-special-PCD-cutting-tool
Graphite-special-PCD-cutting-tool
CBN notching tools
CBN notching tools

Which Tool Should You Choose for Your Machining Needs?

Ever wondered which cutting tool is best for your project?

Here’s the simple answer: Pick PCD tools for soft, non-iron materials like aluminum or copper, and choose CBN tools for hard, iron-based metals like steel or cast iron. This choice matters because the right tool can make your work faster, cleaner, and cheaper. PCD (Polycrystalline Diamond) and CBN (Cubic Boron Nitride) are top choices in machining, but they shine in different jobs. Let’s break it down step-by-step so you can decide easily.

Ideal Uses for PCD Tools

PCD tools are perfect when you’re cutting softer materials that aren’t made of iron. Why? Because they’re made with diamond particles, which are incredibly hard and stay sharp for a long time. For instance, if you’re shaping aluminum for car parts or airplane wings, PCD tools can last up to 10 times longer than regular tools. This saves you money and time since you won’t need to replace them often.

So, what can you use PCD tools for? Here’s a clear list:

  • Aluminum: Think car wheels or airplane frames.
  • Copper: Like wires or electrical parts.
  • Fiberglass: Used in boats or car bodies.
  • Plastics: For making toys or packaging.

Imagine you’re slicing aluminum like butter with a sharp knife—that’s what PCD does. However, don’t use it for steel or iron. Why not? The diamond in PCD reacts with iron and wears out fast, ruining the tool. So, for those tough metals, you’ll need a different option.

Ideal Uses for CBN Tools

CBN tools are your best pick for cutting hard, iron-based metals. What makes them special? They’re almost as hard as diamond but don’t break down when cutting iron or handling heat. For example, if you’re making a car engine from steel, CBN tools can take the heat and pressure without wearing out. They’re also great for extreme jobs, like shaping jet engine parts from super-strong metals.

Here’s when CBN works best:

  • Hardened Steel: Car gears or engine blocks.
  • Cast Iron: Pipes or heavy machinery parts.
  • Superalloys: Turbine blades for planes.

Think of CBN like a tough chef’s knife cutting through a thick steak—it’s built for the hard stuff. But for soft materials like aluminum? It’s too much power and won’t cut as smoothly. So, save CBN for the heavy-duty tasks where it really shines.

Key Factors in Selection: Material Type and Machining Conditions

Choosing between PCD and CBN isn’t just about the tool—it’s about your job. So, how do you decide? First, look at two big factors: the material you’re cutting and the conditions of your work. Let’s break it down simply.

1. Material Type

  • Non-Iron Materials: Go with PCD. It’s perfect for aluminum, copper, or plastics because it cuts cleanly and lasts long.
  • Iron-Based Materials: Pick CBN. It’s designed for steel, cast iron, or superalloys without breaking down.

2. Machining Conditions

What about how you’re cutting? Conditions like heat and speed matter too. Here’s a handy table to make it clear:

FactorPCD (Soft Materials)CBN (Hard Materials)
HeatWeakens at 1200°FHandles up to 1800°F
SpeedGreat for fast cutsBest for slower, heavy cuts
Tool LifeLong-lasting on soft metalsLong-lasting on hard metals

For example, if you’re cutting aluminum fast, PCD is your winner because it stays sharp. But if you’re grinding steel with lots of heat, CBN is better since it won’t melt or wear out. Think of it like picking shoes: light sneakers (PCD) for a quick run, or sturdy boots (CBN) for a tough hike.

In short, match the tool to your material and how you’re working. PCD is great for soft, non-iron jobs, while CBN tackles hard, iron-based ones. This way, you get the best results and keep your tools working longer.


Conclusion

In summary, PCD and CBN cutting tools are both powerful, but they serve different purposes. PCD tools are ideal for cutting soft, non-ferrous materials like aluminum and copper due to their extreme hardness and long tool life. On the other hand, CBN tools are perfect for hard, ferrous materials like steel and cast iron, thanks to their heat resistance and durability. When choosing between them, consider the material you’re working with and the machining conditions. By selecting the right tool for the job, you can improve efficiency, reduce costs, and achieve better results in your machining projects.
