Solid CBN Inserts for Heavy-Duty Hard Machining

Unleash Maximum Performance with Premium Solid CBN Inserts

For the ultimate capability in heavy-duty hard machining and interrupted cutting applications, choose our Premium Solid CBN Inserts. Constructed entirely from high-content Polycrystalline Cubic Boron Nitride (PCBN), these inserts offer unparalleled toughness, thermal stability, and wear resistance, pushing the boundaries of productivity in machining hardened steels, cast irons, and other difficult materials.

What Defines a Solid CBN Insert?

Unlike conventional tipped inserts where a small PCBN segment is brazed onto a carbide base, a Solid CBN insert features a body made entirely (or nearly entirely) from high-concentration PCBN material. This monolithic structure provides distinct advantages:

• Maximum Toughness & Impact Resistance: The solid PCBN construction offers superior resistance to chipping and fracture, making it ideal for handling severe interruptions and heavy cutting loads.
• Optimal Thermal Management: Pure PCBN boasts exceptional thermal conductivity. The solid body efficiently draws heat away from the cutting edge, maintaining edge integrity even at extreme temperatures generated during high-speed hard machining. This stability often allows for effective dry machining in suitable applications.
• Inherent Rigidity: The solid superhard structure minimizes deflection under load, contributing to greater dimensional accuracy and process stability.
• Full Edge Utilization: Especially in negative rake geometries, the solid format allows for indexing to utilize multiple cutting edges around the periphery and on both sides, maximizing the economic value extracted from each insert.

Advantages of Employing Solid CBN Inserts

Leveraging Solid CBN inserts translates directly into significant operational benefits, reflecting best practices in efficient manufacturing:

• Process Integration (Lathe Instead of Grinder): Achieve grinding-level tolerances and surface finishes directly on a lathe or milling machine, often eliminating entire grinding steps, reducing capital investment and simplifying production flow.
• Higher Machining Efficiency: Safely utilize higher cutting speeds, feed rates, and depths of cut compared to other tool materials, dramatically increasing material removal rates (MRR) and reducing cycle times.
• Extended Tool Life in Tough Conditions: Offers exceptional longevity, particularly in abrasive materials or applications involving heavy interruptions where other tools might fail prematurely.
• Improved Flexibility & Reduced Energy: Turning/milling offers greater process flexibility than grinding, and direct machining can potentially lower overall energy consumption.
• Simplified Scrap Management: Metal chips are generally easier to collect and recycle compared to grinding sludge.

Typical Applications & Industries

Solid CBN inserts truly shine in the most challenging hard machining scenarios where toughness and thermal stability are paramount:

• Automotive Industry: Heavy roughing of cast iron engine blocks, brake drums; machining heavily interrupted hardened steel components like gears or splined shafts.
• Heavy Machinery & Manufacturing: Rough turning or milling large cast iron housings (gearboxes, pumps); machining hardened steel components like large bearings, shafts, and rollers requiring significant stock removal.
• Mold & Die Industry: Heavy roughing of large, hardened tool steel molds and die components, especially with interrupted features.
• Wind Power Industry: Machining large hardened steel gears, bearings, and cast iron structural components involving heavy cuts or interruptions.
• Aerospace Industry: Machining demanding components from hardened steels or specific superalloys involving interrupted cuts or high thermal loads where maximum tool toughness is required.

Available Formats & Customization

We offer Solid CBN inserts in both standardized ISO geometries and fully customized designs to meet your specific heavy-duty machining requirements:

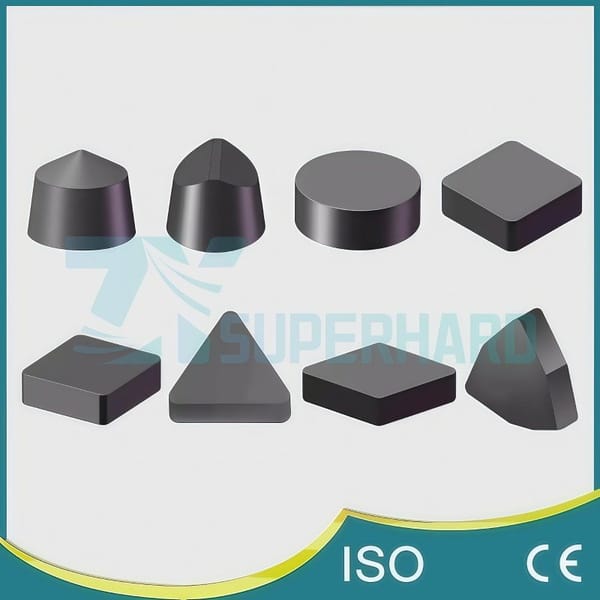

Standard ISO Solid CBN Inserts

We offer a range of standard ISO geometries produced in solid CBN format, typically featuring high CBN content grades and robust edge preparations suitable for demanding applications. While customization is fully supported, common standard configurations often include:

• Round (R-Type): RNMN, RNGN, RCMX styles (Excellent strength for roughing and profiling)
• Square (S-Type): SNGA, SNMA, SNMG, SNMN (Robust 8-edged option for heavy turning/facing)
• Rhombic 80° (C-Type): CNGA, CNMA, CNMG, CNMN (Versatile for turning and facing)
• Triangle (T-Type): TNGA, TNMA, TNMG, TNGN (Strong shape for heavy turning)
• Diamond 55° (D-Type): DNGA, DNMA, DNMG (Suitable for specific profiling/turning tasks requiring this angle)
• Trigon 80° (W-Type): WNGA, WNMA, WNMG, WNMN (Strong 6-edged option)

(Refer to our catalog for detailed dimensions and available grades/edge preparations for standard solid inserts.)

Custom Engineered Solid CBN Inserts

Beyond standard offerings, we provide custom Solid CBN solutions tailored to your unique requirements, including:

• Non-Standard Geometries: Specific shapes, sizes, or features.
• Optimized High-CBN Grades: Selection based on your exact material and application.
• Specialized Edge Preparations: Custom T-lands, hones, or combinations for unique demands.

Application Guidelines

To maximize the benefits of Solid CBN inserts, ensure:

• Maximum Rigidity: Utilize high-quality toolholders and ensure robust machine tool and workpiece clamping to minimize vibration.
• Appropriate Parameters: Consult manufacturer recommendations for speeds, feeds, and depths of cut suitable for solid CBN grades and your specific application.
• Correct Grade Selection: Choose the CBN content and edge preparation best suited for your material and whether the cut is continuous or interrupted.

Your Expert Partner in Demanding Machining

Tap into the ultimate performance for your toughest applications with our Solid CBN inserts. Our expertise in superhard materials ensures you receive tooling that delivers exceptional durability, productivity, and value.

Download Our Comprehensive Catalog

Explore detailed specifications, including dimensions for standard solid geometries, ISO coding, edge preparation standards, and application guidance in our full PCBN / CBN Insert Catalog.

Request Consultation for Solid CBN Solutions

Solid CBN insert selection is highly dependent on the specific application. Contact our expert team today to discuss your challenging hard machining operations and discover the optimal Solid CBN solution.
