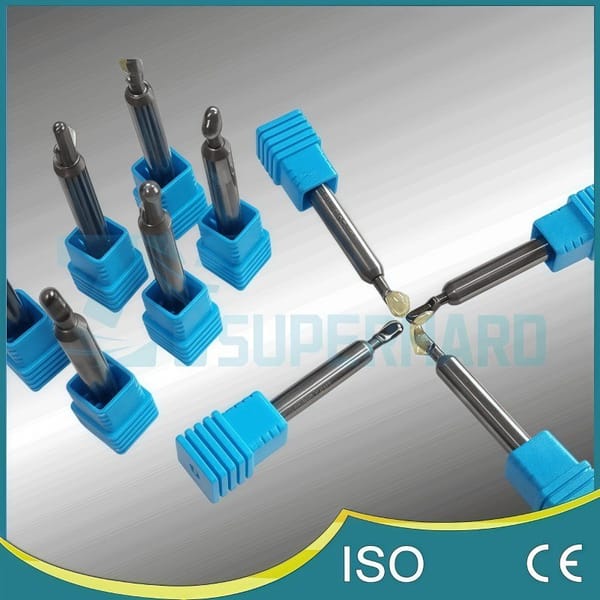

PCD Ball End Mill Cutter

PCD Ball End Mill Cutter

PCD ball end mills deliver high-precision 3D surfacing on non-ferrous metals, composites, graphite. Features durable PCD tip on carbide body for smooth finishes and extended tool life. Custom specs.

Additional information

Coating

no

Body

tungsten steel

Tip

pcd

Shipment

DHL.TNT.UPS.FEDEX.EMS

Usage

milling, end mil

Specifications

Diverse can be customized

Description

PCD Ball End Mill Cutters for Precision 3D Machining

Master complex 3D surfaces and contours with these high-performance PCD Ball End Mill Cutters from ZYsuperhard. Combining the versatile geometry of a ball nose design with the exceptional wear resistance of Polycrystalline Diamond (PCD), these tools are the premier choice for achieving superior finishes and long life when machining non-ferrous metals, plastics, composites, and graphite.

The Advantage of the Ball Nose Geometry

The defining hemispherical cutting end (ball nose) makes these end mills uniquely adept at a variety of demanding machining tasks:

  • 3D Contouring & Surfacing: Ideal for accurately machining complex, multi-axis surfaces, including molds, dies, prototypes, and artistic forms.
  • Profiling & Filleting: Excels at creating smooth, flowing profiles and generating precise internal corner fillets or radii.
  • Engraving & Fine Detailing: The point-contact nature of the ball end allows for intricate detail work and engraving applications on suitable materials.

Engineered for Performance: PCD Tipped on Tungsten Carbide

These tools leverage a proven construction:

  • Durable PCD Cutting Edges: Polycrystalline Diamond tips offer extreme hardness and outstanding abrasion resistance. This translates to significantly longer tool life compared to traditional carbide end mills when used on compatible materials, and allows for higher cutting speeds.
  • Low Friction Surface: The inherent low friction of PCD minimizes heat generation and material adhesion (like built-up edge on aluminum), contributing to cleaner cuts and superior surface finishes.
  • Rigid Tungsten Carbide Body: The solid tungsten carbide tool body offers high rigidity and strength, providing robust support for the PCD tip, minimizing deflection, and ensuring stable, vibration-resistant machining even with longer reach tools.

Broad Material Suitability

PCD ball end mills demonstrate exceptional performance across a wide spectrum of non-ferrous and non-metallic materials:

  • Aluminum and Aluminum Alloys
  • Copper, Brass, Bronze, and other Copper Alloys
  • Magnesium and Zinc Alloys
  • Precious Metals (Gold, Silver)
  • Plastics (Thermoplastics, Thermosets, Acrylics)
  • Graphite and Carbon Materials
  • Carbon Fiber Reinforced Polymers (CFRP)
  • Metal Matrix Composites (MMC)
  • Green (unsintered) Ceramics and Carbides

Customization to Your Specifications

While standard configurations may be available, ZYsuperhard specializes in providing custom PCD ball end mills tailored precisely to your application:

  • Customizable Parameters: Including cutting diameter, overall length, length of cut, number of flutes, helix angle, specific PCD grade selection, and shank type/diameter.
  • Application-Driven Design: Provide us with your specific machining requirements, workpiece material details, or drawings, and our technical team will assist in designing the optimal tool geometry for your needs.

Contact our technical team today to discuss your 3D milling application and specify the optimal PCD ball end mill configuration for enhanced performance and tool life.
