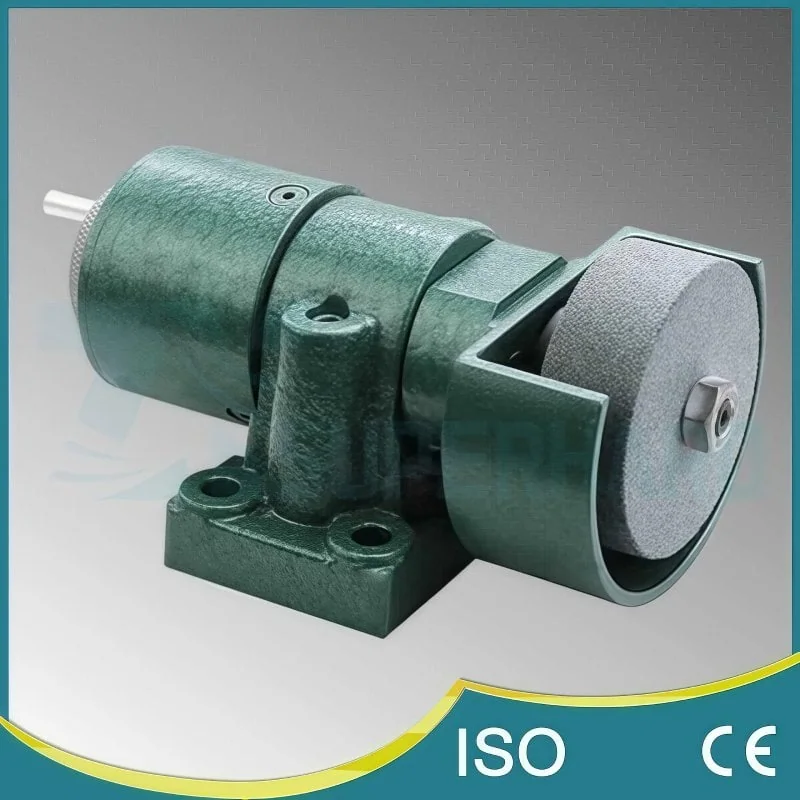

Electric Alloy Grinding Wheel Dresser

Electric Grinding Wheel Dresser for Precision Superabrasive Wheel Maintenance

Ensure consistent high performance and extend the operational life of your valuable Diamond and CBN grinding wheels with ZYsuperhard’s Electric Grinding Wheel Dresser. This robust and precise machine provides controlled, efficient dressing, truing, and conditioning for both Resin Bond and Metal Bond superabrasive wheels. It is an essential tool for any facility focused on maintaining tight tolerances and superior surface finishes in demanding precision grinding applications.

Controlled Dressing Principle:

This electric dresser utilizes a dedicated motor to drive an abrasive dressing wheel (typically made of White Aluminum Oxide or Silicon Carbide – user selects based on the target superabrasive wheel) at a precisely controlled low speed (adjustable from 0 to 200 RPM). By engaging this slowly rotating dressing wheel against your faster rotating Diamond or CBN wheel under controlled feed conditions (often configured on a grinding machine table or separate fixture), it accurately trues the wheel’s geometry (restoring flatness, roundness, or profile) and conditions the surface by removing glazing or workpiece loading, thereby exposing fresh, sharp superabrasive grains for renewed optimal cutting performance. The adjustable speed capability allows fine-tuning of the dressing action for different wheel bond types, grit sizes, and desired outcomes.

Key Features and Construction:

• Variable Speed Motor: Provides precise speed control between 0 and 200 RPM, enabling optimization of the dressing process for various wheel specifications. Available in standard 110V or 220V power supply options.
• High-Precision Bearing Spindle: The dressing wheel spindle is mounted on high-quality precision bearings, ensuring exceptional rotational accuracy, stability, and minimizing vibration for highly accurate dressing results. Strong and durable for long service life.
• Durable & Resistant Construction: Features a robust housing with a wear-resistant and corrosion-resistant surface treatment (e.g., durable spray paint), designed to withstand the rigors of typical workshop environments. High-quality materials are used throughout (“outer layer is made of high quality material”) to enhance longevity.
• Versatile Dressing Capabilities: Suitable for plane dressing (truing flat surfaces like the wheel periphery or face) and surface conditioning (‘opening up’) of the grinding wheel face. Capable of dressing simple angles and radii (R angles) when equipped with appropriately shaped dressing wheels and used with proper setup.
• Potential Noise Reduction: The smooth, controlled electric drive operates potentially quieter than certain high-impact manual dressing techniques or uncontrolled high-speed dressing methods.

Core Applications – Maintaining Superabrasive Wheels:

This dresser is essential for maintaining the condition and geometric accuracy of:

• Resin Bond Diamond & CBN Wheels: Regular truing and conditioning are vital for applications like tool grinding, precision finishing, etc., to maintain sharpness and accuracy.
• Metal Bond Diamond & CBN Wheels: Dressing and truing are needed to maintain form and expose abrasive, particularly in applications requiring high durability and profile holding, such as cutting blade production or specific form grinding tasks.
• Key Operations Include: Restoring wheel flatness, parallelism, or roundness; ensuring true running for accuracy; removing metallic loading or bond glazing from the wheel surface; ‘opening up’ the wheel face to expose fresh abrasive particles; and shaping/truing simple angles or corner radii.

Benefits Summary:

• Achieves precise and repeatable truing and conditioning results on superabrasive wheels.
• Effectively restores optimal cutting performance and significantly extends usable wheel life.
• Improves the consistency of ground part dimensional accuracy and surface finish quality.
• Provides a more controlled, stable, and potentially safer dressing process compared to manual methods.
• Durable machine construction ensures a long service life for the dresser itself.

Invest in controlled, precise wheel maintenance to maximize the performance of your expensive superabrasive grinding wheels with the ZYsuperhard Electric Grinding Wheel Dresser. Contact us for more information, available options, or to place an order.
