Wind Power

With wind power generation advancing at an unprecedented pace, wind turbine blades are evolving to become larger, lighter, and smarter. High-performance composite materials—such as glass fiber and carbon fiber—are at the heart of this transformation, driving the need for cutting-edge tools that deliver precision, durability, and efficiency.

At ZY Superhard, we specialize in diamond tools tailored for the wind power industry. Our solutions empower manufacturers to process composite materials with unmatched accuracy, enhancing the quality and performance of wind turbine blades.

The Wind Turbine Blade Manufacturing Process

Wind turbine blades are primarily crafted using vacuum infusion molding. After forming, the blades undergo a series of critical post-molding steps:

• Root Cutting: Trimming the blade root to precise specifications.
• Milling: Smoothing the end face for a flawless finish.
• Drilling: Creating axial and radial holes for assembly.
• Painting: Applying the final surface treatment.

Each stage demands specialized tools to tackle the unique challenges of composite materials. That’s where our diamond tools come in.

Our Diamond Tools for Wind Turbine Blades

1. Diamond Saw Blades for Root Cutting

• Application: Precision cutting of the blade root.
• Specifications: Available in diameters like 440mm and 450mm (e.g., Dia440mm*5*2.8*30K, Grit Size D150).
• Benefits: Engineered for clean, efficient cuts through tough composites, minimizing material waste.
• Customization: Provide us with your detailed drawings, and we’ll produce blades to your exact requirements.

2. Diamond Face Milling Cutters

• Application: Smoothing the rough surface of the blade root after cutting.
• Models: SEET1204, SEGW120408, SEGW120412 (e.g., Dia160mm cutterheads).
• Benefits: Delivers a superior surface finish with exceptional tool longevity.
• Inserts: Compatible with PCD full-face milling inserts for enhanced performance.

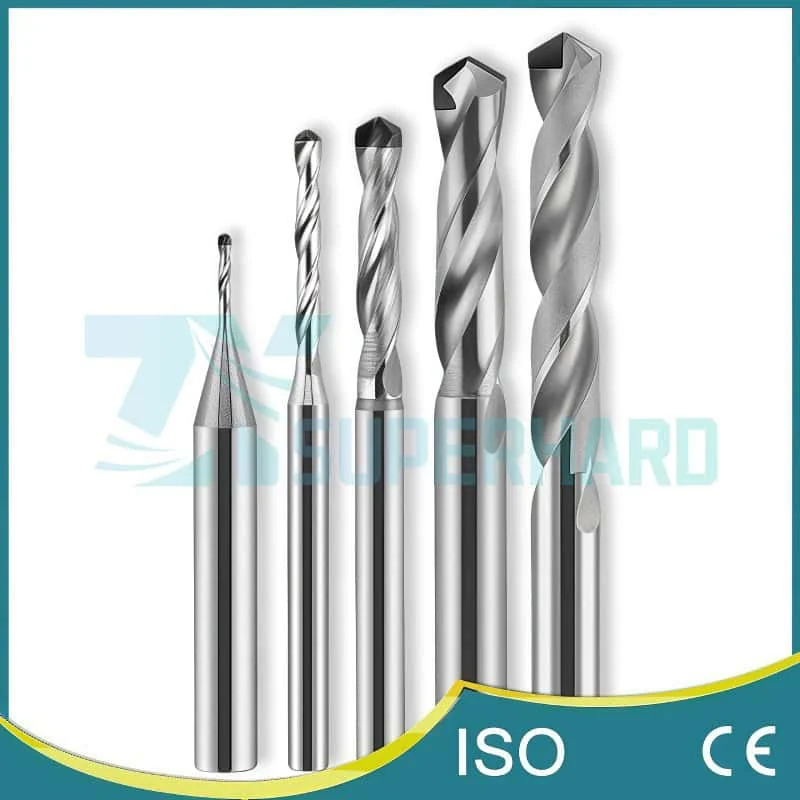

3. PCD Drilling Tools

• Application: Drilling axial and radial holes in the blade root.

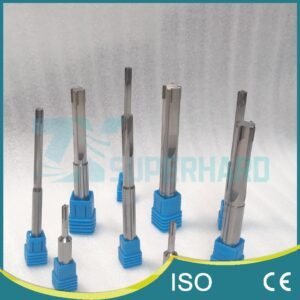

• Types: PCD inserts (e.g., 06T3 0905, DFT06T308, DFT11505FF) and PCD reaming tools.
• Tool Holders: Available in diameters like 38mm and 70mm (tolerance ±0.2mm), nickel-plated for durability.
• Benefits: High wear resistance and precision, with one tool holder capable of processing 9-12 blades before insert replacement.

Additional Diamond Tools

We offer a versatile range of supplementary tools to meet your manufacturing needs:

• Wire Cutting Saws
• Electroplated Cutting Saws
• Drilling Cutters
• PCD Indexable Drills
• PCD Tipped Cutting Saws

Why Choose ZY Super Hard Tools?

• Precision: Our diamond tools ensure exacting standards for composite material processing.
• Durability: Built to withstand the rigors of wind turbine blade production.
• Customization: From tool dimensions to insert specifications, we tailor solutions to your drawings and needs.
• Expertise: With over a decade of experience in superhard tools for industries like wind power, automotive, and aerospace.

Whether you need standard tools or custom solutions, we’re here to help. Contact us today to discuss your requirements, request a quote, or share your drawings. Our team will respond within 24 hours to provide professional support tailored to your project.
