Electroplated Diamond & CBN Grinding Wheels: Your Ultimate Guide to Precision, Performance, and Optimal Application

What makes electroplated diamond and CBN grinding wheels indispensable tools for precision work, and how can one effectively select and maintain them?

Electroplated diamond and CBN (Cubic Boron Nitride) grinding wheels are highly specialized tools renowned for their exceptional ability to machine hard and abrasive materials with precision and efficiency. Their unique single-layer abrasive construction, leveraging the extreme hardness of diamond or CBN, offers superior cutting performance, remarkable longevity, and excellent form-holding capabilities, making them a top choice in demanding industries.

Furthermore, optimal application of these wheels involves understanding their manufacturing science, key advantages like free-cutting action without dressing, and their suitability for various industries and grinding operations. Effective specification requires defining core parameters like material and finish, selecting the right abrasive and grit, detailing dimensions, considering coolant, and understanding options like re-plating for extended service life, ensuring users can maximize their utility and value.

Why Are Electroplated Diamond & CBN Wheels a Cut Above the Rest?

So, what exactly makes electroplated diamond and CBN wheels stand out from other grinding wheel types?

Electroplated diamond and CBN grinding wheels¹ offer exceptional performance primarily due to their unique manufacturing process and the inherent properties of superabrasives. This process involves a single layer of diamond or CBN particles being electrochemically bonded to a precision-engineered steel core, creating an aggressive cutting tool with remarkable durability and form-holding capabilities.

Furthermore, this construction leads to a high degree of grit exposure, which allows for faster material removal and reduced heat generation. This results in consistent grinding profiles, particularly beneficial in demanding applications that involve hard and abrasive materials. Consequently, these wheels typically provide longer tool life, require no dressing, and can maintain tighter tolerances more effectively than many conventional abrasive wheels.

The Science Behind the Electroplating Process: A Single Layer of Power

At its core, the electroplating process² for these grinding wheels is a fascinating feat of engineering, somewhat like giving a precision metal tool an incredibly tough and sharp skin. Imagine a carefully shaped steel hub, which is the backbone of the wheel. This hub is then immersed in a special chemical bath. This bath contains tiny particles of either diamond or CBN – some of the hardest materials known – along with metal ions, very often nickel³.

When an electric current is passed through this setup, a remarkable transformation occurs. The metal ions in the bath, such as nickel, are drawn to the steel hub and deposit onto its surface, forming a strong, uniform metallic layer. Crucially, as this nickel layer builds up, it entraps the diamond or CBN particles, locking them firmly onto the surface of the hub.

The Significance of the Single Abrasive Layer

What makes this process particularly effective for grinding is that it typically creates a single, densely packed layer of abrasive particles.
Think of it this way: unlike a traditional sponge cake with multiple layers, an electroplated wheel is more like a perfectly frosted cookie where all the “sprinkles” (the abrasive grits) are on the very outside, fully exposed and ready to work. This exposure is key:

• Maximum Grit Protrusion: Each abrasive particle stands proud and prominent from the nickel bond. This means more of each cutting edge is available to engage with the workpiece.
• Aggressive Cutting: With so many sharp points ready for action, the wheel can bite into materials more effectively.
• Consistent Particle Distribution: Advanced manufacturing ensures these superabrasive particles are spread evenly across the wheel’s surface. This leads to a more uniform cutting action.

This single-layer structure, secured by a robust metallic bond (commonly nickel, prized for its adhesion and toughness), is what gives these wheels their characteristic “power” and precision. The steel core provides the rigidity and dimensional stability needed for high-precision grinding tasks, for example, in creating complex slots in hardened steel injection molds or shaping ceramic components for the electronics industry.

Key Advantages: Unlocking Superior Cutting, Longevity, and Form Holding

The unique construction of electroplated diamond and CBN wheels translates directly into several significant operational benefits. These advantages are especially noticeable when working with tough, hard-to-machine materials where conventional abrasives might struggle or wear out quickly.

Advantage 1: Superior Cutting Performance

Electroplated wheels are renowned for their superior cutting performance. This stems directly from the highly exposed superabrasive particles. Because each grit can engage the material more effectively:

• Faster Material Removal: These wheels can remove material more quickly than many conventional wheels. For instance, in the production grinding of tungsten carbide cutting tool inserts, electroplated diamond wheels can significantly reduce cycle times per part due to their aggressive cutting action. This increased Material Removal Rate (MRR) boosts productivity.
• Lower Grinding Forces & Heat: The sharp, exposed grits cut more cleanly, which often results in lower grinding forces. This, in turn, usually means less heat is generated at the point of contact. This is vital when grinding heat-sensitive materials like specialized alloys used in aerospace, or thin-walled components that could distort if overheated.

Advantage 2: Remarkable Longevity

When it comes to longevity, it might seem counterintuitive for a tool with just a single abrasive layer. However, electroplated wheels truly shine in the right applications. Their durability doesn’t come from having multiple abrasive layers that gradually wear away; instead, it stems from how effectively that one, highly concentrated layer of super-hard abrasive performs its job.

• Extreme Hardness of Superabrasives: Diamond and CBN are exceptionally hard. They resist dulling far better than conventional abrasives like aluminum oxide or silicon carbide when grinding hard materials. Each particle in that single layer can therefore perform a tremendous amount of cutting.
• Secure Bond Strength: The strong nickel bond securely holds these superabrasive particles, preventing them from being ripped out prematurely during grinding. This ensures that the full cutting potential of each particle is utilized.
• Extended Operational Life (in specific contexts): In high-volume manufacturing or when grinding particularly challenging materials (e.g., shaping industrial ceramic seals or wear parts), an electroplated CBN or diamond wheel might process thousands of components. In contrast, a conventional wheel in the same application might wear out or lose its effectiveness after only a few hundred parts, requiring frequent dressing or replacement. So, while the electroplated layer is finite, it can achieve a much greater total output in these demanding scenarios.
  • It’s important to note that actual tool life can vary based on the specific application, material being ground, machine parameters, and coolant use. Always consult with your supplier for performance expectations in your unique scenario.

Advantage 3: Excellent Form Holding

Form holding refers to a wheel’s ability to maintain its shape or profile throughout its operational life. Electroplated wheels excel in this area.

• Consistent Profile: Because the abrasive is a single, durable layer on a rigid core, the wheel’s profile remains remarkably consistent. This is absolutely critical in applications like:
  • Profile Grinding: Creating precise shapes, grooves, or contours on a workpiece. For example, grinding the intricate “fir tree” root forms on gas turbine blades requires exceptional form holding to ensure a perfect fit and operational integrity. The wheel acts like a master template.
  • Slot Grinding: Producing narrow, accurate slots.
• No Intermediate Re-shaping: Unlike some other wheel types that wear and require their form to be “dressed” back into shape, electroplated wheels generally hold their form until the abrasive layer is worn down. This means more consistent parts from start to finish of the wheel’s life.

These key advantages often result in improved part quality, reduced manufacturing costs per piece, and increased overall efficiency.

Understanding Free Cutting Action and Why No Dressing is Needed

Two more phrases you’ll often hear associated with electroplated wheels are “free cutting action” and “no dressing required.” These are significant benefits that contribute to their efficiency and ease of use.

The “Free Cutting Action” Explained

What does “free cutting” actually mean? Imagine trying to cut through a material. A “free cutting” tool does so smoothly, without excessive effort, heat, or clogging. Electroplated wheels achieve this because:

• High Grit Exposure: As we’ve discussed, the abrasive particles are highly exposed.
• Ample Chip Clearance: The space between these exposed particles provides generous room for the grinding swarf (the material removed) to escape. This is like having a saw with deep gullets between its teeth, preventing it from getting clogged with sawdust.
• Reduced Friction and Heat: With less chance of clogging and a cleaner cut, there’s less friction. This leads to lower heat generation at the grinding zone. The benefits include:
  • Minimized risk of thermal damage or metallurgical changes to the workpiece surface (e.g., burn marks or micro-cracks on hardened steel).
  • Improved surface finish on the ground part.
  • Less power consumption from the grinding machine.

This free cutting action makes the grinding process smoother and more controlled, contributing to higher quality finished parts.

The Convenience of “No Dressing Needed”

In the world of grinding, “dressing⁴” is a maintenance operation performed on many types of abrasive wheels. It involves removing a small amount of the wheel’s surface to:

1. Expose fresh, sharp abrasive grains.
2. Correct the wheel’s profile if it has worn unevenly.
3. Clean the wheel if it has become loaded with material.

However, with electroplated diamond and CBN wheels, dressing is typically not required throughout their operational life.

• Single Working Layer: The abrasive is a single, highly effective layer. It remains sharp and holds its form until this layer is eventually worn away. There are no underlying layers of abrasive to expose through dressing.
• Consistent Performance: Because the wheel doesn’t need dressing, its cutting performance and profile remain consistent for longer periods.
• Operational Efficiency Gains: Eliminating the dressing step provides several advantages:
  • Saves Time: No production time is lost to dressing cycles.
  • No Dressing Tools: No need to purchase or maintain separate dressing tools.
  • Reduced Operator Intervention: Simplifies operation, especially in automated production lines. For example, in a robotic grinding cell for deburring cast iron components, using an electroplated wheel that doesn’t need dressing means the robot can run continuously for longer, maximizing throughput.

Once the single abrasive layer on an electroplated wheel has provided its full service life, the wheel is typically either disposed of or, in many cases, can be returned to a supplier for re-plating – a process where the old abrasive and bond are stripped, and a new layer is applied to the original core. This further enhances their cost-effectiveness in certain scenarios.

What Are the Most Common Applications and Available Wheel Types?

Given their unique benefits, in which areas do electroplated diamond and CBN wheels truly shine, and what forms do they typically take?

Electroplated diamond and CBN grinding wheels are extensively used across precision-driven industries like aerospace, automotive, tool and die manufacturing, medical device production, and electronics for machining hard and abrasive materials. Their applications range from shaping superalloys and ceramics to grinding hardened steels and composites, where maintaining tight tolerances and achieving specific surface finishes are critical.

Furthermore, these wheels perform a variety of grinding operations including internal, external, profile, jig, and cut-off tasks. They are also available in a multitude of standard and custom shapes. Common forms include straight wheels, grinding pins or mounted points, discs, cup wheels, and specialized saw blades, each designed to tackle specific geometries and workpiece requirements efficiently.

Key Industries Benefiting: Aerospace, Automotive, Tool & Die, Medical, Electronics

The exceptional characteristics of electroplated diamond and CBN wheels, such as their ability to cut hard materials precisely and hold their shape, make them invaluable across several key industries. Each sector leverages these tools for specific, demanding tasks.

Aerospace Industry

In the aerospace sector, materials like superalloys (e.g., Inconel®, Hastelloy®), titanium alloys, and advanced composites are common. These materials are chosen for their strength and heat resistance but are notoriously difficult to machine.

• Why Electroplated Wheels? Their capacity for precise material removal and excellent form-holding is essential for creating complex aerodynamic shapes and critical engine components.
• Specific Examples:
  • Grinding the intricate “fir-tree” root forms or tip shrouds of turbine blades.
  • Shaping and finishing engine casings and combustor components made from superalloys.
  • Trimming and shaping carbon fiber reinforced polymer (CFRP) structural parts, where electroplated diamond tools minimize delamination.

Automotive Industry

The automotive industry relies on high-volume production of components made from hardened steels, cast iron, and increasingly, ceramics.

• Why Electroplated Wheels? The long life and consistent performance of electroplated wheels are ideal for mass production, ensuring parts meet strict quality standards. Their ability to grind hardened materials efficiently is also crucial.
• Specific Examples:
  • Grinding hardened steel transmission gears and shafts to achieve precise profiles and surface finishes.
  • Machining cast iron engine blocks or cylinder liners.
  • Finishing fuel injector nozzles or other precision components in fuel systems.
  • Potentially, grinding ceramic brake disc components or other advanced material parts.

Tool & Die Manufacturing

This industry is all about creating and maintaining the tools that make other products. This involves working with hardened tool steels, tungsten carbide, and other wear-resistant alloys.

• Why Electroplated Wheels? Precision is paramount for tool and die makers. Electroplated wheels provide the sharp, durable cutting edges needed to create accurate molds, dies, and cutting tools.
• Specific Examples:
  • Manufacturing and re-sharpening tungsten carbide cutting tools like end mills, drills, and reamers.
  • Grinding complex contours and cavities in injection molds and stamping dies made from hardened steel.
  • Creating fine details on extrusion dies.

Medical Device Manufacturing

The medical field demands extremely high precision and often uses biocompatible materials like stainless steel, titanium alloys, and ceramics for implants and instruments.

• Why Electroplated Wheels? The fine grit sizes available and the ability to create very small, intricate wheel shapes make electroplated tools suitable for delicate medical components.
• Specific Examples:
  • Grinding the sharp edges of surgical instruments such as scalpels, scissors, and needles.
  • Manufacturing dental burs and implant fixtures from titanium or ceramic.
  • Shaping orthopedic implants like artificial hip or knee joint components, often requiring complex curved surfaces.

Electronics Industry

In electronics, materials like silicon, ceramics, glass, quartz, and ferrite are widely used. These are often brittle and require careful machining to avoid damage.

• Why Electroplated Wheels? Electroplated diamond wheels offer clean, precise cutting with minimal chipping, which is essential for delicate electronic components.
• Specific Examples:
  • Slicing and dicing silicon wafers into individual chips for microprocessors.
  • Grinding ferrite cores used in inductors and transformers to precise dimensions.
  • Shaping ceramic substrates for integrated circuits or glass components for display panels.
  • Machining quartz oscillators or other piezoelectric components.

Typical Grinding Operations: Internal, External, Profile, Jig, and Cut-off

Electroplated diamond and CBN wheels are versatile tools, capable of performing a wide array of grinding operations. Their specific design features make them well-suited for these distinct tasks.

Internal Grinding

Internal grinding involves machining the inside surfaces of a workpiece, such as the bore of a cylinder or a hole.

• How it’s Done: Typically, small-diameter grinding wheels, often in the form of electroplated pins or mounted points⁵, are used. These are rotated at high speed and fed into the workpiece.
• Why Electroplated Wheels Excel: Their inherent rigidity (especially with steel cores) and ability to be made in very small, precise diameters allow them to access and accurately grind confined internal features. For example, finishing the bore of a hardened steel gear or a ceramic sleeve.

External Grinding

External grinding refers to shaping the outer surfaces of a cylindrical or flat workpiece.

• How it’s Done: The workpiece rotates while a larger grinding wheel, also rotating, is brought into contact with its external surface.
• Why Electroplated Wheels Excel: For hard materials, electroplated wheels can offer rapid stock removal and maintain their cutting ability for extended periods, making them suitable for grinding the outside diameter of components like hardened steel shafts or ceramic rollers.

Profile (or Form) Grinding

Profile grinding is used to impart a specific shape or contour onto the workpiece. The grinding wheel itself has the inverse of the desired profile.

• How it’s Done: The profiled wheel is plunged or traversed across the workpiece to generate the required form.
• Why Electroplated Wheels Excel: This operation heavily relies on the wheel’s form-holding capability. As established previously, electroplated wheels maintain their profile exceptionally well, making them ideal for producing consistent, complex shapes like V-grooves, gear teeth, or custom contours on cutting tools.

Jig Grinding

Jig grinding is a specialized, high-precision grinding process typically used for finishing holes and complex shapes in hardened materials, often in tool and die work.

• How it’s Done: The grinding wheel (usually a small pin) rotates, and the machine head can also orbit or follow a programmed path to generate precise geometries.
• Why Electroplated Wheels Excel: The fine grit sizes, small wheel diameters, and free-cutting action of electroplated pins allow for the necessary accuracy and surface finish in these demanding applications, such as correcting the position and size of holes in a die block after heat treatment.

Cut-off (or Slicing)

Cut-off operations involve slicing or parting material into sections.

• How it’s Done: A thin grinding wheel is fed through the material to make a cut.
• Why Electroplated Wheels Excel: Thin electroplated diamond or CBN cut-off wheels are very effective for this. They create a narrow cut (known as kerf), which minimizes material waste – important when cutting expensive materials. They also produce clean cuts with less burr, especially in brittle materials like glass, ceramics, or composites. For example, slicing carbide rods into blanks for cutting tools.

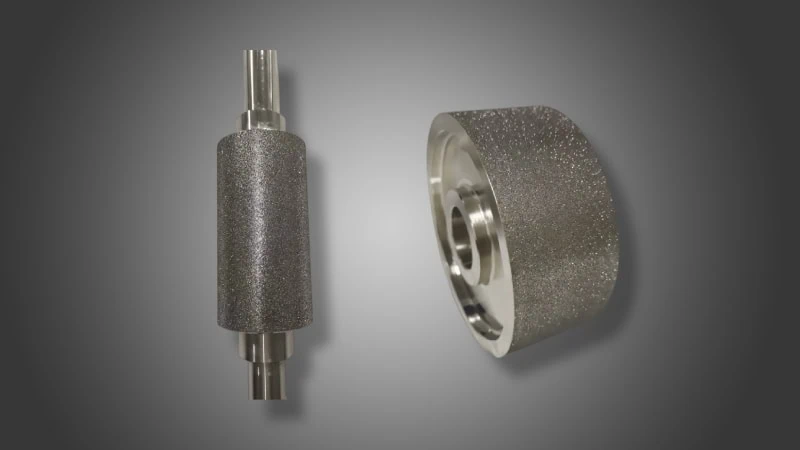

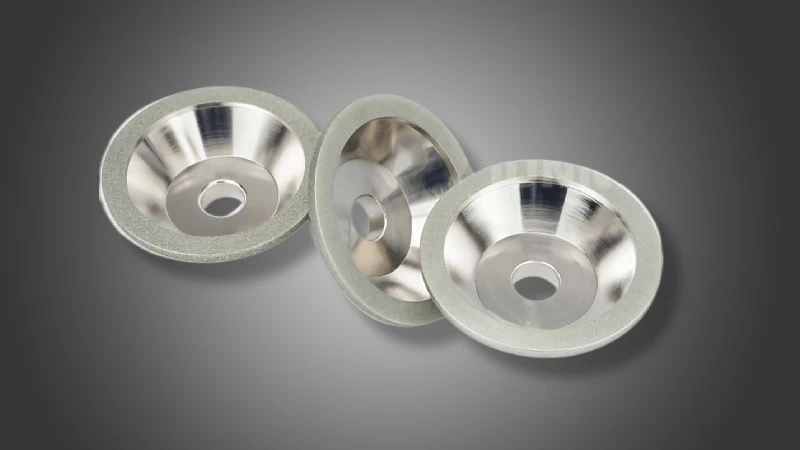

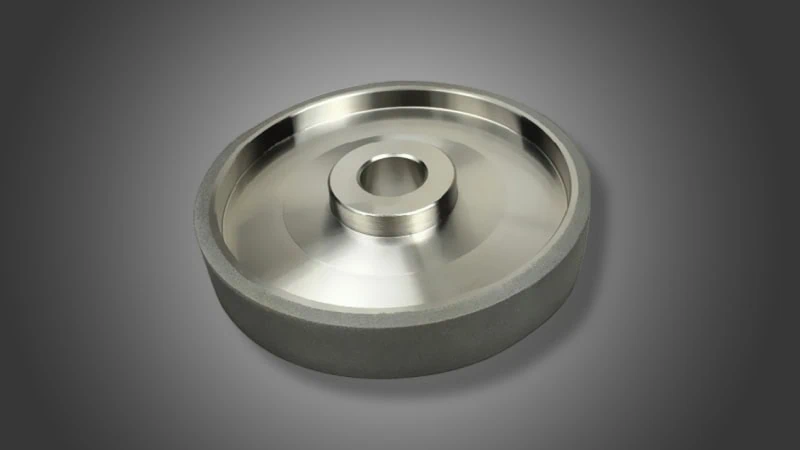

Overview of Standard Shapes and Forms (Pins, Mandrels, Discs, Saws)

To perform these varied operations across different industries, electroplated diamond and CBN grinding tools come in a wide array of shapes and sizes. While custom designs are common, many standard forms cater to typical applications.

Here’s a look at some prevalent types:

Beyond these standard forms, the electroplating process allows for abrasive to be bonded to intricately pre-shaped steel cores. This means that if you have a unique application requiring a very specific tool geometry, a custom-designed electroplated wheel can often be manufactured.

A quick reminder: The precise dimensions, available grit sizes, and specific configurations for these wheel shapes can differ among manufacturers. It’s always best to consult with your supplier to determine the ideal wheel form and specifications for your particular grinding task and material.

How Can I Best Specify the Perfect Electroplated Wheel for My Grinding Operation?

When you need an electroplated wheel, what key information do you need to consider and communicate to ensure you get the right tool for your specific grinding job?

To specify the perfect electroplated diamond or CBN wheel, you must first clearly define your core application parameters. These include the exact material being ground, the amount of stock to be removed, and the required surface finish. Additionally, making the correct choice between diamond and CBN abrasive, based on the workpiece material, is a critical initial step.

Following this, you’ll need to communicate other essential wheel specifications such as the appropriate grit size for your desired finish and removal rate. You also need precise wheel dimensions like diameter, thickness, arbor hole, and any specific profile, plus considerations for the wheel’s core material. Finally, understanding the role and type of coolant to be used is also vital, as it can significantly influence wheel performance and selection.

Defining Your Core Application Parameters (Material, Stock Removal, Finish Requirements)

Before diving into the specifics of the wheel itself, getting a clear picture of your grinding task is the most crucial first step. Think of it like giving a chef the right ingredients and instructions before they can cook the perfect meal. Three parameters are absolutely foundational:

1. The Workpiece Material

What exactly are you grinding?

• Its Importance: The material of your workpiece is the number one factor that will guide your wheel selection, especially when it comes to choosing the type of abrasive (diamond or CBN). It also influences how other specifications, like grit size, will perform.
• Considerations: Is it a ferrous metal (contains iron, like steel), or a non-ferrous metal (like aluminum or brass)? Or perhaps you’re working with much harder, more exotic materials like tungsten carbide, ceramics, glass, or advanced composites? For example, specifying “steel” is a start, but knowing it’s “D2 tool steel hardened to 60 HRC” provides much more actionable detail than just “metal.”

2. Stock Removal Requirements

How much material do you need to take off the workpiece?

• Its Importance: This will heavily influence the choice of abrasive grit size and potentially the wheel’s design for optimal efficiency.
• Considerations:
  • Rough Grinding (High Stock Removal): Are you quickly removing a lot of material, perhaps to get a part to a near-net shape? For instance, taking off 1 millimeter (0.040 inches) from a surface.
  • Finish Grinding (Low Stock Removal): Or, are you just removing a tiny amount, maybe 0.025 millimeters (0.001 inches), to achieve a precise final dimension and a smooth surface?

3. Required Surface Finish

What level of smoothness does the ground surface need to have?

• Its Importance: The desired surface finish, often measured in Ra (Roughness average)⁶, directly dictates the abrasive grit size needed.
• Considerations: A very smooth, almost mirror-like finish (low Ra value) required for a precision mold component will necessitate a very different approach than a functional, but not highly polished, surface on an industrial wear part. Do you have a specific Ra value, or a visual standard to meet?

Clearly defining these three aspects—material, stock removal, and desired finish—and communicating them to your wheel supplier will form the bedrock for selecting a truly effective electroplated grinding wheel.

Quick Guide: Selecting Between Diamond and CBN Abrasives

Once you’ve identified your workpiece material, the next critical step is selecting between diamond and CBN⁷ abrasives. This choice is fundamental to successful grinding, as each abrasive type excels with different categories of materials.

As a general rule of thumb to get you started:

• Diamond is typically the superior abrasive for grinding non-ferrous metals and non-metallic materials. This includes common industrial materials such as tungsten carbide, technical ceramics (like alumina, zirconia, silicon carbide), glass, natural stone, graphite, and advanced composites (such as carbon fiber reinforced plastics or fiberglass). It’s important to note that diamond can have a chemical reaction with iron at the high temperatures generated during grinding, which is why it’s generally not the first choice for ferrous metals like common steels.
• CBN (Cubic Boron Nitride) is the preferred abrasive for grinding ferrous metals, especially those with high hardness. This category includes hardened steels (such as tool steels, die steels, bearing steels, and case-hardened steels), various types of cast iron, and many iron-based superalloys. CBN maintains its hardness and chemical stability remarkably well at high grinding temperatures when interacting with these iron-containing materials.

Making the correct abrasive choice based on your workpiece material is vital. Using an inappropriate abrasive can lead to rapid wheel wear, poor cutting performance, excessive heat generation, and potential damage to your part. For a more comprehensive understanding and to explore specific application nuances, referring to a detailed selection guide or consulting with an abrasive specialist is highly advisable.

Communicating Other Essential Wheel Specifications:

With your core application and abrasive type broadly determined, it’s time to drill down into the physical details of the wheel itself. Getting these right ensures the wheel fits your machine, performs as expected, and delivers the quality you need.

Grit Size Selection for Desired Finish and Material Removal Rate

The “grit size” refers to the size of the individual diamond or CBN abrasive particles on the wheel. Think of it like sandpaper – some have very large, coarse “rocks” (grits) and others have very fine, powdery ones.

• How it Works:
  • Coarser Grits (e.g., 60, 80, 100 mesh or larger micron sizes like D251, B251): These have larger abrasive particles. They are generally used for rapid stock removal where the surface finish is not the primary concern. They create larger chips and cut more aggressively.
  • Finer Grits (e.g., 200, 400, 600 mesh or smaller micron sizes like D76, B76, D46, B46 and finer): These have smaller abrasive particles. They are used for achieving smoother surface finishes and for applications requiring less aggressive cutting.
• Balancing Act: Often, it’s a trade-off. You might use a coarser grit wheel for initial rough grinding, followed by a finer grit wheel for the final finishing pass if a high surface quality is needed.
• Industry Examples: For general-purpose grinding of hardened steel with CBN, a grit size of 100/120 or 120/140 (B151 or B126) might be common. For fine finishing of ceramics with diamond, grits of 400/500 (D30/D46) or even finer might be employed.

A helpful tip: Grit size designation systems⁸ (e.g., FEPA, ANSI, or micron grading) and their availability can vary between suppliers. It’s always wise to discuss your target surface finish (e.g., a specific Ra value in µm or µin) and stock removal needs with your supplier so they can recommend the most suitable grit size from their range.

Wheel Dimensions (Diameter, Thickness, Arbor Hole, Specific Profile)

These are the physical measurements of the wheel, and they must be accurate for the wheel to fit your machine and perform the job correctly.

• Overall Diameter (OD): This is the largest dimension across the wheel. It’s determined by your grinding machine’s capacity, the size of your workpiece, and the optimal surface speed required for the operation.
• Thickness (or Width, T): This is the width of the cutting face of the wheel. It should match the width of the surface being ground or the slot being created.
• Arbor Hole (or Bore, H): This is the central hole that allows the wheel to be mounted onto the grinder’s spindle. It must precisely match your machine’s spindle diameter. Standard arbor hole sizes are common, but custom ones can also be made.
• Specific Profile (Shape):
  • If you need anything other than a simple flat-faced wheel (like a standard Type 1A1), the exact profile is critical. This could be a radius on the edge, an angled face, a V-shape, or a more complex custom form.
  • For intricate profiles, providing a detailed drawing (with all angles, radii, and dimensions) or even a sample part is often the best way to ensure the wheel is made correctly. For example, to grind a specific radius in a slot, you’d specify “Full Radius (FR) = 3mm.”

Core Material Considerations and Their Impact

The core is the body of the wheel to which the electroplated abrasive layer is bonded.

• Steel: By far the most common core material for electroplated wheels. Why?
  • Strength and Rigidity: Steel provides excellent stability, minimizing deflection and vibration during grinding. This is crucial for holding tight tolerances and achieving good surface finishes.
  • Machinability: It can be precisely machined into complex shapes before plating.
  • Durability: It withstands the forces and temperatures of grinding well.
• Other Materials (Less Common for General Electroplating):
  • Aluminum: Occasionally used if weight is a major concern (e.g., for very large wheels or certain portable applications), but it’s less rigid than steel.
  • Composites or other non-metallics: May be chosen for highly specialized applications, such as certain dicing blades in electronics where specific vibration damping or non-magnetic properties are needed.
• Impact: The core’s material and design directly influence the wheel’s balance, its ability to dissipate heat, and its overall stiffness, all of which play a role in the final grinding outcome. For most precision electroplated applications, a well-engineered steel core is the standard for reliable performance.

Supplier note: While steel is standard, if you have unusual operating conditions or requirements (like needing a non-magnetic core), discuss these with your supplier, as alternative core materials or specialized designs might be available or recommended.

The Importance of Coolant and Its Influence on Wheel Specification

Using a coolant (also called grinding fluid) is highly recommended, and often essential, when using electroplated diamond and CBN wheels, especially in production or precision applications.

What Does Coolant Do?

• Cooling: This is its most obvious job. Grinding generates heat. Coolant carries this heat away from both the wheel and the workpiece. This prevents overheating, which can damage the workpiece (e.g., metallurgical changes, burn marks, distortion) or shorten the wheel’s life. This is especially critical when grinding steels with CBN, as CBN can be sensitive to excessive uncontrolled heat.
• Lubrication: Coolant reduces friction between the abrasive grits, the workpiece, and the chips being removed. This leads to a smoother cutting action and can improve the surface finish.
• Chip Flushing: It helps wash away the grinding swarf (the tiny particles of material removed). This prevents the wheel from “loading” (getting clogged up), ensuring the abrasive particles remain exposed and cutting efficiently.

Types of Coolant (A Brief Overview)

There are several general categories:

• Water-Soluble Oils (Emulsions): A common choice, offering a good balance of cooling and lubrication. They are mixed with water.
• Synthetic Coolants: These are chemical solutions, often providing excellent cooling and good chip flushing. They are also mixed with water.
• Straight Oils: Used less commonly with general electroplated wheels (more for things like gear grinding or honing with other wheel types), they offer superior lubrication but less cooling than water-based fluids.

How Coolant Influences Wheel Specification

• Wet vs. Dry Grinding: While some very light-duty or intermittent grinding with electroplated wheels can sometimes be done dry (e.g., some off-hand tool touch-ups), wet grinding is strongly preferred for optimal performance, wheel life, and surface finish. When specifying a wheel, indicating whether you’ll be using coolant (and if so, what type) is very helpful information for your supplier.
• Application Method: How will the coolant be applied? A copious flow directed precisely at the grinding zone is usually best.
• Wheel Design: In some cases, though less common for standard electroplated wheels, specific features might be incorporated if a particular coolant strategy is in place.

Always aim to use a clean, well-filtered coolant at the correct concentration, applied generously to the grinding interface. This will significantly contribute to getting the best results from your electroplated diamond or CBN wheels.

Can My Electroplated Wheels Be Serviced or Re-plated?

When your electroplated diamond or CBN wheel reaches the end of its abrasive life, is that the end of the road for the entire tool, or are there options to service or re-plate it?

Yes, in many cases, the steel core of an electroplated diamond or CBN grinding wheel can be serviced and re-plated once the original abrasive layer is worn out. This process typically involves carefully stripping the old abrasive and bond, thoroughly inspecting and preparing the core, and then meticulously applying a new layer of diamond or CBN through the electroplating process.

Furthermore, re-plating can offer significant economic benefits by reusing the valuable precision-machined core, especially for larger or more complex wheel forms. It also effectively restores the wheel to its original performance specifications, essentially giving it a new life. This approach can also be a more sustainable option compared to complete replacement each time the abrasive is expended.

The Economics and Performance Benefits of Re-plating

Deciding whether to re-plate a worn electroplated wheel often comes down to practical advantages, primarily concerning cost and continued performance. For many users, especially those with specialized or expensive wheels, re-plating is a very attractive option.

Cost Advantages of Re-plating

The most compelling reason to consider re-plating is often the potential for significant cost savings.

• Reusing the Core: The precision-machined steel core is frequently a substantial part of a new wheel’s total cost. Re-plating allows you to reuse this valuable component, meaning you’re primarily paying for the new abrasive layer and the re-plating service.
• Greater Savings on Specialized Wheels: The economic benefits are usually more pronounced for:
  • Large diameter wheels: The amount of steel and machining in a large core is considerable.
  • Complex or custom-profiled wheels: Wheels with intricate shapes, tight tolerances, or unique forms are expensive to manufacture from scratch. For example, a custom-formed electroplated CBN wheel for grinding complex gear profiles could see re-plating costs at potentially 40-70% less than a brand new wheel, though actual savings will vary.
  • Wheels made from special core materials: If the core is not standard steel, its replacement cost will be higher.
• Reduced Inventory: For companies using many identical wheels, a system of cycling cores for re-plating can sometimes help manage inventory and reduce the need to stock as many brand-new spare wheels.

Performance and Sustainability Gains

Beyond cost, re-plating offers other valuable benefits:

• Restored “Like-New” Performance: A properly re-plated wheel, with a fresh layer of high-quality abrasive applied to the correct specification, should perform just like a brand new wheel. You get the same cutting rates, form holding, and life from the new abrasive layer.
• Operational Consistency: Using re-plated wheels from a trusted source ensures that you continue to use a tool with known performance characteristics, which can be beneficial for maintaining stable production processes.
• Environmental Responsibility: Re-plating is a more sustainable choice. By reusing the steel core, you help reduce the consumption of raw materials (steel, energy for steel production) and the energy required to manufacture a completely new core. This contributes to a smaller environmental footprint.

It’s worth noting that the viability and extent of cost savings can depend on the wheel’s size, complexity, the condition of the core, and the supplier’s re-plating charges. Always get a specific quote to compare.

Understanding the Stripping and Re-plating Process

The process of bringing a worn electroplated wheel back to life is a meticulous one, involving several key stages to ensure the re-plated tool performs optimally. Think of it like carefully refurbishing a high-quality piece of equipment rather than just giving it a quick fix.

Typical Stages in Re-plating

1. Initial Inspection and Evaluation:
   When a worn wheel is received for potential re-plating, the first step is a thorough inspection. The supplier will assess the condition of the steel core. They’ll check for any significant damage, such as cracks, excessive wear on critical mounting surfaces, or if the core has been bent or distorted during use. Not all cores will be deemed suitable for re-plating if damage is too severe.
2. Stripping the Old Abrasive Layer:
   If the core is suitable, the old, worn-out layer of diamond or CBN and the nickel bonding material must be completely removed. This is typically done using specialized chemical or electrochemical stripping processes designed to dissolve the nickel and release the abrasive without damaging the underlying steel core.
3. Core Preparation and Cleaning:
   Once stripped, the core is meticulously cleaned to remove any residues. It may then undergo minor re-machining or truing if necessary, to ensure all critical dimensions (like the arbor hole, mounting flanges, and profile datums) are within specification and that the surface is perfectly prepared for the new abrasive layer.
4. The Re-plating Process:
   The prepared core then goes through the same electroplating process as a brand new wheel. It’s placed in an electrolytic bath containing the specified type (diamond or CBN) and grit size of superabrasive particles, along with the nickel solution. Electric current is applied, depositing a new, securely bonded single layer of abrasive onto the core.
5. Final Finishing and Quality Control:
   After re-plating, the wheel is cleaned again. It then undergoes rigorous quality control checks. These may include verifying the dimensional accuracy of the profile, checking the evenness and integrity of the abrasive layer, and sometimes dynamic balancing, especially for larger wheels or those used at very high speeds.

This careful, multi-step process ensures that a re-plated wheel meets the required performance and quality standards, ready to be put back into service.

Discussing Re-plating Options and Services with Your Wheel Provider

If you think re-plating might be a good option for your used electroplated wheels, the next step is to have a clear discussion with your wheel supplier or a specialized re-plating service.

Key Questions and Discussion Points

• Is My Wheel a Good Candidate for Re-plating?
  The first question is always about feasibility. Describe the wheel (size, shape, original specs) and its current condition. Many suppliers will ask you to send the wheel for a no-obligation inspection.
• What is the Cost and Turnaround Time?
  Request a formal quotation for the re-plating service and compare this to the cost of a new wheel. Also, inquire about the expected lead time – how long will it take from when they receive your worn wheel to when you get it back, re-plated?
• Can the Specifications Be Changed?
  While re-plating often duplicates the original specifications, sometimes it’s an opportunity to make a change. For example, if your application needs have slightly evolved, you might inquire if a different grit size could be applied to the existing core.
• How Many Times Can a Core Be Re-plated?
  This is a common question. The answer depends on the initial quality of the core, how carefully it’s handled in use, and the nature of the stripping process. Some robust steel cores might be successfully re-plated multiple times – perhaps 2 to 5 times, or occasionally more. However, each stripping cycle can minutely affect the core, so your supplier will assess this based on its condition.
• What are the Logistics?
  Understand the process for shipping your worn wheels to the service provider and how the re-plated wheels will be returned.

Choosing a Reliable Re-plating Service

• Experience Matters: Look for a provider with proven experience specifically in electroplating and re-plating diamond and CBN wheels. This is a specialized field.
• Original Manufacturer or Specialist: Often, the original manufacturer of your wheel is an excellent choice for re-plating, as they are intimately familiar with the core design and original specifications. Alternatively, dedicated re-plating specialists can also provide high-quality services.
• Quality Assurance: Inquire about their quality control processes to ensure the re-plated wheel will meet your performance expectations.

Final thought: It’s important to remember that not every electroplated wheel supplier offers re-plating, and not every used wheel core will be in a suitable condition for it. Proactive communication with your provider is the best way to explore this potentially cost-saving and sustainable option.

Conclusion

Electroplated diamond and CBN grinding wheels represent a pinnacle of abrasive technology, offering unmatched solutions for efficiently machining difficult-to-machine materials with high precision. By understanding their fundamental benefits like superior cutting and form holding, their diverse applications across key industries, the critical parameters for proper specification, and the valuable option of re-plating, users can significantly enhance their grinding operations. Ultimately, choosing the right electroplated wheel, often in consultation with an expert supplier, is key to unlocking their full potential, leading to superior quality components, increased productivity, and improved cost-effectiveness in any demanding industrial application.

References

1. Electroplated diamond and CBN grinding wheels¹ – ZYDiamondTools product page for their range of electroplated diamond and CBN grinding wheels.
2. Electroplating process² – Britannica article explaining the general principles and applications of the electroplating process.
3. Nickel³ – Royal Society of Chemistry page detailing the properties and characteristics of Nickel.
4. Dressing⁴ – ZYDiamondTools blog post providing a practical guide to diamond wheel dressing procedures.
5. Electroplated pins or mounted points⁵ – ZYDiamondTools product page for electroplated diamond mounted points and burrs.
6. Ra (Roughness average)⁶ – Get It Made UK article explaining surface roughness, its measurement, and chart.
7. Selecting between diamond and CBN⁷ – ZYDiamondTools blog post guiding the choice between CBN and diamond grinding wheels for different needs.
8. Grit size designation systems⁸ – ZYDiamondTools blog post on selecting the right diamond grinding wheel, which includes discussion of grit and other factors.
