Why Is Dynamic Balancing Critical for Diamond Wheels, and How Is It Done?

What makes dynamic balancing so important for diamond grinding wheels, and how is this process actually performed?

Dynamic balancing is critical because it eliminates vibration, which directly leads to superior surface finishes, improved part accuracy, and significantly longer life for both the wheel and the machine’s spindle. It is typically done using two core methods: off-machine (benchtop) balancing or the more precise on-machine (in-situ) balancing.

How Does Dynamic Balancing Improve Grinding Performance?

So, what actual benefits does a perfectly balanced diamond wheel bring to your shop floor?

Dynamic balancing significantly enhances grinding performance by minimizing vibration. This reduction in chatter leads directly to superior surface finishes, improved geometric accuracy on the workpiece, less wear on the machine’s spindle, and a longer operational life for the diamond wheel itself.

---

Achieve Superior Surface Finish and Geometric Accuracy

The single biggest enemy in precision grinding is vibration, often called chatter¹. An unbalanced wheel is the primary source of this vibration.

This is similar to the “tool chatter” you see in a milling operation. When a cutting tool vibrates, it cannot produce a clean, sheer cut. Instead, it hammers against the material, leaving a poor, wavy finish.

When a heavy, unbalanced wheel spins at thousands of RPM, it creates powerful forces that cause the wheel to “bounce” or “chatter” against the workpiece on a microscopic level.

• Impact on Surface Finish: This chattering action prevents the diamond grits from making a clean, consistent cut. Instead of smoothly shearing the material, the grits hammer into it, leaving a poor, wavy surface finish with visible chatter marks. A dynamically balanced wheel is stable, allowing it to cut smoothly and produce a very low Ra (surface roughness²) value, which is often required for components like carbide inserts or medical implants.
• Impact on Geometric Accuracy: Vibration doesn’t just ruin the finish; it ruins the part’s shape. Holding extremely tight tolerances—such as ±0.001 mm on a diameter—is impossible if the wheel is vibrating. The vibration can cause issues with:
  • Roundness (TIR): The part won’t be perfectly round.
  • Flatness: The surface won’t be truly flat.
  • Concentricity: Different features won’t be perfectly centered with each other.

Achieving true geometric accuracy depends on a stable grinding process, and that stability starts with a balanced wheel.

Extend Spindle Life and Reduce Machine Wear

A grinding machine’s spindle is its heart. It’s an incredibly precise (and expensive) component, often costing tens of thousands of dollars to repair or replace. Running an unbalanced diamond wheel is the fastest way to destroy it.

An unbalanced wheel acts like a small hammer, striking the spindle bearings with intense, high-frequency force during every single rotation.

Industry Analogy: This is very similar to running an unbalanced tool holder in a high-speed milling machine. While the tool might cut, the excessive runout and vibration will prematurely destroy the spindle bearings. An unbalanced wheel applies this same destructive force, but often with much more mass and at continuous high speeds.

This constant, hammering vibration leads to several costly problems:

• Spindle Bearing Failure: The bearings inside the spindle (whether ball, roller, or hydrostatic) will wear out rapidly, leading to noise, increased runout, and eventual seizure.
• Accelerated Machine Wear: The vibration doesn’t stop at the spindle. It travels through the entire machine—damaging the ball screws, linear guides, and even the machine’s castings over time.
• Costly Downtime: When a spindle fails, the machine is down. This stops production, causes missed deadlines, and results in significant repair costs and lost revenue. Dynamic balancing is one of the most effective forms of preventative maintenance for a grinder.

Maximize the Diamond Wheel’s Lifespan

Diamond wheels are a significant investment. Dynamic balancing protects that investment by ensuring the wheel wears evenly and efficiently.

When a wheel is out of balance, it doesn’t wear uniformly. The “heavy spot” on the wheel does more work and takes more impact than the rest of the wheel.

How Imbalance Destroys a Wheel

1. Uneven Grit Breakdown: The excessive impact on the heavy spot causes the diamond grits in that area to fracture, dull, or be pulled out of the bond prematurely.
2. Loss of “Roundness”: As this one spot wears down faster, the wheel quickly loses its perfect circular shape, becoming “out of round.”
3. Increased Dressing Cycles: An out-of-round wheel can’t grind accurately. To fix it, the operator must perform a dressing³ or truing⁴ operation. Dressing removes the entire outer layer of the abrasive to restore the wheel’s shape.

Here’s the problem: every time you dress the wheel, you are grinding away the valuable diamond abrasive layer you paid for.

A dynamically balanced wheel wears evenly across its entire circumference. It stays “true” for much longer, dramatically reducing the frequency of dressing. This means less wasted abrasive and a much longer, more productive service life from a single diamond wheel.

When Is Dynamic Balancing an Absolute Requirement?

So, is dynamic balancing always necessary, or only for specific jobs?

Dynamic balancing becomes an absolute requirement in high-speed operations or when grinding extremely hard, brittle materials. It is non-negotiable for applications like high-RPM grinding, manufacturing PCD/PCBN tools, and the precision grinding of technical ceramics or carbide, where any vibration can lead to part failure.

---

High-Speed Grinding (High RPM Operations)

The single most important factor that makes dynamic balancing essential is speed.

Think about the physics: The force of an imbalance doesn’t just increase with speed; it increases with the square of the speed. This means a tiny, harmless imbalance at 1,000 RPM becomes a destructive, hammering force at 10,000 RPM.

• Industry Analogy: This is similar to running a large-diameter face mill or a long boring bar at high RPM. A slight imbalance you wouldn’t even notice at a low speed will cause violent, machine-shaking vibrations once you “crank up the override.” A grinding wheel is the same, but its rotational speed is often much, much higher.

While the exact definition of “high-speed” can vary based on the machine and wheel diameter (always consult your machine’s specifications), many grinding operations run at surface speeds well over 30 m/s (6,000 SFM). At these speeds, any tiny imbalance is magnified into a powerful source of vibration. This vibration is the direct cause of chatter marks, poor finish, and spindle damage.

Therefore, the faster you spin your wheel, the more critical dynamic balancing becomes.

Key Application: PCD/PCBN Tool Grinding

Grinding polycrystalline diamond (PCD) and polycrystalline cubic boron nitride (PCBN) tools⁵ is one of the most demanding applications in manufacturing. These materials are second only to natural diamond in hardness.

The goal here isn’t just a smooth surface; it’s a perfectly sharp, micro-chip-free cutting edge.

• Why Balancing is Critical: These superhard materials are also very brittle. When an unbalanced diamond wheel “chatters” against the edge of a PCD insert, it doesn’t just grind it—it hammers it. This high-frequency impact creates microscopic fractures and chips along the cutting edge.
• The Consequence: A cutting tool with a micro-chipped edge is useless. It will fail immediately when it’s put into a milling machine or lathe, resulting in a scrapped part and lost time.

For tool and cutter manufacturers, dynamic balancing isn’t just a “nice to have.” It is the only way to reliably produce a functional, high-performance cutting tool.

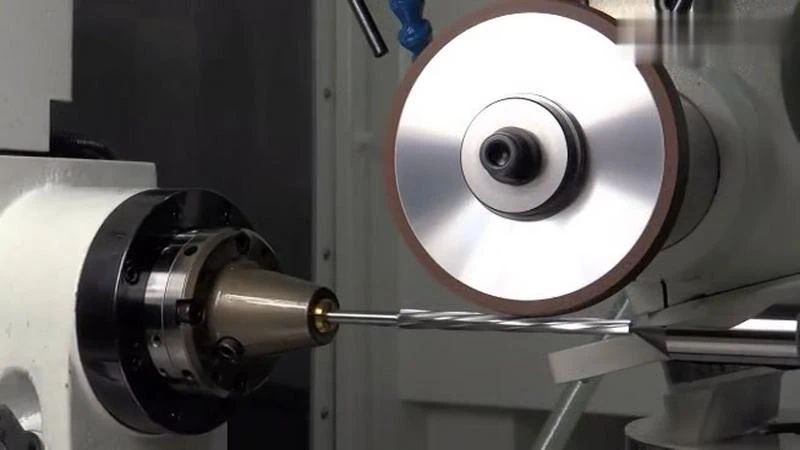

Key Application: Precision Carbide and Ceramic Grinding

Like PCD, advanced technical ceramics (like silicon nitride or alumina) and cemented carbides are extremely hard and brittle. They are often used for high-wear components, aerospace parts, or medical implants.

The problem with grinding these materials is that vibration can cause hidden damage.

The chatter from an unbalanced wheel acts like a tiny hammer, inducing sub-surface micro-fractures in the workpiece. The part might look fine when it comes off the grinder, but these tiny cracks can cause it to fail unexpectedly later when it’s put under thermal or mechanical stress.

For example, a microscopic crack in a ceramic bearing can lead to catastrophic failure during operation. Dynamic balancing provides the stable, vibration-free grinding action required to machine these brittle materials without causing this invisible, structural damage.

Static vs. Dynamic Balancing: Knowing the Critical Difference

To understand why dynamic balancing is required, it helps to know what “static” balancing is.

• Static Balancing (Single-Plane): This is simple, single-plane balancing. In a workshop, this might be done by resting the wheel (on its arbor) on two low-friction knife-edges and letting the heavy spot naturally roll to the bottom. This works for objects that are very thin, like a narrow cutoff wheel. It only corrects for a simple “up-and-down” shake.
• Dynamic Balancing (Two-Plane): This is far more advanced. Most diamond wheels, especially wider ones, don’t just have one heavy spot. They have an uneven distribution of weight along their axis (their thickness). This creates a much more complex “wobble” (known as couple unbalance⁶) when the wheel spins fast.

Industry Analogy: Static balancing (like the knife-edge method) is like trying to balance a long boring bar by just finding its heavy side—it won’t stop it from wobbling end-to-end when it spins. Dynamic balancing is like balancing that same bar while it’s spinning, allowing you to add correction weights at both ends (two planes) to stop the wobble completely.

Here is the key takeaway: Static balancing cannot fix this wobble. For the high-speed and precision applications we just discussed, the wobble from couple unbalance is the main source of vibration. Dynamic balancing is the only method that can correct it, making it an absolute requirement.

What Are the Core Methods for Balancing a Wheel?

So, how do you actually correct the imbalance in a diamond wheel?

There are two primary methods: off-machine balancing, where the wheel is balanced on a separate (benchtop) device before mounting, and on-machine (in-situ) balancing, where the wheel is balanced directly on the grinder’s spindle. On-machine balancing is generally considered the most accurate method for high-precision work.

---

Method 1: Off-Machine (Benchtop) Balancing

This is the most common form of pre-balancing. It is done before the diamond wheel is ever mounted on the grinding machine.

The process is very straightforward:

1. The diamond wheel, along with its mounting flange (the adapter), is assembled.
2. This entire assembly is placed on a dedicated balancing machine.
3. The machine spins the wheel assembly and sensors measure the imbalance.
4. The machine’s computer then tells the operator exactly where to add small counterweights (or sometimes remove material) to bring the assembly into balance.

This method is a great starting point. It solves the majority of the imbalance in the wheel and flange. However, it has one major limitation: it only balances the wheel assembly. It cannot account for any tiny imbalances in the grinding machine’s spindle itself.

Method 2: On-Machine (In-Situ) Balancing

This is the most precise method and is essential for the high-speed and high-precision applications we discussed earlier. “In-situ” simply means “in its original place.”

With this method, you are not just balancing the wheel; you are balancing the entire rotating system—the spindle, the flange, and the diamond wheel—all together as one unit.

Here is how it works:

1. First, the wheel assembly is mounted onto the grinder’s spindle.
2. A portable balancing unit with a vibration sensor (an accelerometer) is used. The sensor is placed directly onto the spindle housing.
3. The grinder’s spindle is turned on and spun up to its normal operating speed.
4. The sensor “feels” the real-time vibration of the entire system and sends this data to the balancing unit.
5. The unit’s software then calculates the exact location and amount of the imbalance.
6. The operator then adds correction weights to the wheel flange while it is still on the machine until the balancing unit shows the vibration has dropped to a minimal level.

This method is superior because it corrects for all sources of imbalance, including any tiny runout or imbalance in the machine spindle itself. This achieves the smoothest possible rotation, which is why it’s a standard procedure in PCD tool grinding.

Understanding Balancing Grades (ISO 1940 G-Grades)

How do you know how well a wheel is balanced? “Balanced” isn’t just a yes/no state. It’s a measurement.

This measurement is defined by an international standard, ISO 1940-1, which sets “G-Grades.”

• What is a G-Grade? It’s a rating that defines the maximum amount of remaining imbalance (or vibration) that is allowed for a specific rotational speed.
• How it Works: The scale uses “G” numbers, like G 6.3, G 2.5, or G 1.0. A smaller G-number means a better, more precise balance.

Here’s a general guide to what these grades mean in a machine shop:

• G 6.3: A standard balance quality for many machine tool parts or commercial motors.
• G 2.5: A high-quality balance. This is a common requirement for high-speed tool holders (like HSK or CAT holders) used in milling.
• G 1.0 / G 0.4: This is the super-precision range. Grinding spindles and high-performance grinding wheels are often balanced to this level to achieve the best possible surface finishes and part accuracy.

When you are purchasing high-performance diamond wheels or balancing equipment, don’t just ask if it’s “balanced.” Ask what G-Grade it can achieve at your specific operating RPM.

Keep in mind that the required G-Grade is directly tied to the service speed (RPM). A wheel balanced to G 2.5 at 3,000 RPM may not be acceptable at 10,000 RPM. Always verify the balancing requirements for your specific application with your machine or wheel supplier.

Conclusion

In short, dynamic balancing is not an optional step for high-performance grinding; it is a fundamental requirement. By eliminating the destructive forces of vibration, dynamic balancing is the key that unlocks superior surface finishes, true geometric accuracy, and the maximum life from both your diamond wheel and your machine’s spindle. Understanding when it’s needed (especially in high-speed and brittle material applications) and how it’s done (primarily with on-machine balancing for the best results) allows you to protect your investment and produce higher quality parts.

---
