What Are PCD Inserts Used For?

Ever wondered what exactly those high-performance PCD cutting tool inserts are actually used for?

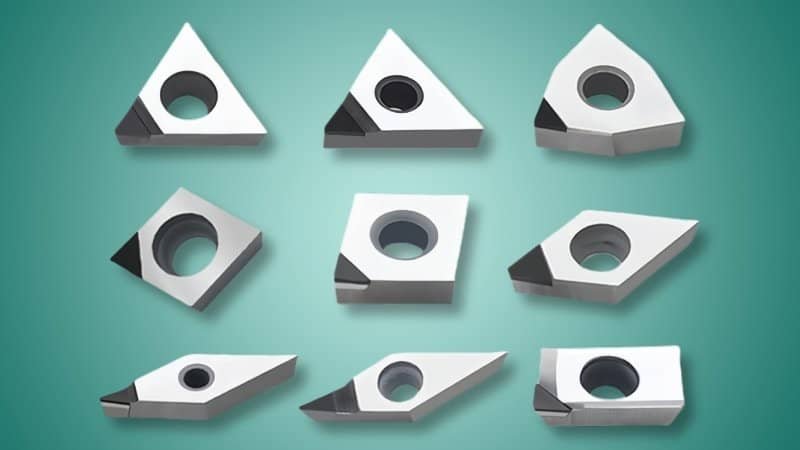

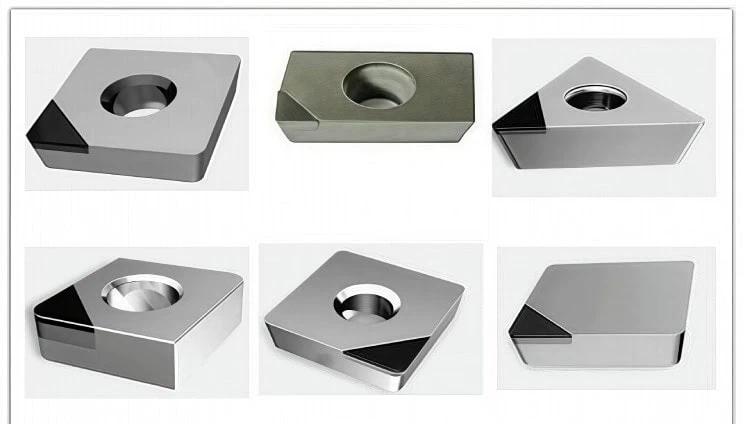

PCD (Polycrystalline Diamond¹) inserts are primarily used for machining highly abrasive non-metallic materials (like composites, ceramics, wood products) and non-ferrous metals (especially aluminum and copper alloys) when mounted in specialized toolholders. They excel in applications demanding long tool life, high cutting speeds, excellent surface finishes, and tight tolerances, finding common use in industries like automotive, aerospace, woodworking, and electronics. However, they are generally unsuitable for machining steel or iron.

What Materials Are Ideal for Machining with PCD Inserts?

So, you’re wondering exactly what kinds of materials PCD inserts are best suited for cutting?

PCD (Polycrystalline Diamond) inserts excel primarily at machining non-ferrous metals, especially aluminum and copper alloys, and highly abrasive non-metallic materials like composites, carbon fiber, ceramics (in certain states), wood products, and plastics. Their extreme hardness makes them ideal for materials that quickly wear down other tool types, particularly standard carbide inserts, although they are generally not recommended for machining ferrous metals like steel or iron due to chemical reactivity.

Let’s explore these material groups in more detail.

Non-Ferrous Metals (Aluminum, Copper Alloys)

PCD truly shines when working with non-ferrous metals. Think of materials like aluminum and its alloys, as well as copper, brass, and bronze. Why is PCD so effective here?

• Handling Abrasive Elements: Many common aluminum alloys, particularly those used in automotive parts like engine blocks and pistons, contain silicon (Si). Silicon is quite abrasive and can quickly wear down standard carbide tools. However, PCD’s diamond structure is much harder, allowing it to cut through these abrasive elements with significantly less wear. This leads to much longer tool life, often 10 to 100 times longer than carbide in high-volume production.
• Achieving High Speeds and Finishes: These metals generally allow for high cutting speeds. PCD tools can handle these speeds exceptionally well due to their hardness and thermal conductivity (discussed more in advantages). This capability enables faster production cycles and results in very smooth, high-quality surface finishes, often eliminating the need for secondary finishing operations. For instance, machining aluminum automotive wheels with PCD can achieve a mirror-like finish directly from the machine; understanding the specific advantages for aluminum machining² helps illustrate why.
• Preventing Built-Up Edge (BUE): Aluminum and copper can sometimes stick to the cutting tool edge, especially at lower speeds or with less sharp tools. This is known as built-up edge (BUE)³ and harms surface finish and tool life. PCD’s very fine grain structure and the ability to create extremely sharp cutting edges help minimize BUE formation.

It’s important to note that optimal cutting speeds and feeds can vary based on the specific alloy, machine capabilities, and the PCD grade used. Therefore, it’s always wise to consult the tool supplier’s recommendations for specific parameters.

Abrasive Non-Metallic Materials (Composites, Carbon Fiber, Ceramics)

Another major application area for PCD tooling is machining highly abrasive non-metallic materials. These materials are notorious for rapidly dulling conventional cutting tools.

• Composites and Carbon Fiber: Materials like Carbon Fiber Reinforced Polymer (CFRP), fiberglass, and other composites are common in aerospace, automotive, and sporting goods. The reinforcing fibers (carbon, glass) are extremely abrasive. Trying to cut these with standard tools is like trying to cut sandpaper with a regular knife – the knife dulls almost instantly. PCD, being nearly as hard as natural diamond, resists this abrasive wear far better, making it essential for efficiently machining these advanced materials.
• Ceramics (Specific Cases): While fully sintered, very hard ceramics often require grinding or specialized CBN tools, PCD can be effective for machining ceramics in their “green” or partially sintered state before final firing. It can also work on some softer ceramic types. The extreme hardness allows shaping before the ceramic reaches its final, most difficult-to-machine stage.

Machining these abrasive materials often generates fine, potentially harmful dust. Consequently, proper dust extraction and safety precautions are crucial when working with composites or ceramics using PCD or any tooling.

Wood and Engineered Wood Products

You might be surprised, but the woodworking industry is a significant user of PCD tooling, often utilizing inserts in cutterheads or brazed-tip tools like router bits and saw blades. This is especially true for engineered wood products.

• Engineered Woods: Materials like Medium Density Fiberboard (MDF), particleboard, and laminate flooring contain wood fibers held together by resins and glues. These binding agents are surprisingly abrasive and quickly wear down steel and even carbide tools in high-volume production.
• Longevity Pays Off: PCD tools offer dramatically longer tool life when cutting these materials. Imagine a large furniture factory producing thousands of cabinet doors from MDF daily. Using PCD can mean changing tools far less frequently, significantly reducing downtime and overall cost, even though the initial PCD tool cost is higher. The consistency of cut over a longer period also improves product quality.

Plastics and Polymers

PCD is also valuable for machining certain plastics and polymers, particularly those that are abrasive or require very clean cuts.

• Abrasive Fillers: Some plastics are reinforced with fillers like glass fibers or minerals to enhance their properties (e.g., glass-filled Nylon). These fillers make the plastic abrasive, similar to composites, creating a perfect application for PCD’s wear resistance.
• Clean Cutting: For softer plastics where a very clean cut is needed without melting or burrs, the extremely sharp edge achievable with PCD inserts can be beneficial. Its low friction surface also helps prevent material from sticking to the tool. Examples include machining components from PEEK or other high-performance polymers demanding precision.

Important Note: Materials to Avoid (Ferrous Metals like Steel and Iron)

This is crucial: PCD inserts (and PCD tooling in general) are generally NOT suitable for machining ferrous metals. This includes all types of steel, stainless steel, cast iron, and other iron-based alloys.

Why not? At the high temperatures generated during cutting steel or iron, a chemical reaction occurs between the carbon in the diamond structure of PCD and the iron in the workpiece material. This reaction causes rapid tool wear called diffusion wear, essentially dissolving the diamond edge.

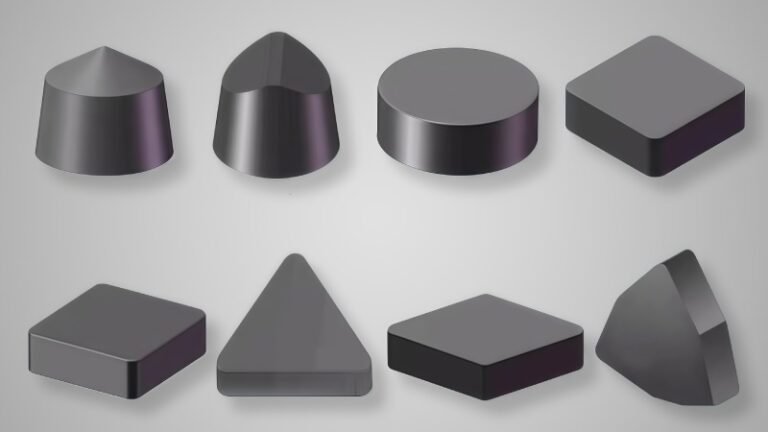

For machining these harder ferrous materials, other tool materials like Cubic Boron Nitride (CBN) or specific grades of coated carbide are the preferred choices, as they remain stable at high temperatures when cutting iron and steel. Always choose the right tool material for the workpiece!

Which Machining Processes Excel with PCD Inserts?

Now that we know what materials PCD works well with, which specific machining jobs or processes really benefit from using PCD inserts?

PCD inserts are particularly effective in high-speed finishing operations, turning and milling of non-ferrous metals and abrasive non-metallics (especially face milling), precision boring (using insert-based boring bars), and certain grooving tasks on suitable materials. While PCD technology is also used for reaming and specialized drilling, these often involve brazed PCD tips rather than standard inserts. The ability of PCD inserts to maintain a sharp edge at high speeds makes them ideal for processes where surface quality and dimensional accuracy are critical.

Let’s break down these processes where PCD inserts often make a significant difference.

High-Speed Finishing Operations

One of the standout areas for PCD is high-speed finishing. This means taking a final, light cut on a workpiece at very fast speeds, often using turning or milling tools equipped with PCD inserts, to achieve the desired size and surface quality.

Think about why PCD works so well here. Because PCD is extremely hard and resists wear, it can maintain a very sharp cutting edge even when moving quickly through the material (especially non-ferrous metals like aluminum). It also handles heat well. This combination allows machines to run much faster during the finishing pass compared to using standard carbide tools. The result?

• Excellent Surface Finish: PCD can produce incredibly smooth, often mirror-like surfaces (low Ra values), sometimes eliminating the need for later polishing or grinding steps. Imagine achieving a brilliant finish on aluminum decorative trim in a single machine pass.
• Faster Cycle Times: Completing the finishing step faster means the entire part can be made more quickly, boosting productivity in manufacturing.

Achieving optimal results in high-speed finishing depends greatly on the specific material, the machine’s capability, and the chosen PCD grade and geometry. For precise cutting speeds and feed rates, it’s always best practice to consult the recommendations provided by your tooling supplier.

Turning Non-Ferrous and Non-Metallic Parts with PCD Inserts

Turning involves rotating a workpiece while a cutting tool, typically a PCD insert held in a toolholder, moves along its length to shape it. PCD inserts are frequently used for turning parts made from the materials we discussed earlier – primarily non-ferrous metals and abrasive non-metallics.

In turning, the tool is often in continuous contact with the material. If the material is abrasive (like high-silicon aluminum or composites), a standard tool wears down quickly. PCD’s exceptional wear resistance means it lasts much longer in these continuous cuts. This is a major advantage in automated or high-volume turning operations, such as producing aluminum automotive pistons or composite rollers, as it minimizes downtime needed for insert changes and ensures consistent part quality over long production runs.

Milling with PCD Inserts (Especially Face Milling and Finishing Passes)

Milling uses a rotating cutter with multiple teeth to remove material. While PCD can be used in various milling operations (e.g., solid PCD end mills), it truly excels in face milling and finishing passes on appropriate materials, often utilizing milling cutters fitted with PCD inserts.

• Face Milling: This process creates large, flat surfaces. Using a milling cutter fitted with PCD inserts allows for machining flat surfaces on aluminum (like engine block decks or gearbox casings) or even abrasive non-metallics with exceptional flatness and surface finish, often at very high speeds.
• Finishing Passes: Similar to high-speed finishing in turning, PCD is used for final milling passes to achieve precise dimensions and smooth surfaces. Its ability to withstand high speeds while maintaining a sharp edge ensures efficient and high-quality results.

Using PCD in these milling applications can significantly increase the metal removal rate (MRR) during finishing compared to other tool types, leading to shorter machining times. As with finishing, specific cutting parameters for milling with PCD vary, so checking supplier data for the PCD grade and material combination is recommended.

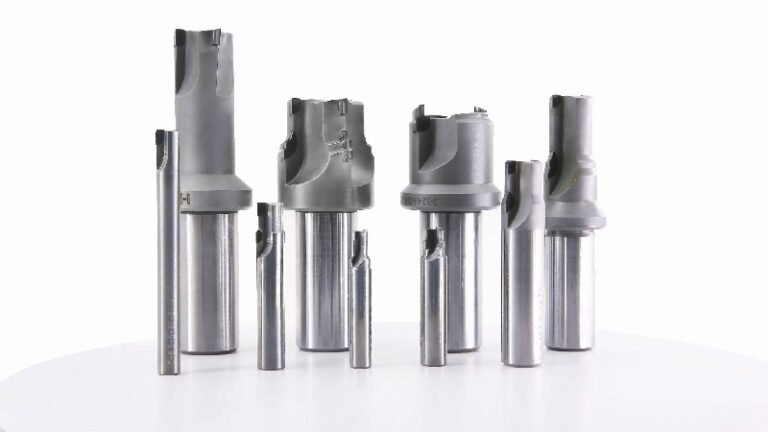

Boring with PCD Inserts and Reaming with PCD Tools

Boring is the process of enlarging an existing hole, frequently performed using boring bars that hold indexable PCD inserts for high precision. Reaming, used to bring a hole to its exact size and improve its finish, typically employs specialized reamers often featuring brazed PCD tips due to the need for rigidity, though insert-based reaming systems exist.

This is where PCD’s wear resistance becomes critical again. Because PCD wears down very slowly, it can maintain its cutting edge size accurately for a long time. This ability to “hold size” is essential when boring or reaming holes that require very tight tolerances (meaning very small allowable variations in diameter).
Furthermore, the sharp, durable edge of PCD produces excellent surface finishes inside the bored or reamed holes. This is vital for applications like the cylinder bores in aluminum engine blocks or precision holes in hydraulic valve bodies, where both size accuracy and surface quality are crucial for performance.

Grooving with PCD Inserts and Specialized PCD Drilling Tools

PCD technology also finds use in more specialized operations like grooving, often performed with tools using PCD inserts, and certain drilling tasks, which typically rely on specialized PCD-tipped drills.

• Grooving: This involves cutting narrow channels or grooves into a workpiece. The sharp, durable edge of PCD helps create clean grooves with accurate dimensions, especially in non-ferrous or abrasive materials where tool wear could otherwise quickly change the groove’s shape or size. Think of cutting O-ring grooves in aluminum components using PCD grooving inserts.
• Specialized Drilling: While standard twist drills are often made of High-Speed Steel (HSS) or carbide, PCD-tipped drills or drills with specialized PCD edges (distinct from indexable inserts) are used for high-volume or demanding drilling operations in highly abrasive materials. Examples include drilling thousands of precise holes in aircraft fuselage sections made of composite materials (like CFRP) or stacks of aluminum and composite layers, where tool life is paramount. PCD provides the necessary wear resistance to complete these tasks efficiently using these specialized drill forms.

Where Are PCD Inserts Most Commonly Applied in Industry?

We’ve seen the materials and processes PCD handles well, but where exactly in the real world are PCD inserts making a difference?

PCD inserts find widespread use in high-volume and precision industries, most notably Automotive manufacturing (for aluminum engine parts and wheels), Aerospace (machining composites and light alloys), Woodworking (cutting abrasive engineered woods like MDF), and Electronics (for drilling and routing circuit boards – often using specialized PCD micro-tools). These industries rely on PCD for its performance on challenging materials and in demanding production environments where indexable inserts offer benefits.

Let’s look closer at how these key industries utilize PCD tooling.

Automotive Manufacturing (Engine Blocks, Pistons, Wheels)

The automotive industry is arguably one of the largest users of PCD tooling, heavily featuring PCD inserts. This is driven by the extensive use of lightweight aluminum alloys (often containing abrasive silicon) and the need for high-volume, cost-effective production. You’ll find PCD inserts busy at work machining critical components such as:

• Engine Blocks: Performing face milling on cylinder head decks, finish boring cylinder bores to precise sizes, and milling various other surfaces on aluminum blocks, often using cutters and boring bars equipped with PCD inserts. PCD ensures the required flatness, surface finish, and dimensional accuracy consistently over millions of parts.
• Pistons: Turning ring grooves and finishing the outer diameters of aluminum pistons using specialized PCD turning and grooving inserts. The wear resistance of PCD is essential for maintaining tight tolerances and achieving smooth finishes required for engine performance and longevity.
• Wheels: Achieving bright, mirror-like finishes on aluminum alloy wheels through high-speed turning and milling operations utilizing PCD inserts.
• Other Parts: Machining gearbox housings, connecting rods, brake components, and various other aluminum parts where long tool life and fast cycle times are crucial for meeting production demands, often efficiently met using PCD inserts.

In this industry, the extended tool life offered by PCD directly translates to reduced machine downtime for tool changes, significantly lowering manufacturing costs per part, often adhering to standards set by organizations like SAE International⁴.

Aerospace Industry (Composite Structures, Light Alloys)

The aerospace industry relies heavily on advanced materials like carbon fiber reinforced polymers (CFRP) and specialized light alloys (like aluminum-lithium). Machining these materials presents unique challenges due to their abrasiveness or specific cutting properties, making PCD an essential tool technology, often applied via inserts for milling and turning or specialized tipped tools for drilling and routing.

• Composite Machining: Milling, routing, and drilling large composite structures like fuselage sections, wing skins, and stabilizer components. PCD tools can handle the extreme abrasiveness of carbon fibers, preventing rapid tool wear and ensuring the structural integrity of the part by minimizing issues like delamination (layer separation), using inserts for surface machining and tipped tools for hole creation.
• Light Alloy Machining: Efficiently machining aluminum alloys used for structural components, where high precision and excellent surface finish are paramount, often achieved using PCD inserts.
• Drilling Operations: Performing high-volume drilling of rivet holes in composite and aluminum stack-ups (layers of different materials), where PCD’s durability ensures hole quality consistency across thousands of holes, primarily using PCD-tipped drills.

Here, precision and reliability are critical. PCD helps meet the stringent quality standards of the aerospace sector, often guided by bodies like the Aerospace Industries Association (AIA)⁵.

Woodworking and Furniture Production (Laminates, MDF)

While perhaps less obvious, the woodworking and furniture industry significantly benefits from PCD tooling, frequently using PCD inserts in cutterheads or specialized PCD-tipped router bits and saw blades, especially when processing engineered wood products known for their abrasiveness.

• Engineered Woods: PCD inserts and PCD-tipped tools (like router bits and saw blades) are used extensively for cutting and shaping Medium Density Fiberboard (MDF), particleboard, High-Pressure Laminates (HPL), and laminate flooring. The glues and resins in these materials rapidly wear down conventional tools.
• High-Volume Production: In large-scale furniture or flooring manufacturing, PCD’s drastically longer tool life compared to carbide means fewer tool changes, less downtime, and more consistent cut quality over long production runs. This leads to higher efficiency and lower operating costs. Common applications include shaping cabinet doors, routing decorative edges using tools often fitted with PCD inserts or tips, and sizing large panels.

Electronics Manufacturing (PCB Drilling/Routing)

The electronics industry uses PCD for precision machining operations, particularly on Printed Circuit Boards (PCBs), almost exclusively employing specialized PCD micro-drills and routers with brazed tips, not typically inserts.

• PCB Materials: PCBs are typically made from composite materials like FR-4, which consists of woven fiberglass cloth impregnated with an epoxy resin. The glass fibers make this material very abrasive.
• Micro-Drilling: Drilling the tiny holes (vias) that connect different layers of a PCB requires extreme precision and tools that resist wear. PCD micro-drills (with brazed tips) provide the necessary durability and edge retention to drill millions of clean, accurately placed holes in abrasive PCB substrates.
• Routing and Depaneling: PCD routers (typically solid or tipped form) are used to cut PCBs out from larger panels (depaneling) or to create slots and cutouts. Their wear resistance ensures clean edges without fraying the fiberglass, maintaining the integrity of the board.

In electronics, the scale of production is massive, and the feature sizes are tiny. Specialized PCD tooling enables the required precision and tool life to make PCB manufacturing feasible and cost-effective.

What Are the Key Advantages Driving PCD Insert Usage?

Given its specific uses, what really makes PCD inserts stand out – what are its main benefits, particularly in this replaceable format?

The primary advantages driving PCD insert usage are its exceptional wear resistance leading to significantly longer tool life (especially compared to carbide inserts), the ability to achieve superior surface finishes on target materials, its high thermal conductivity which helps manage heat at the cutting edge, and its capability to operate at much higher cutting speeds and feeds compared to traditional tooling like carbide. These benefits, combined with the practicality of the insert format, translate to increased productivity and often lower overall costs in suitable applications.

Let’s dive into each of these key advantages.

Exceptional Wear Resistance and Extended Tool Life

Perhaps the most significant advantage of PCD is its incredible hardness, second only to natural diamond. This hardness translates directly into outstanding wear resistance, especially when cutting abrasive materials (like the silicon in aluminum alloys, composites, or the resins in MDF).

What does this mean in practice?

• Massively Increased Tool Life: Compared to conventional tungsten carbide inserts, PCD inserts can last dramatically longer before needing replacement or indexing. It’s not uncommon to see tool life increases of 10 times, 50 times, or even over 100 times in demanding applications like machining high-silicon aluminum or engineered wood. Imagine using one cutting edge for weeks or months instead of just days or hours!
• Reduced Downtime: Fewer insert changes mean machines spend less time stopped and more time producing parts. This significantly boosts overall productivity, especially in high-volume manufacturing like the automotive sector.
• Consistent Quality: Because PCD tools wear down much more slowly, they maintain their shape and sharpness longer. This results in more consistent part dimensions and quality over an entire production run using the same cutting edge.
• Lower Cost Per Part: While a single PCD insert costs more initially than a carbide one, its vastly extended life often leads to a lower overall tooling cost for each part produced when you factor in the reduced number of inserts used and the savings from less downtime.

Think of it like using a cutting blade made of an incredibly durable material that simply refuses to get dull quickly, even when cutting tough stuff.

Superior Surface Finish Quality on Target Materials

Another major benefit of using PCD inserts is the exceptional surface finish they can achieve on the materials they are designed for (non-ferrous metals and non-metallics).

This happens for a couple of reasons:

• Sharp, Durable Edge: PCD can be honed to an extremely sharp cutting edge. Crucially, due to its wear resistance, it maintains this sharpness for a long time during cutting. A consistently sharp edge shears the material cleanly rather than tearing or plowing through it.
• Low Friction: PCD generally has low friction against materials like aluminum, which helps prevent material from sticking to the tool edge (built-up edge) and smearing across the workpiece surface.

The result is often a very smooth, sometimes even mirror-like finish (measured as a low Ra value). This high-quality finish can sometimes eliminate the need for secondary operations like grinding, polishing, or burnishing, saving time and manufacturing steps. This is particularly valued in applications like finishing automotive wheels or creating precise sealing surfaces on components.

High Thermal Conductivity for Heat Dissipation

Cutting metal or other materials generates a lot of heat right at the point where the tool meets the workpiece. Managing this heat is crucial for tool life and part quality. PCD has another advantage here: extremely high thermal conductivity⁶.

What does that mean? It means PCD is very good at letting heat flow through it quickly. Think of it like a heat superhighway. The heat generated at the tiny cutting edge doesn’t get trapped there; instead, it’s rapidly conducted away from the tip, flowing into the body of the PCD insert and then into the tool holder and machine.

This efficient heat removal helps to:

• Protect the Cutting Edge: Keeping the edge cooler prevents it from softening or degrading due to excessive temperatures.
• Enable Higher Speeds: Because heat is managed effectively, it allows PCD tools to operate at higher cutting speeds without overheating.
• Improve Workpiece Quality: Less heat buildup at the cutting zone can reduce the risk of thermal damage or distortion to the workpiece material.

Capability for Significantly Higher Cutting Speeds and Feeds

Building upon the advantages above – wear resistance, edge retention, and heat management – PCD inserts allow for dramatically higher cutting speeds and feed rates compared to traditional carbide tools when machining suitable materials.

• Cutting Speed: This is how fast the tool edge moves across the workpiece surface (often measured in meters per minute or surface feet per minute).
• Feed Rate: This is how quickly the tool advances into or along the workpiece (often measured in millimeters per revolution or inches per minute).

Because PCD can withstand the demands, manufacturers can often run their machines much faster when using PCD on non-ferrous metals or abrasive non-metallics. This capability directly results in:

• Reduced Cycle Times: Making parts faster means more parts can be produced in the same amount of time.
• Increased Productivity: Higher machine output leads to greater overall manufacturing efficiency.

It is crucial to remember that the exact achievable cutting speeds and feeds depend heavily on factors like the specific material being cut, the rigidity and power of the machine tool, the specific grade of PCD being used, and the type of operation. Therefore, always consult the tooling supplier’s technical data and recommendations to find the optimal parameters for your application.

Are There Limitations or Disadvantages to Consider When Using PCD Inserts?

While PCD inserts offer great benefits, are there any downsides or things to watch out for when using them?

Yes, PCD tooling, including inserts, does have limitations. Key disadvantages include a significantly higher initial purchase cost compared to carbide inserts, a relative brittleness making the insert edge sensitive to impact or interrupted cuts, chemical reactivity that prevents its use on steel and iron, and the need for careful handling and precise selection of the correct PCD grade for the specific insert application.

Understanding these limitations is crucial for deciding if a PCD insert is the right choice for your specific needs.

Higher Initial Tooling Cost Compared to Carbide Inserts

There’s no getting around it: PCD inserts and tools generally cost significantly more to buy upfront compared to their tungsten carbide counterparts⁷. A single PCD insert can be many times more expensive than a similar carbide insert.

This higher cost stems from the complex manufacturing process required to sinter fine diamond particles together under extreme heat and pressure. However, it’s important to weigh this initial investment against the potential long-term savings. As we saw in the advantages, the vastly extended tool life of PCD in the right applications (like machining abrasive aluminum or composites) often results in a lower overall tooling cost per finished part when you factor in the reduced number of inserts used and the savings from less downtime. But, the initial budget requirement is undeniably higher.

Relative Brittleness and Sensitivity of PCD Insert Edges to Shock/Impact

While diamond is incredibly hard, it’s also relatively brittle. Think of glass – it’s very hard and resists scratching, but it can shatter or chip easily if dropped or hit sharply. PCD behaves somewhat similarly. It doesn’t have the same toughness (resistance to fracture) as tungsten carbide.

This brittleness has several implications for PCD inserts:

• Sensitivity to Impact: The cutting edge of a PCD insert is susceptible to damage from sudden impacts or shocks. This makes them less suitable for heavy rough machining operations or interrupted cuts – situations where the cutting edge repeatedly slams into the workpiece as it rotates (like milling across slots or holes). They perform best under stable, continuous cutting conditions.
• Careful Handling Required: Dropping a PCD insert or bumping its delicate cutting edge against a hard surface can easily cause chipping or fractures, rendering the tool useless. Careful handling during setup, storage, and operation is essential.

Chemical Reactivity with Ferrous Materials at High Temperatures

As mentioned when discussing materials, PCD has a significant limitation: it reacts chemically with iron at the high temperatures generated during machining. This applies to all ferrous materials, including steel, stainless steel, cast iron, and other iron-based alloys.

The carbon in the PCD tool’s diamond structure essentially tries to bond with the iron in the hot workpiece. This process, called diffusion wear, rapidly breaks down the cutting edge. Consequently, PCD inserts are generally unsuitable and uneconomical for machining these common metals. For ferrous materials, other tool materials like Cubic Boron Nitride (CBN) or appropriate grades of coated carbide inserts are the necessary choice.

Requires Careful Handling and Application-Specific PCD Grade Selection for Inserts

Success with PCD tooling, especially inserts, requires more than just using it on the right material; it also demands attention to detail.

• Careful Handling: Reinforcing the point about brittleness, these tools must be handled with care to prevent edge chipping before they even reach the machine.
• Grade Selection is Crucial: PCD isn’t a single entity. It comes in various grades, which differ mainly in the size of the diamond grains used and sometimes the type or amount of binder material holding them together. This selection is critical when choosing a PCD insert:
  • Finer grain sizes generally produce better surface finishes but may be slightly less tough.
  • Coarser grain sizes offer increased toughness and are often better for materials with higher abrasion resistance or slight interruptions, but might not give as fine a finish.
• Matching Grade to Application: Selecting the wrong PCD grade for your specific material (e.g., the exact type of aluminum alloy or composite) and application (e.g., finishing vs. light roughing) can lead to poor performance, reduced tool life, or even premature tool failure when using a PCD insert.

Because of this complexity, consulting with experienced tooling suppliers is highly recommended. They can help you choose the most effective and economical PCD grade and geometry for your particular machining task, ensuring you get the best results from your investment.

Conclusion

In summary, PCD inserts are specialized, high-performance cutting tools offering remarkable benefits for specific tasks. They provide exceptional tool life and surface finish when machining non-ferrous metals and abrasive non-metallics at high speeds, typically employed in indexable toolholders. While they come with a higher initial cost and specific limitations, particularly their unsuitability for steel and iron, understanding where and how to apply them effectively can lead to significant gains in productivity and efficiency in demanding industries like automotive, aerospace, woodworking, and electronics. Choosing the right PCD tool involves considering the material, the process, and the specific application requirements.
