PCD Tools For Gear-Box Oil Pan Machining

PCD Tooling Solution for High-Efficiency Gearbox Oil Pan Machining

Optimize your gearbox oil pan machining operations with this dedicated Polycrystalline Diamond (PCD) tooling solution. Designed specifically to address the challenges of processing automotive oil pans – typically cast aluminum alloys – these tools leverage the exceptional properties of PCD to deliver significant improvements in cycle time, surface quality, tool life, and overall process reliability.

The PCD Advantage in Aluminum Oil Pan Processing

Gearbox oil pans require both rapid material removal for roughing and high-precision finishing for critical features. PCD is the superior cutting material for this application due to its:

• Extreme Hardness & Unmatched Wear Resistance: Enables dramatically higher cutting speeds and feed rates compared to traditional carbide tools when machining abrasive aluminum alloys, leading to substantial reductions in cycle times.
• Low Friction & Anti-Adhesion Properties: Effectively prevents the formation of built-up edge (BUE), a common issue when machining aluminum. This results in superior surface finishes, dimensional accuracy, and consistent, uninterrupted cutting.
• Exceptional Tool Longevity: PCD tools significantly outlast their carbide counterparts in high-volume aluminum machining, drastically reducing the frequency of tool changes, minimizing machine downtime, and lowering overall tooling expenditure per component.

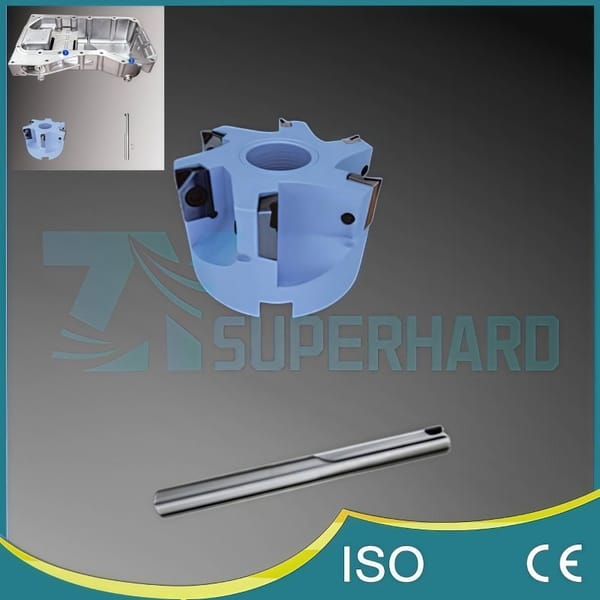

Step 1: Rapid Rough Finishing with the PCD Face Milling Cutter

The machining process typically begins with our high-performance PCD face milling cutter, designed to:

• Efficiently Remove Casting Irregularities: Quickly and effectively mills away casting skin, flash, parting lines, and any surface unevenness from the oil pan’s critical mounting face.
• Optimize Surface Preparation: Achieves a more consistent and improved surface roughness (Ra) compared to raw castings, creating an ideal, flat surface for sealing gaskets and subsequent assembly.
• Maximize Productivity: The combination of high metal removal rates and extended blade life directly contributes to higher throughput and reduced production bottlenecks for this roughing stage.

Step 2: Precision Pin Hole Finishing with the PCD Reamer

For achieving tight tolerances on critical locating features like pin holes, the specialized PCD reamer delivers:

• High-Speed Precision Reaming: Capable of finishing holes to exacting dimensional and geometric tolerances (roundness, cylindricity) at high cutting speeds, often in the range of 200-500 m/min.
• Superior Surface Finish: Features meticulously prepared, polished PCD cutting edges that produce exceptionally smooth hole surfaces with very low roughness values (Ra). This is crucial for ensuring correct dowel pin fitment, alignment accuracy, and long-term joint reliability.
• Enhanced Process Stability & Safety: Delivers highly consistent and repeatable hole quality from part to part, significantly enhancing process security, minimizing the risk of scrap or rework, and ensuring reliable assembly later.

Integrated Solution Benefits

By implementing this dedicated PCD tooling approach for oil pan machining, manufacturers can achieve:

• Significantly Reduced Machining Cycle Times: Leading to increased production capacity.
• Substantially Lower Tooling Costs Per Part: Due to vastly extended tool life.
• Improved and Consistent Component Quality: Superior surface finishes and dimensional accuracy.
• Increased Manufacturing Process Reliability: Stable, predictable performance reduces downtime and waste.

Tailored Tooling Solutions

Understanding that each oil pan design and machining setup has unique characteristics, these PCD face mills and reamers are often supplied as non-standard, application-specific tools. We specialize in customizing:

• Cutter geometry (rake angles, clearance angles)
• Number of teeth (for milling cutters) or flutes (for reamers)
• Overall tool dimensions and tolerances
• Shank, arbor, or interface types to match your machine spindle and tool holders.

Contact our automotive machining application specialists today to explore how our tailored PCD solutions can elevate your gearbox oil pan processing.
