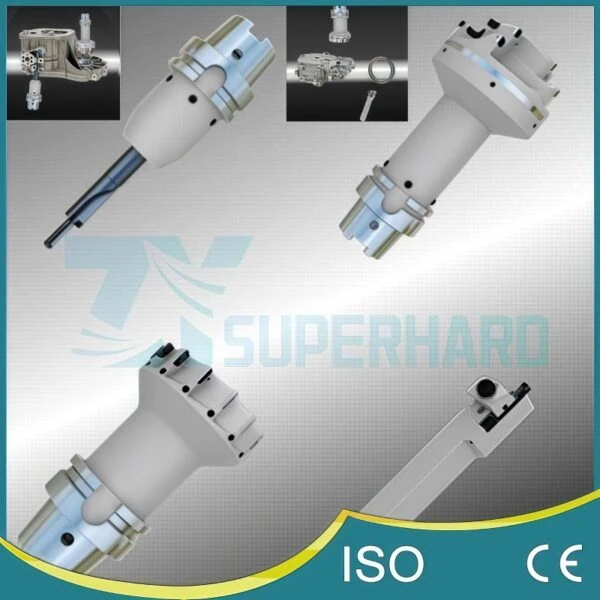

PCD/PCBN Tools For Gearbox System Housing/synchronizer

Integrated PCD & PCBN Tooling for Complete Gearbox System Machining

Master the challenges of machining complex gearbox components with this comprehensive suite of Polycrystalline Diamond (PCD) and Polycrystalline Cubic Boron Nitride (PCBN) tooling. This solution provides precisely engineered cutters optimized for both the high-efficiency processing of aluminum alloy gearbox housings and the demanding, wear-intensive machining of harder synchronizer components, delivering superior precision, productivity, and tool life across the board.

Precision PCD Tooling for Aluminum Gearbox Housings

For the primary gearbox housing structures, typically made from aluminum alloys, specialized PCD tools offer unmatched performance:

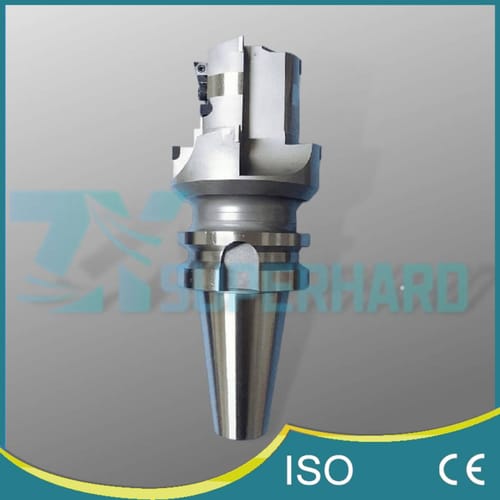

• Mounting Hole Finishing (PCD Reamers/Drill Reamers): Feature sharp PCD cutting edges, often incorporating polished front blade geometries, ensuring excellent cutting action and smooth chip evacuation. When paired with high-performance tool holder systems like HSK heat shrink shanks, they provide robust clamping force and enable quick tool changes, leading to high dimensional accuracy, superior surface finishes, reduced tool inventory, and enhanced handle reusability.
• Bearing Mounting Hole Machining (Specialized PCD Tools): Designed to counteract vibration, especially critical when machining thin-walled housing sections with lower rigidity. These tools often employ close-toothed designs and specially treated cutting edges. Integrated internal cooling channels enhance chip removal deep within the bore and extend tool life, while G2.5 dynamic balancing (potentially with integrated adjustment) guarantees exceptional stability during high-speed rotation.
• Installation Surface Finishing (PCD Face Mills): Utilize robust whole-welded, dense-tooth face milling cutter constructions. This design maximizes cutting edges engaged, significantly boosting metal removal rates while ensuring exceptional operational stability. Precision grinding ensures all cutting edge end jumps and diameter jumps are controlled within 0.003 mm. Pre-set G2.5 dynamic balancing minimizes spindle wear during high-speed finishing passes and contributes to long-term process reliability.

Durable PCBN Tooling for Hard Material Synchronizer Grooving

For precision grooving operations on harder synchronizer ring materials, typically steel alloys or similar wear-resistant metals, PCBN tooling provides the necessary durability and performance:

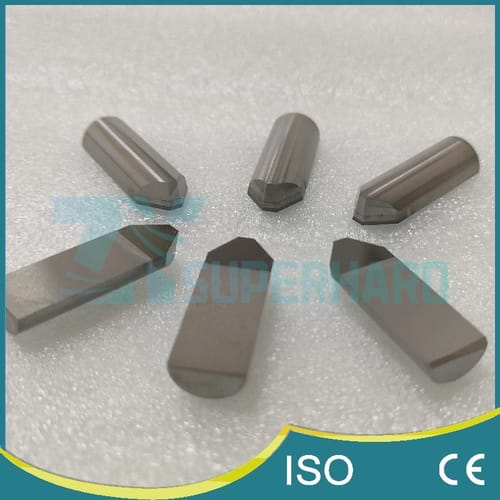

• High-Performance PCBN Grooving Cutters: Employ cutting inserts made from highly wear-resistant, collapse-resistant, and chemically stable PCBN composite materials. This allows for efficient and precise slotting of tough materials where PCD or carbide would wear rapidly.
• Optimized Clamping for Stability: Incorporate an optimized tool pressing or clamping mechanism engineered to deliver rapid, secure, and strong insert seating force. This guarantees operational stability and precision during the demanding grooving process.
• Exceptional Cost-Performance in Hard Machining: The combination of high cutting efficiency and significantly extended tool life when machining hard ferrous materials results in excellent overall cost-performance and process economy for these critical features.

Synergistic Benefits for Gearbox Production

By strategically applying the optimal cutting material (PCD for aluminum, PCBN for hard metals) and tailored tool designs, this integrated solution delivers:

• Optimized Machining on Mixed Materials: High speed and precision on aluminum components, combined with high wear resistance and accuracy on harder parts.
• Superior Overall Component Quality: Consistently meeting tight tolerances for bores, faces, and critical grooves.
• Enhanced Machining Stability & Reliability: Features like dynamic balancing, vibration-damping designs, and secure clamping minimize process variability.
• Improved Manufacturing Efficiency: Reduced cycle times, longer tool life, and potential for process integration contribute to higher overall equipment effectiveness (OEE).

Custom-Engineered for Your Gearbox Components

This represents a sophisticated tooling strategy where individual PCD and PCBN tools are custom-designed based on your specific gearbox housing and synchronizer part prints, material specifications, machine tool capabilities, and production volume requirements.

Contact our transmission component machining experts to develop a customized PCD/PCBN tooling strategy that significantly boosts your productivity and finished part quality.
