PCD Face Mill Cutters

Achieve mirror finishes (Ra < 0.4) and massive material removal rates in a single pass. Engineered for high-speed aluminum machining, these dynamically balanced, indexable PCD face mills outlast carbide by up to 50x—drastically slashing your cycle times and long-term cost per part. Custom diameters and wiper insert configurations available.

Insert Material
Premium Polycrystalline Diamond (PCD)
Body Material
Lightweight Aluminum Alloy / High-Strength Steel
Diameter Range
50mm to 250mm+ (Customizable)
Mounting Compatibility
Standard Shell Mill Bore (Seamlessly pairs with BT, CAT, HSK, and SK face mill arbors)
Workpiece Material
Aluminum Alloys, Copper, Brass, Non-Ferrous Metals, Composites
Service
OEM/ODM Available, Custom Insert Configurations
Send Inquiry
Live Chat
Categories: , , Tags: , , , ,

Maximize Efficiency in Non-Ferrous Machining

Our series of high-performance indexable PCD face mills is engineered to revolutionize your broad surface flattening operations. Specifically designed for the automotive, aerospace, and precision engineering sectors, these cutters drastically outperform standard carbide tools when decking large aluminum castings like engine blocks and cylinder heads. They deliver exceptional material removal rates (MRR) while simultaneously achieving mirror-like surface finishes in a single pass.

Tooling Configurations

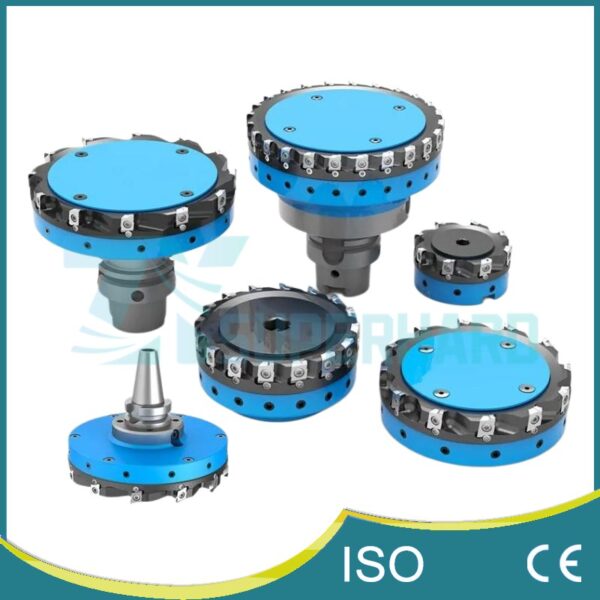

  • Lightweight Cutter Bodies: The distinct blue bodies are precision-manufactured from high-strength, lightweight aluminum alloys (or durable steel for smaller diameters). This reduces the overall tool weight, minimizing spindle load and vibration during ultra-high-speed RPM machining.
  • Indexable PCD Inserts: Equipped with replaceable PCD inserts or cartridges, allowing for quick edge changes directly on the CNC machine without removing the entire tool body, drastically lowering your long-term cost per part.
  • Wiper Insert Integration: Can be configured with dedicated wiper inserts to physically smooth out feed marks, consistently achieving superior surface roughness (Ra < 0.4 microns).
  • Versatile Mounting: Features standard bore sizes and keyways designed to seamlessly pair with your existing BT, CAT, HSK, or SK face mill arbors for rigid and accurate tool holding.

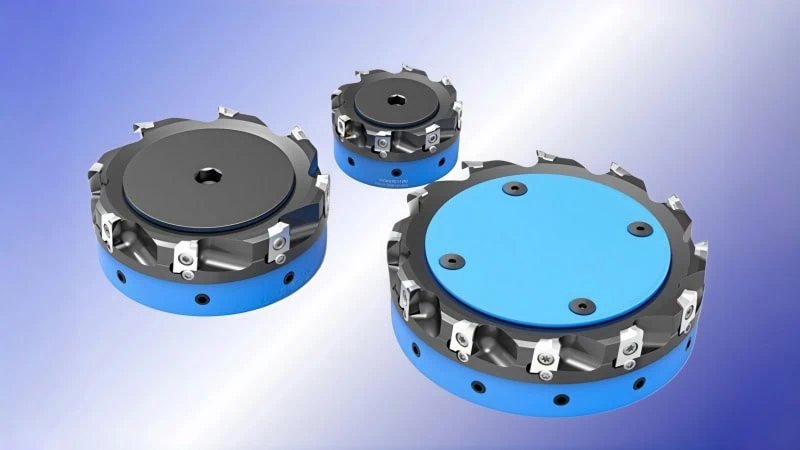

pcd face mill cutters

Material Suitability

Optimized for high-speed facing of non-ferrous and abrasive materials:

  • Aluminum Alloys: Cast aluminum, high-silicon aluminum (e.g., A390, ADC12), forged aluminum.
  • Other Non-Ferrous Metals: Copper, Brass, Magnesium alloys, Bronze.
  • Composites: Carbon Fiber Reinforced Polymers (CFRP), Glass Fiber, and abrasive plastics.

Customization & OEM Specifications

We provide bespoke face milling solutions tailored exactly to your production line requirements:

  • Custom Diameters & Pitch: From standard 50mm shells to massive custom diameters. The number of teeth (Z-number) can be fine-tuned for fine pitch, medium pitch, or coarse pitch depending on your machine’s horsepower and desired feed rates.
  • Precision Dynamic Balancing: All custom cutter bodies are dynamically balanced to strict tolerances (e.g., G2.5) to ensure stable, vibration-free cutting at maximum spindle speeds.
  • Complete Tooling Packages: We design the cutter body, the specific insert geometry, and the chipbreaker styles based on your CAD drawings or component blueprints.

Looking to reduce cycle times on your next large aluminum machining project? Contact us today with your specifications or drawings to request a quote for your custom PCD face milling tooling.
