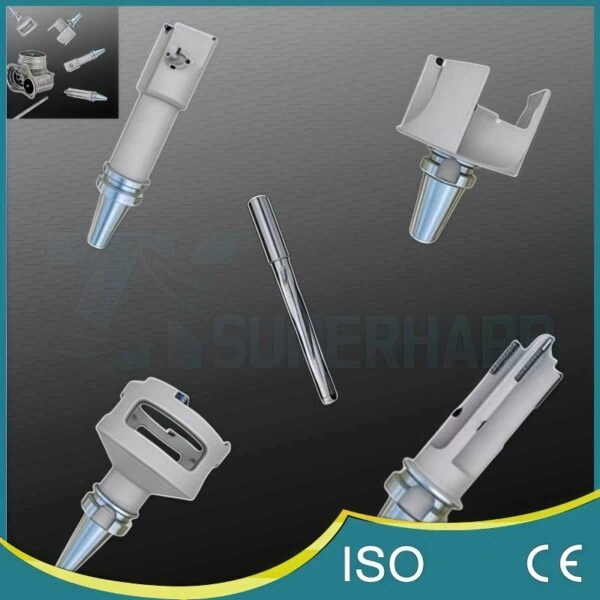

Diamond PCD Tools Of Processing Throttle Valve

Diamond PCD Tools Of Processing Throttle Valve

High-efficiency PCD tooling solution for aluminum throttle valve processing. Innovative slot cutters save >70% time; custom milling, boring, and reaming tools deliver precision, stability, and productivity gains.

Additional information

Tool Type

PCD Tools

Application

Throttle Valve Processing

Work-piece Material

Aluminum Alloys

Key Benefits

Time-saving, High Precision, Efficiency

Description

Revolutionizing Throttle Valve Machining with Integrated PCD Tooling Solutions

Transform your aluminum alloy throttle valve production with this advanced Polycrystalline Diamond (PCD) tooling solution. Moving beyond standard cutters, this is a suite of custom-engineered, high-performance PCD tools designed collaboratively to streamline your entire machining process, dramatically enhancing cycle times, precision, component quality, and overall manufacturing efficiency.

The PCD Advantage in High-Volume Aluminum Processing

Throttle valve manufacturing demands both speed and precision on aluminum alloys. PCD tooling is the key enabler, offering:

  • Extreme Wear Resistance: Facilitates significantly higher cutting speeds and feeds, essential for reducing cycle times in mass production.
  • Superior Thermal Conductivity & Low Friction: Prevents built-up edge (BUE), ensures excellent surface finishes, and maintains tight tolerances throughout long production runs.
  • Unmatched Tool Life: Vastly outlasts carbide tooling, minimizing tool changes, reducing machine downtime, and significantly lowering cost-per-part.

Innovation Spotlight: Tailored Tools for Peak Performance

This solution integrates several innovative PCD tools designed to overcome specific throttle valve machining challenges:

  • PCD Forming Slot Cutter (Outer Grooves): Features a unique design potentially utilizing the tool’s inner ring geometry to machine external circumferential grooves. This innovative approach has demonstrated time savings exceeding 70% compared to conventional outer ring milling methods. An indexable design allows for quick, safe replacement of worn cutting edges.
  • PCD Milling Cutter (Cylindrical Features): A specialized milling cutter engineered to potentially replace separate CNC lathe operations for cylindrical sections of the throttle body. This consolidates processes, reduces workpiece handling and clamping errors, enhances concentricity, and boosts overall efficiency. Tools are pre-set dynamically balanced to G2.5 level for reduced vibration at high speeds.
  • PCD Combination Boring Tool (Precision Bores): Often designed as a rough-and-finish tool incorporating a fine-tuning precision boring head. This enables high-precision finishing (meeting strict roundness, cylindricity, and dimensional tolerances) directly from pre-cast holes in potentially a single pass or setup, simplifying the process significantly.
  • PCD Molding Reamer (Complex/Deep Holes): An intelligently designed multi-step reamer, often capable of finishing complex hole geometries or features in a single shot (“a knife to complete”). Its geometry is specifically optimized to counteract vibration tendencies often caused by insufficient machine tool or fixture rigidity in challenging reaming operations, thereby improving process security and efficiency.
  • High-Performance PCD Reamers (Standard Holes): The solution also includes standard-design PCD reamers (typically carbide body with PCD edges) for highly efficient finishing of simpler through-holes or blind holes requiring excellent precision and surface finish at high speeds and feeds.

Transformative Results for Your Production Line

Implementing this integrated PCD tooling strategy delivers comprehensive benefits:

  • Drastic Cycle Time Reduction: Achieved through higher cutting parameters and process consolidation.
  • Significant Manufacturing Cost Savings: Resulting from reduced machining time, fewer process steps, less handling, and exceptionally long tool life.
  • Consistently Superior Component Quality: Meeting and exceeding tight tolerances for bores, surfaces, and geometric features.
  • Enhanced Manufacturing Stability & Safety: Predictable tool performance and vibration reduction improve overall process security.

Collaborative Design for Your Specific Needs

These advanced tooling solutions are inherently custom-engineered. We partner with you, analyzing your specific throttle valve drawings, material specifications, existing machinery, cycle time targets, and quality requirements to design and deliver the optimal PCD tool package.

Contact our automotive component machining specialists today to explore how a tailored PCD solution can revolutionize your throttle valve production.
