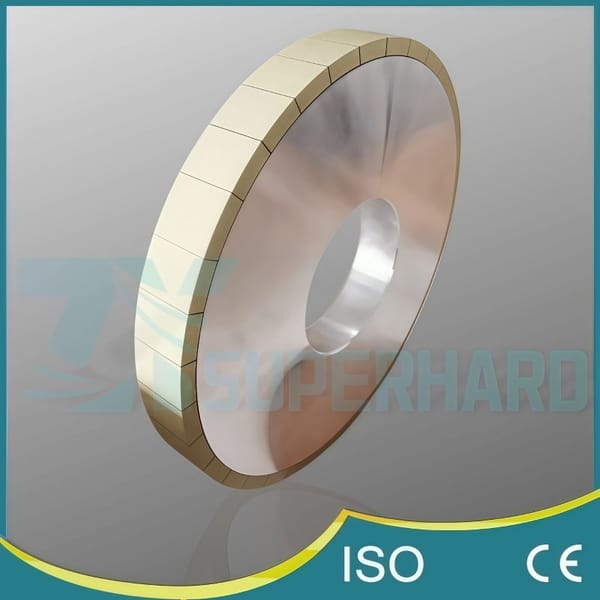

Diamond Cylindrical Grinding Wheels

Diamond Cylindrical Grinding Wheels

Vitrified diamond wheels engineered for precision cylindrical grinding of superhard materials. Delivers efficient stock removal, superior accuracy, and long life due to porous, self-sharpening bond. Customizable.

Additional information

Bond

vitrified

Brand

ZY

Specifications

D350-H127-T40-X10, Diverse can be customized

Description

High-Performance Vitrified Diamond Wheels for Precision Cylindrical Grinding of Superhard Materials

ZYsuperhard’s Vitrified Bond Diamond Cylindrical Grinding Wheels are expertly engineered to meet the demanding requirements of grinding ultra-hard and difficult-to-grind materials. Designed for high-precision industrial applications, these wheels deliver exceptional performance and longevity when cylindrically grinding PCD, PCBN, tungsten carbide, technical ceramics, natural diamond, and other ultra-hard substances.

The Vitrified Bond Advantage: Precision, Durability, and Cool Cutting Efficiency

Our advanced vitrified bond technology is the cornerstone for achieving superior results on these difficult-to-grind materials, offering distinct advantages:

  • Exceptional Rigidity & Form Holding: The robust, rigid ceramic bond structure minimizes wheel deflection under load. This ensures excellent geometric accuracy (roundness, cylindricity, parallelism) on the workpiece and superior shape retention of the wheel itself, critical for maintaining tight tolerances over long grinding cycles.
  • Controlled Porosity for Optimal Performance: The engineered, interconnected porous structure within the bond facilitates efficient coolant delivery directly into the grinding zone and promotes effective chip evacuation. This significantly reduces grinding heat, prevents wheel loading (clogging) even in demanding applications, and minimizes the risk of thermal damage to sensitive workpiece materials.
  • Strong Abrasive Grip & Tuned Self-Sharpening: The vitrified bond provides a tenacious grip on the premium diamond abrasive grains while also being formulated for controlled micro-fracturing (self-sharpening). This dynamic balance ensures continuous exposure of fresh, sharp cutting edges, resulting in both strong, consistent grinding force and remarkably long grinding life between dressing operations.
  • Chemical & Thermal Stability: Vitrified bonds are inherently resistant to chemical reactions with most grinding coolants and possess excellent thermal stability, ensuring consistent and predictable grinding performance.

Key Features:

  • Premium Diamond Abrasive: Utilizes high-quality, carefully selected and graded diamond grains chosen for maximum cutting efficiency, wear resistance, and durability when grinding specific ultra-hard materials.
  • Precision Manufacturing & Balancing: Produced using state-of-the-art manufacturing processes to guarantee high dimensional accuracy, excellent wheel balance, and structural integrity. This ensures smooth, stable, vibration-free operation, especially important at high grinding speeds.

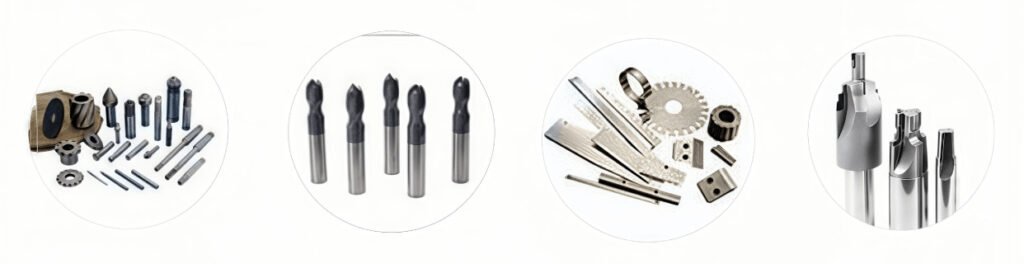

Target Materials:

These vitrified diamond wheels are specifically formulated for the efficient and precise grinding of an extensive array of ultra-hard and brittle materials, including but not limited to:

  • Polycrystalline Diamond (PCD)
  • Polycrystalline Cubic Boron Nitride (PCBN)
  • Cemented Tungsten Carbide (Hard Alloy) (covering various grades and compositions)
  • Advanced Technical Ceramics: Such as Aluminum Oxide (Alumina), Zirconia, Silicon Carbide (SiC), Silicon Nitride (Si3N4), Silicon Oxide Ceramics, etc.
  • Natural Diamond
  • Single Crystal Materials (e.g., for specialized tooling or optics)
  • Other challenging hard-to-grind composites or exotic materials (please consult our technical team for specific application suitability).

Core Application Areas:

Ideal for demanding precision OD (Outer Diameter) cylindrical grinding operations found across various industries:

  • Finish grinding of PCD and PCBN cutting tool blanks, inserts, and wear parts.
  • High-precision grinding of tungsten carbide rods, preforms, cutting tool bodies, wear components, punches, dies, and roll rings.
  • Precision cylindrical grinding of technical ceramic components including shafts, plungers, seal faces, bearing elements, pump parts, and electronic substrates.
  • Fine grinding and finishing operations on natural diamond tools or single crystal components.
  • Achieving exacting tolerances (dimensional and geometric) and superior surface finishes on critical superhard material components.

Customization:

We understand that each grinding application presents unique requirements. ZYsuperhard offers fully customizable vitrified diamond cylindrical wheels. We can precisely tailor specifications including diameter (like the example D350), thickness (T), hole size (H), abrasive layer depth (X), specific diamond grit size, concentration level, and bond hardness/composition to create the optimal wheel for your machine, material, coolant, and desired outcome. Our technical team is ready to assist in specifying the ideal solution.

Benefits Summary:

  • Achieves high material removal rates even on the toughest materials.
  • Delivers exceptional geometric accuracy (roundness, cylindricity, parallelism).
  • Produces superior surface finish quality meeting stringent requirements.
  • Offers significantly long wheel life and extended dressing intervals, reducing downtime.
  • Promotes cool grinding action, minimizing thermal damage and surface integrity issues.
  • Ensures a stable, reliable, and highly efficient grinding process.
  • Consistently achieves high-precision results for demanding applications.

Choose ZYsuperhard Vitrified Diamond Cylindrical Grinding Wheels for unmatched performance, precision, and durability when tackling the challenges of grinding superhard materials. Contact us to discuss your specific application needs.
