Automobile Cylinder Hole Processing PCD Cutters

Transforming Automotive Cylinder Hole Machining with Integrated PCD Tooling

Revolutionize your automotive cylinder bore production with this integrated suite of advanced Polycrystalline Diamond (PCD) cutting tools. Moving beyond conventional methods, this solution employs custom-engineered PCD boring tools, innovative multi-edge reamers, and specialized slot cutters designed to collaboratively streamline processing, overcome common manufacturing hurdles, and deliver significant gains in efficiency, precision, and overall productivity.

A Process-Driven Solution Enabled by PCD

This tooling strategy leverages the unique advantages of PCD for machining cylinder bore materials (typically cast iron or aluminum alloys) while fundamentally optimizing the manufacturing flow:

• High Speed & Wear Resistance: PCD allows much higher cutting parameters, reducing cycle times.
• Process Consolidation & Innovation: Specific tool designs aim to simplify steps, reduce tool changes, and even compensate for machine tool limitations.
• Superior Quality & Consistency: Delivers tight tolerances and excellent surface finishes reliably over long production runs.

Process Innovation Spotlight: Key Tooling Elements

This solution optimizes each critical stage through purpose-built PCD tooling:

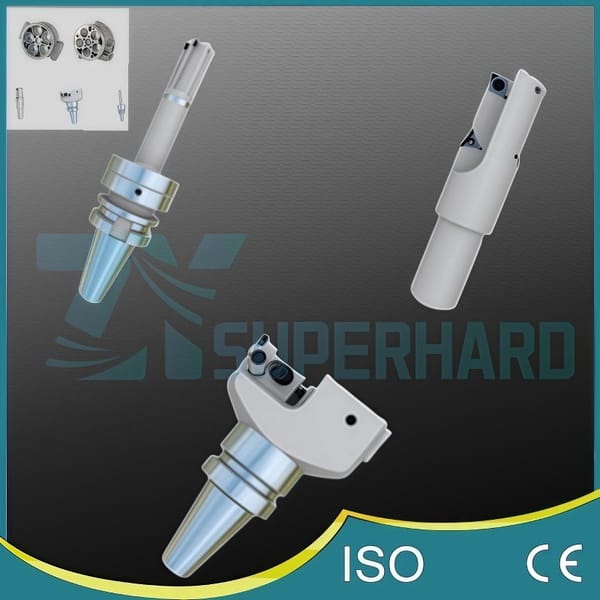

• Stage 1: High-Efficiency Rough Boring
  • Tooling: Robust PCD boring tool, frequently featuring a transposable (indexable) structure utilizing durable PCD boring blades.
  • Advantage: Rapidly and safely removes the main casting allowance from the cylinder hole, often incorporating hole chamfering. Compared to traditional methods, the high wear resistance of PCD ensures markedly improved processing efficiency and extended tool life, offering excellent cost-performance.
• Stage 2: Precision Finishing via Advanced PCD Reaming
  • Tooling: Innovatively replaces traditional single-edge fine boring with a high-precision multi-edge (typically six-edge) PCD reamer. This is often paired with a specialized flange transfer tool handle.
  • Advantage: This combination is engineered to overcome common machine tool deficiencies such as excessive spindle runout, lack of through-spindle coolant, or lower system rigidity. It reliably achieves exceptional roundness, cylindricity, and aperture tolerance compliance, even under challenging conditions. Pre-set G2.5 dynamic balancing enables high-speed operation, reduces spindle load, and further enhances tool life, directly addressing customer needs for high-efficiency, high-precision finishing.
• Stage 3: Flexible & Efficient End Groove Machining
  • Tooling: Substitutes traditional end milling for circumferential end grooves with a specialized PCD slot cutter incorporating a precision adjustable knife clip design.
  • Advantage: The wide adjustment range of the knife clip allows the same tool body to machine different groove specifications within a component family with only a simple diameter adjustment. This eliminates the need for complete tool changes during product type variations, significantly slashing setup/changeover time and boosting production line flexibility and efficiency. The PCD slotting blade ensures sharp, wear-resistant cutting with low resistance for longevity.

Comprehensive Manufacturing Benefits

Implementing this integrated PCD strategy delivers multi-faceted improvements:

• Dramatically Reduced Cycle Times: Through faster cutting, process integration, and quicker changeovers.
• Enhanced & Consistent Quality: Reliably meeting stringent geometric and dimensional tolerances for cylinder bores.
• Improved Process Capability & Reliability: Successfully machining high-quality parts even on equipment with certain limitations.
• Lower Overall Production Costs: Driven by extended tool life, reduced downtime, and optimized process flow.
• Increased Production Line Flexibility: Faster adaptation to different workpiece specifications within the same family.

Custom-Engineered Collaboration

This advanced tooling approach is inherently a custom solution, developed in partnership:

• We work closely with your team, analyzing cylinder block designs, material specifications, machine capabilities, production targets, and quality standards to engineer the optimal PCD tooling configuration for your specific needs.

Contact our automotive powertrain machining specialists to explore how this innovative PCD tooling solution can transform your cylinder hole manufacturing operations.
