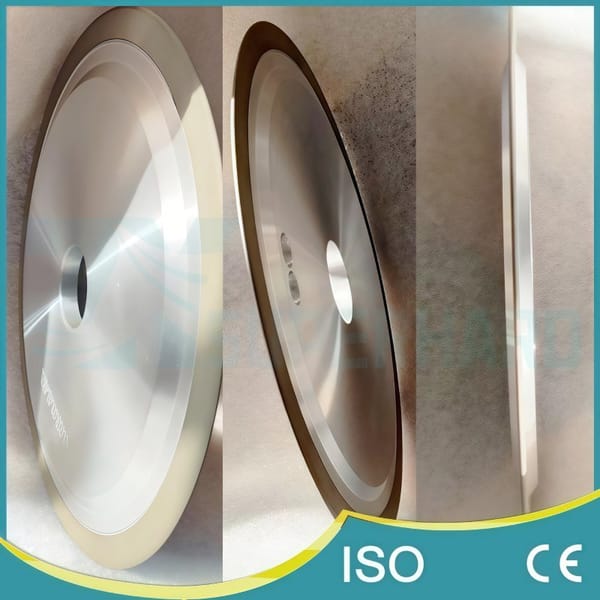

14F1 CBN Grinding Cutting Off Wheels

14F1 CBN Grinding Cutting Off Wheels

Precision 14F1 resin bond CBN wheels for grinding HSS teeth & cutting off hard steels. Excel in dry grinding, offering sharp cutting and durability. Custom profiles per drawing.

Additional information

Bond

Resin bond

Grain

Diverse can be customized

Material

CBN

Processing

Dry grinding

Description

14F1 Resin Bond CBN Grinding & Cutting-Off Wheels

Effectively perform HSS teeth grinding, cut off tough materials, and create precise profiles on hardened ferrous metals with these specialized 14F1 Resin Bond CBN Grinding Wheels from ZYsuperhard. Engineered for high performance, particularly in dry grinding applications, they combine the cutting power of CBN with the unique advantages of a resilient resin bond system.

Optimized for Dry Grinding Hard Steels: Resin Bond CBN

This specific combination of CBN abrasive and a tailored resin bond is ideal for challenging steel grinding operations:

  • CBN Abrasive for Ferrous Metals: CBN is the premier abrasive for efficiently grinding hard (>HRC 50) ferrous materials where diamond is chemically unsuitable. This includes Hardened Steels, Die Steels, High-Speed Steels (HSS), Alloy Steels, Aerospace Alloys, Hard Carbon Steels, and cast irons.
  • Resin Bond Advantages: The specialized resin bond offers key advantages:
    • Good Self-Sharpening & Sharpness: Ensures a continuous free-cutting action by exposing fresh CBN particles as needed, maintaining high grinding efficiency.
    • Elasticity & Finish: The inherent elasticity can absorb minor vibrations, contributing to a smoother grinding process and better surface finishes on the workpiece.
    • Dry Grinding Suitability: Resin bonds generally run cooler than metal bonds, making them well-suited for dry grinding operations, reducing the risk of thermal damage or metallurgical alterations to the workpiece surface.

The 14F1 Profile for Precise Forming & Cutting

The 14F1 designation signifies a specific, often complex, V-shaped or angled profile on the wheel’s periphery, making it ideal for tasks such as:

  • HSS Teeth Grinding: Precisely forming or sharpening the teeth on HSS saws, cutters, or broaches.
  • Form Grinding: Creating specific profiles or chamfers on hardened steel components.
  • Slotting / Gashing: Producing defined slots or initial tooth gashes.
  • Precision Cutting-Off: Utilizing the profiled edge for specialized cutting-off operations on tough materials where a specific edge geometry is beneficial.

Key Performance Features

  • Efficient Dry Grinding Performance: Specially formulated for effective grinding without coolant.
  • Sharp & Cool Cutting Action: Minimizes grinding forces and heat generation.
  • High Wear Resistance: Durable CBN abrasive ensures good wheel life.
  • Good Surface Quality: Resin bond contributes to smoother finishes.
  • Precision Form Holding: Reliably maintains the specified 14F1 profile.

Customized to Your Exact Profile and Specifications

Due to the high precision and application-specific nature of form grinding, these 14F1 wheels are manufactured strictly according to customer requirements:

  • Drawing is Essential: Production requires your detailed engineering drawing specifying all critical geometric parameters.

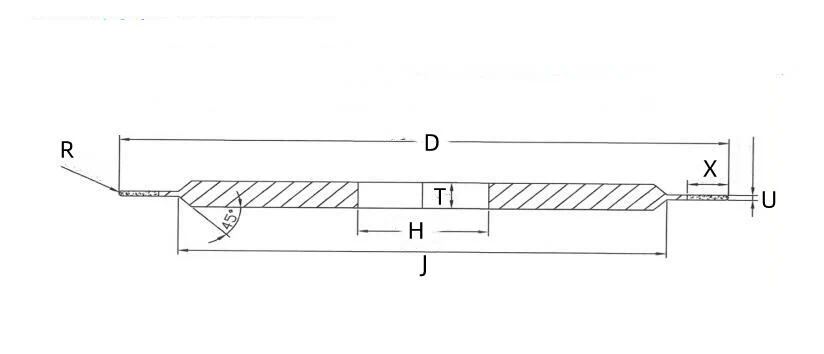

  • Complex Specifications Required: Accurately defining these custom wheels involves specifying parameters such as Shape Code (e.g., 14F1), Core Dimensions (Diameter D, Hole H, Total Thickness T, Rim Width X), detailed Profile Geometry (like the defining angle V, specific radii R, depths, or other critical features often designated J, U, etc., on the drawing), Abrasive Type (CBN), and Specific Grit Size (e.g., B170 for HSS rough/medium grinding).
  • For instance, a complete specification for HSS grinding could be: D150*T8*H32*X8*J11.5*U1.5*R0.75 (using B170 CBN grit).
  • Machine Compatibility: Designed for use on appropriate tool grinding machines or specialized cutting equipment capable of mounting such wheels.

ZYsuperhard guarantees each custom wheel is manufactured with high durability and precision, fully tailored based on your provided drawing and process needs.

Contact our technical sales team with your detailed drawing and application information (material, machine, operation) to receive a quotation for your custom 14F1 resin bond CBN wheel.
