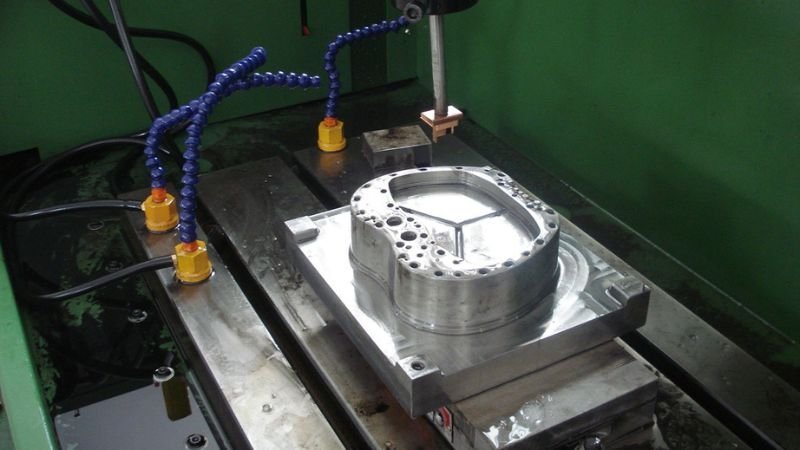

Mold & Die

Molds and dies are the cornerstone of modern manufacturing, shaping countless products across diverse sectors. The demands on mold and die makers are immense: from machining exceptionally hard tool steels and achieving flawless surface finishes, to meeting tight tolerances for complex geometries and ensuring the longevity of the tools themselves. The pressure for rapid turnarounds and cost-effective production is ever-present.

At ZYsuperhard, we empower mold and die manufacturers to meet these exacting standards. We specialize in providing high-performance PCD and CBN tooling systems, advanced diamond and CBN grinding solutions, and precision finishing products, all tailored to the unique challenges of crafting and maintaining high-quality molds and dies. Our expertise lies in translating your requirements into tangible gains in productivity, precision, and tool life.

Mastering the Challenges of Mold & Die Manufacturing

The Mold & Die industry consistently pushes the boundaries of material science and machining precision. We understand the critical pain points:

• Extreme Material Hardness: Machining hardened tool steels (e.g., H13, P20, D2, S7, SKD11, CPM series) often exceeding 50-65 HRC, requires tooling with exceptional wear resistance and thermal stability.
• Intricate Geometries & Tight Tolerances: Modern molds and dies feature complex cavities, cores, sliders, lifters, and precise parting lines that demand sub-micron accuracy.
• Superior Surface Finish: Especially for injection molds, achieving a mirror-like or highly polished surface (e.g., SPI A1-A3 finishes) on cavities is crucial for end-product quality and part ejection.
• Tool Longevity & Cost Efficiency: The high cost of tool steels and the labor-intensive nature of mold/die making mean that maximizing the life of both cutting tools and the molds/dies themselves is paramount for profitability.
• Specialized Applications: From intricate cooling channels in injection molds to the robust forming surfaces of stamping or forging dies, each application has unique machining and finishing requirements.

Our Integrated Superabrasive Solutions: Tailored for Mold & Die Excellence

We offer a comprehensive suite of superabrasive solutions designed to optimize every stage of mold and die production, from initial machining to final polishing.

• CBN Tooling Systems for Hard Machining Supremacy:

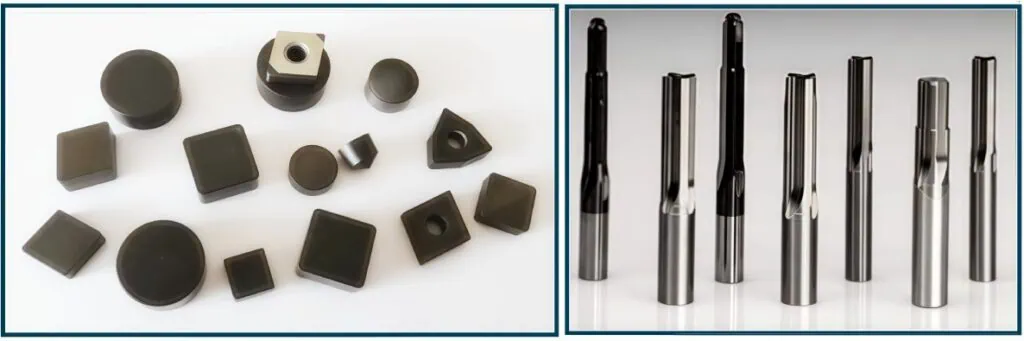

  Our advanced CBN (Cubic Boron Nitride) cutting tool lines – including inserts, solid end mills, tipped end mills, and boring bars – are specifically engineered for the high-speed milling and turning of hardened tool steels. CBN offers unparalleled hardness and thermal stability, enabling efficient material removal, excellent surface finishes, and significantly reduced machining times compared to conventional methods, often eliminating the need for multiple EDM steps.
• Diamond & CBN Grinding Technology for Ultimate Precision & Finish:

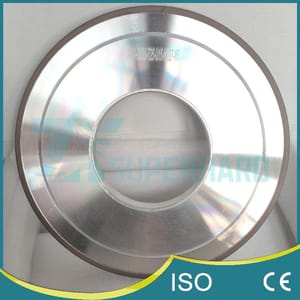

  Grinding is fundamental to achieving the exacting tolerances and surface quality required in mold and die making. We provide a full spectrum of diamond and CBN grinding wheels in various bond systems:
  • Vitrified Bond CBN Wheels: Ideal for high-precision grinding of tool steels, offering excellent form holding and cool cutting action.
  • Resin Bond Diamond & CBN Wheels: Excellent for fine finishing, achieving superior surface quality, and for grinding carbide components used in dies.
  • Metal Bond Diamond & CBN Wheels: Offer exceptional durability and wear resistance for demanding applications and form grinding.
  • Electroplated Diamond & CBN Wheels: Perfect for intricate profiles, internal grinding, and creating specialized forms on grinding tools or electrodes.
    Our grinding solutions cover surface grinding, profile grinding, cylindrical grinding, and jig grinding applications critical to mold and die accuracy.
• PCD Tooling for Electrode Manufacturing & Non-Ferrous Components:
  For creating graphite or copper electrodes used in Electrical Discharge Machining (EDM) of mold cavities, our PCD (Polycrystalline Diamond) end mills, drills, and routers deliver exceptional tool life and cutting speeds, resulting in highly accurate electrodes. PCD is also ideal for machining non-ferrous mold bases or components.
• Diamond Polishing & Lapping Solutions for Flawless Surfaces:
  Achieving the perfect mold surface is critical. Our range of diamond polishing pastes and lapping compounds (available in various micron sizes and concentrations) enables mold makers to attain the highest levels of surface finish, from pre-polish to mirror finish, ensuring optimal part release and aesthetic quality.

The Customization Advantage: Your Mold & Die, Your Solution

We recognize that “one size fits all” does not apply to the intricate world of mold and die making. Our core strength lies in developing custom-engineered superabrasive solutions:

• Application-Specific Tool Design: We collaborate with you to understand your specific tool steel grades, machining operations, desired surface finishes, and part complexity.
• Tailored CBN Tooling: This includes custom geometries for CBN inserts and end mills, optimized edge preparations (chamfers, hones, radii) for specific cutting conditions in hard materials, and specialized coatings if applicable.
• Customized Grinding Wheels: We can design and manufacture grinding wheels with specific profiles, grit sizes, concentrations, and bond formulations precisely matched to your mold/die material and grinding parameters.
• Bespoke Polishing Solutions: We can advise on and provide specific diamond compound formulations to meet your exact polishing sequence and surface requirements.

Whether it’s a complex cavity for an automotive component mold or a high-impact forging die, our team is equipped to deliver solutions that maximize your performance and quality.

Your Strategic Partner in Mold & Die Innovation

Choosing ZYsuperhard means selecting a partner dedicated to advancing your mold and die manufacturing capabilities. We provide:

• Deep Industry Expertise: A thorough understanding of mold and die materials, manufacturing processes, and quality requirements.
• Comprehensive Product Portfolio: A complete range of CBN cutting tools, PCD tooling, diamond/CBN grinding wheels, and polishing solutions.
• Unrivaled Customization: The agility to design and deliver solutions tailored to your most demanding applications.
• Commitment to Quality & Consistency: Ensuring every product meets the highest performance standards.
• Focus on Reducing Total Cost of Ownership (TCO): Helping you achieve faster cycle times, longer tool life, reduced rework, and superior mold/die performance.

Optimize your mold and die production. Contact us today to discuss your specific challenges and discover how our advanced superabrasive solutions can elevate your manufacturing precision and efficiency.
