How Does EDM Precisely Cut PCD, and Is It the Optimal Method for Your Application?

When faced with the challenge of shaping ultra-hard Polycrystalline Diamond¹, how exactly does Electrical Discharge Machining achieve such precision, and is it truly the best approach for your specific needs?

Electrical Discharge Machining (EDM) precisely cuts Polycrystalline Diamond (PCD) by using controlled electrical sparks to erode the material without direct contact, leveraging the conductivity of PCD’s metallic binder. While it offers exceptional precision, complex geometry capabilities, and superior surface finishes, its optimality depends on factors like required speed, material thickness, production volume, and cost considerations, often making it ideal for high-performance tools and intricate wear parts but requiring careful evaluation against alternatives like laser cutting for other scenarios.

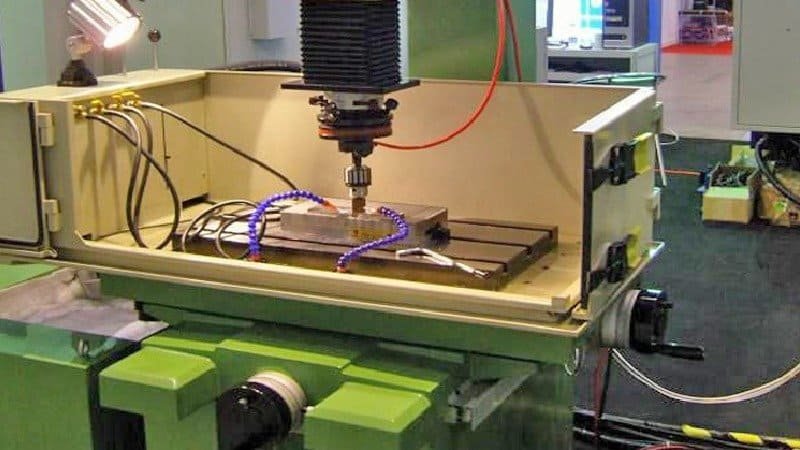

What Makes Electrical Discharge Machining (EDM) Effective for Polycrystalline Diamond (PCD)?

So, you’re wondering what makes EDM such a go-to method for shaping something as tough as Polycrystalline Diamond?

Electrical Discharge Machining (EDM) is effective for PCD because it uses controlled electrical sparks to erode the material, bypassing PCD’s extreme hardness. This works because the metallic binder within the PCD (typically cobalt) conducts electricity, allowing the sparks to melt and vaporize tiny portions of it, which in turn dislodges the super-hard diamond particles. This non-contact process allows for intricate shapes without exerting significant mechanical stress on the brittle PCD.

The Fundamental Principle: Spark Erosion in Conductive PCD Composites

Imagine trying to carve a statue out of a diamond – it sounds almost impossible with regular tools, right? Polycrystalline Diamond, or PCD, is a super-hard material made by sintering together tiny diamond particles with a metallic binder, most commonly cobalt. While diamond itself is an electrical insulator (meaning electricity doesn’t flow through it easily), that metallic binder is the key to EDM’s success. It gives the entire PCD composite just enough electrical conductivity to make the magic of EDM happen.

So, how does this spark erosion actually work?
Think of it like a series of tiny, incredibly controlled lightning strikes.

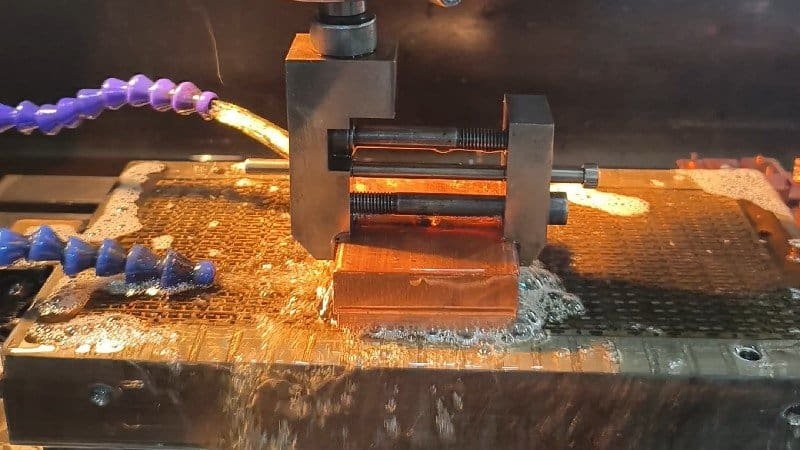

1. The Setup: Both the PCD workpiece and a tool (called an electrode, often made of copper, graphite, or tungsten carbide) are submerged in a special insulating liquid called a dielectric fluid. They are brought very close together, but they never actually touch.
2. Power On: A high voltage is applied between the electrode and the PCD. As they get closer, the electrical pressure builds up in the tiny gap between them.
3. The Spark: Eventually, this electrical pressure becomes too much for the dielectric fluid to handle, and it breaks down. This creates a pathway for a tiny, intense electrical spark to jump from the electrode to the PCD.
4. Material Removal: This spark is incredibly hot – thousands of degrees Celsius! This intense heat melts and vaporizes a microscopic amount of the PCD material where it strikes. Primarily, it’s the conductive cobalt binder that’s affected first. As the binder is eroded, the interlocked diamond particles are dislodged or even fractured.
5. Flushing Away: The flowing dielectric fluid then serves a crucial second purpose: it cools the area and, importantly, flushes away the tiny vaporized particles and eroded debris (called swarf).
6. Repeat: This process of sparking, melting, vaporizing, and flushing happens thousands, even hundreds of thousands, of times per second. Each spark removes a tiny bit of material, and by controlling where these sparks occur, complex shapes can be precisely eroded into the PCD.

Because there’s no direct physical contact between the cutting tool and the PCD, there are no significant mechanical cutting forces. This is a huge advantage when working with a material like PCD, which is very hard but also quite brittle – meaning it can chip or crack easily under mechanical stress.

Critical Process Parameters for Successful PCD EDMing

Getting a perfect EDM cut on PCD isn’t just about creating sparks; it’s about controlling them with incredible precision. Think of it like a chef perfecting a recipe – a little too much of one ingredient, or not enough of another, and the dish isn’t quite right. In EDM, these “ingredients” are the process parameters. Machinists carefully tune these settings to achieve the desired cutting speed, surface finish, and accuracy, while also minimizing wear on the electrode and any potential damage to the PCD.

Here are some of the most critical parameters:

It’s essential to understand that these parameters are highly interdependent. Changing one will often necessitate adjustments to others to maintain optimal cutting conditions. For instance, increasing the peak current (I_p) to speed up cutting might require an adjustment in pulse off-time (T_off) to ensure adequate flushing of the increased amount of debris.

Furthermore, the ideal settings can vary significantly depending on the specific PCD grade, the thickness of the PCD layer, the type of EDM machine (wire EDM or sinker EDM), and the desired outcome (e.g., a fast roughing cut versus a slow, precise finishing cut). Therefore, it’s always advisable for operators to consult the EDM machine manufacturer’s recommendations and the PCD material supplier’s guidelines, and to conduct test cuts to fine-tune parameters for their specific application.

Material Considerations: Impact of PCD Grade, Binder, and Grain Size

Not all PCD is created equal. The term “PCD” actually covers a range of composite materials, and their specific composition has a significant impact on how they behave during the EDM process. Understanding these material characteristics is crucial for effective and efficient EDM cutting.

The Role of Cobalt Binder Content

The metallic binder, usually cobalt, is the electrically conductive phase in PCD that enables EDM.

• Higher Cobalt Content: Generally, a higher percentage of cobalt binder (e.g., 10% by weight or volume, though this can vary) results in better electrical conductivity throughout the PCD structure. This typically translates to:
  • Easier spark initiation.
  • Potentially faster material removal rates.
  • More stable EDM process.
• Lower Cobalt Content: PCD grades with lower cobalt content are more electrically resistive. This can make EDMing more challenging, potentially requiring higher voltages or more sensitive machine settings to maintain a stable spark.
  However, there’s a trade-off: PCD grades with higher cobalt content, while easier to EDM, might exhibit lower abrasion resistance and thermal stability in the final cutting tool application compared to grades with less binder.

Influence of Diamond Grain Size

PCD is made from diamond particles of varying sizes, typically ranging from sub-micron to around 50 microns or even larger, depending on the application.

• Finer Diamond Grains (e.g., 2-5 µm):
  • Can lead to a smoother surface finish after EDMing, as the material removal is more uniform at a microscopic level.
  • May require more carefully controlled EDM parameters, possibly lower energy per spark, to avoid excessive dislodgement of fine grains or damage to the inter-grain bonding.
• Coarser Diamond Grains (e.g., 25-50 µm):
  • May allow for higher material removal rates because larger “chunks” (relatively speaking) can be eroded.
  • Can result in a comparatively rougher surface finish and potentially more pronounced “undercutting” around the larger grains if parameters are not optimized.
  • The interface between the large diamond grains and the binder is critical; weak bonding can lead to premature grain pull-out during EDM.

PCD Grade and Manufacturer Variations

Beyond just binder content and grain size, different PCD manufacturers produce various grades tailored for specific applications (e.g., finishing non-ferrous
metals, roughing wood composites, etc.). These grades can differ in:

• The distribution of diamond grain sizes.
• The specific alloy composition of the binder.
• The sintering process used, which affects the density and homogeneity of the PCD.

These variations mean that EDM parameters that work well for one PCD grade might not be optimal for another, even if the nominal grain size or binder content seems similar. For instance, some PCD grades are designed with enhanced thermal stability, which might influence how they respond to the heat generated during EDM.

Because of these material-specific behaviors, consulting the PCD supplier’s technical datasheets or application notes is highly recommended. They can often provide starting EDM parameters or guidance on the “EDM-ability” of their specific grades. This can save considerable time and resources in process development and help avoid damaging the PCD material.

What Are the Distinct Advantages of Using EDM for PCD Cutting?

When it comes to shaping Polycrystalline Diamond, what truly sets Electrical Discharge Machining apart and makes it such a favored technique?

The distinct advantages of using EDM for PCD cutting primarily include its exceptional ability to achieve high precision and intricate, complex geometries that other methods struggle with. Furthermore, EDM delivers superior surface finishes and sharp edge quality, minimizes material waste due to its narrow kerf, produces virtually burr-free edges, and offers remarkable versatility in handling various PCD blank sizes and thicknesses.

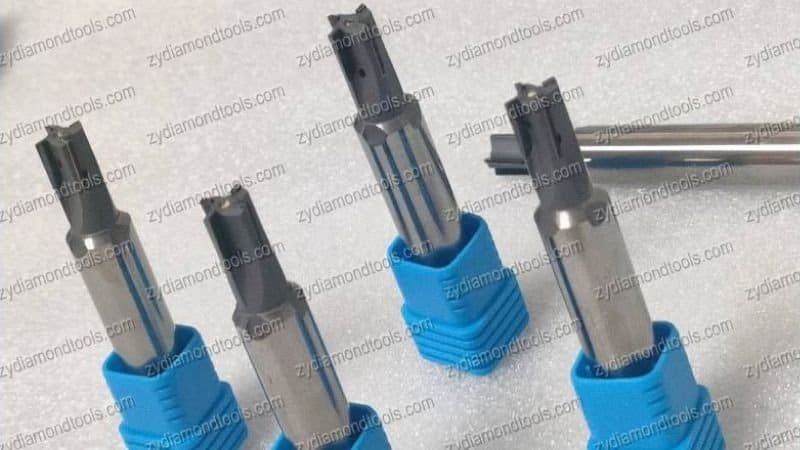

These benefits make EDM a cornerstone technology in the manufacturing of high-performance PCD tools and components. Let’s explore these advantages in more detail.

Achieving High Precision and Complex Geometries

One of the standout benefits of EDM is its remarkable precision. How does it manage this on such a hard material?

• No Direct Force, No Deflection: Unlike traditional machining where a cutting tool physically pushes against the material, EDM is a non-contact process. The electrode (in sinker EDM) or wire (in wire EDM) never actually touches the PCD workpiece. This absence of mechanical force means there’s no tool pressure to cause the workpiece to bend, vibrate, or shift, which is especially important for delicate or intricately shaped PCD segments. This directly translates to higher accuracy and repeatability.
• Finely Controlled Erosion: Modern CNC (Computer Numerical Control) EDM machines offer incredible control over the spark’s energy and its precise location. Each tiny spark removes a minute amount of material. By programming a precise path for these sparks, even the most complex shapes can be formed.
  • For instance, wire EDM can achieve tolerances as tight as ±0.002 mm to ±0.005 mm (that’s about ±0.00008 to ±0.0002 inches) on high-quality machines. However, it’s important to note that achievable tolerances can depend on the machine’s quality, setup, the specific PCD grade, and environmental conditions. Always verify specific capabilities with your EDM equipment supplier or service provider.

This precision allows for the creation of complex geometries that would be extremely challenging or even impossible with conventional machining methods.

• Intricate Details: EDM can produce sharp internal corners (with radii limited only by the wire diameter or electrode shape), narrow slots, complex curves, and varying taper angles. This is crucial for PCD cutting tools where the geometry of the cutting edge dictates its performance. For example, creating the chipbreaker grooves on a PCD turning insert³ or the intricate flute paths on a PCD end mill relies heavily on EDM’s capabilities.
• Freedom of Design: Engineers have more freedom to design PCD components optimized for their function, rather than being limited by the constraints of traditional manufacturing processes.

Attaining Superior Surface Finish and Edge Quality

The quality of the cut surface and the sharpness of the cutting edge are paramount for PCD tools. A smooth finish and a keen edge lead to better performance, longer tool life, and improved workpiece quality. EDM excels in this area.

• Smooth Surfaces: EDM achieves excellent surface finishes through a process of controlled erosion. By using multiple passes, often called “skim cuts” in wire EDM, with progressively lower spark energy, a very fine and uniform surface can be produced. The material is removed particle by particle, which tends to create a more consistent texture compared to grinding, which can sometimes induce micro-fractures or pull-outs.
  • Typical surface roughness values (Ra)⁴ achievable with EDM on PCD can range from Ra 0.1 µm to Ra 0.4 µm, or even finer with specialized finishing cycles. As with precision, the final surface finish is influenced by the PCD material, EDM parameters, and machine capabilities, so consulting with suppliers for specific expectations is a good practice.
• Sharp, High-Integrity Edges: For cutting tools, the edge is everything. EDM can produce exceptionally sharp and well-defined cutting edges on PCD inserts and tools with minimal chipping or defects. Because it’s a non-contact thermal process, it avoids the mechanical stresses that can lead to edge dulling or microscopic damage in other methods. This pristine edge quality directly contributes to cleaner cuts, reduced cutting forces, and extended tool life when the PCD tool is put to use. For example, the sharpness of a PCD reamer’s cutting edges, often produced by EDM, is critical for achieving tight hole tolerances and fine finishes in automotive engine components.

Minimizing Material Waste and Producing Burr-Free Edges

PCD is a valuable and often expensive material. Therefore, minimizing waste during processing is a significant economic advantage.

• Narrow Kerf, More Parts: Wire EDM is particularly efficient in this regard. The cutting wire used is very thin, typically ranging from 0.05 mm to 0.3 mm in diameter. This results in a very narrow cut, known as the “kerf.”
  • This minimal kerf width means less PCD material is turned into swarf (waste). When cutting multiple parts from a single PCD blank – a common practice called “nesting” – a narrower kerf allows for tighter spacing between parts, maximizing the yield from each expensive blank. Imagine slicing a loaf of valuable bread; a thinner knife blade wastes less bread with each slice.
• Virtually Burr-Free Cutting: Traditional machining processes often create burrs – small, raised edges or slivers of material left attached to the workpiece after cutting. Removing these burrs requires additional finishing steps (deburring), which add time and cost to the manufacturing process.
  • EDM, being a thermal erosion process without direct mechanical shearing, inherently produces edges that are virtually free of burrs. This significantly reduces or entirely eliminates the need for secondary deburring operations, streamlining the production workflow and saving costs, especially in high-volume production of PCD inserts.

Versatility in Handling Various PCD Blanks and Thicknesses

The ability to adapt to different material forms and dimensions adds to EDM’s strengths.

• Diverse PCD Forms: EDM is not limited to simple, flat PCD blanks. It can effectively machine:
  • PCD blanks of various shapes (round, rectangular, segmented).
  • PCD layers that are brazed onto tungsten carbide substrates. The process can be controlled to cut through both the hard PCD layer and the tougher carbide base, or to selectively machine only the PCD.
  • Complex, near-net-shape PCD blanks.
• Wide Range of Thicknesses: Wire EDM, in particular, demonstrates excellent capability in cutting through a considerable range of PCD thicknesses.
  • It can precisely cut thin PCD layers (e.g., 0.4 mm to 0.8 mm) used in many cutting tool inserts.
  • It is also capable of accurately cutting through much thicker solid PCD segments, sometimes up to several millimeters or even exceeding an inch (25.4 mm), depending on the machine’s z-axis capacity and power supply. While the cutting speed naturally decreases with increasing thickness, the ability to maintain accuracy through such depths is a significant advantage for applications like manufacturing robust PCD wear parts or specialized thick-section cutting tools.

This versatility allows manufacturers to use EDM for a broad spectrum of PCD applications, from delicate, intricate cutting tool tips to robust wear components, making it an adaptable and indispensable technology in the world of superhard material processing.

What Challenges or Limitations Should Be Considered with PCD EDMing?

While Electrical Discharge Machining offers many benefits for PCD, are there any potential downsides or difficulties one should be aware of before diving in?

Yes, several challenges and limitations should be considered with PCD EDMing. Key among these are relatively low material removal rates leading to longer overall machining times, the potential for thermal effects like micro-cracking if not properly managed, the issue of electrode wear impacting accuracy (especially in sinker EDM), and notable cost factors related to equipment, consumables, and the need for skilled expertise.

Understanding these aspects is crucial for making informed decisions and optimizing the EDM process for Polycrystalline Diamond.

Understanding Material Removal Rates and Overall Machining Time

One of the primary considerations when using EDM for PCD is the speed of the process, or more accurately, the material removal rate (MRR).

• Relatively Low MRR: In simple terms, MRR is how much material is removed in a given amount of time. Generally, EDM is not known as a high-speed machining method, and this is particularly true when working with an exceptionally hard and thermally resistant material like PCD. The MRR in PCD EDMing is significantly lower than, for example, milling aluminum or even grinding softer steels. Each spark only erodes a microscopic amount of the PCD.
• Factors Influencing MRR: Several factors influence how quickly PCD can be machined with EDM:
  • PCD Grade: Grades with higher metallic binder content (like cobalt) tend to conduct electricity better and may allow for slightly higher MRRs. Conversely, grades with very low binder content can be more challenging to erode quickly.
  • Machine Power and Settings: More powerful EDM machines and aggressive (high-energy) spark settings used for initial “roughing” cuts can increase MRR. However, this often comes at the cost of surface finish and can increase the risk of thermal damage, which we’ll discuss next.
  • Flushing Efficiency: Good flushing of debris from the spark gap is essential. If debris isn’t removed efficiently, it can cause unstable sparking and slow down the process.
• Longer Overall Machining Time: The consequence of a lower MRR is, quite simply, that it takes longer to machine a PCD part compared to other materials or processes.
  • Multiple Passes: To achieve the high precision and fine surface finishes that EDM is capable of, machinists often use multiple passes. This might involve one or more roughing passes to remove the bulk of the material, followed by several semi-finishing and fine-finishing passes (often called “skim cuts” in wire EDM) with progressively lower energy. Each pass adds to the total machining time.
  • For example, cutting a complex profile through a thick PCD blank, like those used for robust wear parts in the oil and gas industry, can take many hours. This means EDM is often better suited for applications where precision, complex geometry, or surface finish are more critical than raw speed, rather than for extremely high-volume production of simple parts where cycle time is the absolute priority.

Managing Potential Thermal Effects and Micro-cracking

EDM is fundamentally a thermal process – it uses heat from electrical sparks to erode material. While this is what makes it work, the heat can also pose challenges if not carefully managed.

• Heat Affected Zone (HAZ): Each spark creates intense localized heat. This heat can alter a very thin layer of the PCD material directly beneath the machined surface. This region is known as the Heat Affected Zone (HAZ).
  • In PCD, excessive heat within the HAZ can lead to a few issues:
    • Binder Alteration: The metallic cobalt binder can be affected. It might melt and resolidify differently, or in extreme cases, some binder material could be depleted from the surface, potentially weakening the bond holding the diamond grains.
    • Graphitization Risk: Diamond is a form of carbon. At very high temperatures (typically above 700°C in air, but influenced by other factors) and without the extreme pressure under which it originally formed, diamond can start to transform into graphite, which is a much softer form of carbon. While the sparks in EDM are very short and rapidly quenched by the dielectric fluid, a minuscule amount of surface graphitization or amorphous carbon formation can sometimes occur, potentially affecting the PCD’s hardness and wear resistance at the very surface.
• Micro-cracking: The rapid heating and cooling cycles caused by the repeated sparks can induce thermal stresses in the PCD material.
  • If these stresses become too high – for instance, if using overly aggressive cutting parameters with high spark energy, especially during roughing operations, or with inefficient cooling – they can lead to the formation of microscopic cracks on or just below the surface of the PCD.
  • These micro-cracks can act as stress concentration points, potentially reducing the strength and fracture toughness of the PCD component. For a cutting tool, this could mean a less durable cutting edge that chips or fails prematurely.
• Mitigation Strategies: Controlling these thermal effects is key to successful PCD EDMing. This involves:
  • Careful Parameter Selection: Using optimized pulse on-times, off-times, and current levels, especially for finishing passes where lower energy is used.
  • Efficient Dielectric Flushing: Good flushing not only removes debris but also provides crucial cooling to the workpiece and electrode.
  • Finishing Passes: Skim cuts remove the layers potentially affected by roughing, refining the surface and minimizing the depth of any HAZ or micro-cracks.
    Operators should always refer to guidelines from the EDM machine and PCD material suppliers, as appropriate parameters can vary.

Addressing Electrode Wear and Its Impact on Accuracy

In EDM, it’s not just the workpiece that erodes; the electrode (the “tool”) also wears down. This is a natural part of the process but needs to be managed, especially in sinker EDM.

• Electrode Wear Phenomenon:
  • Sinker EDM: The shaped electrode (often made of graphite, copper, or copper-tungsten for PCD work) experiences wear as it sparks against the PCD. The “wear ratio” – how much workpiece material is removed compared to how much electrode material is consumed – is an important factor. Graphite is often chosen for its good wear resistance and machinability when working with PCD.
  • Wire EDM: The wire itself is the electrode and is continuously fed from a spool, so wear at a single point on the wire isn’t the primary concern. However, the wire is consumed in the process, representing an ongoing cost. Wire breaks can also occur if cutting conditions become unstable, leading to machine downtime.
• Impact on Accuracy (Primarily Sinker EDM):
  • If electrode wear is significant and not uniform, it directly affects the final shape and dimensional accuracy of the machined PCD part. For example, sharp corners on the electrode can become rounded as it wears, and this roundedness will be transferred to the PCD workpiece. Cavities might not be machined to the correct depth or taper.
• Strategies for Managing Electrode Wear:
  • Material Choice: Selecting electrode materials with high wear resistance against PCD.
  • Multiple Electrodes: Using different electrodes for roughing (where most wear occurs) and finishing (where accuracy is paramount).
  • CNC Compensation: Many modern EDM machines have control systems that can measure electrode wear (e.g., by periodically touching off against a reference point) and automatically compensate for it by adjusting the machining path.
  • Planned Electrode Redressing/Replacement: Incorporating steps to reshape (redress) or replace electrodes at calculated intervals.
  • Process Parameters: Optimizing EDM parameters can also help minimize the wear rate.

Evaluating Overall Cost Factors: Equipment, Consumables, and Expertise

While EDM offers unique capabilities for PCD, it’s important to consider the associated costs.

• Equipment Investment:
  • High-precision EDM machines, especially those designed or optimized for machining superhard materials like PCD, represent a substantial capital investment.
  • Additional costs include ancillary systems like high-performance dielectric fluid chillers (to maintain temperature stability, crucial for precision) and advanced filtration systems (to keep the dielectric fluid clean).
• Consumables Costs: These are ongoing operational expenses:
  • Electrodes/Wire: For sinker EDM, the cost of manufacturing or purchasing shaped electrodes (often graphite) can be significant, especially for complex forms. For wire EDM, the EDM wire itself is a continuous consumable, and high-quality, fine-diameter wires suitable for PCD can be relatively expensive.
  • Dielectric Fluid: The specialized hydrocarbon oil used as dielectric fluid needs to be regularly filtered and eventually replaced. The disposal of used dielectric fluid also has associated costs and must comply with environmental regulations.
  • Filters: The filtration system requires periodic replacement of filter elements.
  • Guides and Power Feed Contacts (Wire EDM): These components wear over time and need replacement.
• Expertise and Labor:
  • Effectively operating EDM equipment for PCD requires a higher level of skill and experience than for many other machining processes. Operators need to understand the nuances of the EDM process, be adept at setting up complex jobs, choosing appropriate parameters, and troubleshooting any issues that arise.
  • The labor costs associated with these skilled EDM specialists are a significant part of the overall cost per machined part. Developing optimal, stable processes for new PCD applications can also involve considerable engineering and development time.
• Maintenance: Like any precision machine tool, EDM systems require regular preventative maintenance to ensure they continue to operate accurately and reliably, which also adds to the operational overhead.

These factors mean that while EDM is indispensable for many PCD applications, the overall cost-effectiveness⁵ needs to be carefully evaluated based on the specific requirements of the part, the production volume, and the available alternatives.

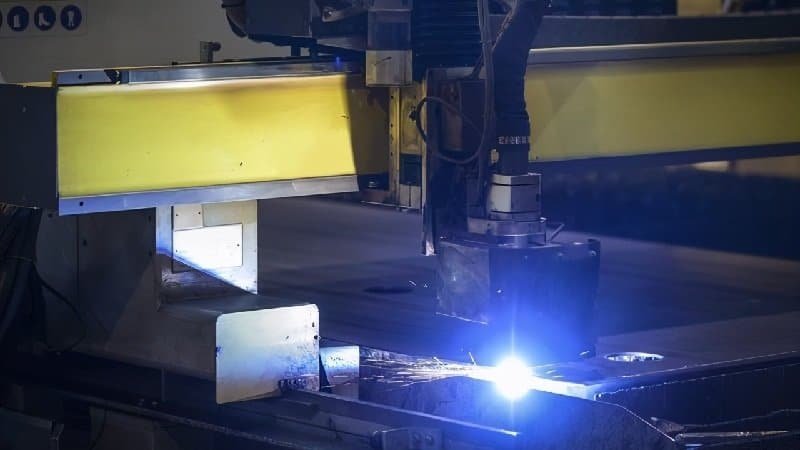

How Does EDM Compare to Laser Cutting for PCD Applications?

When it comes to machining Polycrystalline Diamond, both EDM and laser cutting are advanced, non-contact technologies, but how do they really stack up against each other for specific PCD jobs?

EDM and laser cutting offer distinct advantages for PCD applications: EDM generally excels in achieving superior surface finish, sharper edge quality, and higher precision, especially in thicker sections and complex 3D geometries (sinker EDM). Laser cutting is often significantly faster, particularly for thinner PCD, offers a very small kerf, and can have a smaller Heat Affected Zone with advanced laser types. The optimal choice hinges on the specific requirements for cut quality, speed, material thickness, complexity, and overall cost.

Let’s delve into a more detailed comparison across several key aspects.

Differences in Cut Quality, Kerf Width, and Heat Affected Zones (HAZ)

The final quality of the machined PCD part is often a primary concern, and here EDM and laser show notable differences.

Surface Finish and Edge Integrity

• EDM: This process is renowned for producing a very fine surface finish on PCD, often achieving Ra values between 0.1 µm and 0.4 µm with appropriate finishing (skim) passes. The spark erosion mechanism typically results in a more uniform, matte-like surface. Critically, EDM tends to produce sharper, well-defined cutting edges with minimal micro-chipping. This is vital for the performance and lifespan of PCD cutting tools.
• Laser Cutting: The surface finish from laser cutting PCD can be more variable. While modern ultra-short pulse lasers (picosecond or femtosecond⁶) can achieve excellent finishes and edge quality, older nanosecond or continuous wave (CW) lasers might leave a slightly rougher surface (e.g., Ra 0.4 µm to 0.8 µm or higher) or visible striations (lines) on the cut edge. Laser-cut edges can sometimes exhibit more micro-chipping or a slightly larger edge radius compared to EDM, depending heavily on the laser parameters and PCD grade.
  • It’s crucial to consult with equipment suppliers for specific surface finish capabilities, as advancements are continuous in both technologies.

Kerf Width

• EDM (Wire): The kerf width in wire EDM is determined by the wire diameter plus the overcut (spark gap on each side). This typically ranges from 0.07 mm to 0.35 mm and is very consistent.
• Laser Cutting: Lasers can achieve extremely small kerf widths, sometimes as narrow as 0.02 mm to 0.1 mm, due to the highly focused beam. This can be an advantage for maximizing material utilization when cutting many small parts from an expensive PCD blank.

Heat Affected Zone (HAZ)

Both processes are thermal, meaning they generate heat and create a Heat Affected Zone (HAZ) – a layer where the material properties might be altered.

• EDM: Creates a distinct HAZ. The bulk temperature of the PCD remains low, but the surface layer experiences intense, localized heat from sparks. With proper flushing and optimized finishing passes (using low discharge energy), the depth and impact of this HAZ can be minimized, typically resulting in a thin recast layer.
• Laser Cutting: Also produces a HAZ. The extent of the HAZ is highly dependent on the type of laser used.
  • Nanosecond or CW lasers: Can create a more significant HAZ due to longer interaction time between the laser beam and the material. This might lead to more binder alteration or potential graphitization near the cut surface.
  • Picosecond or Femtosecond (ultra-short pulse) lasers: These “cold ablation” lasers minimize heat transfer to the surrounding material, resulting in a much smaller, almost negligible HAZ. This is a key advantage for high-quality laser processing of PCD but these laser systems are generally more expensive.

Comparing Machining Speed, Throughput, and Automation Potential

Speed and efficiency are critical in manufacturing environments.

Machining Speed and Throughput

• EDM: Generally considered a slower process in terms of linear cutting speed (mm/minute) for PCD, particularly when machining thick sections or aiming for the highest precision and fine finish with multiple skim cuts. However, for wire EDM, throughput can be increased by stacking thin PCD blanks and cutting multiple parts simultaneously. Unattended machining for long periods also contributes to overall throughput.
• Laser Cutting: Often offers significantly faster linear cutting speeds, especially when processing thinner PCD segments (e.g., up to 2-3 mm thick). This can lead to higher throughput for jobs involving many straightforward cuts on thinner materials. For example, segmenting PCD wafers into individual tool tips can be done very rapidly with a laser.

Automation Potential

• EDM: Has excellent automation capabilities. Modern wire EDM machines are equipped with automatic wire threading (AWT) systems, allowing them to run unattended for many hours, even overnight or over weekends. Sinker EDM can be automated with robotic workpiece loading/unloading and automatic electrode changers.
• Laser Cutting: Also boasts high automation potential. Laser cutting systems are readily integrated with automated sheet loading/unloading systems, robotic part handling, and direct control from CAD/CAM data. They can also be combined with other laser processes like marking or engraving in a single setup.

Material Thickness Limitations and Process Flexibility

The ability to handle different material dimensions and create various features also distinguishes these processes.

Material Thickness

• EDM (Wire): A key strength of wire EDM is its ability to cut very thick sections of PCD (e.g., 10 mm, 20 mm, or even more, limited mainly by the machine’s Z-axis travel) while maintaining high accuracy, good surface finish on the cut walls, and excellent parallelism. The quality of the cut remains relatively consistent throughout the thickness.
• Laser Cutting: Most efficient and provides the best cut quality on thinner PCD materials (typically up to 2-3 mm, though some systems may handle up to 5-6 mm). While lasers can cut thicker PCD, the process becomes slower, cut quality (e.g., edge taper, striations, dross adherence) can degrade, and maintaining a straight, parallel kerf becomes more challenging.

Process Flexibility (Types of Features)

• EDM:
  • Wire EDM: Ideal for producing intricate 2D through-cut profiles, sharp internal corners (radius limited by wire diameter + spark gap), precise angles, and tapered cuts.
  • Sinker EDM: Uniquely capable of creating complex 3D cavities, blind features (not cutting all the way through), intricate surface textures, and forms that are not accessible to a wire. Essential for features like chipbreaker geometries directly on PCD surfaces.
• Laser Cutting: Highly flexible for 2D cutting and profiling. Excellent for drilling very small, precise holes (micro-drilling). Can also be used for engraving, marking, and controlled surface ablation to create shallow 3D features, though deep 3D shaping is typically slower than sinker EDM. Creating very sharp internal corners in thicker sections can be more challenging than with wire EDM due to beam characteristics.

A Practical Cost-Benefit Analysis: When to Choose EDM over Laser (or vice-versa)

Ultimately, the decision between EDM and laser cutting for PCD depends on weighing their respective strengths against the specific application requirements.

Consider EDM when:

• Supreme Cut Quality is Non-Negotiable: If you need the best possible surface finish, the sharpest cutting edges (e.g., for high-performance finishing tools in aerospace or medical applications), and minimal edge chipping.
• Machining Thick PCD Sections: For parts thicker than approximately 3-5 mm where maintaining parallelism and consistent cut quality through the depth is critical.
• Complex 3D Geometries or Blind Features are Required: Sinker EDM is often the only viable choice for features like intricate mold cavities or detailed surface textures on PCD.
• Internal Sharp Corners are Essential: Wire EDM can produce very small internal radii.
• The value of the part justifies potentially longer cycle times.

Consider Laser Cutting when:

• Speed and High Throughput are Primary Drivers: Especially for cutting or segmenting thinner PCD materials (e.g., < 2-3 mm thick) in high volumes, such as in the production of PCD tips for woodworking tools.
• Extremely Small Kerf Width is Needed: To maximize material utilization from expensive PCD wafers for relatively simple profiles.
• Micro-drilling or Fine Engraving is Required: Lasers excel at creating very small, precise holes or surface marks.
• A Slightly Different Edge Quality or a Larger HAZ (with non-ultrashort pulse lasers) is Acceptable for the application, in return for speed.
• “Cold Ablation” is Desired: If using advanced picosecond or femtosecond lasers to achieve minimal thermal impact, though these systems represent a higher investment.

Here’s a simplified comparison table:

(USP = Ultra-Short Pulse, e.g., picosecond/femtosecond lasers)

In some cases, a hybrid approach might even be optimal, using laser cutting for initial fast segmenting or rough shaping of PCD blanks, followed by EDM for the final precision machining of critical features and cutting edges. As always, a thorough evaluation of your specific needs against the capabilities and costs of each technology, including consultation with equipment and material suppliers, will lead to the best decision.

In Which Key Applications Does EDM Cutting of PCD Excel?

Knowing the capabilities of EDM for PCD, where does this technology truly shine and become the go-to solution in the real world?

EDM cutting of Polycrystalline Diamond (PCD) excels primarily in the manufacturing of high-performance PCD cutting tools, where intricate geometries, extreme precision, and superior edge quality are paramount. It’s also indispensable for creating custom PCD wear parts with complex profiles, sees widespread use in demanding industries like automotive, aerospace, and woodworking, and is highly suitable for prototyping, tool repair, and small to medium, specialized production runs.

These applications leverage EDM’s unique strengths to work with one of the hardest materials on earth. Let’s explore these areas more closely.

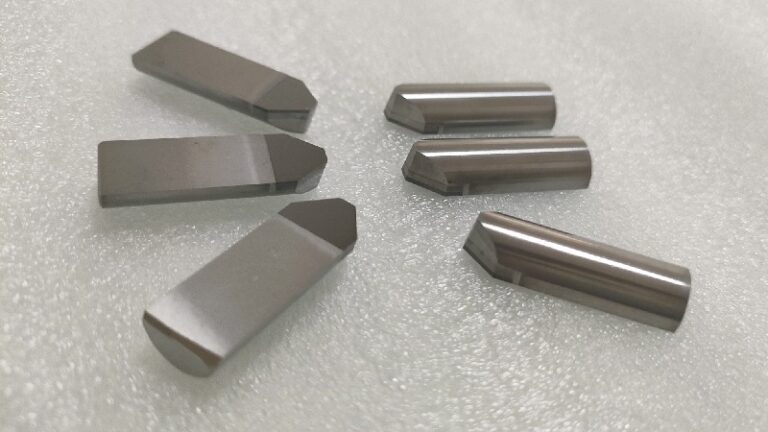

Manufacturing High-Performance PCD Cutting Tools (Inserts, End Mills, Drills, Reamers)

This is arguably the largest and most critical application area for PCD cutting tools⁷. The performance of a PCD cutting tool is directly tied to the precision of its geometry and the quality of its cutting edges, both of which EDM is exceptionally good at producing.

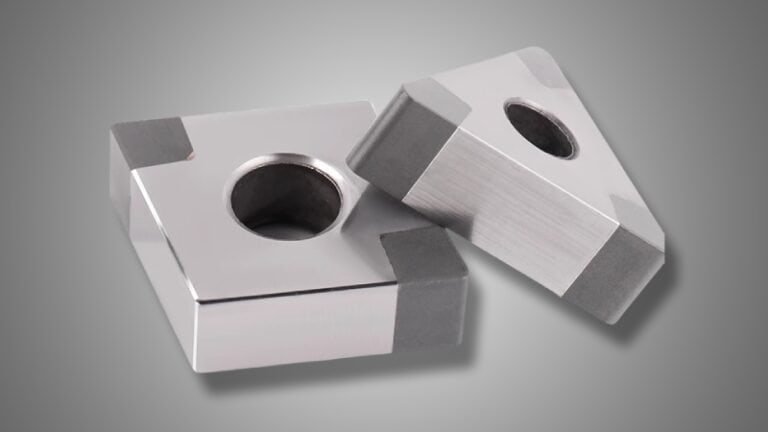

PCD Inserts

PCD inserts are used in turning, milling, and boring operations, especially for machining abrasive non-ferrous materials and composites.

• Why EDM? EDM is used to:
  • Precisely cut the PCD segments from larger blanks to the required insert shape (e.g., triangles, squares, rhombuses).
  • Create highly accurate cutting edge angles, nose radii, and chipbreaker geometries directly into the PCD surface. Sinker EDM is often employed for complex chipbreaker designs that improve chip control during machining.
  • Achieve the sharpness needed for clean cutting and fine surface finishes on the workpiece.
• Example: Manufacturing PCD inserts for finishing aluminum alloy engine blocks or turning high-silicon aluminum pistons, where tool life and workpiece finish are critical.

PCD End Mills and Drills

These rotary tools are used for milling and drilling abrasive materials.

• Why EDM?
  • Wire EDM is used to cut the intricate flute paths and form the primary cutting edges on PCD-tipped end mills and solid PCD end mills.
  • Sinker EDM or specialized grinding (often with prior EDM shaping) can be used to create complex point geometries and gash cutting edges on PCD drills.
  • EDM allows for the creation of features like through-tool coolant channels in PCD-veined drills, which are essential for efficient chip evacuation and cooling in deep-hole drilling of materials like CFRP.
• Example: Producing PCD drills for making thousands of rivet holes in carbon fiber reinforced plastic (CFRP) aircraft fuselage sections, where consistent hole quality and long tool life are essential.

PCD Reamers

PCD reamers are used to achieve very tight tolerances and excellent surface finishes in pre-drilled holes.

• Why EDM? The precision of EDM is vital for:
  • Forming the exact diameter and geometry of the multiple cutting edges on a PCD reamer.
  • Ensuring all cutting edges are on the same cutting plane and at the correct helix angle for smooth, chatter-free reaming.
• Example: Manufacturing PCD reamers used in the automotive industry to finish valve guide holes or cylinder bores in engine components to micron-level accuracy.

Creating Intricate Profiles and Custom Features in PCD Wear Parts

PCD’s incredible hardness and wear resistance make it an excellent material for components subjected to extreme abrasion or erosion, not just cutting tools.

• Why EDM?
  • Complex Shapes: Wear parts often have unique, non-standard shapes tailored to specific machinery or applications. EDM can machine these intricate profiles and internal features that would be impossible with conventional methods.
  • Precision Fit: Many wear parts need to fit precisely within an assembly. EDM delivers the necessary dimensional accuracy.
  • Thick Sections: Some wear components are made from relatively thick PCD segments (e.g., 3mm to 10mm or more), and wire EDM is adept at cutting these thicker sections cleanly and accurately.
• Examples of PCD Wear Parts made with EDM:
  • Nozzles: PCD nozzles for abrasive waterjet cutting systems or for dispensing abrasive slurries, where the orifice geometry and wear resistance are critical. EDM shapes the precise internal profile of the nozzle.
  • Guiding Elements: PCD guide pads, rest pads, or anvils used in high-wear industrial machinery, such as in can-making processes or wire drawing.
  • Bearings and Sliding Components: Custom PCD bearings or low-friction sliding components for specialized equipment operating in harsh environments.
  • Custom Dies: Small PCD dies or forming tools for specific manufacturing processes involving abrasive materials.

Common Industry Uses: Automotive, Aerospace, Woodworking, and Electronics

The PCD tools and wear parts shaped by EDM find critical applications across several demanding industries:

• Automotive Industry:
  • Application: Machining aluminum alloys (especially high-silicon), metal matrix composites (MMCs), and other abrasive materials used in engine blocks, cylinder heads, pistons, transmission components, and wheels.
  • EDM’s Role: Creating PCD milling cutters, turning inserts, reamers, and drills that offer significantly longer tool life and allow for higher cutting speeds compared to carbide tools, leading to increased productivity.
• Aerospace Industry:
  • Application: Machining lightweight, high-strength, and highly abrasive materials like carbon fiber reinforced plastics (CFRP), glass fiber reinforced plastics (GFRP), aluminum-lithium alloys, titanium alloys, and stacked combinations of these materials.
  • EDM’s Role: Producing specialized PCD drills, routers, and end mills that can cut these challenging materials without excessive wear, delamination, or thermal damage, ensuring the integrity of critical aerospace components⁸.
• Woodworking and Furniture Industry:
  • Application: Machining highly abrasive wood composites such as particleboard, Medium Density Fiberboard (MDF), High Density Fiberboard (HDF), laminated flooring, as well as hard natural woods.
  • EDM’s Role: Manufacturing PCD-tipped saw blades, router bits, shaper cutters, and profile cutters that provide exceptionally long tool life, reducing downtime for tool changes and improving finish quality. Wire EDM is extensively used to create the complex profiles on these tools.
• Electronics Industry:
  • Application: Machining abrasive ceramic substrates, composite enclosures for electronic devices, and other hard, brittle materials used in electronics manufacturing. Also, creating very small PCD components or features for micro-electro-mechanical systems (MEMS).
  • EDM’s Role: Providing the precision needed for these often miniaturized components. Micro-EDM techniques can create features with dimensions in the tens of microns.

Suitability for Prototyping, Repair, and Small to Medium Production Runs

Beyond mass production, EDM offers flexibility that is valuable in other contexts:

• Prototyping:
  • When developing new PCD tools or wear parts, EDM allows for the creation of prototypes directly from CAD designs without the need for expensive dedicated forming tools or molds. This speeds up the development cycle and allows for easier design iterations.
• Repair and Reconditioning:
  • PCD tools are expensive, so reconditioning them is often economically viable. EDM can be used to precisely resharpen worn cutting edges, repair chipped PCD segments, or even slightly modify existing tools for new applications, thus extending their usable life.
• Small to Medium Production Runs:
  • For specialized or custom PCD tools and components that are not required in massive quantities, EDM is an ideal manufacturing method. The setup time and machining process lend themselves well to batch production where flexibility and precision are more important than sheer volume. The ability of wire EDM machines to run unattended for long periods also makes it cost-effective for these types of runs.

In essence, wherever the extreme hardness and wear resistance of PCD need to be combined with intricate shapes, high precision, and excellent edge or surface quality, EDM is likely to be a key enabling technology.

Conclusion

Navigating the complexities of machining Polycrystalline Diamond reveals Electrical Discharge Machining as a uniquely capable and often indispensable technology. Its ability to achieve unparalleled precision, generate intricate geometries, and produce superior surface finishes on one of the hardest known materials makes it a cornerstone in the production of high-performance cutting tools and durable wear parts across demanding industries.

However, the journey with EDM also involves considerations of machining time, potential thermal effects, electrode management, and overall cost. As we’ve seen, these factors necessitate a careful evaluation against alternatives like laser cutting, which offers its own set of advantages, particularly in terms of speed for thinner materials.

Ultimately, determining if EDM is the optimal method for your PCD application hinges on a thorough understanding of your specific requirements. By weighing the critical need for precision, complexity, and edge quality against factors like production volume, material thickness, and budget, you can make an informed decision. Whether choosing EDM, laser, or even a hybrid approach, a clear grasp of each technology’s strengths and limitations is key to unlocking the full potential of Polycrystalline Diamond in your manufacturing endeavors.

References

1. Polycrystalline Diamond¹ – A comprehensive guide to Polycrystalline Diamond (PCD) tools from ZYDiamondTools.
2. heat-affected zone (HAZ)² – Wikipedia page defining and explaining the Heat Affected Zone in material processing.
3. PCD turning insert³ – ZYDiamondTools article on selecting and applying PCD chipbreaker inserts for optimal performance.
4. surface roughness values (Ra)⁴ – Get It Made UK technical explanation of surface roughness and its common parameters like Ra.
5. cost-effectiveness⁵ – ZYDiamondTools’ explanation of Total Cost of Ownership (TCO) for superhard tooling and abrasives.
6. picosecond or femtosecond⁶ – Machine Design article explaining the differences and applications of femtosecond and picosecond lasers.
7. PCD cutting tools⁷ – ZYDiamondTools guide on the main types of PCD cutting tools and how to choose the right one.
8. aerospace components⁸ – ZYDiamondTools article on why PCD tools are essential for machining aerospace components and selection criteria.
