PCD End Mills: Are They the Right Choice for Your Non-Ferrous & Abrasive Machining Needs?

Thinking about using PCD end mills for your machining, but unsure if they’re the right fit compared to standard carbide?

PCD (Polycrystalline Diamond) end mills are the optimal choice for machining highly abrasive non-ferrous materials (like high-silicon aluminum, composites, graphite, abrasive plastics) where extreme wear resistance, extended tool life, and superior surface finish are required. While having a higher initial cost and being unsuitable for ferrous metals, their long-term value in demanding applications often outweighs standard carbide end mills. Effective use requires careful selection (grade, geometry), rigid setups, precise tool holding, and appropriate operating parameters.

What Makes PCD End Mills Uniquely Suited for Specific Applications?

So, what really sets PCD end mills apart for certain demanding machining jobs?

Polycrystalline Diamond (PCD) end mills offer a unique combination of extreme hardness and wear resistance from their diamond cutting edges, fused onto a tough carbide body. This allows them to maintain sharpness and precision far longer than traditional carbide end mills, especially when machining highly abrasive non-ferrous materials or composites. Consequently, they deliver exceptional tool life, superior surface finishes, and consistent performance in specific, challenging applications.

Understanding the Polycrystalline Diamond Edge

Think of Polycrystalline Diamond, or PCD¹, as tiny synthetic diamond particles fused together under intense heat and pressure with a metallic binder (often cobalt) via a process called sintering². It’s not a single, large diamond crystal, but rather a tough composite material.

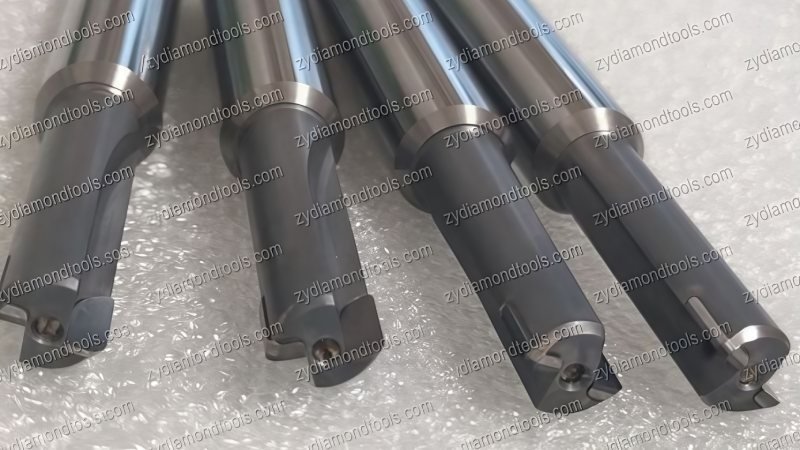

Now, imagine taking thin sections or “tips” of this incredibly hard PCD material and permanently attaching them to the cutting edges of an end mill, which is usually made from strong tungsten carbide. This is typically done through a process called brazing, essentially like soldering but much stronger, or sometimes through more advanced “veining” techniques where PCD fills channels in the carbide body.

Why does this matter for an end mill? This clever combination gives you the best of both worlds:

1. The Diamond Edge: Provides unparalleled hardness and wear resistance right where the cutting happens.
2. The Carbide Body: Offers the necessary toughness and rigidity to support those PCD tips and allows the tool to be shaped into complex end mill geometries (like specific helix angles or numbers of flutes) needed for efficient cutting.

This construction makes PCD end mills fundamentally different from solid carbide end mills, where the entire cutting head is made of carbide.

Key Benefits: Extreme Wear Resistance & Longevity

The standout feature of a PCD end mill is its incredible wear resistance. Diamond is the hardest known material, and while PCD isn’t quite as hard as single-crystal diamond, it’s vastly harder than tungsten carbide.

What does this mean in practice?

• Fighting Abrasion: When machining materials that act like sandpaper – think aluminum with high silicon content (common in automotive castings like engine blocks or pistons), or fiber-reinforced composites (like carbon fiber used in aerospace) – the cutting edges of standard tools wear down quickly. They become dull, lose their shape, and can no longer cut efficiently or accurately. PCD edges, however, resist this abrasive wear exceptionally well.
• Massive Tool Life Increases: Consequently, PCD end mills can last significantly longer than their carbide counterparts in the right applications. It’s not uncommon to see tool life increases ranging from 10 times to over 50 times, sometimes even higher in optimal conditions. For instance, in high-volume production of aluminum automotive components, a single PCD end mill might machine tens of thousands of parts, whereas carbide tools might need changing every few hundred or thousand parts.
• Consistency is Key: This extended life isn’t just about saving money on tools; it means more consistent part quality over longer production runs and drastically reduced machine downtime for tool changes. Imagine the productivity gains from not having to stop a machine constantly!

Achieving Superior Surface Finishes

Have you ever needed a near-mirror finish directly off the machine? PCD end mills often make this possible on non-ferrous materials. Here’s why:

• Sharpness Retention: Because PCD resists wear so well, the cutting edge stays incredibly sharp for a very long time. A sharp edge cuts cleanly, shearing the material rather than plowing through it.
• Reduced Friction & BUE: PCD has a lower coefficient of friction compared to carbide when cutting materials like aluminum. This, combined with the sharp edge, significantly reduces the tendency for workpiece material to stick to the tool tip (a problem called Built-Up Edge, or BUE³). BUE is a major cause of poor surface finish, as chunks can break off and mar the workpiece surface.
• Smoother Results: The outcome of sharp edges and low friction is a much smoother surface finish (lower Ra values⁴). In aluminum finishing operations, PCD end mills can often achieve surface roughness values below 0.4 micrometers (µm) Ra, sometimes even better, potentially eliminating the need for secondary polishing operations. This is crucial for components requiring tight tolerances or specific sealing surfaces.

Limitations: Why Not Use Them for Ferrous Metals?

Despite their amazing hardness, PCD end mills have a critical limitation: they generally cannot be used to machine ferrous materials like steel, stainless steel, or cast iron.

Why this restriction? It comes down to chemistry at high temperatures.

• Carbon Affinity: Iron (Fe), the main component of steel, has a strong chemical affinity for carbon, especially when things get hot during cutting.
• Diffusion Wear: PCD is, of course, made of carbon (diamond). At the high temperatures generated at the cutting edge when machining steel, the carbon atoms in the PCD rapidly diffuse into the iron-based workpiece material. Think of it like the diamond edge dissolving into the steel chip.
• Rapid Tool Failure: This chemical reaction leads to extremely rapid wear and breakdown of the PCD edge, making the tool unusable very quickly.

Therefore, attempting to use a PCD end mill on steel is inefficient and uneconomical. They are specialized tools designed to excel where carbide struggles – primarily in non-ferrous metals (especially aluminum and copper alloys) and highly abrasive non-metals (like composites, graphite, ceramics, and some plastics).

Which Materials and Operations Maximize the Value of PCD End Mills?

Knowing their unique strengths, which specific jobs really allow PCD end mills to deliver the biggest advantages?

PCD end mills truly excel and provide maximum value when machining highly abrasive non-ferrous materials and composites. They are particularly effective for high-silicon aluminum alloys, carbon fiber and glass fiber reinforced polymers (CFRP/GFRP), abrasive plastics, and graphite. Furthermore, they are ideal for operations demanding excellent surface finishes and long tool life, especially in high-speed finishing passes.

Excelling in Aluminum Alloys (High Silicon Content)

While standard carbide end mills handle many aluminum alloys well, PCD becomes the star player when silicon (Si) content increases. Aluminum alloys used in automotive castings (like engine blocks, cylinder heads, or pistons – e.g., A356, A380, A390 alloys) often contain significant amounts of silicon (typically over 7%, sometimes up to 18% or more).

Why is silicon a challenge? Silicon particles within the aluminum are extremely hard and abrasive. Machining these alloys with carbide end mills is like trying to cut metal mixed with fine sand – the cutting edges wear down very quickly. Learn more about PCD challenges with high-silicon aluminum⁵.

This is where PCD end mills shine:

• Abrasion Resistance: Their diamond edges effortlessly resist the abrasive wear from silicon particles.
• Reduced Built-Up Edge (BUE): Aluminum tends to stick to cutting tools, forming BUE, which ruins surface finish and tool life. PCD’s low friction surface minimizes this tendency.
• High-Speed Capability: PCD allows for much higher cutting speeds and feed rates (High-Speed Machining – HSM) in aluminum compared to carbide, drastically reducing cycle times.
• Longevity: In high-volume production of high-silicon aluminum parts, PCD end mills can outlast carbide tools by a factor of 10 to 50, or even more, leading to significant cost savings and process stability. Typical operations include face milling large surfaces, pocket milling complex shapes, and high-speed profiling.

Tackling Composites (CFRP, GFRP) Effectively

Modern composites, like Carbon Fiber Reinforced Polymers (CFRP) used extensively in aerospace and high-performance automotive parts, and Glass Fiber Reinforced Polymers (GFRP) used in wind turbine blades and marine applications, present major machining challenges. The reinforcing fibers (carbon or glass) are incredibly abrasive. Explore PCD’s role in aerospace composites⁶.

Using conventional carbide end mills leads to:

• Rapid dulling of the cutting edge.
• Increased cutting forces and heat.
• Potential delamination (layers separating), fiber pull-out, and poor edge quality.

PCD end mills are the preferred solution because:

• Fiber Cutting: The extreme hardness of PCD allows it to cleanly shear the abrasive fibers rather than pushing them around.
• Heat Reduction: Efficient cutting minimizes heat generation, protecting the polymer matrix of the composite from thermal damage.
• Wear Resistance: They withstand the intense abrasion, maintaining edge sharpness for much longer periods.

Specialized PCD end mill geometries, such as compression routers (which push forces inwards to prevent delamination at the top and bottom surfaces) or diamond-patterned burr tools, are often used for operations like edge trimming, slotting, and drilling/milling holes in composite structures.

Machining Abrasive Plastics and Resins

Many modern plastics, especially those used in demanding engineering applications, contain abrasive fillers to enhance their properties (like strength or heat resistance). Examples include:

• Glass-filled Nylons or Polycarbonates: Used in electronic device casings, automotive components, and industrial equipment housings.
• Phenolic Resins: Often used for electrical insulation or heat-resistant parts.
• Other Engineered Plastics with Mineral Fillers:

These fillers, while beneficial for the plastic’s properties, act like the silicon in aluminum or the fibers in composites – they rapidly wear down standard cutting tools. PCD end mills offer a significant advantage through their superior wear resistance, leading to:

• Longer tool life in continuous production.
• Better dimensional consistency from part to part.
• Cleaner cuts with less burring compared to using a rapidly dulling carbide tool.

They are well-suited for milling complex contours, pockets, or large volumes of these abrasive plastic materials.

Applications in Graphite Machining

Graphite is widely used to create electrodes for Electrical Discharge Machining (EDM), a process common in mold making for plastic injection or die casting. However, machining graphite is notoriously difficult. See why PCD is chosen for graphite⁷.

• Extreme Abrasiveness: Although it feels soft, graphite dust is highly abrasive and causes severe wear on cutting tools.
• Dust Contamination: The fine dust produced gets everywhere and can damage machine components if not properly contained.

For milling graphite electrodes, PCD end mills are essentially the industry standard. Carbide tools simply cannot withstand the abrasion for any reasonable length of time. PCD provides:

• Viable Tool Life: Offers dramatically longer life, making the process economically feasible.
• Sharpness for Detail: Maintains sharp edges needed to machine the intricate details often required for electrodes.

Special PCD grades optimized for graphite and efficient dust extraction systems are crucial for success in this application.

Best Practices for Finishing Operations

Beyond specific materials, PCD end mills are highly valued for finishing operations, especially where surface quality and dimensional accuracy are paramount.

Why use them for finishing?

• Sustained Sharpness: As discussed earlier, PCD edges stay sharp longer. This consistency is vital for achieving a uniform, high-quality surface finish across an entire part or batch.
• Minimal BUE: The reduced tendency for Built-Up Edge prevents material transfer and surface flaws, particularly critical on materials like aluminum.
• High-Speed Finishing: PCD allows very high cutting speeds during finishing passes, reducing cycle times without sacrificing surface quality.

Consider using PCD end mills for final passes on aluminum components requiring a near-mirror finish, for achieving tight tolerances on sealing surfaces, or for producing clean, smooth edges on trimmed composite parts. This can sometimes even eliminate the need for secondary operations like grinding or polishing, saving time and cost. Often, end mills designed specifically for finishing (e.g., with higher helix angles, more cutting edges, or polished flutes) are employed.

How Do PCD End Mills Compare to Solid Carbide End Mills?

When choosing an end mill, how exactly does PCD stack up against the common solid carbide option?

Compared to solid carbide end mills, PCD end mills offer vastly superior wear resistance and tool life, enabling much higher cutting speeds and better surface finishes, specifically when machining abrasive non-ferrous materials and composites. However, PCD tools have a significantly higher initial purchase price and cannot be used on steels or other ferrous materials, where carbide remains the versatile and cost-effective choice. The best option depends entirely on the material being machined and the production demands. You can read a detailed comparison of PCD vs. Carbide Tools⁸.

Here’s a quick comparison table:

Feature	PCD End Mill	Solid Carbide End Mill
Ideal Materials	High-Si Aluminum, Composites, Graphite, Abrasive Plastics, Non-Ferrous	Steels, Stainless, Cast Iron, Titanium, General Non-Ferrous, Less Abrasive Materials
Tool Life (in Ideal Materials)	Extremely Long (10x – 50x+ Carbide)	Significantly Shorter
Initial Cost	High	Low
Cutting Speed (in Ideal Materials)	Very High	Moderate to Low
Wear Resistance (in Ideal Materials)	Excellent	Fair to Poor
Versatility	Low (Non-Ferrous/Abrasive Only)	High (Most Materials)

Performance Differences in Target Materials

Let’s look at how they perform head-to-head in specific material groups:

• Abrasive Non-Ferrous (High-Si Al, Composites, Graphite): This is PCD’s home turf.
  • PCD End Mills: Maintain sharp edges, resist abrasion exceptionally well, minimize BUE on aluminum, cut composite fibers cleanly, and handle graphite abrasion. Performance stays consistent for a long time.
  • Carbide End Mills: Wear down quickly, lose sharpness, can suffer from BUE on aluminum leading to poor finish, may chip or cause delamination in composites due to dulling edges, and have very short life in graphite. Performance degrades rapidly.
• General Non-Ferrous (Lower Si Aluminum, Brass, Copper):
  • PCD End Mills: Still offer excellent life and finish, but the advantage over carbide might be less dramatic than in highly abrasive materials. High speeds are still a major benefit.
  • Carbide End Mills: Perform adequately, often providing a good balance of cost and performance for moderate production volumes or less abrasive non-ferrous alloys.
• Ferrous Materials (Steels, Stainless Steels, Cast Iron):
  • PCD End Mills: Not suitable. The chemical reaction between diamond (carbon) and iron at machining temperatures causes rapid tool failure.
  • Carbide End Mills: This is where carbide excels. Different grades and coatings are optimized for various ferrous materials, offering reliable performance and good tool life.

The key takeaway? Performance is material-dependent. PCD isn’t universally “better”; it’s dramatically better in its specific niche applications.

Tool Life Expectancy Comparison

One of the most significant differences is tool life, especially in those abrasive non-ferrous materials.

• PCD End Mills: As mentioned, expect lifespan increases ranging from 10 times to over 50 times that of carbide in materials like high-silicon aluminum or CFRP. Imagine running a production line where tool changes drop from multiple times per shift to perhaps once every few days or even weeks for the same operation. This means:
  • Massively reduced machine downtime.
  • Fewer operator interventions for tool changes.
  • More consistent part quality because the tool geometry stays stable longer.
• Carbide End Mills: In those same abrasive materials, carbide tools wear predictably but much faster. Their lifespan might be measured in hundreds of parts or sometimes just minutes of cutting time, depending on the severity of the application. However, in materials they are well-suited for (like steels), carbide end mills offer predictable and acceptable tool life.

This vast difference in longevity within PCD’s preferred materials is a primary driver for its adoption in high-volume manufacturing.

Cost Analysis: Initial Investment vs. Long-Term Value

There’s no getting around it: PCD end mills cost significantly more upfront than comparable solid carbide end mills. The price difference can be substantial, sometimes 5x, 10x, or even 15x higher or more. This initial cost can seem daunting.

However, focusing only on the purchase price is misleading. The smart way to compare is by looking at the Total Cost of Ownership (TCO)⁹ or the machining cost-per-part.

Here’s how the long-term value of PCD often plays out in the right application:

1. Divide High Cost by Massive Tool Life: Even though the PCD tool costs much more, it produces vastly more parts before needing replacement.
2. Factor in Reduced Downtime: Every time a machine stops for a tool change, production stops. Reducing tool changes saves valuable machine time and labor costs.
3. Consider Faster Cycle Times: Higher possible cutting speeds with PCD can mean parts are made faster, increasing overall throughput.
4. Account for Quality: Consistent performance reduces the chance of scrapped parts due to worn tools.

The Verdict?

• For high-volume production in abrasive non-ferrous materials or composites, the higher initial cost of PCD end mills is frequently offset by lower TCO and cost-per-part due to dramatically increased tool life and productivity.
• For short runs, prototyping, general-purpose machining across various materials (including steels), or less abrasive non-ferrous work, the lower initial cost and versatility of solid carbide often make it the more economical choice.

Differences in Suitable Cutting Parameters (Speeds & Feeds)

PCD’s material properties allow for significantly different cutting strategies compared to carbide, primarily concerning cutting speed.

• Cutting Speed (SFM or m/min): This is how fast the cutting edge moves across the workpiece surface.
  • PCD End Mills: Can typically run at much higher cutting speeds in materials like aluminum. While carbide might run at 1000-3000 SFM (approx. 300-900 m/min) in aluminum, PCD can often operate effectively above 3000 SFM, sometimes pushing towards 5000 SFM (approx. 1500 m/min) or even higher in optimal conditions. This directly translates to faster material removal.
  • Carbide End Mills: Operate at lower speeds in these materials to manage heat and wear.
• Feed Rate (IPM or mm/min): This is how fast the tool moves into the material.
  • PCD End Mills: Higher speeds often allow for increased feed rates as well, further boosting productivity. However, the optimal feed rate depends heavily on the specific tool geometry (number of flutes, edge preparation) and the depth/width of cut.
  • Carbide End Mills: Feed rates are typically lower, matched to the lower cutting speeds.

Important Consideration: Cutting parameters are not one-size-fits-all! Optimal speeds and feeds for any end mill (PCD or carbide) depend heavily on:

• The specific grade of PCD or carbide.
• The exact material being cut (even slight alloy variations matter).
• The end mill’s geometry (diameter, flute count, helix angle, edge prep).
• The rigidity and power of the machine tool.
• The coolant application (flood, MQL, dry).

Therefore, always start with the recommendations provided by the cutting tool manufacturer for your specific PCD end mill and application. Then, carefully perform test cuts and make adjustments to optimize performance and tool life for your unique situation. Simply applying generic high speeds without considering these factors can lead to poor results or even tool breakage.

How Do You Select the Right PCD End Mill for Your Job?

Okay, so you understand the benefits and know PCD might suit your material, but with so many options, how do you pick the exact right PCD end mill?

Selecting the correct PCD end mill involves carefully matching several key factors to your specific application. You need to choose the appropriate PCD grade based on the workpiece material’s abrasiveness and required finish. Selecting the right cutting geometry (like helix and rake angles) and the optimal number of flutes is crucial for cutting efficiency and chip evacuation. Additionally, considering the tool’s diameter and length for rigidity, and understanding the difference between brazed and veined PCD construction, will guide you to the most effective tool for the job.

Let’s break down these selection factors:

Matching PCD Grade to the Specific Material

PCD isn’t a single entity; manufacturers offer different “grades,” primarily varying by the size of the diamond particles sintered together. Think of it like choosing sandpaper grit – finer grit gives a smoother finish, while coarser grit removes material faster or lasts longer on rough jobs.

Here’s a general guide:

• Fine Grain PCD (e.g., ~2-5 µm diamond size):
  • Characteristics: Creates the sharpest possible cutting edge, leading to the best potential surface finish. Excellent wear resistance.
  • Best For: Finishing operations, materials where surface quality is critical (many aluminum alloys), less abrasive plastics. Might be slightly less resistant to heavy impacts or shock than coarser grades.
• Medium Grain PCD (e.g., ~10 µm diamond size):
  • Characteristics: Offers a good balance between wear resistance, edge sharpness, and toughness. A versatile choice.
  • Best For: General-purpose machining in many aluminum alloys (including moderately high silicon content), some composites (CFRP/GFRP).
• Coarse Grain PCD (e.g., ~25-30 µm+ diamond size):
  • Characteristics: Provides maximum abrasion resistance and toughness due to the larger diamond structure. Edge sharpness is slightly reduced compared to fine grain.
  • Best For: Highly abrasive materials like high-silicon aluminum (>12% Si), Metal Matrix Composites (MMCs), graphite, or demanding roughing operations in composites.

Crucial Note: PCD grade naming and specific properties can vary significantly between tool manufacturers. Always consult your tooling supplier’s technical data and recommendations to select the optimal grade for their specific tools based on your exact workpiece material and machining operation (roughing vs. finishing).

Choosing the Correct Geometry (Helix Angle, Rake Angle)

The geometry of the end mill’s cutting edges dramatically affects how it interacts with the material. Two key angles are:

• Helix Angle: This is the angle of the spiral flutes.
  • Lower Helix (e.g., 10°-25°): Creates a stronger cutting edge, often better for roughing or situations with less stability. Can sometimes increase cutting forces.
  • Higher Helix (e.g., 30°-45°+): Promotes smoother cutting action and helps lift chips out of the cut more efficiently, particularly helpful in aluminum. Often preferred for finishing passes to achieve better surface quality. The cutting edge might be slightly less robust than a low helix design.
  • Specialized Helix/Flutes: For composites, tools like compression routers use opposing helix angles to prevent delamination on the top and bottom surfaces. Burr-style cutters have unique non-helix patterns.
• Rake Angle: This is the angle of the cutting face relative to the cutting direction.
  • Positive Rake: The cutting face angles back from the edge. This creates a sharper edge effect, reduces cutting forces, and helps prevent BUE, making it ideal for most aluminum machining with PCD.
  • Neutral or Low Positive Rake: Provides a stronger edge, sometimes used in very abrasive materials or for interrupted cuts where edge chipping is a concern.

Remember: The best geometry depends on the material, the operation (roughing/finishing), and the desired outcome. Check manufacturer catalogs for geometries optimized for specific tasks, such as high-helix finishers for aluminum or specialized routers for composites.

Determining the Optimal Number of Flutes

The number of flutes (cutting edges) on an end mill influences chip evacuation, feed rate capability, and finish quality.

• Fewer Flutes (e.g., 1, 2, or 3):
  • Advantage: Larger space (gullet) between cutting edges allows for better chip evacuation. This is critical in materials like aluminum that produce long, stringy chips, preventing chip packing and tool failure.
  • Use Case: Often preferred for heavy roughing, deep slotting, or plunging operations, especially in aluminum. Consider examples like a PCD 2-Flute Center Cutting End Mill¹⁰.
• More Flutes (e.g., 4, 5, 6, or more):
  • Advantage: With more cutting edges engaged per revolution, you can typically run higher feed rates, increasing productivity. More flutes also generally provide better stability and can produce a finer surface finish.
  • Use Case: Ideal for finishing operations, shallow radial cuts, or machining materials that produce smaller, more manageable chips (like graphite or some composites). The smaller gullets mean chip evacuation needs careful management. A 4-Flute PCD Milling Cutter¹¹ is an example.

The choice often involves balancing the need for chip space against the desire for higher feed rates and better finish. For PCD end mills, 2 or 3 flutes are common for aluminum roughing/general purpose, while 3 to 6+ flutes might be used for finishing or in materials like graphite.

Considering Diameter and Length Requirements

Tool dimensions are fundamental for stability and reaching the workpiece features:

• Diameter: Select a diameter appropriate for the slot, pocket, or profile being machined. Larger diameters are inherently more rigid.
• Length of Cut (LOC): Must be slightly longer than the deepest feature you need to machine in a single axial pass.
• Overall Length (OAL) / Reach: The tool needs sufficient reach to access the cutting zone without the holder colliding with the workpiece or fixture.
• Rigidity Rule: Always choose the shortest possible end mill (both OAL and LOC) with the largest practical diameter that can successfully perform the required operation. Why? Longer, thinner tools deflect more easily under cutting forces, leading to vibration (chatter), poor surface finish, inaccurate dimensions, and potentially chipping the brittle PCD edge. Maximizing rigidity is key for successful PCD machining.

Brazed vs. Veined PCD Construction

How the PCD cutting edge is attached to the carbide body also matters:

• Brazed Tip Construction:
  • Process: A separate, pre-formed segment of PCD is attached to a machined pocket on the carbide tool body using a high-strength brazing alloy.
  • Characteristics: This is the most traditional and common method, especially for larger diameter tools or those needing substantial PCD segments. It allows for relatively thick PCD sections, enhancing wear life in some cases. Some brazed tools can potentially be repaired or retipped if damaged (though this depends on the tool and damage).
• Veined PCD Technology (or similar terms):
  • Process: A channel is ground into the carbide blank near the cutting edge. This channel is then filled with diamond powder and binder, which is sintered under high pressure and temperature directly within the tool body, forming an integral PCD “vein” along the edge.
  • Characteristics: This method can allow for sharper cutting edge preparations and potentially more complex flute geometries, as the PCD conforms precisely to the channel. It’s often used for smaller diameter end mills or tools requiring very fine edge quality. Repair is generally not possible.

The best choice often depends on the specific tool design offered by the manufacturer, the tool diameter, and the application requirements. Neither method is universally superior; they represent different manufacturing approaches with slightly different characteristics. Consult supplier information for details on the construction of their specific PCD end mill offerings.

What Are the Key Considerations for Using PCD End Mills Effectively?

You’ve selected your PCD end mill – now, what do you need to keep in mind to get the best performance and avoid costly problems?

To use PCD end mills effectively, prioritize machine tool rigidity and employ high-quality, low-runout tool holders. Select an appropriate coolant strategy (flood, MQL, or dry) based on the material and operation. It’s also crucial to regularly monitor for predictable tool wear and implement strategies to prevent edge chipping or fracture, recognizing that PCD is hard but brittle.

Following these considerations will help you maximize the impressive lifespan and performance potential of your PCD tooling investment.

Machine Tool Rigidity Requirements

PCD’s combination of extreme hardness and brittleness means machine tool rigidity is paramount.

• Why it Matters: Any vibration or deflection in the machine tool spindle, frame, or workholding gets transferred directly to the cutting edge. Because PCD is brittle, even small vibrations can lead to micro-chipping, poor surface finish, inaccurate dimensions, and potentially catastrophic tool failure.
• What Creates Rigidity:
  • A heavy, stable machine base and structure.
  • A well-maintained spindle with minimal play in the bearings.
  • Secure workholding that clamps the workpiece firmly without vibration.
  • Using the shortest possible tool overhang.

PCD end mills deliver their best results and longest life when used on robust, well-maintained machining centers designed for stability. Using them on older, less rigid machines increases the risk of premature failure.

Importance of Proper Tool Holding

Just as crucial as the machine itself is how you hold the PCD end mill. The goal is to minimize runout, which is the tool wobbling slightly off its perfect center of rotation as it spins.

• Why Runout is Bad for PCD:
  • Uneven Chip Load: If the tool wobbles, one cutting edge takes a bigger “bite” than the others, overloading that edge and increasing the risk of chipping.
  • Increased Vibration: Runout itself introduces harmful vibrations right at the cutting edge.
  • Reduced Accuracy & Finish: A wobbly tool cannot produce truly accurate dimensions or the best possible surface finish.
• Choosing the Right Holder: Standard ER collet chucks, especially if worn or lower quality, may not provide the necessary precision. For PCD end mills, especially when running at high speeds, strongly consider using high-precision tool holding systems:
  • Hydraulic Chucks: Offer excellent runout accuracy and vibration damping.
  • Shrink-Fit Holders: Provide outstanding rigidity and concentricity (low runout).
  • High-Quality Milling Chucks: Precision side-lock or power milling chucks can also work well.
• Target Runout: Aim for minimal Total Indicator Runout (T.I.R.)¹², ideally less than 0.0004 inches (or about 0.010 mm) measured near the tool tip. Consult your tool holder manufacturer or machining expert for specific runout recommendations based on your application and tool diameter. Proper tool balancing is also essential for high-speed operations.

Investing in good tool holding is investing in protecting your expensive PCD end mills and ensuring quality parts.

Coolant Strategy: Flood, MQL, or Dry Machining?

How you manage heat and chips during cutting also impacts PCD performance:

• Flood Coolant: Using a continuous flow of liquid coolant is common, especially for aluminum, where it effectively cools the tool and workpiece and flushes chips away. Ensure the coolant type is compatible with the material and well-maintained.
• Minimum Quantity Lubrication (MQL): An alternative that uses a fine mist of specialized oil carried by compressed air. It provides lubrication and some cooling with significantly less fluid. MQL can be very effective for aluminum and offers environmental benefits. Proper nozzle aiming is crucial to ensure the mist reaches the cutting zone.
• Dry Machining: Often used for composites (where liquid coolant can be absorbed) or graphite (where slurry is undesirable). Requires careful management of cutting parameters to avoid excessive heat buildup in the tool or workpiece. Compressed air blast is often essential for chip evacuation.

The best strategy depends on the material, the specific operation, and available equipment. Some PCD tool manufacturers may provide recommendations regarding coolant for their specific grades or coatings; checking their guidelines is advisable. Effective chip evacuation is always critical, regardless of the coolant strategy, to prevent re-cutting chips which can damage the PCD edge.

Recognizing and Managing Tool Wear

Even though PCD lasts a long time, it does eventually wear out. Unlike carbide which might fail more dramatically, PCD typically wears through gradual abrasion.

• Typical Wear Pattern: You’ll usually see a gradual rounding or flattening of the cutting edge flank (the side edge just below the sharp cutting tip), known as flank wear¹³.
• Signs of Wear:
  • Gradual degradation of surface finish on the workpiece.
  • Increased cutting noise or slight changes in machine sound.
  • Increased spindle load or power consumption (if monitored).
  • Changes in part dimensions requiring offset adjustments.
• Management: Monitor wear regularly through visual inspection (often requires magnification), checking part quality, and tracking the number of parts or cutting time. Establish predictable tool life expectations based on your specific application and replace tools before wear becomes excessive and risks causing sudden failure or scrapped parts. Consulting tool suppliers for guidance on acceptable wear limits can be helpful.

Avoiding Chipping and Premature Failure

The biggest enemy of PCD, due to its hardness combined with brittleness, is chipping or small fractures of the cutting edge. This is often caused by impact or excessive stress.

Here’s how to minimize the risk:

• Handle with Care: Never drop PCD tools or knock them against hard surfaces. They are tough in wear but fragile to impact.
• Ensure Stability: Address machine and tool holding rigidity issues (as discussed above). Vibration is a primary cause of chipping.
• Smooth Tool Paths: Avoid plunging directly into material whenever possible. Use ramping, helical interpolation, or arc-in entries for smoother engagement, especially in tough materials or when entering corners.
• Control Cutting Parameters: Stick within the manufacturer’s recommended speed and feed ranges. Overloading the tool, especially with excessive feed rates or depth of cut, can easily cause chipping.
• Prevent Chip Re-cutting: Ensure chips are effectively evacuated from the cutting zone. Packed chips can jam and impact the cutting edge.
• Inspect Carefully: Regularly inspect the cutting edges for any tiny chips. A small chip can concentrate stress and quickly lead to larger fractures and complete tool failure.

By understanding PCD’s characteristics and implementing careful machining practices focused on stability, precision, and controlled parameters, you can effectively prevent premature failure and fully leverage the benefits of this advanced cutting tool material.

Conclusion

Choosing the right cutting tool is critical for efficient and high-quality machining. PCD end mills represent a significant technological advancement, offering unparalleled performance in specific, challenging applications. While not a universal solution – being unsuitable for ferrous metals and carrying a higher initial cost – their exceptional wear resistance, ability to run at high speeds, and potential for superior surface finishes make them invaluable for machining abrasive non-ferrous metals like high-silicon aluminum, composites, graphite, and abrasive plastics.

The key to success with PCD lies in understanding its unique properties, carefully selecting the appropriate grade and geometry for the task, and implementing best practices regarding machine rigidity, tool holding, coolant strategy, and operating parameters. When applied correctly in their niche, PCD end mills can dramatically reduce tooling costs per part, increase productivity, and achieve quality levels unattainable with conventional carbide tooling. For demanding applications within their designated material groups, PCD end mills are often not just a good choice, but the best choice for long-term value and performance.

---

References

1. PCD¹ – ZYDiamondTools blog overview of Polycrystalline Diamond tools.
2. Sintering² – ScienceDirect topic page explaining the sintering process in materials science and engineering.
3. Built-Up Edge, or BUE³ – Wikipedia article defining and explaining the Built-Up Edge phenomenon in machining.
4. Ra values⁴ – Wikipedia section detailing surface roughness parameters, including Ra (arithmetical mean deviation).
5. PCD challenges with high-silicon aluminum⁵ – ZYDiamondTools article discussing tool wear challenges when machining high-silicon aluminum with PCD.
6. PCD’s role in aerospace composites⁶ – ZYDiamondTools blog post on the importance and selection of PCD tools for aerospace composite machining.
7. Why PCD is chosen for graphite⁷ – ZYDiamondTools article explaining the benefits and selection of PCD tools for machining graphite.
8. PCD vs. Carbide Tools⁸ – ZYDiamondTools blog post detailing the comparison between PCD and Carbide cutting tools.
9. Total Cost of Ownership (TCO)⁹ – ZYDiamondTools guide explaining TCO specifically for superhard tooling and abrasives.
10. PCD 2-Flute Center Cutting End Mill¹⁰ – ZYDiamondTools product page for a specific 2-flute PCD end mill.
11. 4-Flute PCD Milling Cutter¹¹ – ZYDiamondTools product page for a 4-flute PCD milling cutter example.
12. Total Indicator Runout (T.I.R.)¹² – GD&T Basics explanation of runout tolerance in engineering drawings and metrology.
13. Flank wear¹³ – Wikipedia section describing flank wear as a common type of cutting tool wear.
