Need to Groove Hard Materials? How to Select and Effectively Use CBN Grooving Tools

Dealing with grooves in hard materials and wondering how to choose and use CBN tools effectively?

Selecting and effectively using CBN grooving tools involves understanding their advantages over other materials, identifying suitable workpiece materials (like hardened steel, cast iron), choosing the right tool type (solid vs. tipped, ISO vs. proprietary), selecting the optimal CBN grade and geometry, and applying the correct cutting conditions (speed, feed, depth of cut, coolant).

Why Choose CBN Over Other Materials for Grooving?

So, when it comes to grooving tough materials, why should you consider using CBN tools instead of other options?

CBN (Cubic Boron Nitride)¹ tools are chosen for grooving challenging materials primarily due to their exceptional hardness allowing for superior wear resistance, excellent high-temperature performance enabling faster cutting speeds, ability to produce outstanding surface finishes, and significantly longer tool life compared to conventional materials like carbide, especially when machining hardened steels or cast irons.

Superior Hardness and Wear Resistance

Imagine trying to scratch something very hard, like a diamond. CBN is almost that hard! It’s much, much harder than the typical materials used in cutting tools, such as cemented carbide.

Because CBN is so hard, it resists getting worn down, especially when cutting tough, abrasive materials. This is called wear resistance. When grooving hardened steel parts, like components found in car transmissions or industrial machinery, a standard carbide tool might wear out quickly. However, a CBN tool edge stays sharp much longer. Consequently, the grooves it cuts remain consistent in size and shape for more parts, leading to better quality and less scrap. This reliable performance is crucial in high-precision manufacturing.

High Thermal Stability for Faster Cutting

Have you ever noticed how metal gets softer when it gets really hot? Many cutting tool materials, like carbide, lose some of their hardness when they heat up during cutting. But CBN is different; it stays incredibly hard even at very high temperatures generated during machining. This property is known as high thermal stability or “hot hardness.”

What does this mean for grooving? Since CBN doesn’t easily soften with heat, you can run machines much faster when using CBN tools. We’re talking significantly higher cutting speeds (Vc) compared to what’s safe for carbide, sometimes several times faster depending on the exact material being cut. For example, grooving a hardened steel gear might take much less time with CBN. As a result, manufacturers can produce parts more quickly, increasing their overall productivity and efficiency. Faster production often translates directly to lower manufacturing costs per part.

Improved Surface Finish on Hard Materials

Because CBN tools stay sharp longer (due to hardness) and can handle higher speeds (due to thermal stability), they often leave a much smoother surface on the workpiece after cutting. A sharp, stable cutting edge shears the metal cleanly instead of tearing or pushing it. Furthermore, CBN is generally less reactive with iron-based materials (like steel and cast iron) at high temperatures compared to other superhard materials. This reduces the chance of material sticking to the tool edge (known as built-up edge or BUE), which can damage the surface finish.

Consequently, using CBN grooving tools can often result in surface finishes (measured in Ra) that are smooth enough to meet final part requirements without needing extra steps. Imagine polishing a rough surface versus one that’s already quite smooth – the smooth one needs less work. In manufacturing, this might mean eliminating a slow and costly grinding operation after grooving. Achieving a fine finish directly from the grooving process saves valuable time and resources. For instance, manufacturers of hydraulic components often rely on CBN grooving to achieve the necessary smooth surfaces inside bores for proper sealing.

Longer Tool Life in Demanding Applications

Putting it all together – the extreme hardness, resistance to wear, and ability to handle heat – leads to one major benefit: significantly longer tool life. However, this advantage is most pronounced in specific, challenging situations, primarily when grooving very hard or abrasive ferrous materials.

Think about it: if you’re cutting relatively soft steel, a standard carbide tool might last a reasonable amount of time. But switch to grooving hardened steel above 45 HRC (a measure of hardness), or tough cast irons like CGI used in engine blocks, and that carbide tool might wear out extremely quickly. In contrast, a CBN tool in the same demanding application can often last many times longer, sometimes producing 10, 20, or even more times the number of parts before needing replacement.

Understanding Cost-Per-Part Advantage

While the initial purchase price of a CBN insert is higher than a carbide insert, the extended tool life changes the economic calculation. Consider the costs associated with not just the tool itself, but also the machine downtime needed for tool changes and the potential for scrap parts when a tool wears unexpectedly. Because CBN tools last so much longer in these demanding applications, they lead to fewer interruptions and more consistent production. Therefore, even though the tool costs more upfront, the final cost per finished part can be significantly lower when using CBN for grooving hard materials. This makes CBN a very economical choice for high-volume production of parts like brake rotors or hardened shafts.

What Materials Justify Using CBN Grooving Tools?

Okay, so CBN tools are great for tough jobs, but which specific materials really call for using them in grooving?

CBN grooving tools are typically justified for machining materials such as hardened steels (generally above 45 HRC), various cast irons (including grey, ductile, and especially CGI), abrasive powder metallurgy (PM) components, and extremely hard wear-resistant overlay coatings or hard facing alloys.

Hardened Steels (Typically > 45 HRC)

First, let’s talk about hardened steels. These are steel alloys that have been heat-treated to become very hard and strong. Hardness is often measured on the Rockwell C scale, or HRC – a higher number means a harder material. When steel gets harder than about 45 HRC, it becomes very difficult to cut effectively with traditional tools like cemented carbide. The extreme hardness causes carbide tools to wear down extremely fast.

This is where CBN shines. Because CBN is so incredibly hard itself, it can handle grooving these hardened steels effectively. It resists wear much better than carbide, allowing for consistent cutting. You’ll often find CBN being the go-to choice for grooving steels in the 55 HRC to 65 HRC range, or even harder.

It’s important to note that the exact hardness level where switching to CBN becomes most beneficial (typically above 45 HRC) can depend on the specific steel alloy and the demands of the grooving operation. Therefore, it’s always a good idea to consult with your tooling supplier to confirm the best approach for your particular hardened steel application.

Common examples where CBN is used for grooving hardened steel include:

• Automotive: Transmission shafts (for circlips or seals), axles, gear components (oil grooves).
• Bearings: Inner and outer bearing races (raceway grooves, seal grooves).
• Dies and Molds: Components requiring hard surfaces with precise grooves.

Cast Irons (Grey, Ductile, CGI)

Cast iron is another group of materials where CBN grooving tools prove highly valuable. While some softer cast irons can be grooved with carbide, CBN often brings significant advantages, especially in terms of tool life and cutting speed.

Here’s why:

• Grey Cast Iron: Common in engine blocks and machine bases. It can be abrasive, causing carbide tools to wear. CBN’s hardness resists this abrasive wear, leading to longer life, which is crucial in high-volume production like automotive engine parts.
• Ductile Iron: Tougher than grey cast iron, used for parts needing more strength like crankshafts or heavy-duty gears. Grooving ductile iron reliably often benefits from CBN’s wear resistance.
• Compacted Graphite Iron (CGI): Increasingly used in modern diesel engine blocks because it’s stronger and lighter than grey cast iron. However, CGI is notoriously difficult to machine. Its properties cause rapid tool wear with carbide, making CBN almost essential for achieving acceptable tool life and productivity when grooving CGI components, such as for piston ring grooves.

A very common high-volume application is grooving automotive brake discs (or rotors), often made from grey cast iron. Using CBN allows for high cutting speeds and long tool life, making the process very efficient.

Powder Metallurgy (PM / Sintered) Components

Powder metallurgy parts are made differently than traditional cast or forged parts. Metal powders are pressed into shape and then heated (sintered²) to bond them together. These materials are common in automotive parts like connecting rods or camshaft lobes.

Even if a PM part doesn’t feel extremely hard overall, it can be very abrasive to cutting tools due to the nature of the sintered particles. This abrasiveness can quickly wear down carbide tools during grooving. CBN, with its superior hardness and wear resistance, handles these abrasive characteristics much better. Consequently, it provides longer and more predictable tool life when grooving PM components, ensuring consistent part quality.

Hard Facing Alloys / Overlay Coatings

Sometimes, parts need extreme wear resistance only on certain surfaces. Manufacturers might apply a very hard layer of material using welding or thermal spray processes – this is called hard facing or applying an overlay coating. These layers are designed to be incredibly hard and resist wear, using materials like cobalt-based alloys (e.g., Stellite™), nickel-based alloys, or special iron-based alloys.

Trying to machine a groove into one of these super-hard layers is exceptionally challenging. Standard tools simply won’t last. Because CBN is one of the hardest materials available for cutting tools, it’s often the required choice for effectively grooving these demanding hard-faced surfaces. Examples include putting seal grooves into hard-faced valve seats or pump components designed for harsh, abrasive environments. Without CBN, such operations might be impractical or impossible.

What Are the Main Types of CBN Grooving Tools Available?

When I look for CBN grooving tools, what are the main different kinds or formats I might come across?

The main types of CBN grooving tools available include inserts made either of solid CBN or with CBN tips brazed onto a carbide base; tooling systems that follow standard ISO specifications or are proprietary designs from specific manufacturers; inserts offering single or multiple indexable cutting edges per piece; and tooling options with or without through-coolant delivery.

Solid CBN vs. Tipped CBN Inserts

Imagine you have a cutting tool insert, which is the small piece that does the actual cutting. When it’s a CBN insert, it mainly comes in two forms: solid or tipped.

• Solid CBN Inserts: Think of these like a solid gold coin – the main body, or at least a very significant portion, is made entirely of CBN material.

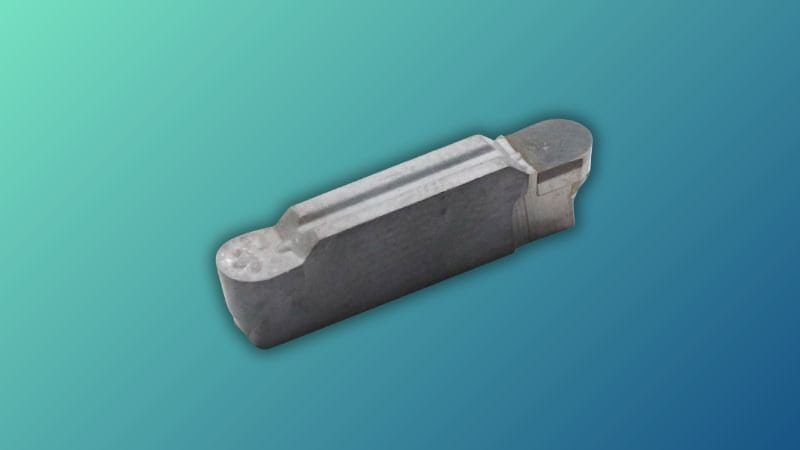

• Tipped CBN Inserts: These are more like a diamond ring. A small, precisely shaped piece of CBN (the “tip”) is attached, usually by a process called brazing (a type of high-strength joining), onto a base material. This base is typically made of tougher cemented carbide.

Why choose one over the other? They have different strengths:

In essence, tipped inserts are very common because they balance cost and performance well for many grooving jobs. The tough carbide base helps support the hard CBN tip, making them suitable for a wide range of conditions. Solid CBN might be chosen for extremely demanding applications requiring the maximum possible wear resistance or where the insert shape allows for many cutting edges to be used.

Standard ISO vs. Proprietary Grooving Systems

Now, let’s think about how these inserts fit into the machine. The inserts are held by tool holders, and these holders and inserts together form a tooling system. These systems generally fall into two categories:

• Standard ISO Systems: These follow international standards (like those set by ISO, the International Organization for Standardization³). This means an insert or holder made to a specific ISO standard should theoretically fit compatible tools from different manufacturers. Think of it like standard USB cables – one cable often works with devices from many brands. The main advantage here is flexibility and potentially wider availability and compatibility. Many common CBN grooving inserts are designed to fit standard ISO tool holders.
• Proprietary Grooving Systems: These are special designs created by a specific tool manufacturer. The inserts, holders, and how they fit together (the clamping mechanism) are unique to that brand. It’s like Apple’s specific charging cables that only fit their devices. Why do manufacturers do this? Often, these proprietary systems are engineered for higher performance. They might offer increased rigidity (less vibration), better chip control, unique coolant delivery, or allow for special groove shapes or depths that standard systems can’t easily achieve. The trade-off is that you are usually locked into buying both holders and inserts from that one supplier.

Choosing between them depends on your needs – do you prioritize flexibility and potential interchangeability (ISO), or maximum performance and specialized features for a tough job (proprietary)?

Number of Usable Cutting Edges per Insert

This refers to the total number of independent cutting edges available on a single insert piece through indexing before it needs to be discarded. This significantly impacts the tool’s overall economy.

• Single-Edge Inserts: Some specialized, custom, or very basic insert designs might offer only one usable cutting edge in total. Once this edge is worn, the entire insert must be replaced, offering lower economic value per piece compared to inserts with more indexing options.
• Multi-Edge Inserts (Most Common Indexables): Most modern indexable inserts, including typical MGMN and MRMN grooving inserts, can be designed with multiple edges to provide greater value. By periodically loosening and indexing (rotating end-to-end or flipping top-to-bottom) the insert in the tool holder, new, unused cutting edges can be presented to the workpiece.
• Economic Advantage: The key benefit of multi-edge inserts is economy. Although an insert offering more usable edges might cost more initially than one offering fewer, the cost per cutting edge is significantly lower because you get multiple uses from one insert body. This means fewer insert purchases are needed over time for the same amount of work, reducing overall tooling costs and minimizing machine downtime for tool changes.

Through-Coolant Tooling Options

Cutting generates heat, and managing chips (the little bits of metal removed) is crucial, especially in a confined space like a groove. Coolant (cutting fluid) helps with both. How the coolant gets to the cutting zone matters.

• External Coolant: This is like watering a plant with a spray bottle – coolant is sprayed onto the cutting area from nozzles outside the tool.
• Through-Coolant: This is more like using a soaker hose. Channels are built inside the tool holder (and sometimes even the insert itself) to deliver coolant directly and precisely to the cutting edge.

Why is through-coolant often preferred for demanding grooving, especially with CBN?

1. Targeted Cooling: It gets the coolant right where the heat is most intense, helping to maintain the tool’s integrity and prevent overheating of the workpiece, even though CBN itself handles heat well.
2. Effective Chip Evacuation: The high-pressure stream of coolant blasting out near the edge forcefully pushes chips out of the groove. This is vital in grooving, as chips getting stuck can break the tool or ruin the part finish. Good chip removal becomes even more important in deep or narrow grooves.

Many modern grooving systems, both standard and proprietary, are available with through-coolant capabilities, recognizing its importance for efficient and reliable grooving operations.

How Do You Select the Optimal CBN Grade and Insert Geometry?

Alright, I know I need a CBN grooving tool, but how do I pick the exact right one with all the different grades and shapes?

Selecting the optimal CBN grooving insert involves matching the CBN grade (low vs. high CBN content) to the material and cut type, choosing the correct edge preparation (like hone, chamfer, or T-land) for edge strength, picking an insert geometry designed for good chip control and the specific operation, and considering the required nose radius and groove width tolerance based on the part specifications.

Matching CBN Content (Low vs. High) to Application Severity

Think of the “grade” of CBN like a recipe for making the cutting material. A key ingredient in this recipe is the amount, or percentage, of tiny CBN crystals mixed with a binder material (something that holds it all together, often ceramic or metal). This mix affects how the tool performs. Generally, CBN grades fall into two main categories based on this recipe:

• Low CBN Content Grades: These typically have around 40% to 65% CBN mixed with mostly a ceramic binder. This combination creates a material that is extremely hard and very resistant to chemical wear, especially at the high temperatures reached when cutting hardened steels smoothly (known as continuous cutting). The downside is they can be a bit more brittle.
• High CBN Content Grades: These contain more CBN, perhaps 70% to 95%, often with a metallic or ceramic binder. Having more CBN generally makes the tool tougher (less likely to chip) and better at conducting heat away from the cutting edge. This makes high CBN grades a better choice for interrupted cuts (where the tool bumps in and out of the material, like grooving across a slot) or when machining materials like cast iron or powder metallurgy (PM) parts, which often require more toughness.

So, the basic idea is: use low CBN content for smooth, continuous cuts in hardened steel, and high CBN content for interrupted cuts or for grooving cast iron and PM materials. However, the specific grade names, their exact CBN percentages, and performance characteristics vary significantly between different tool manufacturers. It is essential to consult your supplier’s technical data or speak with their application specialists to select the most effective grade for your specific workpiece material and cutting situation.

Understanding Edge Preparations (Hone, Chamfer, T-Land)

Imagine the very tip of the cutting edge on the insert. If it were perfectly sharp, it might be too weak and chip easily, especially with a hard material like CBN. To prevent this, manufacturers carefully shape this tiny edge after the main insert is formed. This is called edge preparation⁴, and it adds strength. Think of sharpening a pencil: a super-fine point breaks easily, but slightly rounding the tip makes it last longer.

Here are the common types of edge preps for CBN grooving inserts:

• Hone: This is a very slight rounding of the sharp edge, like taking the finest edge off. It adds a bit of strength without significantly affecting how easily the tool cuts. Hones are often used for finishing operations or lighter cuts where edge chipping isn’t a major concern.
• Chamfer: This involves grinding a tiny, flat angled surface onto the cutting edge. It provides more strength than a hone and is common for general-purpose grooving. It might slightly increase the force needed to cut.
• T-Land (or Negative Land): This features a small, flat surface ground onto the edge, but it’s tilted slightly negative relative to the direction of the cut. This geometry provides the maximum edge strength. T-lands are the best choice for heavy interrupted cuts (like hitting gaps or holes while grooving) or rough grooving where protecting the edge from chipping is the top priority. The trade-off is that T-lands generally require more cutting force.

Choosing the right edge prep is crucial for tool life. Use lighter preps (hone) for stable, finishing cuts and heavier preps (chamfer, T-land) for tougher, interrupted conditions. Again, the availability of specific edge preps and their exact dimensions (like the radius of the hone or the angle/width of the chamfer/T-land) differs between suppliers. Always check the manufacturer’s recommendations for your application.

Choosing Geometry for Chip Control and Strength

Beyond the tiny edge preparation, the overall shape of the insert near the cutting edge also matters greatly. This is the insert geometry. It influences two critical things: how well the chip (the removed material) is managed, and the overall strength of the cutting corner.

Importance of Chip Control

In grooving, especially deep grooving, the chip needs to break into small, manageable pieces and get out of the way. Long, stringy chips can become tangled in the narrow groove, potentially breaking the insert or damaging the workpiece surface. Good insert geometry often includes features molded or ground into the top surface, called chipbreakers⁵, specifically designed to curl and break the chip effectively. Different chipbreaker designs work best for different materials (e.g., steel vs. cast iron) and cutting conditions.

Geometry for Strength

The shape of the insert around the cutting edge also affects its structural integrity. Some geometries are designed with more material supporting the corner, making them inherently stronger and better suited for roughing (removing a lot of material quickly). Other geometries might be designed to be sharper, reducing cutting forces and producing better finishes, but they might be less robust.

Therefore, when selecting geometry, consider the goal: Do you need excellent chip control above all else? Are you roughing or finishing? What material are you cutting? Tool suppliers offer a range of geometries optimized for different scenarios and provide charts or guidance to help you choose the most suitable one. Selecting the wrong geometry can lead to poor chip control, shorter tool life, or bad surface finish.

Considering Nose Radius and Groove Width Tolerances

Finally, two precise dimensional details are critical when selecting a grooving insert:

• Nose Radius (RE): This is the small radius at the corner tip of the grooving insert. Think of the rounded corner on a rectangle. A larger nose radius makes the corner stronger and can sometimes improve surface finish, but it leaves a larger corresponding radius (fillet) at the bottom corners of the groove. A smaller nose radius creates a sharper corner in the groove (smaller fillet) but makes the insert corner weaker and potentially more prone to wear. The choice depends on what the part drawing requires for the groove corner and the need for corner strength. If the drawing allows, a larger radius is generally safer.
• Groove Width Tolerance: Grooving inserts are ground to very precise widths to ensure the finished groove meets the dimensional requirements specified on the engineering drawing. Inserts are available in different tolerance classes (how much the actual width can vary from the stated width). You must select an insert with a tolerance tight enough to meet the blueprint’s specifications for the groove width.

Before ordering, always carefully check the engineering drawing (blueprint) for the required groove width, its tolerance, and any specified corner radius at the bottom of the groove. Supplier catalogs clearly list the available nose radii and width tolerances for their CBN grooving inserts, allowing you to select the one that precisely matches the part requirements.

What Cutting Conditions Maximize CBN Grooving Performance?

Now that I’ve picked the right CBN grooving tool, how do I actually run it on the machine to get the best results?

Maximizing CBN grooving performance involves setting the correct cutting speed (Vc), typically much higher than carbide but specific to the grade and material; using an appropriate feed rate (Fn/Fz) that balances productivity with tool security; managing the depth of cut (Ap) strategy, often using multiple passes for deep grooves; and applying coolant effectively (often wet/through-coolant for steels) based on the application.

Establishing Optimal Cutting Speed (Vc) Ranges

Cutting speed (Vc)⁶ simply means how fast the surface of the part moves past the tool’s cutting edge. It’s usually measured in surface feet per minute (sfm) or meters per minute (m/min).

A key reason for using CBN, as we discussed earlier, is its ability to handle high temperatures. This allows you to run machines at much higher cutting speeds compared to using carbide tools, especially when grooving hardened materials. Running faster means making parts quicker! While CBN might allow speeds 2, 3, or even more times faster than carbide in some cases, finding the perfect speed is crucial.

The optimal cutting speed isn’t a single magic number. It depends greatly on several factors:

• The exact material being cut and its hardness.
• The specific CBN grade you selected (some grades like higher speeds than others).
• How rigid and stable your machine setup is (less vibration allows higher speeds).
• Whether the groove involves interruptions (like cutting across a hole).

Running too slow fails to take advantage of CBN’s capabilities, while running too fast can cause the tool to wear out prematurely or even break. Because the ideal speed range varies so much, it is absolutely essential to consult the cutting tool supplier’s recommendations for the specific CBN grade you are using and the material you are machining. They provide starting values, which you will likely need to fine-tune on your machine for the best balance of productivity and tool life.

Setting Appropriate Feed Rates (Fn / Fz)

Feed rate⁷ tells us how quickly the tool advances along or into the workpiece. It can be measured per revolution of the part (Fn, in mm/rev or inch/rev) or sometimes per cutting edge (Fz). This determines how thick a “chip” of material the tool removes with each pass or revolution.

Choosing the right feed rate involves finding a balance. A higher feed rate removes material faster, which is good for getting the job done quickly. However, pushing the tool too fast (too high a feed rate) during grooving can cause problems:

• It increases the force on the tool, which can lead to vibration or potentially break the narrow, sometimes brittle CBN grooving insert.
• It generates more heat.
• It can result in a rougher surface finish on the groove walls and bottom.
• It puts extra stress on the cutting edge preparation.

Generally, for CBN grooving, machinists often use moderate feed rates. The strategy is usually to maximize the cutting speed (Vc) that CBN allows, while using a feed rate that ensures a stable cut, good chip formation, acceptable surface finish, and reasonable tool life. Finishing passes will always use lower feed rates than roughing passes to achieve better accuracy and smoothness.

Similar to cutting speed, the optimal feed rate depends heavily on the CBN grade, insert geometry (especially the chipbreaker), material, depth of cut, and machine stability. Start with the feed rate recommended by your tool supplier for your specific situation and adjust based on how the tool performs – look at the chips being made, check the surface finish, and monitor tool wear.

Managing Depth of Cut (Ap) Strategy

Depth of cut (Ap) in grooving refers to how deep the insert plunges into the material radially with each pass. How you manage this depth is important for success.

Key considerations include:

• Groove Dimensions: For shallow grooves, it might be possible to cut the full depth in a single pass. However, for deeper or narrower grooves, this can be risky.
• Chip Evacuation: The deeper the groove, the harder it is for chips to get out. Taking multiple shallower passes can make chip removal much easier and prevent chip jamming, which can break the tool.
• Tool Strength: Grooving inserts are relatively slender compared to turning inserts. Taking too large a depth of cut puts significant stress on the insert and the tool holder, increasing the risk of failure, especially in hard materials.
• Roughing and Finishing: A common strategy is to use one or more “roughing” passes at a moderate depth of cut to remove most of the material quickly, leaving just a small amount (e.g., 0.1-0.2 mm or 0.004-0.008 inches) for a final, light “finishing” pass. This finishing pass uses a shallow depth and often a lower feed rate to achieve the final dimension accurately and produce a smooth surface finish.

It’s generally wise to start with a conservative depth of cut strategy, especially when dealing with deep grooves, difficult materials, or less rigid setups. Taking multiple passes might seem slower initially, but it often leads to more reliable results and better overall tool life compared to risking tool breakage with overly aggressive single passes.

Coolant Application: Dry, Wet, or MQL?

Managing heat and chips is critical when machining, particularly with the high speeds often used in CBN grooving. Coolant (cutting fluid) plays a big role here. There are a few main ways to approach coolant application:

• Dry Machining: Cutting with no liquid coolant. Thanks to CBN’s excellent heat resistance, this is sometimes possible, especially when machining certain cast irons which produce powdery chips that are easier to remove with an air blast. The benefits are a cleaner process and no coolant costs. However, the risks include higher temperatures at the tool and workpiece, potentially shorter tool life in some cases, and difficulty removing chips from the groove.
• Wet Machining (Flood Coolant): This involves using a continuous, generous flow of liquid coolant (usually a water-based emulsion or sometimes cutting oil) directed at the cutting zone. This is the most common approach and generally provides the best cooling, lubrication, and chip flushing action. Using tool holders with through-coolant capability (where coolant flows through the holder directly to the cutting edge) is highly effective for grooving, as it delivers coolant precisely where needed and forcefully flushes chips out.
• Minimum Quantity Lubrication (MQL): This uses a very small amount of oil mixed with compressed air to create a fine mist aimed at the cutting zone. It provides lubrication with minimal fluid, offering environmental benefits and leaving parts cleaner. However, MQL requires specialized equipment and careful setup to ensure the mist effectively reaches the bottom of a potentially deep groove.

Which method is best? It depends. For grooving hardened steels with CBN, wet machining using flood coolant, especially through-coolant, is often strongly recommended to manage the high temperatures and ensure chips are reliably cleared from the groove. Cast irons might allow for successful dry cutting more often. MQL can be a good alternative to flood coolant if the system is properly implemented for the grooving application. Always check the recommendations from your CBN tool supplier, as some CBN grades perform best under specific coolant conditions (wet or dry).

Conclusion

Successfully using CBN tools for grooving hard materials offers significant advantages in productivity, tool life, and part quality. However, it’s not simply a matter of using any CBN tool. Achieving optimal results requires careful consideration of several factors discussed here: understanding why CBN excels, identifying the right materials where it provides value, knowing the available tool types, meticulously selecting the appropriate CBN grade and insert geometry, and finally, applying the correct cutting conditions.

Each step, from matching the CBN content to the application’s severity, choosing the right edge preparation, to establishing optimal speeds, feeds, and coolant strategy, plays a vital role. Remember that recommendations vary widely based on the specific application, making supplier technical data and expert advice crucial. If navigating these options seems complex, or for personalized recommendations for your specific hard material grooving challenge, please contact us.
